SemiSupervisedSelfTrainingModel

Semi-supervised self-trained model for classification

Since R2020b

Description

You can use a semi-supervised self-training method to label unlabeled data by using the fitsemiself function. The resulting SemiSupervisedSelfTrainingModel object contains the fitted labels for the unlabeled observations (FittedLabels) and their scores (LabelScores). You can also use the SemiSupervisedSelfTrainingModel object as a classifier, trained on both the labeled and unlabeled data, to classify new data by using the predict function.

Creation

Create a SemiSupervisedSelfTrainingModel object by using fitsemiself.

Properties

FittedLabels — Labels fitted to unlabeled data

Read-only: categorical array | character array | logical vector | numeric vector | cell array of character vectors

This property is read-only.

Labels fitted to the unlabeled data, specified as a categorical or character array, logical or numeric vector, or cell array of character vectors. FittedLabels has the same data type as the class labels in the response variable in the call to fitsemiself. (The software treats string arrays as cell arrays of character vectors.)

Each row of FittedLabels represents the fitted label of the corresponding observation of UnlabeledX or UnlabeledTbl.

Data Types: single | double | logical | char | cell | categorical

LabelScores — Scores for fitted labels

Read-only: numeric matrix

This property is read-only.

Scores for the fitted labels, specified as a numeric matrix. LabelScores has size u-by-K, where u is the number of observations in the unlabeled data and K is the number of classes in ClassNames.

score(u,k) is the likelihood that the observation u belongs to class k, where a higher score value indicates a higher likelihood. The range of score values depends on the underlying classifier Learner.

Data Types: single | double

Learner — Underlying classifier

Read-only: classification model object

This property is read-only.

Underlying classifier, specified as a classification model object. fitsemiself uses this classifier in a loop to label and score the unlabeled data. You can use dot notation to display the parameter and hyperparameter values of the underlying classifier.

For example, if you specify 'Learner','svm' in the call to fitsemiself, then you can enter Mdl.Learner.KernelParameters to display the kernel parameters of the final support vector machine (SVM) model trained on both the labeled and unlabeled data.

Note

Because the Mdl.Learner model has some limitations (for example, lack of support for tabular data), avoid using it directly with its object functions, such as loss and predict. To predict on new data, use the predict object function of SemiSupervisedSelfTrainingModel.

CategoricalPredictors — Categorical predictor indices

Read-only: positive integer vector | []

This property is read-only.

Categorical predictor indices, specified as a positive integer vector. Assuming that the predictor data contains observations in rows, CategoricalPredictors contains index values corresponding to the columns of the predictor data that contain categorical predictors. If none of the predictors are categorical, then this property is empty ([]).

Data Types: double

ClassNames — Unique class labels

Read-only: categorical array | character array | logical vector | numeric vector | cell array of character vectors

This property is read-only.

Unique class labels used to label the unlabeled data, specified as a categorical or character array, logical or numeric vector, or cell array of character vectors. The order of the elements of ClassNames determines the order of the classes.

Data Types: single | double | logical | char | cell | categorical

PredictorNames — Predictor variable names

Read-only: cell array of character vectors

This property is read-only.

Predictor variable names, specified as a cell array of character vectors. The order of the elements of PredictorNames corresponds to the order in which the predictor names appear in the predictor data.

Data Types: cell

ResponseName — Response variable name

Read-only: character vector

This property is read-only.

Response variable name, specified as a character vector.

Data Types: char

Object Functions

predict

Label new data using semi-supervised self-trained classifier

Examples

Fit Labels to Unlabeled Data

Fit labels to unlabeled data by using a semi-supervised self-training method.

Randomly generate 60 observations of labeled data, with 20 observations in each of three classes.

rng('default') % For reproducibility

labeledX = [randn(20,2)*0.25 + ones(20,2);
            randn(20,2)*0.25 - ones(20,2);
            randn(20,2)*0.5];
Y = [ones(20,1); ones(20,1)*2; ones(20,1)*3];

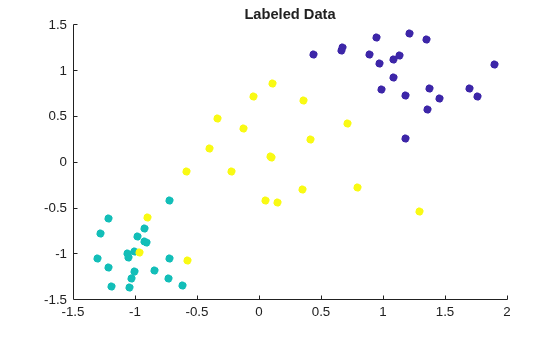

Visualize the labeled data by using a scatter plot. Observations in the same class have the same color. Notice that the data is split into three clusters with very little overlap.

scatter(labeledX(:,1),labeledX(:,2),[],Y,'filled')
title('Labeled Data')

Randomly generate 300 additional observations of unlabeled data, with 100 observations per class. For the purposes of validation, keep track of the true labels for the unlabeled data.

unlabeledX = [randn(100,2)*0.25 + ones(100,2);
              randn(100,2)*0.25 - ones(100,2);
              randn(100,2)*0.5];
trueLabels = [ones(100,1); ones(100,1)*2; ones(100,1)*3];

Fit labels to the unlabeled data by using a semi-supervised self-training method. The function fitsemiself returns a SemiSupervisedSelfTrainingModel object whose FittedLabels property contains the fitted labels for the unlabeled data and whose LabelScores property contains the associated label scores.

Mdl = fitsemiself(labeledX,Y,unlabeledX)

Mdl =
  SemiSupervisedSelfTrainingModel with properties:

             FittedLabels: [300×1 double]
              LabelScores: [300×3 double]
               ClassNames: [1 2 3]
             ResponseName: 'Y'
    CategoricalPredictors: []
                  Learner: [1×1 classreg.learning.classif.CompactClassificationECOC]


  Properties, Methods

Visualize the fitted label results by using a scatter plot. Use the fitted labels to set the color of the observations, and use the maximum label scores to set the transparency of the observations. Observations with less transparency are labeled with greater confidence. Notice that observations that lie closer to the cluster boundaries are labeled with more uncertainty.

maxLabelScores = max(Mdl.LabelScores,[],2);
rescaledScores = rescale(maxLabelScores,0.05,0.95);
scatter(unlabeledX(:,1),unlabeledX(:,2),[],Mdl.FittedLabels,'filled', ...
    'MarkerFaceAlpha','flat','AlphaData',rescaledScores);
title('Fitted Labels for Unlabeled Data')

Determine the accuracy of the labeling by using the true labels for the unlabeled data.

numWrongLabels = sum(trueLabels ~= Mdl.FittedLabels)

numWrongLabels =
7

Only 8 of the 300 observations in unlabeledX are mislabeled.

Classify New Data Using Model Trained on Labeled and Unlabeled Data

Use both labeled and unlabeled data to train a SemiSupervisedSelfTrainingModel object. Label new data using the trained model.

Randomly generate 15 observations of labeled data, with 5 observations in each of three classes.

rng('default') % For reproducibility
labeledX = [randn(5,2)*0.25 + ones(5,2);
            randn(5,2)*0.25 - ones(5,2);
            randn(5,2)*0.5];
Y = [ones(5,1); ones(5,1)*2; ones(5,1)*3];

Randomly generate 300 additional observations of unlabeled data, with 100 observations per class.

unlabeledX = [randn(100,2)*0.25 + ones(100,2);
              randn(100,2)*0.25 - ones(100,2);
              randn(100,2)*0.5];

Fit labels to the unlabeled data by using a semi-supervised self-training method. The function fitsemiself returns a SemiSupervisedSelfTrainingModel object whose FittedLabels property contains the fitted labels for the unlabeled data and whose LabelScores property contains the associated label scores.

Mdl = fitsemiself(labeledX,Y,unlabeledX)

Mdl =
  SemiSupervisedSelfTrainingModel with properties:

             FittedLabels: [300×1 double]
              LabelScores: [300×3 double]
               ClassNames: [1 2 3]
             ResponseName: 'Y'
    CategoricalPredictors: []
                  Learner: [1×1 classreg.learning.classif.CompactClassificationECOC]


  Properties, Methods

Randomly generate 150 observations of new data, with 50 observations per class. For the purposes of validation, keep track of the true labels for the new data.

newX = [randn(50,2)*0.25 + ones(50,2);
        randn(50,2)*0.25 - ones(50,2);
        randn(50,2)*0.5];
trueLabels = [ones(50,1); ones(50,1)*2; ones(50,1)*3];

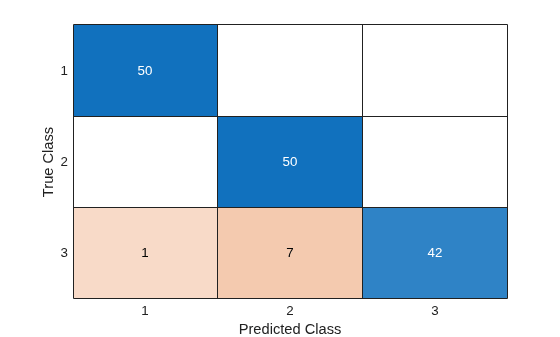

Predict the labels for the new data by using the predict function of the SemiSupervisedSelfTrainingModel object. Compare the true labels to the predicted labels by using a confusion matrix.

predictedLabels = predict(Mdl,newX);
confusionchart(trueLabels,predictedLabels)

Only 8 of the 150 observations in newX are mislabeled.

Tips

• You can use interpretability features, such as lime, shapley, partialDependence, and plotPartialDependence, to interpret how predictors contribute to predictions. You must define a custom function and pass it to the interpretability functions. The custom function must return labels for lime, scores of a single class for shapley, and scores of one or more classes for partialDependence and plotPartialDependence. For an example, see Specify Model Using Function Handle.

Version History

Introduced in R2020b
