lime

Local interpretable model-agnostic explanations (LIME)

Description

LIME explains a prediction of a machine learning model (classification or regression) for a query point by finding important predictors and fitting a simple interpretable model.

You can create a lime object for a machine learning model with a specified query point (queryPoint) and a specified number of important predictors (numImportantPredictors). The software generates a synthetic data set, and fits a simple interpretable model of important predictors that effectively explains the predictions for the synthetic data around the query point. The simple model can be a linear model (default) or decision tree model.

Use the fitted simple model to explain a prediction of the machine learning model locally, at the specified query point. Use the plot function to visualize the LIME results. Based on the local explanations, you can decide whether or not to trust the machine learning model.

Fit a new simple model for another query point by using the fit function.

Creation

Syntax

results = lime(blackbox)

results = lime(blackbox,X)

results = lime(blackbox,'CustomSyntheticData',customSyntheticData)

results = lime(___,'QueryPoint',queryPoint,'NumImportantPredictors',numImportantPredictors)

results = lime(___,Name,Value)

Description

results = lime(blackbox) creates the lime object results using the machine learning model object blackbox, which contains predictor data. The lime function generates samples of a synthetic predictor data set and computes the predictions for the samples. To fit a simple model, use the fit function with results.

results = lime(blackbox,X) creates a lime object using the predictor data in X.

results = lime(blackbox,'CustomSyntheticData',customSyntheticData) creates a lime object using the pregenerated, custom synthetic predictor data set customSyntheticData. The lime function computes the predictions for the samples in customSyntheticData.

results = lime(___,'QueryPoint',queryPoint,'NumImportantPredictors',numImportantPredictors) also finds the specified number of important predictors and fits a linear simple model for the query point queryPoint. You can specify queryPoint and numImportantPredictors in addition to any of the input argument combinations in the previous syntaxes.

results = lime(___,Name,Value) specifies additional options using one or more name-value arguments. For example, 'SimpleModelType','tree' specifies the type of simple model as a decision tree model.

Input Arguments

blackbox — Machine learning model to be interpreted

regression model object | classification model object | function handle

Machine learning model to be interpreted, specified as a full or compact regression or classification model object or a function handle.

• Full or compact model object — You can specify a full or compact regression or classification model object, which has a predict object function. The software uses the predict function to compute the predictions for the query point and the synthetic predictor data set.

  • If you specify a model object that does not contain predictor data (for example, a compact model), then you must provide predictor data using X or customSyntheticData.

  • lime does not support a model object trained with a sparse matrix. When you train a model, use a full numeric matrix or table for the predictor data where rows correspond to individual observations.

  • lime does not support a model object trained with more than one response variable.

  Regression Model Object

  Supported Model	Full or Compact Regression Model Object
  Ensemble of regression models	RegressionEnsemble, RegressionBaggedEnsemble, CompactRegressionEnsemble
  Gaussian kernel regression model using random feature expansion	RegressionKernel
  Gaussian process regression	RegressionGP, CompactRegressionGP
  Generalized additive model	RegressionGAM, CompactRegressionGAM
  Linear regression for high-dimensional data	RegressionLinear
  Neural network regression model	RegressionNeuralNetwork, CompactRegressionNeuralNetwork
  Regression tree	RegressionTree, CompactRegressionTree
  Support vector machine regression	RegressionSVM, CompactRegressionSVM

  Classification Model Object

  Supported Model	Full or Compact Classification Model Object
  Binary decision tree for multiclass classification	ClassificationTree, CompactClassificationTree
  Discriminant analysis classifier	ClassificationDiscriminant, CompactClassificationDiscriminant
  Ensemble of learners for classification	ClassificationEnsemble, CompactClassificationEnsemble, ClassificationBaggedEnsemble
  Gaussian kernel classification model using random feature expansion	ClassificationKernel
  Generalized additive model	ClassificationGAM, CompactClassificationGAM
  k-nearest neighbor model	ClassificationKNN
  Linear classification model	ClassificationLinear
  Multiclass model for support vector machines or other classifiers	ClassificationECOC, CompactClassificationECOC
  Naive Bayes model	ClassificationNaiveBayes, CompactClassificationNaiveBayes
  Neural network classifier	ClassificationNeuralNetwork, CompactClassificationNeuralNetwork
  Support vector machine for binary classification	ClassificationSVM, CompactClassificationSVM

• Function handle — You can specify a function handle that accepts predictor data and returns a column vector containing a prediction for each observation in the predictor data. The prediction is a predicted response for regression or a classified label for classification. You must provide the predictor data using X or customSyntheticData and specify the 'Type' name-value argument.

X — Predictor data

numeric matrix | table

Predictor data, specified as a numeric matrix or table. Each row of X corresponds to one observation, and each column corresponds to one variable.

X must be consistent with the predictor data that trained blackbox, stored in blackbox.X. The specified value must not contain a response variable.

• X must have the same data types as the predictor variables (for example, trainX) that trained blackbox. The variables that make up the columns of X must have the same number and order as in trainX.

  • If you train blackbox using a numeric matrix, then X must be a numeric matrix.

  • If you train blackbox using a table, then X must be a table. All predictor variables in X must have the same variable names and data types as in trainX.

• lime does not support a sparse matrix.

If blackbox is a model object that does not contain predictor data or a function handle, you must provide X or customSyntheticData. If blackbox is a full machine learning model object and you specify this argument, then lime does not use the predictor data in blackbox. It uses the specified predictor data only.

Data Types: single | double | table

customSyntheticData — Pregenerated, custom synthetic predictor data set

[] (default) | numeric matrix | table

Pregenerated, custom synthetic predictor data set, specified as a numeric matrix or table.

If you provide a pregenerated data set, then lime uses the provided data set instead of generating a new synthetic predictor data set.

customSyntheticData must be consistent with the predictor data that trained blackbox, stored in blackbox.X. The specified value must not contain a response variable.

• customSyntheticData must have the same data types as the predictor variables (for example, trainX) that trained blackbox. The variables that make up the columns of customSyntheticData must have the same number and order as in trainX

  • If you train blackbox using a numeric matrix, then customSyntheticData must be a numeric matrix.

  • If you train blackbox using a table, then customSyntheticData must be a table. All predictor variables in customSyntheticData must have the same variable names and data types as in trainX.

• lime does not support a sparse matrix.

If blackbox is a model object that does not contain predictor data or a function handle, you must provide X or customSyntheticData. If blackbox is a full machine learning model object and you specify this argument, then lime does not use the predictor data in blackbox; it uses the specified predictor data only.

Data Types: single | double | table

queryPoint — Query point

row vector of numeric values | single-row table

Query point at which lime explains a prediction, specified as a row vector of numeric values or a single-row table. queryPoint must have the same data type and number of columns as X, customSyntheticData, or the predictor data in blackbox.

If you specify numImportantPredictors and queryPoint, then the lime function fits a simple model when creating a lime object.

queryPoint must not contain missing values.

Example: blackbox.X(1,:) specifies the query point as the first observation of the predictor data in the full machine learning model blackbox.

Data Types: single | double | table

numImportantPredictors — Number of important predictors to use in simple model

positive integer scalar value

Number of important predictors to use in the simple model, specified as a positive integer scalar value.

• If 'SimpleModelType' is 'linear' (default), then the software selects the specified number of important predictors and fits a linear model of the selected predictors. Note that the software does not use unimportant predictors when fitting the linear model.

• If 'SimpleModelType' is 'tree', then the software specifies the maximum number of decision splits (or branch nodes) as the number of important predictors so that the fitted decision tree uses at most the specified number of predictors.

If you specify numImportantPredictors and queryPoint, then the lime function fits a simple model when creating a lime object.

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: lime(blackbox,'QueryPoint',q,'NumImportantPredictors',n,'SimpleModelType','tree') specifies the query point as q, the number of important predictors to use for the simple model as n, and the type of simple model as a decision tree model. lime generates samples of a synthetic predictor data set, computes the predictions for the samples, and fits a decision tree model for the query point using at most the specified number of predictors.

Options for Synthetic Predictor Data

DataLocality — Locality of synthetic data for data generation

'global' (default) | 'local'

Locality of the synthetic data for data generation, specified as the comma-separated pair consisting of 'DataLocality' and 'global' or 'local'.

• 'global' — The software estimates distribution parameters using the whole predictor data set (X or the predictor data in blackbox). The software generates a synthetic predictor data set with the estimated parameters and uses the data set for simple model fitting of any query point.

• 'local' — The software estimates the distribution parameters using the k-nearest neighbors of a query point, where k is the 'NumNeighbors' value. The software generates a new synthetic predictor data set each time it fits a simple model for the specified query point.

For more details, see LIME.

Example: 'DataLocality','local'

Data Types: char | string

NumNeighbors — Number of neighbors of query point

1500 (default) | positive integer scalar value

Number of neighbors of the query point, specified as the comma-separated pair consisting of 'NumNeighbors' and a positive integer scalar value. This argument is valid only when 'DataLocality' is 'local'.

If you specify a value larger than the number of observations in the predictor data set (X or the predictor data in blackbox), then lime uses all observations.

Example: 'NumNeighbors',2000

Data Types: single | double

NumSyntheticData — Number of samples to generate for synthetic data set

5000 (default) | positive integer scalar value

Number of samples to generate for the synthetic data set, specified as the comma-separated pair consisting of 'NumSyntheticData' and a positive integer scalar value.

Example: 'NumSyntheticData',2500

Data Types: single | double

Options for Simple Model

BetaTolerance — Relative tolerance on linear coefficients and bias term for linear simple model

1e-4 (default) | nonnegative scalar

Since R2023b

Relative tolerance on the linear coefficients and the bias term (intercept) for the linear simple model, specified as a nonnegative scalar.

This argument is valid only when the SimpleModelType value is "linear".

Let $$B_t=\left[{\beta }_t{}^{\prime }{b}_t\right]$$, that is, the vector of the coefficients and the bias term at fitting step t. If $${\Vert \frac{B_t-B_{t-1}}{B_t}\Vert }_2<\text{BetaTolerance}$$, then the fitting process for the linear simple model terminates.

Example: "BetaTolerance",1e-8

Data Types: single | double

KernelWidth — Kernel width

0.75 (default) | numeric scalar value

Kernel width of the squared exponential (or Gaussian) kernel function, specified as the comma-separated pair consisting of 'KernelWidth' and a numeric scalar value.

The lime function computes distances between the query point and the samples in the synthetic predictor data set, and then converts the distances to weights by using the squared exponential kernel function. If you lower the 'KernelWidth' value, then lime uses weights that are more focused on the samples near the query point. For details, see LIME.

Example: 'KernelWidth',0.5

Data Types: single | double

SimpleModelType — Type of simple model

'linear' (default) | 'tree'

Type of the simple model, specified as the comma-separated pair consisting of 'SimpleModelType' and 'linear' or 'tree'.

• 'linear' — The software fits a linear model by using fitrlinear for regression or fitclinear for classification.

• 'tree' — The software fits a decision tree model by using fitrtree for regression or fitctree for classification.

Example: 'SimpleModelType','tree'

Data Types: char | string

Options for Machine Learning Model

CategoricalPredictors — Categorical predictors list

vector of positive integers | logical vector | character matrix | string array | cell array of character vectors | 'all'

Categorical predictors list, specified as the comma-separated pair consisting of 'CategoricalPredictors' and one of the values in this table.

Value	Description
Vector of positive integers	Each entry in the vector is an index value indicating that the corresponding predictor is categorical. The index values are between 1 and p, where p is the number of predictors used to train the model. If blackbox uses a subset of input variables as predictors, then the software indexes the predictors using only the subset. The CategoricalPredictors values do not count the response variable, observation weight variable, or any other variables that the function does not use.
Logical vector	A true entry means that the corresponding predictor is categorical. The length of the vector is p.
Character matrix	Each row of the matrix is the name of a predictor variable. The names must match the variable names of the predictor data in the form of a table. Pad the names with extra blanks so each row of the character matrix has the same length.
String array or cell array of character vectors	Each element in the array is the name of a predictor variable. The names must match the variable names of the predictor data in the form of a table.
"all"	All predictors are categorical.

• If you specify blackbox as a function handle, then lime identifies categorical predictors from the predictor data X or customSyntheticData. If the predictor data is in a table, lime assumes that a variable is categorical if it is a logical vector, unordered categorical vector, character array, string array, or cell array of character vectors. If the predictor data is a matrix, lime assumes that all predictors are continuous.

• If you specify blackbox as a regression or classification model object, then lime identifies categorical predictors by using the CategoricalPredictors property of the model object.

lime does not support an ordered categorical predictor.

Example: 'CategoricalPredictors','all'

Data Types: single | double | logical | char | string | cell

Type — Type of machine learning model

'regression | 'classification'

Type of the machine learning model, specified as the comma-separated pair consisting of 'Type' and 'regression or 'classification'.

You must specify this argument when you specify blackbox as a function handle. If you specify blackbox as a regression or classification model object, then lime determines the 'Type' value depending on the model type.

Example: 'Type','classification'

Data Types: char | string

Options for Computing Distances

Distance — Distance metric

character vector | string scalar | function handle

Distance metric, specified as the comma-separated pair consisting of 'Distance' and a character vector, string scalar, or function handle.

• If the predictor data includes only continuous variables, then lime supports these distance metrics.

  Value	Description
  'euclidean'	Euclidean distance.
  'seuclidean'	Standardized Euclidean distance. Each coordinate difference between observations is scaled by dividing by the corresponding element of the standard deviation, S = std(PD,'omitnan'), where PD is the predictor data or synthetic predictor data. To specify different scaling, use the 'Scale' name-value argument.
  'mahalanobis'	Mahalanobis distance using the sample covariance of PD, C = cov(PD,'omitrows'). To change the value of the covariance matrix, use the 'Cov' name-value argument.
  'cityblock'	City block distance.
  'minkowski'	Minkowski distance. The default exponent is 2. To specify a different exponent, use the 'P' name-value argument.
  'chebychev'	Chebychev distance (maximum coordinate difference).
  'cosine'	One minus the cosine of the included angle between points (treated as vectors).
  'correlation'	One minus the sample correlation between points (treated as sequences of values).
  'spearman'	One minus the sample Spearman's rank correlation between observations (treated as sequences of values).
  @distfun	Custom distance function handle. A distance function has the form function D2 = distfun(ZI,ZJ) % calculation of distance ... where ZI is a 1-by-t vector containing a single observation. ZJ is an s-by-t matrix containing multiple observations. distfun must accept a matrix ZJ with an arbitrary number of observations. D2 is an s-by-1 vector of distances, and D2(k) is the distance between observations ZI and ZJ(k,:). If your data is not sparse, you can generally compute distance more quickly by using a built-in distance metric instead of a function handle.

• If the predictor data includes both continuous and categorical variables, then lime supports these distance metrics.

  Value	Description
  'goodall3'	Modified Goodall distance
  'ofd'	Occurrence frequency distance

For definitions, see Distance Metrics.

The default value is 'euclidean' if the predictor data includes only continuous variables, or 'goodall3' if the predictor data includes both continuous and categorical variables.

Example: 'Distance','ofd'

Data Types: char | string | function_handle

Cov — Covariance matrix for Mahalanobis distance metric

positive definite matrix

Covariance matrix for the Mahalanobis distance metric, specified as the comma-separated pair consisting of 'Cov' and a K-by-K positive definite matrix, where K is the number of predictors.

This argument is valid only if 'Distance' is 'mahalanobis'.

The default 'Cov' value is cov(PD,'omitrows'), where PD is the predictor data or synthetic predictor data. If you do not specify the 'Cov' value, then the software uses different covariance matrices when computing the distances for both the predictor data and the synthetic predictor data.

Example: 'Cov',eye(3)

Data Types: single | double

P — Exponent for Minkowski distance metric

2 (default) | positive scalar

Exponent for the Minkowski distance metric, specified as the comma-separated pair consisting of 'P' and a positive scalar.

This argument is valid only if 'Distance' is 'minkowski'.

Example: 'P',3

Data Types: single | double

Scale — Scale parameter value for standardized Euclidean distance metric

nonnegative numeric vector

Scale parameter value for the standardized Euclidean distance metric, specified as the comma-separated pair consisting of 'Scale' and a nonnegative numeric vector of length K, where K is the number of predictors.

This argument is valid only if 'Distance' is 'seuclidean'.

The default 'Scale' value is std(PD,'omitnan'), where PD is the predictor data or synthetic predictor data. If you do not specify the 'Scale' value, then the software uses different scale parameters when computing the distances for both the predictor data and the synthetic predictor data.

Example: 'Scale',quantile(X,0.75) - quantile(X,0.25)

Data Types: single | double

Properties

Specified Properties

You can specify the following properties when creating a lime object.

BlackboxModel — Machine learning model to be interpreted

Read-only: regression model object | classification model object | function handle

This property is read-only.

Machine learning model to be interpreted, specified as a regression or classification model object or a function handle.

The blackbox argument sets this property.

CategoricalPredictors — Categorical predictor indices

Read-only: vector of positive integers | []

This property is read-only.

Categorical predictor indices, specified as a vector of positive integers. CategoricalPredictors contains index values indicating that the corresponding predictors are categorical. The index values are between 1 and p, where p is the number of predictors used to train the model. If none of the predictors are categorical, then this property is empty ([]).

• If you specify blackbox using a function handle, then lime identifies categorical predictors from the predictor data X or customSyntheticData. If you specify the 'CategoricalPredictors' name-value argument, then the argument sets this property.

• If you specify blackbox as a regression or classification model object, then lime determines this property by using the CategoricalPredictors property of the model object.

lime does not support an ordered categorical predictor.

If 'SimpleModelType' is 'linear' (default), then lime creates dummy variables for each identified categorical predictor. lime treats the category of the specified query point as a reference group and creates one less dummy variable than the number of categories. For more details, see Dummy Variables with Reference Group.

Data Types: single | double

DataLocality — Locality of synthetic data for data generation

Read-only: 'global' | 'local'

This property is read-only.

Locality of the synthetic data for data generation, specified as 'global' or 'local'.

The 'DataLocality' name-value argument sets this property.

NumImportantPredictors — Number of important predictors to use in simple model

Read-only: positive integer scalar value

This property is read-only.

Number of important predictors to use in the simple model (SimpleModel), specified as a positive integer scalar value. This value might be greater than the number of predictors actually used to train the simple model. For more information, see LIME.

The numImportantPredictors argument of lime or the numImportantPredictors argument of fit sets this property.

Data Types: single | double

NumSyntheticData — Number of samples in synthetic data set

Read-only: positive integer scalar value

This property is read-only.

Number of samples in the synthetic data set, specified as a positive integer scalar value.

• If you specify customSyntheticData, then the number of samples in the custom synthetic data set sets this property.

• Otherwise, the 'NumSyntheticData' name-value argument of lime or the 'NumSyntheticData' name-value argument of fit sets this property.

Data Types: single | double

QueryPoint — Query point

Read-only: row vector of numeric values | single-row table

This property is read-only.

Query point at which lime explains a prediction using the simple model (SimpleModel), specified as a row vector of numeric values or single-row table.

The queryPoint argument of lime or the queryPoint argument of fit sets this property.

Data Types: single | double | table

Type — Type of machine learning model

Read-only: 'regression | 'classification'

This property is read-only.

Type of the machine learning model (BlackboxModel), specified as 'regression or 'classification'.

• If you specify blackbox as a regression or classification model object, then lime determines this property depending on the model type.

• If you specify blackbox using a function handle, then the 'Type' name-value argument sets this property.

X — Predictor data

Read-only: numeric matrix | table

This property is read-only.

Predictor data, specified as a numeric matrix or table.

Each row of X corresponds to one observation, and each column corresponds to one variable.

• If you specify the X argument, then the argument sets this property.

• If you specify the customSyntheticData argument, then this property is empty.

• If you specify blackbox as a full machine learning model object and do not specify X or customSyntheticData, then this property value is the predictor data used to train blackbox.

lime does not use rows that contain missing values and does not store the rows in X.

Data Types: single | double | table

Computed Properties

The software computes the following properties.

BlackboxFitted — Prediction for query point computed by machine learning model

Read-only: scalar

This property is read-only.

Prediction for the query point computed by the machine learning model (BlackboxModel), specified as a scalar. The prediction is a predicted response for regression or a classified label for classification.

Data Types: single | double | categorical | logical | char | string | cell

Fitted — Predictions for synthetic predictor data computed by machine learning model

Read-only: vector

This property is read-only.

Predictions for synthetic predictor data computed by the machine learning model (BlackboxModel), specified as a vector.

Data Types: single | double | categorical | logical | char | string | cell

ImportantPredictors — Important predictor indices

Read-only: vector of positive integers

This property is read-only.

Important predictor indices, specified as a vector of positive integers. ImportantPredictors contains the index values corresponding to the columns of the predictors used in the simple model (SimpleModel).

Data Types: single | double

SimpleModel — Simple model

Read-only: RegressionLinear model object | RegressionTree model object | ClassificationLinear model object | ClassificationTree model object

This property is read-only.

Simple model, specified as a RegressionLinear, RegressionTree, ClassificationLinear, or ClassificationTree model object. lime determines the type of simple model object depending on the type of the machine learning model (Type) and the type of the simple model ('SimpleModelType').

SimpleModelFitted — Prediction for query point computed by simple model

Read-only: scalar

This property is read-only.

Prediction for the query point computed by the simple model (SimpleModel), specified as a scalar.

If SimpleModel is ClassificationLinear, then the SimpleModelFitted value is 1 or –1.

• The SimpleModelFitted value is 1 if the prediction from the simple model is the same as BlackboxFitted (prediction from the machine learning model).

• The SimpleModelFitted value is –1 if the prediction from the simple model is different from BlackboxFitted. If the BlackboxFitted value is A, then the plot function displays the SimpleModelFitted value as Not A.

Data Types: single | double | categorical | logical | char | string | cell

SyntheticData — Synthetic predictor data

Read-only: numeric matrix | table

This property is read-only.

Synthetic predictor data, specified as a numeric matrix or a table.

• If you specify the customSyntheticData input argument, then the argument sets this property.

• Otherwise, lime estimates distribution parameters from the predictor data X and generates a synthetic predictor data set.

Data Types: single | double | table

Object Functions

fit	Fit simple model of local interpretable model-agnostic explanations (LIME)
plot	Plot results of local interpretable model-agnostic explanations (LIME)

Examples

Explain Prediction with Decision Tree Simple Model

Train a classification model and create a lime object that uses a decision tree simple model. When you create a lime object, specify a query point and the number of important predictors so that the software generates samples of a synthetic data set and fits a simple model for the query point with important predictors. Then display the estimated predictor importance in the simple model by using the object function plot.

Load the CreditRating_Historical data set. The data set contains customer IDs and their financial ratios, industry labels, and credit ratings.

tbl = readtable('CreditRating_Historical.dat');

Display the first three rows of the table.

head(tbl,3)

     ID      WC_TA    RE_TA    EBIT_TA    MVE_BVTD    S_TA     Industry    Rating
    _____    _____    _____    _______    ________    _____    ________    ______

    62394    0.013    0.104     0.036      0.447      0.142       3        {'BB'}
    48608    0.232    0.335     0.062      1.969      0.281       8        {'A' }
    42444    0.311    0.367     0.074      1.935      0.366       1        {'A' }

Create a table of predictor variables by removing the columns of customer IDs and ratings from tbl.

tblX = removevars(tbl,["ID","Rating"]);

Train a blackbox model of credit ratings by using the fitcecoc function.

blackbox = fitcecoc(tblX,tbl.Rating,'CategoricalPredictors','Industry');

Create a lime object that explains the prediction for the last observation using a decision tree simple model. Specify 'NumImportantPredictors' as six to find at most 6 important predictors. If you specify the 'QueryPoint' and 'NumImportantPredictors' values when you create a lime object, then the software generates samples of a synthetic data set and fits a simple interpretable model to the synthetic data set.

queryPoint = tblX(end,:)

queryPoint=1×6 table
    WC_TA    RE_TA    EBIT_TA    MVE_BVTD    S_TA    Industry
    _____    _____    _______    ________    ____    ________

    0.239    0.463     0.065      2.924      0.34       2

rng('default') % For reproducibility
results = lime(blackbox,'QueryPoint',queryPoint,'NumImportantPredictors',6, ...
    'SimpleModelType','tree')

results =
  lime with properties:

             BlackboxModel: [1×1 ClassificationECOC]
              DataLocality: 'global'
     CategoricalPredictors: 6
                      Type: 'classification'
                         X: [3932×6 table]
                QueryPoint: [1×6 table]
    NumImportantPredictors: 6
          NumSyntheticData: 5000
             SyntheticData: [5000×6 table]
                    Fitted: {5000×1 cell}
               SimpleModel: [1×1 ClassificationTree]
       ImportantPredictors: [2×1 double]
            BlackboxFitted: {'AA'}
         SimpleModelFitted: {'AA'}

Plot the lime object results by using the object function plot.

f = plot(results);

The plot displays two predictions for the query point, which correspond to the BlackboxFitted property and the SimpleModelFitted property of results.

The horizontal bar graph shows the sorted predictor importance values. lime finds the financial ratio variables MVE_BVTD and RE_TA as important predictors for the query point.

You can read the bar lengths by using data tips or Bar Properties. For example, you can find Bar objects by using the findobj function and add labels to the ends of the bars by using the text function.

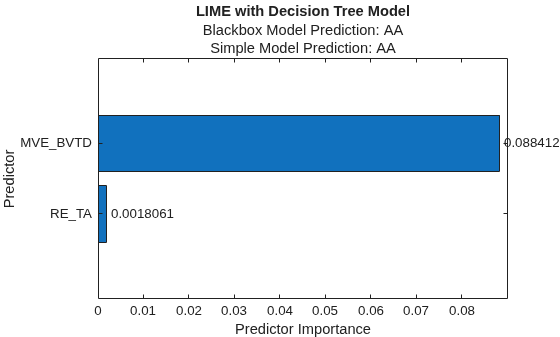

b = findobj(f,'Type','bar');
text(b.YEndPoints+0.001,b.XEndPoints,string(b.YData))

Alternatively, you can display the coefficient values in a table with the predictor variable names.

imp = b.YData;
flipud(array2table(imp', ...
    'RowNames',f.CurrentAxes.YTickLabel,'VariableNames',{'Predictor Importance'}))

ans=2×1 table
                Predictor Importance
                ____________________

    MVE_BVTD          0.088412
    RE_TA            0.0018061

Explain Prediction with Linear Simple Model

Train a regression model and create a lime object that uses a linear simple model. When you create a lime object, if you do not specify a query point and the number of important predictors, then the software generates samples of a synthetic data set but does not fit a simple model. Use the object function fit to fit a simple model for a query point. Then display the coefficients of the fitted linear simple model by using the object function plot.

Load the carbig data set, which contains measurements of cars made in the 1970s and early 1980s.

load carbig

Create a table containing the predictor variables Acceleration, Cylinders, and so on, as well as the response variable MPG.

tbl = table(Acceleration,Cylinders,Displacement,Horsepower,Model_Year,Weight,MPG);

Removing missing values in a training set can help reduce memory consumption and speed up training for the fitrkernel function. Remove missing values in tbl.

tbl = rmmissing(tbl);

Create a table of predictor variables by removing the response variable from tbl.

tblX = removevars(tbl,'MPG');

Train a blackbox model of MPG by using the fitrkernel function.

rng('default') % For reproducibility
mdl = fitrkernel(tblX,tbl.MPG,'CategoricalPredictors',[2 5]);

Create a lime object. Specify a predictor data set because mdl does not contain predictor data.

results = lime(mdl,tblX)

results =
  lime with properties:

             BlackboxModel: [1×1 RegressionKernel]
              DataLocality: 'global'
     CategoricalPredictors: [2 5]
                      Type: 'regression'
                         X: [392×6 table]
                QueryPoint: []
    NumImportantPredictors: []
          NumSyntheticData: 5000
             SyntheticData: [5000×6 table]
                    Fitted: [5000×1 double]
               SimpleModel: []
       ImportantPredictors: []
            BlackboxFitted: []
         SimpleModelFitted: []

results contains the generated synthetic data set. The SimpleModel property is empty ([]).

Fit a linear simple model for the first observation in tblX. Specify the number of important predictors to find as 3.

queryPoint = tblX(1,:)

queryPoint=1×6 table
    Acceleration    Cylinders    Displacement    Horsepower    Model_Year    Weight
    ____________    _________    ____________    __________    __________    ______

         12             8            307            130            70         3504

results = fit(results,queryPoint,3);

Plot the lime object results by using the object function plot.

plot(results)

The plot displays two predictions for the query point, which correspond to the BlackboxFitted property and the SimpleModelFitted property of results.

The horizontal bar graph shows the coefficient values of the simple model, sorted by their absolute values. LIME finds Horsepower, Model_Year, and Cylinders as important predictors for the query point.

Model_Year and Cylinders are categorical predictors that have multiple categories. For a linear simple model, the software creates one less dummy variable than the number of categories for each categorical predictor. The bar graph displays only the most important dummy variable. You can check the coefficients of the other dummy variables using the SimpleModel property of results. Display the sorted coefficient values, including all categorical dummy variables.

[~,I] = sort(abs(results.SimpleModel.Beta),'descend');
table(results.SimpleModel.ExpandedPredictorNames(I)',results.SimpleModel.Beta(I), ...
    'VariableNames',{'Expanded Predictor Name','Coefficient'})

ans=17×2 table
     Expanded Predictor Name      Coefficient
    __________________________    ___________

    {'Horsepower'            }    -3.5035e-05
    {'Model_Year (74 vs. 70)'}    -6.1591e-07
    {'Model_Year (80 vs. 70)'}    -3.9803e-07
    {'Model_Year (81 vs. 70)'}     3.4186e-07
    {'Model_Year (82 vs. 70)'}    -2.2331e-07
    {'Cylinders (6 vs. 8)'   }    -1.9807e-07
    {'Model_Year (76 vs. 70)'}      1.816e-07
    {'Cylinders (5 vs. 8)'   }     1.7318e-07
    {'Model_Year (71 vs. 70)'}     1.5694e-07
    {'Model_Year (75 vs. 70)'}     1.5486e-07
    {'Model_Year (77 vs. 70)'}     1.5151e-07
    {'Model_Year (78 vs. 70)'}     1.3864e-07
    {'Model_Year (72 vs. 70)'}     6.8949e-08
    {'Cylinders (4 vs. 8)'   }     6.3098e-08
    {'Model_Year (73 vs. 70)'}     4.9696e-08
    {'Model_Year (79 vs. 70)'}    -2.4822e-08
      ⋮

Specify Blackbox Model as Function Handle

Train a regression model and create a lime object using a function handle to the predict function of the model. Use the object function fit to fit a simple model for the specified query point. Then display the coefficients of the fitted linear simple model by using the object function plot.

Load the carbig data set, which contains measurements of cars made in the 1970s and early 1980s.

load carbig

Create a table containing the predictor variables Acceleration, Cylinders, and so on.

tbl = table(Acceleration,Cylinders,Displacement,Horsepower,Model_Year,Weight);

Train a blackbox model of MPG by using the TreeBagger function.

rng('default') % For reproducibility
Mdl = TreeBagger(100,tbl,MPG,'Method','regression','CategoricalPredictors',[2 5]);

lime does not support a TreeBagger object directly, so you cannot specify the first input argument (blackbox model) of lime as a TreeBagger object. Instead, you can use a function handle to the predict function. You can also specify options of the predict function using name-value arguments of the function.

Create the function handle to the predict function of the TreeBagger object Mdl. Specify the array of tree indices to use as 1:50.

myPredict = @(tbl) predict(Mdl,tbl,'Trees',1:50);

Create a lime object using the function handle myPredict. When you specify a blackbox model as a function handle, you must provide the predictor data and specify the 'Type' name-value argument. tbl includes categorical predictors (Cylinder and Model_Year) with the double data type. By default, lime does not treat variables with the double data type as categorical predictors. Specify the second (Cylinder) and fifth (Model_Year) variables as categorical predictors.

results = lime(myPredict,tbl,'Type','regression','CategoricalPredictors',[2 5]);

Fit a linear simple model for the first observation in tbl.

results = fit(results,tbl(1,:),4);
plot(results)

lime finds Horsepower, Displacement, Cylinders, and Model_Year as important predictors.

More About

Distance Metrics

A distance metric is a function that defines a distance between two observations. lime supports various distance metrics for continuous variables and a mix of continuous and categorical variables.

• Distance metrics for continuous variables

  Given an mx-by-n data matrix X, which is treated as mx (1-by-n) row vectors x₁, x₂, ..., x_mx, and an my-by-n data matrix Y, which is treated as my (1-by-n) row vectors y₁, y₂, ...,y_my, the various distances between the vector x_s and y_t are defined as follows:

  • Euclidean distance

    $$d_{st}^2=(x_s-y_t)(x_s-y_t{)}^{\prime }.$$

    The Euclidean distance is a special case of the Minkowski distance, where p = 2.

  • Standardized Euclidean distance

    $$d_{st}^2=(x_s-y_t)V^{-1}(x_s-y_t{)}^{\prime },$$

    where V is the n-by-n diagonal matrix whose jth diagonal element is (S(j))², where S is a vector of scaling factors for each dimension.

  • Mahalanobis distance

    $$d_{st}^2=(x_s-y_t)C^{-1}(x_s-y_t{)}^{\prime },$$

    where C is the covariance matrix.

  • City block distance

    $$d_{st}={\displaystyle \sum _{j=1}^n\left|x_{sj}-y_{tj}\right|}.$$

    The city block distance is a special case of the Minkowski distance, where p = 1.

  • Minkowski distance

    $$d_{st}=\sqrt[p]{{\displaystyle \sum _{j=1}^n{\left|x_{sj}-y_{tj}\right|}^p}}.$$

    For the special case of p = 1, the Minkowski distance gives the city block distance. For the special case of p = 2, the Minkowski distance gives the Euclidean distance. For the special case of p = ∞, the Minkowski distance gives the Chebychev distance.

  • Chebychev distance

    $$d_{st}={\max }_j\left\{\left|x_{sj}-y_{tj}\right|\right\}.$$

    The Chebychev distance is a special case of the Minkowski distance, where p = ∞.

  • Cosine distance

    $$d_{st}=\left(1-\frac{x_s{y^{\prime }}_t}{\sqrt{\left(x_s{x^{\prime }}_s\right)\left(y_t{y^{\prime }}_t\right)}}\right).$$

  • Correlation distance

    $$d_{st}=1-\frac{\left(x_s-{\overline{x}}_s\right){\left(y_t-{\overline{y}}_t\right)}^{\prime }}{\sqrt{\left(x_s-{\overline{x}}_s\right){\left(x_s-{\overline{x}}_s\right)}^{\prime }}\sqrt{\left(y_t-{\overline{y}}_t\right){\left(y_t-{\overline{y}}_t\right)}^{\prime }}},$$

    where

    $${\overline{x}}_s=\frac{1}{n}{\displaystyle \sum _j{x}_{sj}}$$

    and

    $${\overline{y}}_t=\frac{1}{n}{\displaystyle \sum _j{y}_{tj}}.$$

  • Spearman distance is one minus the sample Spearman's rank correlation between observations (treated as sequences of values):

    $$d_{st}=1-\frac{\left(r_s-{\overline{r}}_s\right){\left(r_t-{\overline{r}}_t\right)}^{\prime }}{\sqrt{\left(r_s-{\overline{r}}_s\right){\left(r_s-{\overline{r}}_s\right)}^{\prime }}\sqrt{\left(r_t-{\overline{r}}_t\right){\left(r_t-{\overline{r}}_t\right)}^{\prime }}},$$

    where

    • r_sj is the rank of x_sj taken over x_1j, x_2j, ...x_mx,j, as computed by tiedrank.

    • r_tj is the rank of y_tj taken over y_1j, y_2j, ...y_my,j, as computed by tiedrank.

    • r_s and r_t are the coordinate-wise rank vectors of x_s and y_t, that is, r_s = (r_s1, r_s2, ... r_sn) and r_t = (r_t1, r_t2, ... r_tn).

    • $${\overline{r}}_s=\frac{1}{n}{\displaystyle \sum _j{r}_{sj}}=\frac{\left(n+1\right)}{2}$$.

    • $${\overline{r}}_t=\frac{1}{n}{\displaystyle \sum _j{r}_{tj}}=\frac{\left(n+1\right)}{2}$$.

• Distance metrics for a mix of continuous and categorical variables

  • Modified Goodall distance

    This distance is a variant of the Goodall distance, which assigns a small distance if the matching values are infrequent regardless of the frequencies of the other values. For mismatches, the distance contribution of the predictor is 1/(number of variables).

  • Occurrence frequency distance

    For a match, the occurrence frequency distance assigns zero distance. For a mismatch, the occurrence frequency distance assigns a higher distance on a less frequent value and a lower distance on a more frequent value.

Algorithms

LIME

To explain a prediction of a machine learning model using LIME [1], the software generates a synthetic data set and fits a simple interpretable model to the synthetic data set by using lime and fit, as described in steps 1–5.

• If you specify the queryPoint and numImportantPredictors values of lime, then the lime function performs all steps.

• If you do not specify queryPoint and numImportantPredictors and specify 'DataLocality' as 'global' (default), then the lime function generates a synthetic data set (steps 1–2), and the fit function fits a simple model (steps 3–5).

• If you do not specify queryPoint and numImportantPredictors and specify 'DataLocality' as 'local', then the fit function performs all steps.

The lime and fit functions perform these steps:

1. Generate a synthetic predictor data set X_s using a multivariate normal distribution for continuous variables and a multinomial distribution for each categorical variable. You can specify the number of samples to generate by using the 'NumSyntheticData' name-value argument.

   • If 'DataLocality' is 'global' (default), then the software estimates the distribution parameters from the whole predictor data set (X or predictor data in blackbox).

   • If 'DataLocality' is 'local', then the software estimates the distribution parameters using the k-nearest neighbors of the query point, where k is the 'NumNeighbors' value. You can specify a distance metric to find the nearest neighbors by using the 'Distance' name-value argument.

   The software ignores missing values in the predictor data set when estimating the distribution parameters.

   Alternatively, you can provide a pregenerated, custom synthetic predictor data set by using the customSyntheticData input argument of lime.

2. Compute the predictions Y_s for the synthetic data set X_s. The predictions are predicted responses for regression or classified labels for classification. The software uses the predict function of the blackbox model to compute the predictions. If you specify blackbox as a function handle, then the software computes the predictions by using the function handle.

3. Compute the distances d between the query point and the samples in the synthetic predictor data set using the distance metric specified by 'Distance'.

4. Compute the weight values w_q of the samples in the synthetic predictor data set with respect to the query point q using the squared exponential (or Gaussian) kernel function

   $$w_q(x_s)=\exp \left(-\frac{1}{2}{\left(\frac{d(x_s,q)}{\sqrt{p}\sigma }\right)}^2\right).$$

   • x_s is a sample in the synthetic predictor data set X_s.

   • d(x_s,q) is the distance between the sample x_s and the query point q.

   • p is the number of predictors in X_s.

   • σ is the kernel width, which you can specify by using the 'KernelWidth' name-value argument. The default 'KernelWidth' value is 0.75.

   The weight value at the query point is 1, and then it converges to zero as the distance value increases. The 'KernelWidth' value controls how fast the weight value converges to zero. The lower the 'KernelWidth' value, the faster the weight value converges to zero. Therefore, the algorithm gives more weight to samples near the query point. Because this algorithm uses such weight values, the selected important predictors and fitted simple model effectively explain the predictions for the synthetic data locally, around the query point.

5. Fit a simple model.

   • If 'SimpleModelType' is 'linear' (default), then the software selects important predictors and fits a linear model of the selected important predictors.

     • Select n important predictors ($${\tilde{X}}_s$$) by using the group orthogonal matching pursuit (OMP) algorithm [2][3], where n is the numImportantPredictors value. This algorithm uses the synthetic predictor data set (X_s), predictions (Y_s), and weight values (w_q).

       Note that the software does not select unimportant predictors (with estimated 0 coefficients), so the number of selected important predictors might be less than n.

     • Fit a linear model of the selected important predictors ($${\tilde{X}}_s$$) to the predictions (Y_s) using the weight values (w_q). The software uses fitrlinear for regression or fitclinear for classification. For a multiclass model, the software uses the one-versus-all scheme to construct a binary classification problem. The positive class is the predicted class for the query point from the blackbox model, and the negative class refers to the other classes.

   • If 'SimpleModelType' is 'tree', then the software fits a decision tree model by using fitrtree for regression or fitctree for classification. The software specifies the maximum number of decision splits (or branch nodes) as the number of important predictors so that the fitted decision tree uses at most the specified number of predictors.

References

[1] Ribeiro, Marco Tulio, S. Singh, and C. Guestrin. "'Why Should I Trust You?': Explaining the Predictions of Any Classifier." In Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, 1135–44. San Francisco, California: ACM, 2016.

[2] Świrszcz, Grzegorz, Naoki Abe, and Aurélie C. Lozano. "Grouped Orthogonal Matching Pursuit for Variable Selection and Prediction." Advances in Neural Information Processing Systems (2009): 1150–58.

[3] Lozano, Aurélie C., Grzegorz Świrszcz, and Naoki Abe. "Group Orthogonal Matching Pursuit for Logistic Regression." Proceedings of the Fourteenth International Conference on Artificial Intelligence and Statistics (2011): 452–60.

Version History

Introduced in R2020b

R2023b: LIME supports BetaTolerance specification for linear simple models

If you compute LIME values by fitting a linear simple model (see SimpleModelType), you can specify the relative tolerance on the linear coefficients and the bias term of the simple model by using the BetaTolerance name-value argument. The default BetaTolerance value is 1e-4.

In R2023a, the relative tolerance on the linear coefficients of the linear simple model was 1e-8. In previous releases, the value was 1e-4.
