imregister

Intensity-based image registration

Syntax

moving_reg = imregister(moving,fixed,transformType,optimizer,metric)

[moving_reg,R_reg] = imregister(moving,Rmoving,fixed,Rfixed,transformType,optimizer,metric)

___ = imregister(___,Name,Value)

Description

moving_reg = imregister(moving,fixed,transformType,optimizer,metric) transforms the 2-D or 3-D grayscale image, moving, so that it is registered with the reference image, fixed. transformType defines the type of transformation to perform. metric defines the quantitative measure of similarity between the images to optimize. optimizer describes the method for optimizing the metric. The function returns the registered image, moving_reg.

[moving_reg,R_reg] = imregister(moving,Rmoving,fixed,Rfixed,transformType,optimizer,metric) transforms the spatially referenced image moving so that it is registered with the spatially referenced image fixed. Rmoving and Rfixed are spatial referencing objects that describe the world coordinate limits and the resolution of moving and fixed.

___ = imregister(___,Name,Value) specifies additional options with one or more name-value pair arguments.

Examples

Register Multimodal MRI Images with Optimizer

Read two images. This example uses two magnetic resonance (MRI) images of a knee. The fixed image is a spin echo image, while the moving image is a spin echo image with inversion recovery. The two sagittal slices were acquired at the same time but are slightly out of alignment.

fixed = dicomread("knee1.dcm");
moving = dicomread("knee2.dcm");

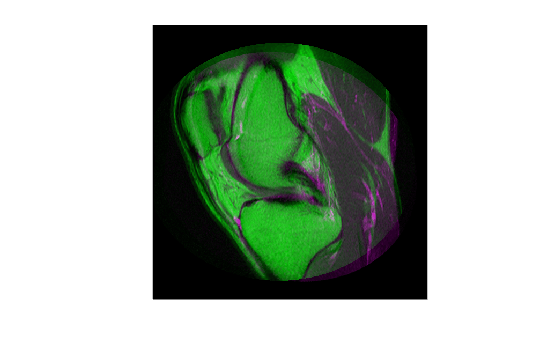

View the misaligned images.

imshowpair(fixed,moving,"Scaling","joint")

Create the optimizer and metric, specifying the modality as "multimodal" because the images come from different sensors.

[optimizer,metric] = imregconfig("multimodal")

optimizer =
  registration.optimizer.OnePlusOneEvolutionary

  Properties:
         GrowthFactor: 1.050000e+00
              Epsilon: 1.500000e-06
        InitialRadius: 6.250000e-03
    MaximumIterations: 100

metric =
  registration.metric.MattesMutualInformation

  Properties:
    NumberOfSpatialSamples: 500
     NumberOfHistogramBins: 50
              UseAllPixels: 1

Tune the properties of the optimizer to get the problem to converge on a global maxima and to allow for more iterations.

optimizer.InitialRadius = 0.009;
optimizer.Epsilon = 1.5e-4;
optimizer.GrowthFactor = 1.01;
optimizer.MaximumIterations = 300;

Perform the registration.

movingRegistered = imregister(moving,fixed,"affine",optimizer,metric);

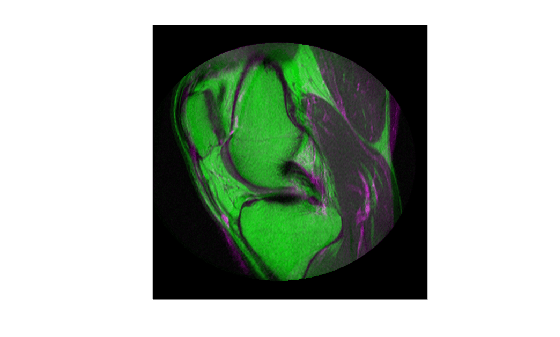

View the registered images.

imshowpair(fixed,movingRegistered,"Scaling","joint")

Input Arguments

moving — Image to be registered

numeric matrix | 3-D numeric array

Image to be registered, specified as numeric matrix representing a 2-D grayscale image or a 3-D numeric array representing a 3-D grayscale volume.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Rmoving — Spatial referencing information associated with image to be registered

imref2d object | imref3d object

Spatial referencing information associated with the image to be registered, specified as an imref2d object or imref3d object.

fixed — Reference image

numeric matrix | 3-D numeric array

Reference image in the target orientation, specified as numeric matrix representing a 2-D grayscale image or a 3-D numeric array representing a 3-D grayscale volume. The reference image must have the same dimensionality as the image to be registered, moving.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Rfixed — Spatial referencing information associated with reference image

imref2d object | imref3d object

Spatial referencing information associated with the reference (fixed) image, specified as an imref2d object or imref3d object.

transformType — Geometric transformation to be applied to image to be registered

"translation" | "rigid" | "similarity" | "affine"

Geometric transformation to be applied to the moving image, specified as one of the following values:

Value	Description
"translation"	(x,y) translation in 2-D, or (x,y,z) translation in 3-D.
"rigid"	Rigid transformation consisting of translation and rotation.
"similarity"	Nonreflective similarity transformation consisting of translation, rotation, and scale.
"affine"	Affine transformation consisting of translation, rotation, scale, and shear.

The "similarity" and "affine" transformation types do not support reflection.

Data Types: char | string

optimizer — Method for optimizing similarity metric

RegularStepGradientDescent or OnePlusOneEvolutionary optimizer object

Method for optimizing the similarity metric, specified as a RegularStepGradientDescent or OnePlusOneEvolutionary optimizer object.

metric — Image similarity metric to be optimized during registration

MeanSquares or MattesMutualInformation metric object

Image similarity metric to be optimized during registration, specified as a MeanSquares or MattesMutualInformation metric object.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: "DisplayOptimization",1 enables the verbose optimization mode.

DisplayOptimization — Verbose optimization flag

false (default) | true

Verbose optimization flag, specified as the logical value true or false. Controls whether imregister displays optimization information in the command window during the registration process.

Data Types: logical

InitialTransformation — Initial geometric transformation

affinetform2d object | affinetform3d object

Initial geometric transformation, specified as an affinetform2d or affinetform3d object.

PyramidLevels — Number of pyramid levels used during registration process

3 (default) | positive integer

Number of pyramid levels used during the registration process, specified as a positive integer.

Example: "PyramidLevels",4 sets the number of pyramid levels to 4.

Data Types: double

Output Arguments

moving_reg — Registered image

numeric matrix | 3-D numeric array

Registered image, returned as a 2-D numeric matrix representing a 2-D grayscale image or a 3-D numeric array representing a 3-D grayscale volume. Any fill pixels introduced that do not correspond to locations in the original image are 0.

R_reg — Spatial referencing information associated with registered image

imref2d object | imref3d object

Spatial referencing information associated with the registered image, returned as an imref2d object or imref3d object.

Tips

• Both imregtform and imregister use the same underlying registration algorithm. imregister performs the additional step of resampling moving to produce the registered output image from the geometric transformation estimate calculated by imregtform. Use imregtform when you want access to the geometric transformation that relates moving to fixed. Use imregister when you want a registered output image.

• Create an optimizer and metric with the imregconfig function before calling imregister. Getting good results from optimization-based image registration usually requires modifying optimizer or metric settings for the pair of images being registered. The imregconfig function provides a default configuration that should only be considered a starting point. For example, if you increase the number of iterations in the optimizer, reduce the optimizer step size, or change the number of samples in a stochastic metric, the registration improves to a point, at the expense of performance. See the output of imregconfig for more information on the different parameters that you can modify.

• If the spatial scaling of your images differs by more than 10%, resize them with imresize before registering them.

• Use imshowpair or imfuse to visualize the results of registration.

• You can use imregister in an automated workflow to register several images.

• When you have spatial referencing information about the image to be registered, specify the information to imregister using spatial referencing objects. This helps imregister converge to better results more quickly because scale differences can be taken into account.

Version History

Introduced in R2012a

R2022b: Uses affinetform2d or affinetform3d object for geometric transformations

Starting in R2022b, most Image Processing Toolbox™ functions create and perform geometric transformations using the premultiply convention. Accordingly, you can now specify the InitialTransformation name-value argument as an affinetform2d or affinetform3d object, which supports the premultiply convention.

Although you can still specify the InitialTransformation name-value argument as an affine2d or affine3d object, these objects are not recommended because they use the postmultiply convention. You can streamline your geometric transformation workflows by switching to the affinetform2d or affinetform3d object. For more information, see Migrate Geometric Transformations to Premultiply Convention.
