initialCondition

Initial condition representation for linear time-invariant systems

Description

An initialCondition object encapsulates the initial-condition information for a linear time-invariant (LTI) model. The object generalizes the numeric vector representation of the initial states of a state-space model so that the information applies to linear models of any form—transfer functions, polynomial models, or state-space models.

You can estimate and retrieve initial conditions when you identify a linear model using commands such as tfest or compare model response to measured input/output data using compare. The software estimates the initial condition value by minimizing the simulation or prediction error against the measured output data. You can then apply those initial conditions in a subsequent simulation, using commands such as sim or predict, to confirm model performance with respect to the same measurement data. Use the initialCondition command to create an initialCondition object from a state-space model specification or from any LTI model of a free response.

The initialCondition object can also be seen as a representation of the free response of a linear model. The simulation functions use this information to compute the model response in the following manner:

  1. Compute the forced response of the model to the input signal. The forced response is the standard simulation output when there are no specified initial conditions.

  2. Compute the impulse response of the model and scale the result to generate the free response of the model to the specified initial conditions.

  3. Add the forced response and the free response together to form the total system response.

The figure illustrates this process.

The top plot shows the forced response. The middle plot shows the free response. The bottom plot shows the total model response that sums the first two plots

For continuous systems (Ts = 0), the free response G(s) for the initial state vector x0 is

G(s)=C(sIA)1x0

Here, C is equivalent to the state-space measurement matrix C and A is equivalent to the state-space state matrix A.

For discrete systems (Ts >0), the free response G(z) is

G(z)=zC(zIA)1x0

The initialCondition object represents the free response in state-space form. The object is a structure with properties containing the state-space A and C matrices and the initial state vector x0. For idtf and idpoly models, using an initialCondition object is the only way to represent and use initial conditions for simulation. For idss models, you can use either an initialCondition object or a numeric initial state vector. When you obtain initial conditions ic for multiexperiment data, ic is an object array, with one initialCondition object for each experiment.

Creation

You can obtain an initialCondition object in one of four ways.

  • Model estimation — Specify that the estimation function return the estimated initial condition that corresponds to the estimation input/output data. For example, you can use the following command to obtain the estimated initial condition ic for a transfer function model sys that is estimated with input/output data z.

    [sys,ic] = tfest(z,2,1)
    For an example, see Obtain Estimated Initial Conditions.

  • Model-to-data comparison using any input/output data — Specify that compare return the estimated initial condition that the function estimates internally to support the fit assessment. For example, you can use the following command to obtain the initial condition ic for the linear model sys when determining the fit against input/output data z. yp is the simulated or predicted model output.

    [yp,fit,ic] = compare(z,sys)
    For an example, see Obtain Initial Conditions for New Data.

  • Direct construction — Use the initialCondition command to encapsulate the state-space form of a free-response model in an initialCondition object.

    ic = initialCondition(A,X0,C,Ts)
    For an example, see Construct initialCondition Object from State-Space Model.

  • Free-response model conversion — Use the initialCondition command to convert an LTI free-response model into an initialCondition object.

    ic = initialCondition(G)

    For an example, see Convert Free-Response Model to initialCondition Object.

For information on functions you can use to extract information from or transform initialCondition objects, see Object Functions.

Description

example

ic = initialCondition(A,X0,C,Ts) creates an initialCondition object that represents the free response to an initial condition, expressed in state-space form, of an LTI model.

dx=Axy=Cxx(0)=x0

ic stores this model in the form of properties. A and C correspond to a state-space realization of the model, X0 to the initial state vector x0, and Ts to the sample time. You can use ic to specify initial conditions when simulating any type of LTI system.

example

ic = initialCondition(G) creates an initialCondition object corresponding to a linear model G of the free response.

Input Arguments

expand all

Free-response model, specified as an LTI model with no inputs. In the continuous-time case, G must be strictly proper. In the discrete-time case, G must be biproper. For an example of using a free-response model to obtain an initialCondition object, see Convert Free-Response Model to initialCondition Object.

Properties

expand all

A matrix of the state-space realization of the LTI free response, specified as an Nx-by-Nx numeric matrix, where Nx is the number of states. For an example of using this property, see Obtain Estimated Initial Conditions.

Initial states of the state-space realization of the LTI free response, specified as a numeric vector of length Nx. For an example of using this property, see Obtain Estimated Initial Conditions.

C matrix of the state-space realization of the LTI free response, specified as an Ny-by-Nx numeric matrix, where Ny is the number of outputs. For an example of using this property, see Obtain Estimated Initial Conditions.

Sample time of the LTI free response, specified as one of the following:

  • Continuous-time model — 0

  • Discrete-time model with a specified sampling time — Positive scalar representing the sampling period expressed in the unit specified by the TimeUnit property of the model

  • Discrete-time model with unspecified sample time — –1

The sample time of an initialCondition object is the same as for the dynamic system model that the object corresponds to.

Object Functions

Functions applicable to initialCondition objects are those that can return, use, or convert the objects.

Initial Condition (IC) RoleLTI Function TypeSyntax ExampleExample Links
Return estimated IC objectsAll estimation functions, compare[sys,ic] = tfest(data,2,1)

Obtain Estimated Initial Conditions

Obtain Initial Conditions for Multiexperiment Data

Obtain Initial Conditions for New Data

Use IC objects for model responseOption sets for model response functionsopt = simOptions('InitialCondition',ic)Apply Initial Conditions in Simulation
Convert IC objects into Dynamic System Models (DSMs)DSM object functionsg = idtf(ic)Visualize Free Response to Initial Condition
Analyze models converted from IC objectsDSM analysis functionsy_g = impulse(g)Visualize Free Response to Initial Condition

expand all

tfestEstimate transfer function
procestEstimate process model using time or frequency data
arxEstimate parameters of ARX, ARIX, AR, or ARI model
armaxEstimate parameters of ARMAX, ARIMAX, ARMA, or ARIMA model using time-domain data
bjEstimate Box-Jenkins polynomial model using time domain data
oeEstimate output-error polynomial model using time-domain or frequency-domain data
polyestEstimate polynomial model using time- or frequency-domain data
compareCompare identified model output and measured output
simSimulate response of identified model
simOptionsOption set for sim
predictPredict state and state estimation error covariance at next time step using extended or unscented Kalman filter, or particle filter
predictOptionsOption set for predict
pePrediction error for identified model
peOptionsOption set for pe
residCompute and test residuals
residOptionsOption set for resid
compareCompare identified model output and measured output
compareOptionsOption set for compare
idssState-space model with identifiable parameters
idpolyPolynomial model with identifiable parameters
idtfTransfer function model with identifiable parameters
impulseImpulse response plot of dynamic system; impulse response data
freqrespFrequency response over grid

Examples

collapse all

Estimate a transfer function model and obtain estimated initial conditions.

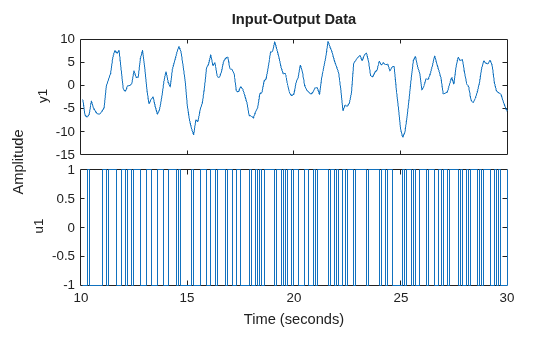

Load and plot the data.

load iddata1ic.mat z1i
plot(z1i)

The output data does not start at 0.

Estimate a second-order transfer function sys_tf. Specify that the function return the initial conditions ic.

[sys_tf,ic] = tfest(z1i,2,1);

Examine the contents of ic. ic includes, in state-space form, the free response model defined by matrices A and C, the initial state vector X0, and the sample time Ts.

A = ic.A
A = 2×2

   -2.9841   -5.5848
    4.0000         0

C = ic.C
C = 1×2

    0.2957    5.2441

x0 = ic.X0
x0 = 2×1

   -0.9019
   -0.6161

Ts = ic.Ts
Ts = 0

ic is specific to the estimation data z1i. You can use ic to establish initial conditions when you simulate any LTI model using the input signal from z1i and compare the response with the z1i output signal.

Visualize the free response encapsulated in an initialCondition object by generating an impulse response.

Estimate a transfer function and return the initial condition ic_tf.

load iddata1ic z1i
[sys_tf,ic_tf] = tfest(z1i,2,1);
ic_tf
ic_tf =
  initialCondition with properties:

     A: [2x2 double]
    X0: [2x1 double]
     C: [0.2957 5.2441]
    Ts: 0

ic_tf contains the information necessary to compute the free response to an initial condition.

Convert ic_tf into an idss object that can be passed to the impulse function.

ic_tfss = idss(ic_tf);

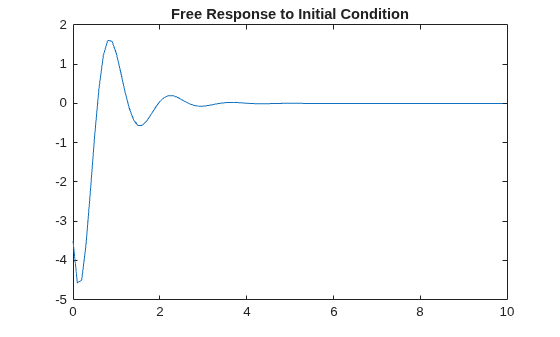

Create a time vector t that spans the data set. Compute the impulse response.

t = 0:0.1:9.9;
t = t';
yimp = impulse(ic_tfss,t);
plot(t,yimp)
title('Free Response to Initial Condition')

The free response is a transient that lasts for about four seconds.

Load the data and estimate a second-order transfer function sys. Return initial conditions in ic.

load iddata1ic z1i
[sys,ic] = tfest(z1i,2,1);

Simulate sys using the estimation data, but without incorporating the initial condition. Plot the simulated output with the measured output.

y_no_ic = sim(sys,z1i);
plot(y_no_ic,z1i)
legend('Model Response','Measured Output')

The measured and simulated outputs do not agree at the beginning of the simulation.

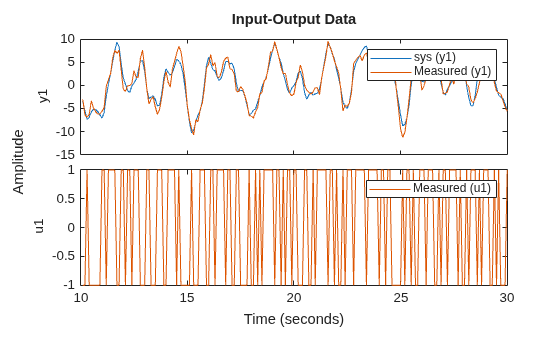

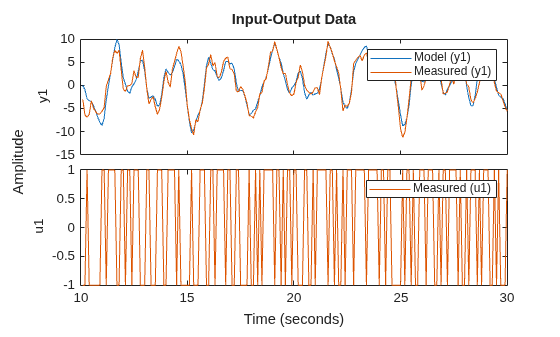

Incorporate ic into the simOptions option set opt. Simulate and plot the model response using opt.

opt = simOptions('InitialCondition',ic);
y_ic = sim(sys,z1i,opt);
plot(y_ic,z1i);
legend('Model Response','Measured Output')

The simulation combines the model response to the input signal with the free response to the initial condition. The measured and simulated outputs now have better agreement at the beginning of the simulation.

An estimated initialCondition object is specific to the data from which you estimated it. If you want to simulate your model with new data, such as validation data, you need to estimate a new initial condition for that data. To do so, use the compare command.

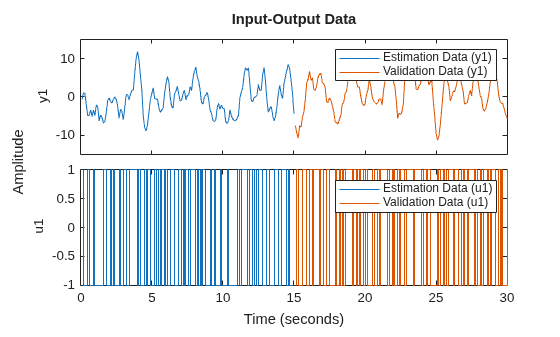

Load data and split it into estimation and validation data sets.

load iddata1 z1
z1_est = z1(1:150);
z1_val = z1(151:300);
plot(z1_est,z1_val);
legend('Estimation Data','Validation Data')

Examine the start points of each output data set.

e0 = z1_est.y(1)
e0 = -0.5872
v0 = z1_val.y(1)
v0 = -7.4390

The two data sets have different starting conditions.

Estimate a second-order transfer function model using z1_est. Return the estimated initial conditions in ic_est. Display the X0 property of ic_est. This property represents the estimated initial state vector that the free-response model defined by ic_est.A and ic_est.C responds to.

[sys,ic_est] = tfest(z1_est,2,1);
ic_est.X0
ans = 2×1

   -0.4082
    0.0095

You can use ic_est if you want to simulate sys using z1_est. Alternatively, you can use compare, which estimates the initial condition independently. Use compare twice, once to plot the data and once to return the results. Display the initial state vector ic_estc.X0 that compare estimates.

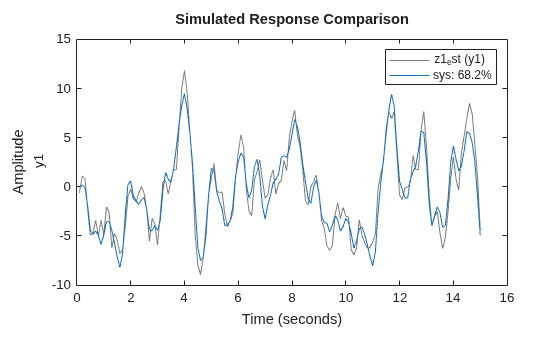

compare(z1_est,sys)

[yce,fit,ic_estc] = compare(z1_est,sys);
ic_estc.X0
ans = 2×1

   -0.4082
    0.0095

The initial state vector ic_estc.X0 is identical to ic_est.

Now evaluate the model with the validation data set. Estimate the initial conditions with the validation data.

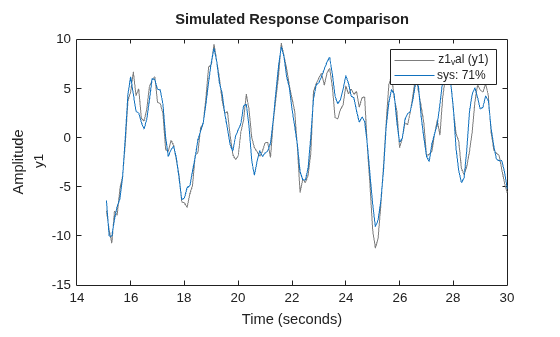

compare(z1_val,sys)

[ycv,fit,ic_valc] = compare(z1_val,sys);
ic_valc.X0
ans = 2×1

   -1.7536
   -0.9547

You can use ic_val when you simulate sys with the z1_val input signal and compare the model response to the z1_val output signal.

Estimate an initialCondition object array using multiexperiment data.

Load data from two experiments. Merge the two data sets into one multiexperiment data set.

load iddata1 z1
load iddata2 z2
z12 = merge(z1,z2)
z12 =
Time domain data set containing 2 experiments.

Experiment   Samples      Sample Time
   Exp1         300            0.1
   Exp2         400            0.1

Outputs      Unit (if specified)
   y1

Inputs       Unit (if specified)
   u1

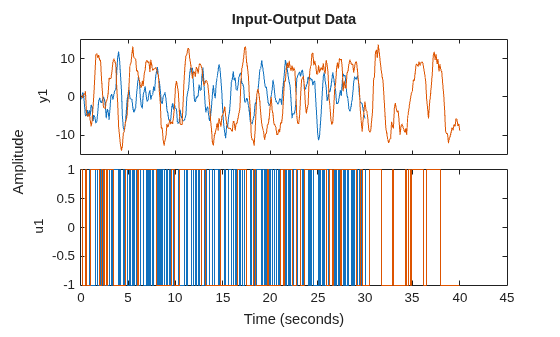

plot(z12)

Estimate the second-order transfer function sys and return the initial conditions in ic.

np = 2;
nz = 1;
[sys,ic] = tfest(z12,np,nz);
ic
ic=1×2 object
  1x2 initialCondition array with properties:

    A
    X0
    C
    Ts

ic is an object array. Display the contents of each object.

ic(1,1)
ans =
  initialCondition with properties:

     A: [2x2 double]
    X0: [2x1 double]
     C: [-0.7814 5.2530]
    Ts: 0

ic(1,2)
ans =
  initialCondition with properties:

     A: [2x2 double]
    X0: [2x1 double]
     C: [-0.7814 5.2530]
    Ts: 0

Compare the A, X0, and C properties for each object.

A1 = ic(1,1).A
A1 = 2×2

   -3.4824   -5.5785
    4.0000         0

A2 = ic(1,2).A
A2 = 2×2

   -3.4824   -5.5785
    4.0000         0

C1 = ic(1,1).C
C1 = 1×2

   -0.7814    5.2530

C2 = ic(1,2).C
C2 = 1×2

   -0.7814    5.2530

X01 =ic(1,1).X0
X01 = 2×1

   -0.6528
   -0.0067

X02 =ic(1,2).X0
X02 = 2×1

    0.3076
   -0.0715

The A and C matrices are identical. These matrices represent the state-space form of sys. The X0 vectors are different. This difference results from the different initial conditions for the two experiments.

Estimate a state-space model and return the initial states. From the model and the initial state vector, construct an initialCondition object that can be used with any linear model.

Load and plot the data.

load iddata1ic z1i
plot(z1i)

Estimate a state-space model and obtain the estimated initial conditions.

First, set the 'InitialState' name-value pair argument in ssestOptions to 'estimate', which overrides the default setting of 'auto'. The 'estimate' setting always estimates the initial states. The 'auto' setting uses the 'zero' setting if the effect of the initial states on the overall model estimation error is relatively small, and can therefore result in an initial-state vector containing only zeros.

opt = ssestOptions;
opt = ssestOptions('InitialState','estimate');

Estimate a second-order state-space model sys_ss. Specify the output argument x0 to return the initial state vector. Specify the input argument opt to use your 'InitialState' setting. After estimating, examine x0.

[sys_ss,x0] = ssest(z1i,2,opt);
x0
x0 = 2×1

    0.0631
    0.0329

x0 is a nonzero initial state vector.

Simulate the model using x0 and compare the output with the original output data.

To use x0 as the initial condition, specify the 'InitialCondition' name-value pair argument in simOptions as x0.

opt = simOptions;
opt = simOptions('InitialCondition',x0);

Simulate the model using opt and store the response in xss.

xss = sim(sys_ss,z1i,opt);

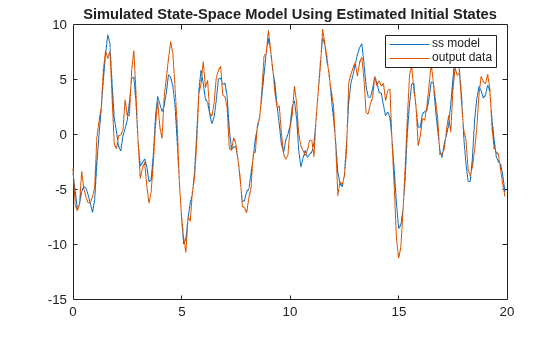

Plot the model response with the original output data.

t = 0:0.1:19.9;
plot(t',[xss.y z1i.y])
legend('ss model','output data')
title('Simulated State-Space Model Using Estimated Initial States')

The simulation starts at a point close to the starting point of the data.

With the A and C matrices, x0, and the sample time Ts from sys_ss, construct an initialCondition object ic that you can use with a transfer function model.

A = sys_ss.A;
C = sys_ss.C;
Ts = sys_ss.Ts;
ic = initialCondition(A,x0,C,Ts)
ic =
  initialCondition with properties:

     A: [2x2 double]
    X0: [2x1 double]
     C: [-61.3674 13.4811]
    Ts: 0

Estimate a transfer function model and simulate the model using ic as the initial condition. Store the response in xtf.

sys_tf = tfest(z1i,2,1);
opt = simOptions('InitialCondition',ic);
xtf = sim(sys_tf,z1i,opt);

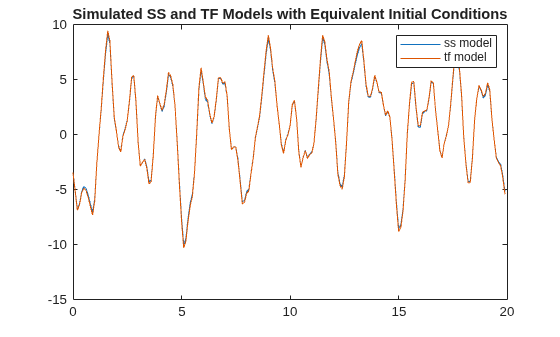

Plot the model responses xss and xtf together.

plot(t',[xss.y xtf.y])
legend('ss model','tf model')
title('Simulated SS and TF Models with Equivalent Initial Conditions')

The models track each other closely throughout the simulation.

Obtain the initial conditions when estimating a transfer function model. Convert the initialCondition into a free-response model, and the free-response model back into an initialCondition object.

Load the data and estimate a transfer function model sys. Obtain the estimated initial conditions ic.

load iddata1ic.mat z1i
[sys,ic] = tfest(z1i,2,1);

Convert ic into the idtf free-response model g.

g = idtf(ic);

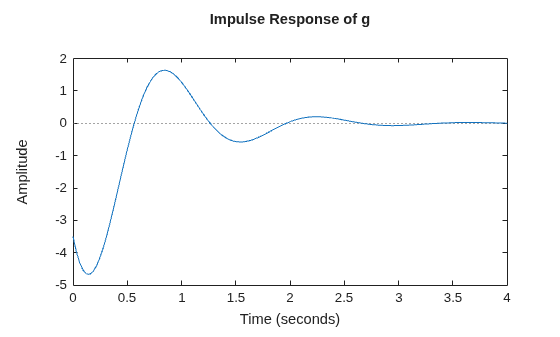

Plot the impulse response of g.

impulse(g)
title('Impulse Response of g')

Convert g back into the initialCondition object ic1.

ic1 = initialCondition(g);

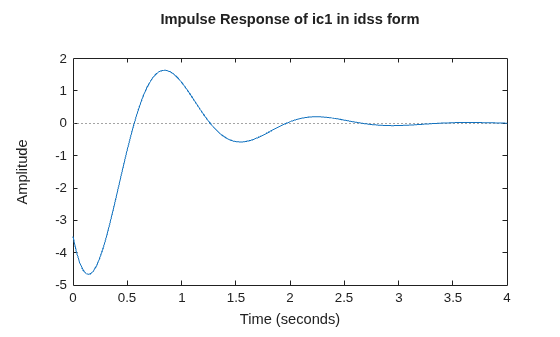

Plot the impulse response of ic1 by converting ic1 into an idss model.

impulse(idss(ic1))
title('Impulse Response of ic1 in idss form')

The impulse responses appear identical.

Compare ic and ic1.

ic.A
ans = 2×2

   -2.9841   -5.5848
    4.0000         0

ic1.A
ans = 2×2

   -2.9841   -5.5848
    4.0000         0

ic.X0
ans = 2×1

   -0.9019
   -0.6161

ic1.X0
ans = 2×1

     4
     0

ic.C
ans = 1×2

    0.2957    5.2441

ic1.C
ans = 1×2

   -0.8745   -1.7215

The A matrices of ic and ic1 are identical. The C matrix and the X0 vector are different. There are infinitely many state-space representations possible for a given linear model. The two objects are equivalent, as illustrated by the impulse responses.

Introduced in R2020b
