wlanEHTTBConfig

Configure EHT TB transmission

Since R2023a

Description

The wlanEHTTBConfig object is a configuration object for the WLAN extremely high-throughput trigger-based (EHT TB) packet format.

Creation

Syntax

cfgEHTTB = wlanEHTTBConfig

cfgEHTTB = wlanEHTTBConfig(Name=Value)

Description

cfgEHTTB = wlanEHTTBConfig creates a configuration object that initializes parameters for an IEEE^® 802.11™ EHT TB PPDU. For a detailed description of the EHT WLAN formats, see IEEE P802.11be™/D5.0 [1].

cfgEHTTB = wlanEHTTBConfig(Name=Value) sets properties using one or more name-value arguments.

Properties

ChannelBandwidth — Channel bandwidth of PPDU transmission

"CBW20" (default) | "CBW40" | "CBW80" | "CBW160" | "CBW320"

Channel bandwidth of PPDU transmission, specified as one of these values.

• "CBW20" — Channel bandwidth of 20 MHz

• "CBW40" — Channel bandwidth of 40 MHz

• "CBW80" — Channel bandwidth of 80 MHz

• "CBW160" — Channel bandwidth of 160 MHz

• "CBW320" — Channel bandwidth of 320 MHz

Data Types: char | string

RUSize — Resource unit size

242 (default) | positive integer | row vector of positive integers

Resource unit size, specified as a positive integer or a row vector of positive integers. If the resource unit (RU) is a multiple resource unit (MRU), RUSize is a vector with entries given by the sizes of the RUs that compose the MRU. Otherwise, RUSize is a scalar. The possible RU sizes are 26, 52, 106, 242, 484, 996, 1992, and 3984.

If the RU is an MRU, each element of the row vector must be equal to one of 26, 52, 106, 242, 484, or 996.

Data Types: double

RUIndex — Resource unit index

1 (default) | integer in the range [1, 148] | row vector of integers in the range [1, 148]

Resource unit index, specified as an integer in the range [1, 148] or a row vector of such integers. If the RU is an MRU, RUIndex is a vector with entries given by the indices of the RUs that compose the MRU. Otherwise, RUIndex is a scalar. Use this property to indicate the location of the RU within the channel.

Example: An 80 MHz transmission has four possible 242-tone RUs, one in each 20 MHz subchannel. RU 242-1 (RUSize = 242, RUIndex = 1) is the RU occupying the lowest absolute frequency within the 80MHz, and RU 242-4 (RUSize = 242, RUIndex = 4) is the RU occupying the highest absolute frequency.

Data Types: double

PreEHTPowerScalingFactor — Power scaling factor for pre-EHT fields

1 (default) | real scalar in the range [1/√2, 1]

Power scaling factor for pre-EHT fields, specified as a real scalar in the range [1/√2, 1].

Data Types: double

NumTransmitAntennas — Number of transmit antennas

1 (default) | positive integer

Number of transmit antennas, specified as a positive integer.

Data Types: double

PreEHTCyclicShifts — Cyclic shift values of additional transmit antennas

−75 (default) | integer in the range [−200, 0] | row vector

Cyclic shift values, in nanoseconds, of additional transmit antennas for the pre-EHT fields of the waveform. The first eight antennas use the cyclic shift values specified in Table 21-10 of IEEE Std 802.11-2020 [2]. The remaining L antennas use the values that you specify in this property, where L = NumTransmitAntennas – 8. Specify this property as one of these values:

• An integer in the range [−200, 0] — The wlanEHTTBConfig object uses this cyclic shift value for each of the L additional antennas.

• A row vector of length L of integers in the range [−200, 0] — The wlanEHTTBConfig object uses the kth element as the cyclic shift value for the (k + 8)th transmit antenna.

  Note

  If you specify this property as a row vector of length greater than L, the wlanEHTTBConfig object uses only the first L elements. For example, if you set the NumTransmitAntennas property to 16, the wlanEHTTBConfig object uses only the first L = 16 – 8 = 8 elements of this vector.

Dependencies

To enable this property, set the NumTransmitAntennas property to a value greater than 8.

Data Types: double

NumSpaceTimeStreams — Number of space-time streams

1 (default) | integer in the interval [1, 8]

Number of space-time streams in the transmission, specified as an integer in the interval [1, 8].

Data Types: double

StartingSpaceTimeStream — Starting space-time stream index

1 (default) | integer in the interval [1, 8]

Starting space-time stream index, in one-based form, specified as an integer in the interval [1, 8]. In a multi-user multiple-input multiple-output (MU-MIMO) configuration with multiple users on the same RU, each user must transmit on a distinct space-time stream. In this case, you must set this property and the NumSpaceTimeStreams property to ensure that each space-time stream transmits at most one user.

Data Types: double

SpatialMapping — Spatial mapping scheme

"direct" (default) | "hadamard" | "fourier" | "custom"

Spatial mapping scheme, specified as "direct", "hadamard", "fourier", or "custom".

The default value, "direct", applies only when NumTransmitAntennas is equal to NumSpaceTimeStreams.

Data Types: char | string | enumeration

SpatialMappingMatrix — Spatial mapping matrix

1 (default) | complex-valued scalar | complex-valued matrix | complex-valued 3-D array

Spatial mapping matrix, specified as one of these values:

• A complex-valued scalar. This value applies to all the subcarriers.

• A complex-valued matrix of size N_STSTotal -by-N_T, where:

  • N_STSTotal is the sum of the number of the space-time streams for all users assigned to the RU.

  • N_T is the number of transmit antennas.

  In this case, the spatial mapping matrix applies to all the subcarriers.

• A complex-valued 3-D array of size N_ST-by-N_STSTotal-by-N_T, where N_ST is the number of occupied carriers and is determined by the RUSize property. In this case, each occupied subcarrier has its own spatial mapping matrix.

Use this property to rotate and scale the output vector of the constellation mapper. The spatial mapping matrix is used for beamforming and mixing space-time streams over the transmit antennas. The calling function normalizes the spatial mapping matrix for each subcarrier.

Example: [0.6 0.2; 0.5 0.4; 0.5 0.9] represents a spatial mapping matrix with three space-time streams and two transmit antennas.

Dependencies

This property applies only when you set the SpatialMapping property to "custom".

Data Types: double
Complex Number Support: Yes

PreEHTPhaseRotation — Pre-EHT phase rotation values

[1 -1 -1 -1 1 -1 -1 -1 -1 1 1 1 -1 1 1 1] (default) | row vector

Phase rotation values for the pre-EHT portion of the waveform, specified as a row vector of length 16 with entries equal to 1 or −1. This property applies only when the channel bandwidth is 320 MHz. The 16 entries of this property correspond to 20 MHz subchannels in ascending order of frequency, as defined in Equation 36-13 of IEEE P802.11be/D2.0 [1].

Data Types: double

MCS — MCS for transmission

0 (default) | integer in the range [0, 13] | 15

Modulation and coding scheme (MCS) for transmission, specified as a nonnegative integer in the range [0, 13], or 15. This table shows the modulation type and coding rate for each valid value of MCS:

MCS	Modulation	Dual Carrier Modulation	Coding Rate
0	Binary phase-shift keying (BPSK)	Not applicable	1/2
1	Quadrature phase-shift keying (QPSK)	Not applicable	1/2
2		Not applicable	3/4
3	16-point quadrature amplitude modulation (16-QAM)	Not applicable	1/2
4			3/4
5	64-QAM	Not applicable	2/3
6			3/4
7			5/6
8	256-QAM		3/4
9			5/6
10	1024-QAM		3/4
11			5/6
12	4096-QAM		3/4
13			5/6
15	BPSK-DCM	0 or 1	1/2

Data Types: double

ChannelCoding — Forward-error-correction coding type

"ldpc" (default) | "bcc"

Forward-error-correction (FEC) coding type for the EHT-Data field, specified as "ldpc" for low-density parity-check (LDPC) coding or "bcc" for binary convolutional coding (BCC).

Dependencies

You can set this property to "bcc" only when all of these conditions are satisfied:

• The MCS property is in the range [0, 9], or equal to 15.

• The size of any RU is less than or equal to 242. Obtain the RU sizes by using the ruInfo object function.

• The NumSpaceTimeStreams property is less than or equal to 4.

Data Types: char | string | enumeration

PreFECPaddingFactor — Pre-FEC padding factor

4 (default) | 1 | 2 | 3

Pre-FEC padding factor, specified as 1, 2, 3, or 4.

Data Types: single | double

LDPCExtraSymbol — Extra OFDM symbol segment indicator

0 (false) (default) | 1 (true)

Extra OFDM symbol segment indicator, specified as 1 (true) or 0 (false). To indicate the presence of an extra OFDM symbol segment for LDPC coding, set this property to 1 (true). Otherwise, set this property to 0 (false).

Dependencies

To enable this property, set the ChannelCoding property to "ldpc".

Data Types: logical

PEDisambiguity — PE-Disambiguity subfield value

0 (false) (default) | 1 (true)

PE-Disambiguity subfield value, specified as 1 (true) or 0 (false). For more information, see Section 27.3.12 of IEEE Std 802.11-2020 [2].

Data Types: logical

LSIGLength — Length of L-SIG field

142 (default) | integer in the range [1, 4093]

Length of L-SIG field, in OFDM symbols, specified as an integer in the range [1, 4093]. The L-SIG length must satisfy mod(LSIGLength,3) = 1, where mod(a,m) returns the remainder after dividing a by m. For more information, see mod.

Data Types: double

GuardInterval — Guard interval (cyclic prefix) duration

3.2 (default) | 1.6

Guard interval (cyclic prefix) duration for the data field within a packet, in microseconds, specified as 3.2 or 1.6.

Data Types: double

EHTLTFType — EHT-LTF compression mode

4 (default) | 2 | 1

EHT-LTF compression mode, specified as 1, 2, or 4. These values correspond to the 1× EHT-LTF, 2× EHT-LTF, and 4× EHT-LTF compression modes. The EHT-LTF type is enumerated in Table 36-18 of IEEE P802.11be/D2.0 [1] as:

• 1× EHT-LTF — Duration of 3.2 μs with a guard range duration of 1.6 μs

• 2× EHT-LTF — Duration of 6.4 μs with a guard range duration of 0.8 μs or 1.6 μs

• 4× EHT-LTF — Duration of 12.8 μs with a guard range duration of 0.8 μs or 3.2 μs

For more information on the EHT-LTF, see Section 36.3.12.10 of IEEE P802.11be/D2.0 [1].

Data Types: double

NumEHTLTFSymbols — Number of EHT-LTF symbols in the PPDU

1 (default) | 2 | 4 | 6 | 8

Number of EHT-LTF symbols in the PPDU, specified as 1, 2, 4, 6, or 8.

Data Types: double

BSSColor — BSS color identifier

0 (default) | integer in the interval [0, 63]

Basic service set (BSS) color identifier, specified as an integer in the interval [0, 63].

Data Types: double

SpatialReuse1 — Value of Spatial Reuse 1 subfield

15 (default) | integer in the range [0, 15]

Value of Spatial Reuse 1 subfield in the U-SIG field, specified as an integer in the range [0, 15]. For more information, see Table 36-31 of IEEE P802.11be/D2.0 [1].

Data Types: double

SpatialReuse2 — Value of Spatial Reuse 2 subfield

15 (default) | integer in the range [0, 15]

Value of Spatial Reuse 2 subfield in the U-SIG field, specified as an integer in the range [0, 15]. For more information, see Table 36-31 of IEEE P802.11be/D2.0 [1].

Data Types: double

TXOPDuration — Duration information for TXOP protection

[] (default) | integer in the interval [0, 8448]

Duration information for transmit opportunity (TXOP) protection in microseconds, specified as an integer in the interval [0, 8448]. This table describes the correspondence between the value you set for this property and the value of the seven-bit TXOP subfield in the U-SIG field.

TXOPDuration Property	TXOP Subfield
[]	127
Integer less than 512	$$2\lfloor \frac{TXOPDuration}{8}\rfloor$$
Integer greater than or equal to 512	$$\begin{array}{l}2\left(\lfloor \frac{TXOPDuration-512}{128}\rfloor \right)+1\\ \end{array}$$

Data Types: double

Channelization — Channelization for 320 MHz

1 (default) | 2

Channelization for a 320 MHz channel bandwidth, specified as 1 or 2. A 320 MHz channel has three possible locations for the channel center frequencies. In accordance with Section 36.3.23.2 of IEEE P802.11be/D2.0 [1], when you specify 1, these locations are numbers 31, 95, and 159. When you specify 2, the locations are numbers 63, 127 and 191.

Dependencies

This property applies only when you specify the ChannelBandwidth property as "CBW320".

Data Types: double

DisregardBitsUSIG1 — Disregard bits in first U-SIG symbol

binary column vector of length 6

Disregard bits in the first U-SIG symbol, specified as a binary column vector of length 6. The default is a column vector of length 6 with all entries equal to 1.

Data Types: double | int8

ValidateBitUSIG2 — Validate bit in second U-SIG symbol

1 (default) | 0

Validate bit in the second U-SIG symbol, specified as 1 or 0.

Data Types: double | int8

DisregardBitsUSIG2 — Disregard bits in second U-SIG symbol

[0; 1; 1; 1; 1] (default) | binary column vector of length 5

Disregard bits in the second U-SIG symbol, specified as a binary column vector of length 5.

Data Types: double | int8

PostFECPaddingSource — Post-FEC padding bit source

"mt19937arwithseed" (default) | "globalstream" | "userdefined"

Post-FEC padding bit source used by the wlanWaveformGenerator function, specified as one of these values:

• "mt19937arwithseed" — Generate normally distributed random bits by using the mt19937ar algorithm with seed specified in the PostFECPaddingSeed property.

• "globalstream" — Generate normally distributed random bits by using the current global random number stream.

• "userdefined" — Use the bits specified in the PostFECPaddingBits property as the post-FEC padding bits.

Data Types: char | string | enumeration

PostFECPaddingSeed — Post-FEC padding bit seed for mt19937ar algorithm

73 (default) | nonnegative integer

Post-FEC padding bit seed for the mt19937ar algorithm, specified as a nonnegative integer.

Dependencies

To enable this property, set the PostFECPaddingSource property to "mt19937ar with seed".

Data Types: double

PostFECPaddingBits — Post-FEC padding bits

0 (default) | binary-valued scalar | binary-valued column vector

Post-FEC padding bits, specified as a binary-valued scalar or column vector.

To generate a waveform, the wlanWaveformGenerator function requires n bits, where n depends on the specified configuration. To calculate n, use the numPostFECPaddingBits object function with the specified configuration object as the input argument and specify this property as a vector of length n. Alternatively, specify this input as a binary-valued scalar or column vector of arbitrary length. If the length of this property is less than n, the waveform generator loops the vector to create a vector of length n. If the length of this property is greater than n, the function uses only the first n entries as the post-FEC padding bits.

Note

For C/C++ code generation, you must specify the data type of this property as int8.

Data Types: single | double | int8

Object Functions

psduLength	EHT PSDU length
packetFormat	WLAN packet format
ruInfo	Resource unit allocation information
showAllocation	Resource unit allocation
transmitTime	Packet transmission time
compressionMode	Compression mode of EHT TB configuration
numPostFECPaddingBits	Required number of post-FEC padding bits

Examples

Generate EHT TB Waveform

Create a configuration object for a WLAN EHT TB transmission.

cfgEHTTB = wlanEHTTBConfig;

Get the PSDU length, in bytes, from the configuration object by using the psduLength object function.

length = psduLength(cfgEHTTB);

Generate a PSDU of the relevant length, converting bytes to bits by multiplying by eight.

psdu = randi([0 1],8*length,1);

Generate a time-domain waveform for the bits and configuration, specifying an oversampling factor of 3. Plot the waveform.

waveform = wlanWaveformGenerator(psdu,cfgEHTTB,OversamplingFactor=3);

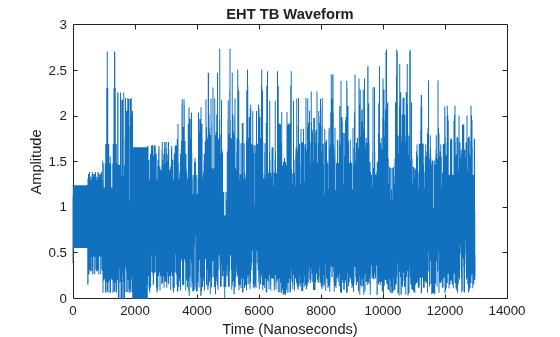

plot(abs(waveform));
title("EHT TB Waveform");
xlabel("Time (Nanoseconds)");
ylabel("Amplitude");

Get Compression Mode of EHT TB Configuration

Create a configuration object for an EHT TB transmission, setting the channel bandwidth to 320 MHz and specifying that the configuration has an MRU of size 3*996.

cfgEHTTB = wlanEHTTBConfig(ChannelBandwidth="CBW320",RUSize=[996 996 996],RUIndex=[1 2 3]);

Use the compressionMode object function to return the compression mode of the configuration.

compressionMode(cfgEHTTB)

ans =
0
