plotAdded

Added variable plot of linear regression model

Syntax

plotAdded(mdl)

plotAdded(mdl,coef)

plotAdded(mdl,coef,Name,Value)

plotAdded(ax,___)

h = plotAdded(___)

Description

plotAdded(mdl) creates an added variable plot for the whole model mdl except the constant (intercept) term.

plotAdded(mdl,coef) creates an added variable plot for the specified terms coef.

plotAdded(mdl,coef,Name,Value) specifies graphical properties of adjusted data points using one or more name-value pair arguments. For example, you can specify the marker symbol and size for the data points.

plotAdded(ax,___) creates the plot in the axes specified by ax instead of the current axes, using any of the input argument combinations in the previous syntaxes.

h = plotAdded(___) returns line objects for the plot. Use h to modify the properties of a specific line after you create the plot. For a list of properties, see Line Properties.

Examples

Create Added Variable Plot

Create a linear regression model of car mileage as a function of weight and model year. Then create an added variable plot to see the significance of the model.

Create a linear regression model of mileage from the carsmall data set.

load carsmall
Year = categorical(Model_Year);
tbl = table(MPG,Weight,Year);
mdl = fitlm(tbl,'MPG ~ Year + Weight^2');

Create an added variable plot of the model.

plot(mdl)

The plot illustrates that the model is significant because a horizontal line does not fit between the confidence bounds.

Create the same plot by using the plotAdded function.

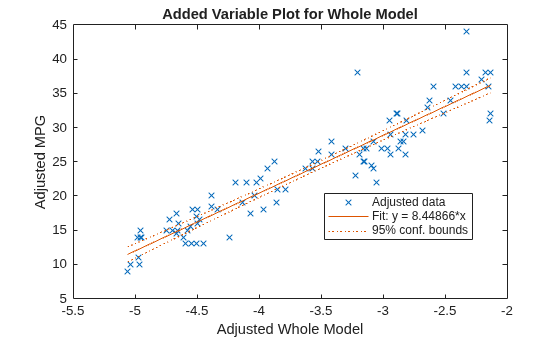

plotAdded(mdl)

Create Added Variable Plot for Specified Variables

Create a linear regression model of car mileage as a function of weight and model year. Then create an added variable plot to see the effect of the weight terms (Weight and Weight^2).

Create the linear regression model using the carsmall data set.

load carsmall
Year = categorical(Model_Year);
tbl = table(MPG,Weight,Year);
mdl = fitlm(tbl,'MPG ~ Year + Weight^2');

Find the terms in the model corresponding to Weight and Weight^2.

mdl.CoefficientNames

ans = 1x5 cell
    {'(Intercept)'}    {'Weight'}    {'Year_76'}    {'Year_82'}    {'Weight^2'}

The weight terms are 2 and 5.

Create an added variable plot with the weight terms.

coef = [2 5];

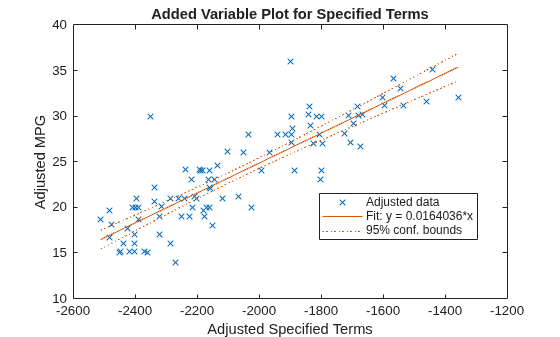

plotAdded(mdl,coef)

The plot illustrates that the weight terms are significant because a horizontal line does not fit between the confidence bounds.

Create Scatter Plot for Simple Linear Regression

Create a scatter plot of data along with a fitted curve and confidence bounds for a simple linear regression model. A simple linear regression model includes only one predictor variable.

Create a simple linear regression model of mileage from the carsmall data set.

load carsmall
tbl = table(MPG,Weight);
mdl = fitlm(tbl,'MPG ~ Weight')

mdl =
Linear regression model:
    MPG ~ 1 + Weight

Estimated Coefficients:
                    Estimate        SE         tStat       pValue
                   __________    _________    _______    __________

    (Intercept)        49.238       1.6411     30.002    2.7015e-49
    Weight         -0.0086119    0.0005348    -16.103    1.6434e-28


Number of observations: 94, Error degrees of freedom: 92
Root Mean Squared Error: 4.13
R-squared: 0.738,  Adjusted R-Squared: 0.735
F-statistic vs. constant model: 259, p-value = 1.64e-28

pValue of the Weight variable is very small, which means that the variable is statistically significant in the model. Visualize this result by creating a scatter plot of the data, along with a fitted curve and its 95% confidence bounds, using the plot function.

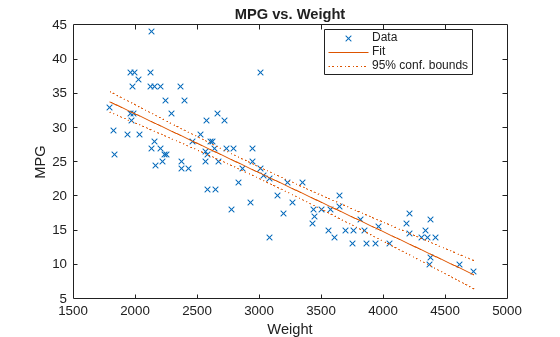

plot(mdl)

The plot illustrates that the model is significant because a horizontal line does not fit between the confidence bounds, which is consistent with the pValue result.

Create the same plot by using the plotAdded function.

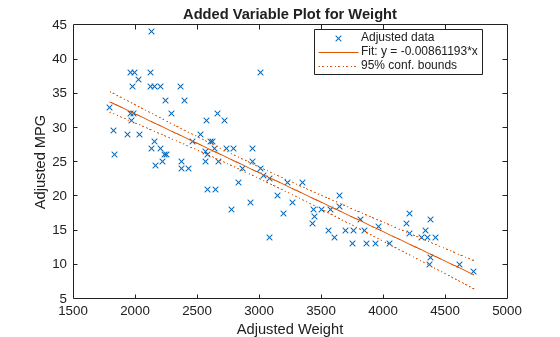

plotAdded(mdl)

When a model includes only one term in addition to the constant term, an adjusted value is equivalent to its original value. Therefore, this added variable plot is the same as the scatter plot created by the plot function.

Input Arguments

mdl — Linear regression model

LinearModel object

Linear regression model, specified as a LinearModel object created using fitlm or stepwiselm.

coef — Coefficients in regression model

character vector | string scalar | vector of positive integers

Coefficients in the regression model mdl, specified as one of the following:

• Character vector or string scalar of a single coefficient name in mdl.CoefficientNames (CoefficientNames property of mdl).

• Vector of positive integers representing the indexes of coefficients in mdl.CoefficientNames. Use a vector to specify multiple coefficients.

Data Types: char | string | single | double

ax — Target axes

Axes object

Target axes, specified as an Axes object.

If you do not specify the axes and the current axes are Cartesian, then plotAdded uses the current axes (gca). For more information on creating an Axes object, see axes and gca.

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'Color','blue','Marker','*'

Note

The graphical properties listed here are only a subset. For a complete list, see Line Properties. The specified properties determine the appearance of adjusted data points.

'Color' — Line color

RGB triplet | hexadecimal color code | color name | short name

Line color, specified as the comma-separated pair consisting of 'Color' and an RGB triplet, hexadecimal color code, color name, or short name for one of the color options listed in the following table.

The 'Color' name-value pair argument also determines marker outline color and marker fill color if 'MarkerEdgeColor' is 'auto' (default) and 'MarkerFaceColor' is 'auto'.

For a custom color, specify an RGB triplet or a hexadecimal color code.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

• A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes '#FF8800', '#ff8800', '#F80', and '#f80' are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code	Appearance
'red'	'r'	[1 0 0]	'#FF0000'
'green'	'g'	[0 1 0]	'#00FF00'
'blue'	'b'	[0 0 1]	'#0000FF'
'cyan'	'c'	[0 1 1]	'#00FFFF'
'magenta'	'm'	[1 0 1]	'#FF00FF'
'yellow'	'y'	[1 1 0]	'#FFFF00'
'black'	'k'	[0 0 0]	'#000000'
'white'	'w'	[1 1 1]	'#FFFFFF'
'none'	Not applicable	Not applicable	Not applicable	No color

Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB^® uses in many types of plots.

RGB Triplet	Hexadecimal Color Code	Appearance
[0 0.4470 0.7410]	'#0072BD'
[0.8500 0.3250 0.0980]	'#D95319'
[0.9290 0.6940 0.1250]	'#EDB120'
[0.4940 0.1840 0.5560]	'#7E2F8E'
[0.4660 0.6740 0.1880]	'#77AC30'
[0.3010 0.7450 0.9330]	'#4DBEEE'
[0.6350 0.0780 0.1840]	'#A2142F'

Example: 'Color','blue'

'LineWidth' — Line width

positive value

Line width, specified as the comma-separated pair consisting of 'LineWidth' and a positive value in points. If the line has markers, then the line width also affects the marker edges.

Example: 'LineWidth',0.75

'Marker' — Marker symbol

'o' | '+' | '*' | '.' | 'x' | ...

Marker symbol, specified as the comma-separated pair consisting of 'Marker' and one of the values in this table.

Value	Description
'o'	Circle
'+'	Plus sign
'*'	Asterisk
'.'	Point
'x'	Cross
'_'	Horizontal line
'|'	Vertical line
'square' or 's'	Square
'diamond' or 'd'	Diamond
'^'	Upward-pointing triangle
'v'	Downward-pointing triangle
'>'	Right-pointing triangle
'<'	Left-pointing triangle
'pentagram' or 'p'	Five-pointed star (pentagram)
'hexagram' or 'h'	Six-pointed star (hexagram)
'none'	No markers

Example: 'Marker','+'

'MarkerEdgeColor' — Marker outline color

'auto' (default) | 'none' | RGB triplet | hexadecimal color code | color name | short name

Marker outline color, specified as the comma-separated pair consisting of 'MarkerEdgeColor' and an RGB triplet, hexadecimal color code, color name, or short name for one of the color options listed in the Color name-value pair argument.

The default value of 'auto' uses the same color specified by using 'Color'.

Example: 'MarkerEdgeColor','blue'

'MarkerFaceColor' — Marker fill color

'none' (default) | 'auto' | RGB triplet | hexadecimal color code | color name | short name

Marker fill color, specified as the comma-separated pair consisting of 'MarkerFaceColor' and an RGB triplet, hexadecimal color code, color name, or short name for one of the color options listed in the Color name-value pair argument.

The 'auto' value uses the same color specified by using 'Color'.

Example: 'MarkerFaceColor','blue'

'MarkerSize' — Marker size

6 (default) | positive value

Marker size, specified as the comma-separated pair consisting of 'MarkerSize' and a positive value in points.

Example: 'MarkerSize',2

Output Arguments

h — Line objects

vector

Line objects, returned as a 3-by-1 vector. h(1), h(2), and h(3) correspond to the adjusted data points, fitted line, and 95% confidence bounds of the fitted line, respectively. Use dot notation to query and set properties of the line objects. For details, see Line Properties.

You can use name-value pair arguments to specify the appearance of adjusted data points corresponding to the first graphics object h(1).

More About

Added Variable Plot

An added variable plot, also known as a partial regression leverage plot, illustrates the incremental effect on the response of specified terms caused by removing the effects of all other terms.

An added variable plot created by plotAdded with a single selected term corresponding to a single predictor variable includes these plots:

• Scatter plot of adjusted response values against adjusted predictor variable values

• Fitted line for adjusted response values as a function of adjusted predictor variable values

• 95% confidence bounds of the fitted line

The adjusted values are equal to the average of the variable plus the residuals of the variable fit to all predictors except the selected predictor. For example, consider an added variable plot for the first predictor variable x₁. Fit the response variable y and the selected predictor variable x₁ to all predictors except x₁ as follows:

y_i = g_y(x_2i, x_3i, …, x_pi) + r_yi,

x_1i = g_x(x_2i, x_3i, …, x_pi) + r_xi,

where g_y and g_x are the fit of y and x₁, respectively, against all predictors except the selected predictor (x₁). r_y and r_x are the corresponding residual vectors. The subscript i represents the observation number. The adjusted value is the sum of the average value and the residual for each observation.

$$\begin{array}{c}{\tilde{y}}_i=\overline{y}+r_{yi},\\ {\tilde{x}}_{1i}={\overline{x}}_1+r_{xi},\end{array}$$

where $${\overline{x}}_1$$ and $$\overline{y}$$ represent the average of x₁ and y, respectively.

plotAdded plots a scatter plot of ($${\tilde{x}}_{1i}$$, $${\tilde{y}}_i$$), a fitted line for $$\tilde{y}$$ as a function of $${\tilde{x}}_1$$ (that is, $${\beta }_1{\tilde{x}}_1$$), and the 95% confidence bounds of the fitted line. The coefficient β₁ is the same as the coefficient estimate of x₁ in the full model, which includes all predictors.

r_yi represents the part of the response values unexplained by the predictors (except x₁), and r_xi represents the part of the x₁ values unexplained by the other predictors. Therefore, the fitted line represents how the new information introduced by adding x₁ can explain the unexplained part of the response values. If the slope of the fitted line is close to zero and the confidence bounds can include a horizontal line, then the plot indicates that the new information from x₁ does not explain the unexplained part of the response values well. That is, x₁ is not significant in the model fit.

plotAdded also supports an extension of the added variable plot so that you can select multiple terms instead of a single term. Therefore, you can also specify a categorical predictor, all terms that involve a specific predictor, or the model as a whole (except a constant (intercept) term). Consider a set of predictors X with a coefficient vector β, where β_i is the coefficient estimate of x_i in the full model if you specify the ith coefficient for an added variable plot; otherwise, β_i is zero. Define a unit direction vector u as u = β/s where s = norm(β). Then, Xβ = (Xu)s. Treat Xu as a single predictor with a coefficient s, and create an added variable plot for Xu in the same way as creating the plot for a single term. The coefficient of the fitted line in the added variable plot corresponds to s.

Tips

• The data cursor displays the values of the selected plot point in a data tip (small text box located next to the data point). The data tip includes the x-axis and y-axis values for the selected point, along with the observation name or number.

Alternative Functionality

• A LinearModel object provides multiple plotting functions.

  • When creating a model, use plotAdded to understand the effect of adding or removing a predictor variable.

  • When verifying a model, use plotDiagnostics to find questionable data and to understand the effect of each observation. Also, use plotResiduals to analyze the residuals of the model.

  • After fitting a model, use plotAdjustedResponse, plotPartialDependence, and plotEffects to understand the effect of a particular predictor. Use plotInteraction to understand the interaction effect between two predictors. Also, use plotSlice to plot slices through the prediction surface.

• plotAdded shows the incremental effect on the response of specified terms by removing the effects of the other terms, whereas plotAdjustedResponse shows the effect of a selected predictor in the model fit with the other predictors averaged out by averaging the fitted values. Note that the definitions of adjusted values in plotAdded and plotAdjustedResponse are not the same.

Extended Capabilities

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

• This function supports model objects fitted with GPU array input arguments.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
