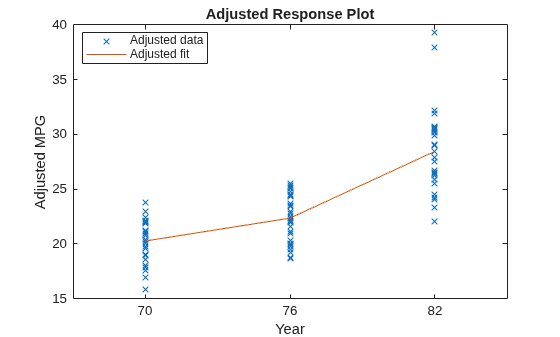

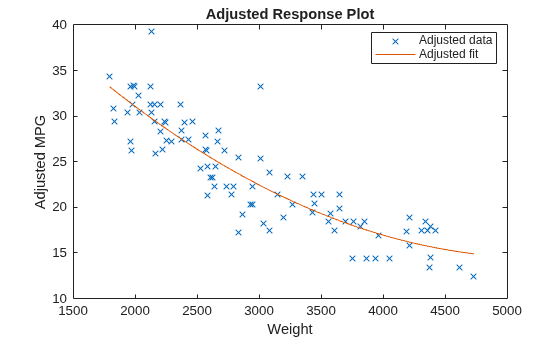

Adjusted response plot of linear regression model

`plotAdjustedResponse(`

creates an adjusted response plot
for the variable `mdl`

,`var`

)`var`

in the linear regression model
`mdl`

.

`plotAdjustedResponse(`

specifies graphical properties of adjusted response data points using one or more
name-value pair arguments. For example, you can specify the marker symbol and size
for the data points.`mdl`

,`var`

,`Name,Value`

)

returns line objects using any of the input argument combinations in the previous
syntaxes. Use `h`

= plotAdjustedResponse(___)`h`

to modify the properties of a specific line
after you create the plot. For a list of properties, see Line Properties.

The data cursor displays the values of the selected plot point in a data tip (small text box located next to the data point). The data tip includes the

*x*-axis and*y*-axis values for the selected point, along with the observation name or number.

A

`LinearModel`

object provides multiple plotting functions.When creating a model, use

`plotAdded`

to understand the effect of adding or removing a predictor variable.When verifying a model, use

`plotDiagnostics`

to find questionable data and to understand the effect of each observation. Also, use`plotResiduals`

to analyze the residuals of the model.After fitting a model, use

`plotAdjustedResponse`

,`plotPartialDependence`

, and`plotEffects`

to understand the effect of a particular predictor. Use`plotInteraction`

to understand the interaction effect between two predictors. Also, use`plotSlice`

to plot slices through the prediction surface.

`plotPartialDependence`

creates either a line plot or a surface plot of predicted responses against a single feature or a pair of features, respectively, by marginalizing over the other variables. A line plot for a single feature from`plotPartialDependence`

and an adjusted response function plot from`plotAdjustedResponse`

are the same within numerical precision.`plotEffects`

creates a summary plot that shows separate effects for all predictors.`plotAdded`

shows the incremental effect on the response of specified terms by removing the effects of the other terms, whereas`plotAdjustedResponse`

shows the effect of a selected predictor in the model fit with the other predictors averaged out by averaging the fitted values. Note that the definitions of adjusted values in`plotAdded`

and`plotAdjustedResponse`

are not the same.

`LinearModel`

| `plotAdded`

| `plotEffects`

| `plotInteraction`

| `plotPartialDependence`
