# stepz

Step response of digital filter

## Syntax

``[h,t] = stepz(b,a)``
``[h,t] = stepz(B,A,"ctf")``
``[h,t] = stepz({B,A,g},"ctf")``
``[h,t] = stepz(d)``
``[h,t] = stepz(sos)``
``[h,t] = stepz(___,n)``
``[h,t] = stepz(___,n,fs)``
``stepz(___)``

## Description

````[h,t] = stepz(b,a)` returns the step response of the specified digital filter. Specify a digital filter with numerator coefficients `b` and denominator coefficients `a`. The function returns the step response vector in `h` and the sample times in `t`.```

example

````[h,t] = stepz(B,A,"ctf")` returns the step response of the digital filter represented as Cascaded Transfer Functions (CTF) with numerator coefficients `B` and denominator coefficients `A`. (since R2024b)```

example

````[h,t] = stepz({B,A,g},"ctf")` returns the step response of the digital filter in CTF format. Specify the filter with numerator coefficients `B`, denominator coefficients `A`, and scaling values `g` across filter sections. (since R2024b)```

example

````[h,t] = stepz(d)` returns the step response for the digital filter `d`.```
````[h,t] = stepz(sos)` returns the step response corresponding to the second-order sections matrix `sos`.```
````[h,t] = stepz(___,n)` computes the first `n` samples of the step response. This syntax can include any combination of input arguments from the previous syntaxes.```
````[h,t] = stepz(___,n,fs)` computes `n` samples and produces a vector `t` so that the samples are spaced `1/fs` units apart.```
````stepz(___)` with no output arguments plots the step response of the filter.```

example

## Examples

collapse all

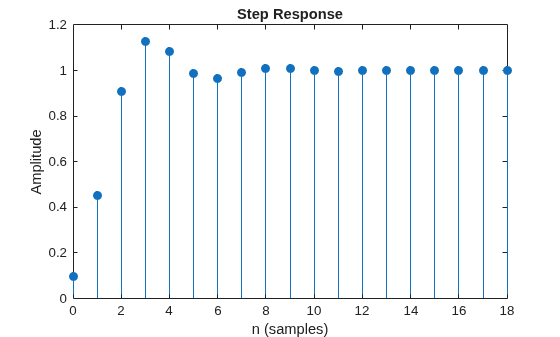

Create a third-order Butterworth filter with normalized half-power frequency $0.4\pi$ rad/sample. Display its step response.

```[b,a] = butter(3,0.4); stepz(b,a)```

Create an identical filter using `designfilt` and display its step response.

```d = designfilt('lowpassiir','FilterOrder',3,'HalfPowerFrequency',0.4); stepz(d)```

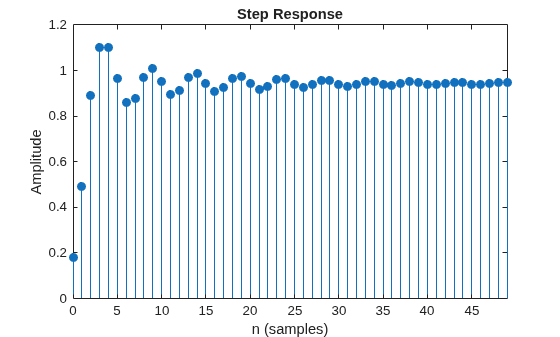

Design a fourth-order lowpass elliptic filter with normalized passband frequency $0.4\pi$ rad/sample. Specify a passband ripple of 0.5 dB and a stopband attenuation of 20 dB. Plot the first 50 samples of the filter's step response.

```[b,a] = ellip(4,0.5,20,0.4); stepz(b,a,50)```

Create the same filter using `designfilt` and display its step response.

```d = designfilt('lowpassiir','FilterOrder',4,'PassbandFrequency',0.4, ... 'PassbandRipple',0.5,'StopbandAttenuation',20, ... 'DesignMethod','ellip'); stepz(d,50)```

Since R2024b

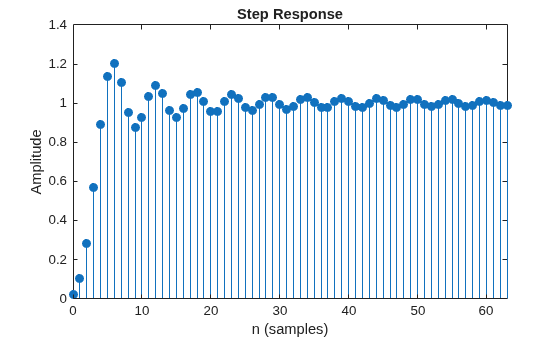

Design a 40th-order lowpass Chebyshev type II digital filter with a stopband edge frequency of 0.4 and stopband attenuation of 50 dB. Plot the first 64 samples of the filter step response using the filter coefficients in the CTF format.

```[B,A] = cheby2(40,50,0.4,"ctf"); stepz(B,A,"ctf",64)```

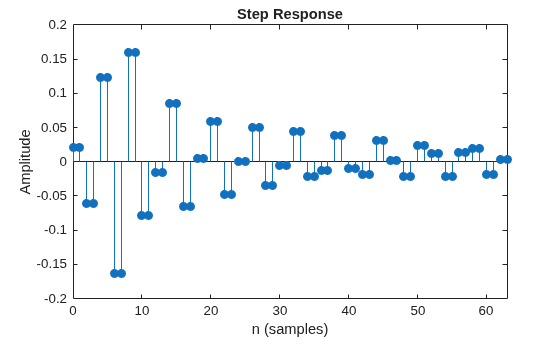

Design a 30th-order bandpass elliptic digital filter with passband edge frequencies of 0.3 and 0.7, passband ripple of 0.1 dB, and stopband attenuation of 50 dB. Plot the first 64 samples of the filter step response using the filter coefficients and gain in the CTF format.

```[B,A,g] = ellip(30,0.1,50,[0.3 0.7],"ctf"); stepz({B,A,g},"ctf",64)```

## Input Arguments

collapse all

Transfer function coefficients, specified as vectors. Express the transfer function in terms of `b` and `a` as

`$H\left(z\right)=\frac{B\left(z\right)}{A\left(z\right)}=\frac{{b}_{1}+{b}_{2}{z}^{-1}\cdots +{b}_{n}{z}^{-\left(n-1\right)}+{b}_{n+1}{z}^{-n}}{{a}_{1}+{a}_{2}{z}^{-1}\cdots +{a}_{m}{z}^{-\left(m-1\right)}+{a}_{m+1}{z}^{-m}}$`

Example: `b = [1 3 3 1]/6` and `a = [3 0 1 0]/3` specify a third-order Butterworth filter with normalized 3 dB frequency 0.5π rad/sample.

Data Types: `double` | `single`
Complex Number Support: Yes

Since R2024b

Cascaded transfer function (CTF) coefficients, specified as scalars, vectors, or matrices. `B` and `A` list the numerator and denominator coefficients of the cascaded transfer function, respectively.

`B` must be of size L-by-(m + 1) and `A` must be of size L-by-(n + 1), where:

• L represents the number of filter sections.

• m represents the order of the filter numerators.

• n represents the order of the filter denominators.

Note

If any element of `A(:,1)` is not equal to `1`, then `stepz` normalizes the filter coefficients by `A(:,1)`. In this case, `A(:,1)` must be nonzero.

Data Types: `double` | `single`
Complex Number Support: Yes

Since R2024b

Scale values, specified as a real-valued scalar or as a real-valued vector with L + 1 elements, where L is the number of CTF sections. The scale values represent the distribution of the filter gain across sections of the cascaded filter representation.

The `stepz` function applies a gain to the filter sections using the `scaleFilterSections` function depending on how you specify `g`:

• Scalar — The function distributes the gain uniformly across all filter sections.

• Vector — The function applies the first L gain values to the corresponding filter sections and distributes the last gain value uniformly across all filter sections.

Data Types: `double` | `single`

Digital filter, specified as a `digitalFilter` object. Use `designfilt` to generate a digital filter based on frequency-response specifications.

Example: ```d = designfilt('lowpassiir','FilterOrder',3,'HalfPowerFrequency',0.5)``` specifies a third-order Butterworth filter with normalized 3 dB frequency 0.5π rad/sample.

Second-order section coefficients, specified as a matrix. `sos` is a K-by-6 matrix, where the number of sections, K, must be greater than or equal to 2. If the number of sections is less than 2, the function treats the input as a numerator vector. Each row of `sos` corresponds to the coefficients of a second-order (biquad) filter. The ith row of `sos` corresponds to `[bi(1) bi(2) bi(3) ai(1) ai(2) ai(3)]`.

Example: `s = [2 4 2 6 0 2;3 3 0 6 0 0]` specifies a third-order Butterworth filter with normalized 3 dB frequency 0.5π rad/sample.

Data Types: `double` | `single`
Complex Number Support: Yes

Number of points over which to evaluate response, specified as a positive integer scalar or positive integer vector. If `n` is a positive integer scalar (`t` = `[0:n-1]'`), the function computes the first `n` samples of the step response. If `n` is a vector of integers, the step response is computed only at those integer values, with 0 denoting the time origin.

Data Types: `double`

Sample rate, specified as a positive scalar. When the unit of time is seconds, `fs` is expressed in hertz.

Data Types: `double`

## Output Arguments

collapse all

Step response, returned as a column vector. If the input to `stepz` is single precision, the function computes the step response using single-precision arithmetic. The output `h` is single precision.

Sample times, returned as a vector.

collapse all

Partitioning an IIR digital filter into cascaded sections improves its numerical stability and reduces its susceptibility to coefficient quantization errors. The cascaded form of a transfer function H(z) in terms of the L transfer functions H1(z), H2(z), …, HL(z) is

`$H\left(z\right)=\prod _{l=1}^{L}{H}_{l}\left(z\right)={H}_{1}\left(z\right)×{H}_{2}\left(z\right)×\cdots ×{H}_{L}\left(z\right).$`

### Specify Digital Filters in CTF Format

You can specify digital filters in the CTF format for analysis, visualization, and signal filtering. Specify a filter by listing its coefficients `B` and `A`. You can also include the filter scaling gain across sections by specifying a scalar or vector `g`.

Filter Coefficients

When you specify the coefficients as L-row matrices,

`$B=\left[\begin{array}{cccc}{b}_{11}& {b}_{12}& \cdots & {b}_{1,m+1}\\ {b}_{21}& {b}_{22}& \cdots & {b}_{2,m+1}\\ ⋮& ⋮& \ddots & ⋮\\ {b}_{L1}& {b}_{L2}& \cdots & {b}_{L,m+1}\end{array}\right],\text{ }A=\left[\begin{array}{cccc}{a}_{11}& {a}_{12}& \cdots & {a}_{1,n+1}\\ {a}_{21}& {a}_{22}& \cdots & {a}_{2,n+1}\\ ⋮& ⋮& \ddots & ⋮\\ {a}_{L1}& {a}_{L2}& \cdots & {a}_{L,n+1}\end{array}\right],$`

it is assumed that you have specified the filter as a sequence of L cascaded transfer functions, such that the full transfer function of the filter is

`$H\left(z\right)=\frac{{b}_{11}+{b}_{12}{z}^{-1}+\cdots +{b}_{1,m+1}{z}^{-m}}{{a}_{11}+{a}_{12}{z}^{-1}+\cdots +{a}_{1,n+1}{z}^{-n}}×\frac{{b}_{21}+{b}_{22}{z}^{-1}+\cdots +{b}_{2,m+1}{z}^{-m}}{{a}_{21}+{a}_{22}{z}^{-1}+\cdots +{a}_{2,n+1}{z}^{-n}}×\cdots ×\frac{{b}_{L1}+{b}_{L2}{z}^{-1}+\cdots +{b}_{L,m+1}{z}^{-m}}{{a}_{L1}+{a}_{L2}{z}^{-1}+\cdots +{a}_{L,n+1}{z}^{-n}},$`

where m ≥ 0 is the numerator order of the filter and n ≥ 0 is the denominator order.

• If you specify both B and A as vectors, it is assumed that the underlying system is a one-section IIR filter (L = 1), with B representing the numerator of the transfer function and A representing its denominator.

• If B is scalar, it is assumed that the filter is a cascade of all-pole IIR filters with each section having an overall system gain equal to B.

• If A is scalar, it is assumed that the filter is a cascade of FIR filters with each section having an overall system gain equal to 1/A.

Note

• To convert second-order section matrices to cascaded transfer functions, use the `sos2ctf` function.

• To convert a zero-pole-gain filter representation to cascaded transfer functions, use the `zp2ctf` function.

Coefficients and Gain

If you have an overall scaling gain or multiple scaling gains factored out from the coefficient values, you can specify the coefficients and gain as a cell array of the form `{B,A,g}`. Scaling filter sections is especially important when you work with fixed-point arithmetic to ensure that the output of each filter section has similar amplitude levels, which helps avoid inaccuracies in the filter response due to limited numeric precision.

The gain can be a scalar overall gain or a vector of section gains.

• If the gain is scalar, the value applies uniformly to all the cascade filter sections.

• If the gain is a vector, it must have one more element than the number of filter sections L in the cascade. Each of the first L scale values applies to the corresponding filter section, and the last value applies uniformly to all the cascade filter sections.

If you specify the coefficient matrices and gain vector as

`$B=\left[\begin{array}{cccc}{b}_{11}& {b}_{12}& \cdots & {b}_{1,m+1}\\ {b}_{21}& {b}_{22}& \cdots & {b}_{2,m+1}\\ ⋮& ⋮& \ddots & ⋮\\ {b}_{L1}& {b}_{L2}& \cdots & {b}_{L,m+1}\end{array}\right],\text{ }A=\left[\begin{array}{cccc}{a}_{11}& {a}_{12}& \cdots & {a}_{1,n+1}\\ {a}_{21}& {a}_{22}& \cdots & {a}_{2,n+1}\\ ⋮& ⋮& \ddots & ⋮\\ {a}_{L1}& {a}_{L2}& \cdots & {a}_{L,n+1}\end{array}\right],\text{ }g=\left[\begin{array}{ccccc}{g}_{1}& {g}_{2}& \cdots & {g}_{L}& {g}_{\text{S}}\end{array}\right],$`

it is assumed that the transfer function of the filter system is

`$H\left(z\right)={g}_{\text{S}}\left({g}_{1}\frac{{b}_{11}+{b}_{12}{z}^{-1}+\cdots +{b}_{1,m+1}{z}^{-m}}{{a}_{11}+{a}_{12}{z}^{-1}+\cdots +{a}_{1,n+1}{z}^{-n}}×{g}_{2}\frac{{b}_{21}+{b}_{22}{z}^{-1}+\cdots +{b}_{2,m+1}{z}^{-m}}{{a}_{21}+{a}_{22}{z}^{-1}+\cdots +{a}_{2,n+1}{z}^{-n}}×\cdots ×{g}_{L}\frac{{b}_{L1}+{b}_{L2}{z}^{-1}+\cdots +{b}_{L,m+1}{z}^{-m}}{{a}_{L1}+{a}_{L2}{z}^{-1}+\cdots +{a}_{L,n+1}{z}^{-n}}\right).$`

## Algorithms

`stepz` filters a length `n` step sequence using

```filter(b,a,ones(1,n)) ```

and plots the results using `stem`.

To compute `n` in the auto-length case, `stepz` either uses `n = length(b)` for the FIR case, or first finds the poles using `p = roots(a)` if `length(a)` is greater than 1.

If the filter is unstable, `n` is chosen to be the point at which the term from the largest pole reaches 106 times its original value.

If the filter is stable, `n` is chosen to be the point at which the term due to the largest amplitude pole is 5 × 10–5 of its original amplitude.

If the filter is oscillatory (poles on the unit circle only), `stepz` computes five periods of the slowest oscillation.

If the filter has both oscillatory and damped terms, `n` is chosen to equal five periods of the slowest oscillation or the point at which the term due to the pole of largest nonunit amplitude is 5 × 10–5 times its original amplitude, whichever is greater.

`stepz` also allows for delays in the numerator polynomial. The number of delays is incorporated into the computation for the number of samples.

## References

[1] Lyons, Richard G. Understanding Digital Signal Processing. Upper Saddle River, NJ: Prentice Hall, 2004.
