# worldGrid

## Description

`[`

,
where `X`

,`Y`

] = worldGrid(`R`

,`gridOption`

)`gridOption`

is `'gridvectors'`

, returns
`X`

and `Y`

as row vectors. The coordinates of
raster element `(i,j)`

are `(X(j),Y(i))`

. The default for
`gridOption`

is `'fullgrid'`

, which returns
`X`

and `Y`

as 2-D arrays.

## Examples

### Find Coordinates of Raster Elements

Import elevation data, find the coordinates of the imported data, then display the data as a surface.

First import elevation data [1] for an area around Mount Washington as an array and a map cells reference object. Prepare the data for plotting by replacing missing data values with `0`

. Then, find the coordinates of each element in the array.

[Z,R] = readgeoraster('MtWashington-ft.grd','OutputType','double'); info = georasterinfo('MtWashington-ft.grd'); Z = standardizeMissing(Z,info.MissingDataIndicator); [X,Y] = worldGrid(R);

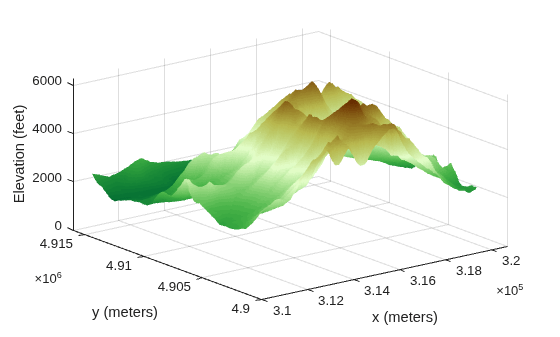

Display the elevation data as a surface using an appropriate colormap. Set the `EdgeColor`

property to `'none'`

to remove the mesh from the surface.

surf(X,Y,Z,'EdgeColor','none') demcmap(Z) xlabel('x (meters)') ylabel('y (meters)') zlabel('Elevation (feet)')

[1] The elevation data used in this example is courtesy of the U.S. Geological Survey.

### Get Vectors Instead of Arrays

Create a map cells reference object for a 3-by-4 raster with *x* values in the range [7000, 7400] meters and *y* values in the range [2700, 3300] meters. Get the coordinates of the raster elements and return them as row vectors.

```
R = maprefcells([7000 7400],[2700 3300],[3 4]);
[X,Y] = worldGrid(R,'gridvectors')
```

`X = `*1×4*
7050 7150 7250 7350

`Y = `*1×3*
2800 3000 3200

If you do not specify the second argument as `'gridvectors'`

, then the `worldGrid`

function returns 2-D arrays by default.

[xFull,yFull] = worldGrid(R)

`xFull = `*3×4*
7050 7150 7250 7350
7050 7150 7250 7350
7050 7150 7250 7350

`yFull = `*3×4*
2800 2800 2800 2800
3000 3000 3000 3000
3200 3200 3200 3200

## Input Arguments

`R`

— Spatial reference

`MapCellsReference`

object | `MapPostingsReference`

object

Spatial reference, specified as a `MapCellsReference`

or `MapPostingsReference`

object.

If `R`

is a `MapCellsReference`

object, then
`X`

and `Y`

are cell centers. If
`R`

is a `MapPostingsReference`

object, then
`X`

and `Y`

are posting points.

`gridOption`

— Grid option

`'fullgrid'`

(default) | `'gridvectors'`

Grid option, specified as one of these values:

`'fullgrid'`

— Return`X`

and`Y`

as 2-D arrays, where each row of`X`

is identical and each column of`Y`

is identical. This is the default behavior.`'gridvectors'`

— Return`X`

and`Y`

as row vectors. Use this option when you want to reduce memory usage and when 2-D arrays are unnecessary, such as when plotting large data sets with the`surf`

function. You can specify`gridOption`

as`'gridvectors'`

only when the`TransformationType`

property of`R`

has a value of`'rectilinear'`

.

This table shows the difference between `'fullgrid'`

and
`'gridvectors'`

.

`'fullgrid'` | `'gridvectors'` |
---|---|

R = maprefcells([7000 7400],[2700 3300],[3 4]); [X,Y] = worldGrid(R) X = 7050 7150 7250 7350 7050 7150 7250 7350 7050 7150 7250 7350 Y = 2800 2800 2800 2800 3000 3000 3000 3000 3200 3200 3200 3200 |
```
R = maprefcells([7000 7400],[2700 3300],[3 4]);
[X,Y] = worldGrid(R,'gridvectors')
``` X = 7050 7150 7250 7350 Y = 2800 3000 3200 |

**Data Types: **`char`

| `string`

## Output Arguments

`X`

— *x*-coordinates

2-D array (default) | row vector

*x*-coordinates, returned as a 2-D array or a row vector. By
default, `X`

is a 2-D array. To return `X`

as a
row vector, specify `gridOption`

as
`'gridvectors'`

.

By default, and when `gridOption`

is
`'fullgrid'`

, the sizes of `X`

and
`Y`

each equal the `RasterSize`

property of
`R`

. When `gridOption`

is
`'gridvectors'`

, the lengths of `X`

and
`Y`

equal the second and first elements of the
`RasterSize`

property of `R`

,
respectively.

`Y`

— *y*-coordinates

2-D array (default) | row vector

*y*-coordinates, returned as a 2-D array or a row vector. By
default, `Y`

is a 2-D array. To return `Y`

as a
row vector, specify `gridOption`

as
`'gridvectors'`

.

By default, and when `gridOption`

is
`'fullgrid'`

, the sizes of `X`

and
`Y`

each equal the `RasterSize`

property of
`R`

. When `gridOption`

is
`'gridvectors'`

, the lengths of `X`

and
`Y`

equal the second and first elements of the
`RasterSize`

property of `R`

,
respectively.

## Version History

**Introduced in R2021a**
