meshgrid

2-D and 3-D grids

Description

example

[X,Y] = meshgrid(x,y) returns 2-D grid coordinates based on the coordinates contained in vectors x and y. X is a matrix where each row is a copy of x, and Y is a matrix where each column is a copy of y. The grid represented by the coordinates X and Y has length(y) rows and length(x) columns.

example

[X,Y] = meshgrid(x) is the same as [X,Y] = meshgrid(x,x), returning square grid coordinates with grid size length(x)-by-length(x).

example

[X,Y,Z] = meshgrid(x,y,z) returns 3-D grid coordinates defined by the vectors x, y, and z. The grid represented by X, Y, and Z has size length(y)-by-length(x)-by-length(z).

example

[X,Y,Z] = meshgrid(x) is the same as [X,Y,Z] = meshgrid(x,x,x), returning 3-D grid coordinates with grid size length(x)-by-length(x)-by-length(x).

Examples

collapse all

Create 2-D grid coordinates with x-coordinates defined by the vector x and y-coordinates defined by the vector y.

x = 1:3;
y = 1:5;
[X,Y] = meshgrid(x,y)
X = 5×3

     1     2     3
     1     2     3
     1     2     3
     1     2     3
     1     2     3

Y = 5×3

     1     1     1
     2     2     2
     3     3     3
     4     4     4
     5     5     5

Evaluate the expression x2+y2 over the 2-D grid.

X.^2 + Y.^2
ans = 5×3

     2     5    10
     5     8    13
    10    13    18
    17    20    25
    26    29    34

Create a 2-D grid with uniformly spaced x-coordinates and y-coordinates in the interval [-2,2].

x = -2:0.25:2;
y = x;
[X,Y] = meshgrid(x);

Evaluate and plot the function f(x,y)=xe-x2-y2 over the 2-D grid.

F = X.*exp(-X.^2-Y.^2);
surf(X,Y,F)

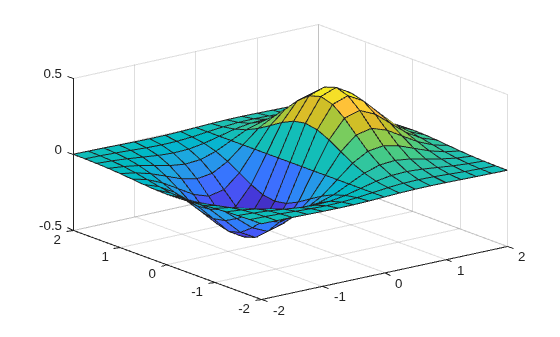

Figure contains an axes object. The axes object contains an object of type surface.

Starting in R2016b, it is not always necessary to create the grid before operating over it. For example, computing the expression xe-x2-y2 implicitly expands the vectors x and y. For more information on implicit expansion, see Array vs. Matrix Operations.

surf(x,y,x.*exp(-x.^2-(y').^2))

Figure contains an axes object. The axes object contains an object of type surface.

Create 3-D grid coordinates from x-, y-, and z-coordinates defined in the interval [0,6], and evaluate the expression x2+y2+z2.

x = 0:2:6;
y = 0:1:6;
z = 0:3:6;
[X,Y,Z] = meshgrid(x,y,z);
F = X.^2 + Y.^2 + Z.^2;

Determine the size of the grid. The three coordinate vectors have different lengths, forming a rectangular box of grid points.

gridsize = size(F)
gridsize = 1×3

     7     4     3

Use the single-input syntax to generate a uniformly spaced 3-D grid based on the coordinates defined in x. The new grid forms a cube of grid points.

[X,Y,Z] = meshgrid(x);
G = X.^2 + Y.^2 + Z.^2;
gridsize = size(G)
gridsize = 1×3

     4     4     4

Input Arguments

collapse all

x-coordinates of points, specified as a vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

y-coordinates of points, specified as a vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

z-coordinates of points, specified as a vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output Arguments

collapse all

x-coordinates over a grid, returned as a 2-D (two inputs) or 3-D array (three inputs).

y-coordinates over a grid, returned as a 2-D (two inputs) or 3-D array (three inputs).

z-coordinates over a grid, returned as a 3-D array.

More About

collapse all

Convert Between meshgrid and ndgrid Formats

meshgrid and ndgrid create grids using different output formats. Specifically, the first two dimensions of a grid created using one of these functions are swapped when compared to the other grid format. Some MATLAB® functions use grids in meshgrid format, while others use ndgrid format, so it is common to convert grids between the two formats.

You can convert between these grid formats using pagetranspose (as of R2020b) or permute to swap the first two dimensions of the grid arrays. For example, create a 3-D grid with meshgrid.

[X,Y,Z] = meshgrid(1:4,1:3,1:2);

Now transpose the first two dimensions of each grid array to convert the grid to ndgrid format, and compare the results against the outputs from ndgrid.

Xt = pagetranspose(X);
Yt = pagetranspose(Y);
Zt = pagetranspose(Z);
[Xn,Yn,Zn] = ndgrid(1:4,1:3,1:2);
isequal(Xt,Xn) & isequal(Yt,Yn) & isequal(Zt,Zn)
ans =

  logical

   1

Using pagetranspose is equivalent to permuting the first two dimensions while leaving other dimensions the same. You can also perform this operation using permute(X,[2 1 3:ndims(X)]).

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Introduced before R2006a
