# dsp.DigitalUpConverter

Interpolate digital signal and translate it from baseband to IF band

## Description

The `dsp.DigitalUpConverter`

System object™ interpolates a digital signal, and translates it from baseband to intermediate
frequency (IF) band.

To digitally upconvert the input signal:

Create the

`dsp.DigitalUpConverter`

object and set its properties.Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

This object supports C/C++ code generation and SIMD code generation under certain conditions. For more information, see Code Generation.

## Creation

### Description

returns a
digital up-converter (DUC) System object, `upConv`

= dsp.DigitalUpConverter`upConv`

.

returns a DUC System object with the specified property `upConv`

= dsp.DigitalUpConverter(`Name=Value`

)`Name`

set to the specified
value `Value`

. You can specify one or more name-value pair arguments in
any order as
(`Name1`

=`Value1`

,...,`NameN`

=`ValueN`

).
For example, create an object that upsamples the input signal by a factor of 20, using a
filter with the specified
qualities.

upConv = dsp.DigitalUpConverter(InterpolationFactor=20,... SampleRate=Fs,... Bandwidth=2e3,... StopbandAttenuation=55,... PassbandRipple=0.2,... CenterFrequency=50e3);

## Properties

Unless otherwise indicated, properties are *nontunable*, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
`release`

function unlocks them.

If a property is *tunable*, you can change its value at
any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`InterpolationFactor`

— Interpolation factor

`100`

(default) | positive integer | vector of positive integers

Interpolation factor, specified as a positive integer, or a 1-by-2 or 1-by-3 vector of positive integers.

When you set this property to a scalar the object automatically chooses the interpolation factors for each of the three filtering stages.

When you set this property to a 1-by-2 vector, the object bypasses the first filter
stage and sets the interpolation factor of the second and third filtering stages to the
values in the first and second vector elements, respectively. Both elements of this
`InterpolationFactor`

vector must be greater than 1.

When you set this property to a 1-by-3 vector, the *i*th element of
the vector specifies the interpolation factor for the *i*th filtering
stage. The second and third elements of this `InterpolationFactor`

vector must be greater than 1 and the first element must equal `1`

or
`2`

.

**Data Types: **`double`

`MinimumOrderDesign`

— Minimum order filter design

`true`

(default) | `false`

Minimum order filter design, specified as `true`

or
`false`

.

When you set this property to `true`

, the object designs filters
with the minimum order that meets the passband ripple, stopband attenuation, passband
frequency, and stopband frequency specifications that you set using the
`PassbandRipple`

, `StopbandAttenuation`

,
`Bandwidth`

, `StopbandFrequencySource`

, and
`StopbandFrequency`

properties.

When you set this property to `false`

, the object designs filters
with orders that you specify in the `FirstFilterOrder`

,
`SecondFilterOrder`

, and `NumCICSections`

properties. The filter designs meet the passband and stopband frequency specifications
that you set using the `Bandwidth`

,
`StopbandFrequencySource`

, and
`StopbandFrequency`

properties.

**Data Types: **`logical`

`SecondFilterOrder`

— Order of CIC compensation filter stage

`12`

(default) | positive integer

Order of CIC compensation filter stage, specified as a positive integer.

#### Dependencies

To enable this property, set the `MinimumOrderDesign`

property
to `false`

.

**Data Types: **`double`

`FirstFilterOrder`

— Order of first filter stage

`10`

(default) | positive even integer

Order of first filter stage, specified as a positive even integer.

#### Dependencies

To enable this property, set the `MinimumOrderDesign`

property
to `false`

. When you set the `InterpolationFactor`

property to a 1-by-2 vector, the object ignores the
`FirstFilterOrder`

property, because the first filter stage is
bypassed.

**Data Types: **`double`

`NumCICSections`

— Number of sections of CIC interpolator

`3`

(default) | positive integer

Number of sections of CIC interpolator, specified as a positive integer.

#### Dependencies

To enable this property, set the `MinimumOrderDesign`

property
to `false`

.

**Data Types: **`double`

`Bandwidth`

— Two-sided bandwidth of input signal in Hz

`200000`

(default) | positive integer

Two-sided bandwidth *BW* of the input signal, specified as a
positive integer in Hz or in normalized frequency
units* (since R2024b)*. The object sets the passband frequency of the cascade of filters to
half of the value that you specify in this `Bandwidth`

property.

**Data Types: **`double`

`StopbandFrequencySource`

— Source of stopband frequency

`Auto`

(default) | `Property`

Source of the stopband frequency, specified as `Auto`

or
`Property`

.

When you set this property to `Auto`

and set:

`NormalizedFrequency`

to`false`

–– The object places the cutoff frequency of the cascade filter response at approximately*F*_{c}=*Fs*/2 Hz and computes the stopband frequency as*F*_{stop}=*F*_{c}+*TW*/2.*TW*is the transition bandwidth of the cascade response, computed as 2×(*F*_{c}–*F*_{p}).*F*_{p}is the passband frequency computed by*BW*/2, where*BW*is the two-sided bandwidth of the input signal.`NormalizedFrequency`

to`true`

–– The object places the cutoff frequency of the cascade filter response at approximately*F*_{c}= 1/*L*, where*L*is the total interpolation factor specified in the`InterpolationFactor`

property, and computes the stopband frequency as*F*=_{stop}*F*+_{c}*TW*/2.*TW*is the transition bandwidth of the cascade response, computed as 2×(*F*–_{c}*F*), and the passband frequency_{p}*F*equals_{p}*BW*/2, where*BW*is the two-sided bandwidth of the input signal.

When you set this property to `Property`

, you can specify the
stopband frequency value using the `StopbandFrequency`

property.

`StopbandFrequency`

— Stopband frequency

`150000`

(default) | positive scalar

Stopband frequency *F _{stop}*, specified as a
positive scalar in Hz or in normalized frequency
units

*(since R2024b)*.

#### Dependencies

To enable this property, set the `StopbandFrequencySource`

property to `Property`

.

**Data Types: **`double`

`PassbandRipple`

— Passband ripple of cascade response in dB

`0.1`

(default) | positive scalar

Passband ripple of cascade response in dB, specified as a positive scalar. When you
set the `MinimumOrderDesign`

property to `true`

, the
object designs the filters so that the cascade response meets the passband ripple that
you specify in this `PassbandRipple`

property.

#### Dependencies

To enable this property, set the `MinimumOrderDesign`

property
to `true`

.

**Data Types: **`double`

`StopbandAttenuation`

— Stopband attenuation of cascade response in dB

`60`

(default) | positive scalar

Stopband attenuation of cascade response in dB, specified as a positive scalar. When
you set the `MinimumOrderDesign`

property to `true`

,
the object designs the filters so that the cascade response meets the stopband
attenuation that you specify in this `StopbandAttenuation`

property.

#### Dependencies

To enable this property, set the `MinimumOrderDesign`

property
to `true`

.

**Data Types: **`double`

`Oscillator`

— Type of oscillator

`Sine wave`

(default) | `NCO`

Type of oscillator, specified as one of these:

`Sine wave`

–– The object frequency-upconverts the output of the interpolation filter cascade by using a complex exponential signal obtained from samples of a sinusoidal trigonometric function.`NCO`

–– The object frequency-upconverts the output by using a complex exponential obtained from a numerically controlled oscillator (NCO).

`CenterFrequency`

— Center frequency of output signal in Hz

`14000000`

(default) | positive scalar

Center frequency of the output signal *Fc*, specified as a positive
scalar in Hz or in normalized frequency units* (since R2024b)*. The
value of this property must be less than or equal to half the product of the
`SampleRate`

property and the total interpolation factor. The
object upconverts the input signal so that the output spectrum centers at the frequency
you specify in the `CenterFrequency`

property.

**Data Types: **`double`

`NormalizedFrequency`

— Option to set frequencies in normalized units

`false`

(default) | `true`

*Since R2024b*

Option to set frequencies in normalized units, specified as one of these values:

`true`

–– The center frequency, stopband frequency, and bandwidth must be in the normalized frequency units (0 to 1).When you set the

`NormalizedFrequency`

property to`true`

while creating the object and you do not set the frequency specifications, the object automatically sets the default values to normalized frequency units. The object computes the frequencies in normalized units by normalizing the absolute frequency values in Hz with respect to the output sample rate,*Fs*×*L*, where*L*is the interpolation factor.duc = dsp.DigitalUpConverter(NormalizedFrequency=true)

duc = dsp.DigitalUpConverter with properties: InterpolationFactor: 100 MinimumOrderDesign: true Bandwidth: 0.0133 StopbandFrequencySource: 'Auto' PassbandRipple: 0.1000 StopbandAttenuation: 60 Oscillator: 'Sine wave' CenterFrequency: 0.9333 NormalizedFrequency: true

When you set the

`NormalizedFrequency`

property to`true`

after you create the object, you must specify the center frequency, stopband frequency, and bandwidth in normalized units before you run the object algorithm.duc = dsp.DigitalUpConverter

duc = dsp.DigitalUpConverter with properties: InterpolationFactor: 100 MinimumOrderDesign: true Bandwidth: 200000 StopbandFrequencySource: 'Auto' PassbandRipple: 0.1000 StopbandAttenuation: 60 Oscillator: 'Sine wave' CenterFrequency: 14000000 NormalizedFrequency: false SampleRate: 300000

To specify the normalized frequency values, set

`NormalizedFrequency`

to`true`

and manually convert the frequency values in Hz to the normalized values using the output sample rate in Hz,*Fs*×*L*. The bandwidth value in normalized units is*BW*_{Hz}/(*Fs*×*L*/2), the center frequency in normalized units is*F*_{c}_{Hz}/(*Fs*×*L*/2), and the stopband frequency in normalized units is*F*_{stop}_{Hz}/(*Fs*×*L*/2).duc = dsp.DigitalUpConverter; duc.NormalizedFrequency = true; duc.Bandwidth = 200000/(300e3*100/2); duc.CenterFrequency = 14e6/(300e3*100/2)

duc = dsp.DigitalUpConverter with properties: InterpolationFactor: 100 MinimumOrderDesign: true Bandwidth: 0.0133 StopbandFrequencySource: 'Auto' PassbandRipple: 0.1000 StopbandAttenuation: 60 Oscillator: 'Sine wave' CenterFrequency: 0.9333 NormalizedFrequency: true

`false`

–– The bandwidth, stopband frequency, and center frequency values are in Hz. You can specify the input sample rate through the`SampleRate`

property.

**Data Types: **`logical`

`SampleRate`

— Sample rate of input signal

`300000`

(default) | positive scalar

Sample rate of the input signal *Fs*, specified as a positive
scalar value. The value of this property multiplied by the total interpolation factor
must be greater than or equal to twice the value of the
`CenterFrequency`

property.

#### Dependencies

To enable this property, set
`NormalizedFrequency`

to `false`

.* (since R2024b)*

**Data Types: **`single`

| `double`

### NCO Properties

`NumAccumulatorBits`

— Number of NCO accumulator bits

`16`

(default) | integer in the range [1, 128]

Number of NCO accumulator bits, specified as an integer in the range [1,128]. For
more details, see the `dsp.NCO`

System object.

#### Dependencies

To enable this property, set the `Oscillator`

property to
`NCO`

.

**Data Types: **`double`

`NumQuantizedAccumulatorBits`

— Number of NCO accumulator bits

`12`

(default) | integer in the range [1, 128]

Number of NCO accumulator bits, specified as an integer in the range [1,128]. The
value you specify for this property must be less than the value you specify in the
`NumAccumulatorBits`

property. For more details, see the `dsp.NCO`

System object.

#### Dependencies

To enable this property, set the `Oscillator`

property to
`NCO`

.

**Data Types: **`double`

`Dither`

— Dither control for NCO

`true`

(default) | `false`

Dither control for NCO, specified as `true`

or
`false`

. When you set this property to `true`

, the
object uses the number of dither bits specified in the
`NumDitherBits`

property when applying dither to the NCO signal.
When this property is `false`

, the NCO does not apply dither to the
signal. For more details, see the `dsp.NCO`

System object.

#### Dependencies

To enable this property, set the `Oscillator`

property to
`NCO`

.

**Data Types: **`logical`

`NumDitherBits`

— Number of NCO dither bits

`4`

(default) | positive integer

Number of NCO dither bits, specified as a positive integer scalar smaller than the
number of accumulator bits that you specify in the
`NumAccumulatorBits`

property. For more details, see the `dsp.NCO`

System object.

#### Dependencies

To enable this property, set the `Oscillator`

property to
`NCO`

and the `Dither`

property to
`true`

.

**Data Types: **`double`

### Fixed-Point Properties

`FiltersOutputDataType`

— Data type at output of each filter stage

`Same as input`

(default) | `Custom`

Data type at the output of the first (if it has not been bypassed), second, and
third filter stages, specified as `Same as input`

or
`Custom`

. The object casts the data at the output of each filter
stage according to the value you set in this property. For the CIC stage, the casting
is done after the signal is scaled by the normalization factor.

`CustomFiltersOutputDataType`

— Fixed-point data type at output of each filter stage

`numerictype([],16,15)`

(default) | `numerictype`

object

Fixed-point data type at output of each filter stage, specified as a scaled
`numerictype`

(Fixed-Point Designer) object with the
`Signedness`

property set to `Auto`

.

#### Dependencies

To enable this property, set the `FiltersOutputDataType`

property to `Custom`

.

`OutputDataType`

— Data type of output

`Same as input`

(default) | `Custom`

Data type of output, specified as `Same as input`

or
`Custom`

.

`CustomOutputDataType`

— Fixed-point data type of output

`numerictype([],16,15)`

(default) | `numerictype`

object

Fixed-point data type of output, specified as a scaled
`numerictype`

object the `Signedness`

property
set to `Auto`

.

#### Dependencies

To enable this property, set the `OutputDataType`

property to
`Custom`

.

## Usage

### Syntax

### Description

### Input Arguments

`x`

— Input signal

column vector

Input signal, specified as a column vector of real or complex values.

When the data type of `x`

is `double`

or
`single`

, the data type of `y`

is the same as
that of `x`

. When the data type of `x`

is of a
fixed-point type, the data type of `y`

is defined by the
`OutputDataType`

property.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `fi`

**Complex Number Support: **Yes

### Output Arguments

`y`

— Upconverted and upsampled signal

column vector

Upconverted and upsampled signal, returned as a column vector. The length of
`y`

is equal to the length of `x`

multiplied
by the value in the `InterpolationFactor`

property. When the data
type of `x`

is `double`

or
`single`

, the data type of `y`

is the same as
that of `x`

. When the data type of `x`

is of a
fixed-point type, the data type of `y`

is defined by the
`OutputDataType`

property.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `fi`

## Object Functions

To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named `obj`

, use
this syntax:

release(obj)

### Specific to `dsp.DigitalUpConverter`

`getInterpolationFactors` | Get interpolation factors of each filter stage of digital upconverter |

`getFilterOrders` | Get orders of digital down converter or digital up converter filter cascade |

`getFilters` | Get handles to digital down converter or digital up converter filter cascade objects |

`groupDelay` | Group delay of digital down converter or digital up converter filter cascade |

`visualize` | Display response of digital down converter or digital up converter filter cascade |

`generatehdl` | Generate HDL code for quantized DSP filter (requires Filter Design HDL Coder) |

## Examples

### Upconvert Sine Wave Signal

Create a DUC System object™ that upsamples a 1-kHz sinusoidal signal by a factor of 20 and upconverts it to 50 kHz.

Create a sine wave generator to obtain the 1-kHz sinusoidal signal with a sample rate of 6 kHz.

Fs = 6e3; % Sample rate sine = dsp.SineWave(Frequency=1000,... SampleRate=Fs,... SamplesPerFrame=1024); x = sine(); % generate signal

Create a DUC System object. Use minimum order filter designs and set the passband ripple to 0.2 dB and stopband attenuation to 55 dB. Set the double-sided signal bandwidth to 2 kHz.

upConv = dsp.DigitalUpConverter(... InterpolationFactor=20,... SampleRate=Fs,... Bandwidth=2e3,... StopbandAttenuation=55,... PassbandRipple=0.2,... CenterFrequency=50e3);

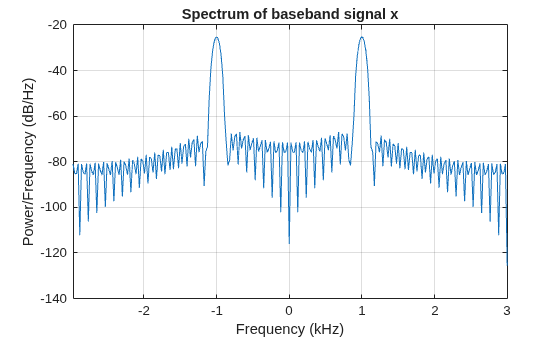

Create a spectrum estimator to visualize the signal spectrum before and after upconverting.

window = hamming(floor(length(x)/10)); figure; pwelch(x,window,[],[],Fs,'centered') title('Spectrum of baseband signal x')

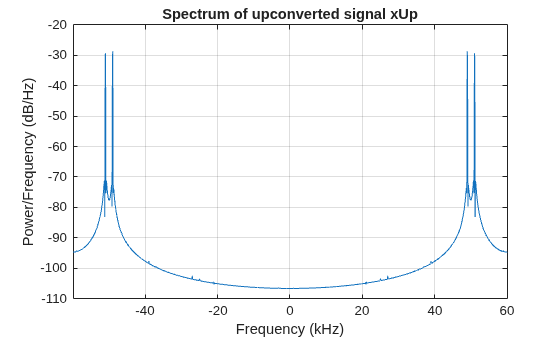

Upconvert the signal and visualize the spectrum.

xUp = upConv(x); window = hamming(floor(length(xUp)/10)); figure; pwelch(xUp,window,[],[],20*Fs,'centered') title('Spectrum of upconverted signal xUp')

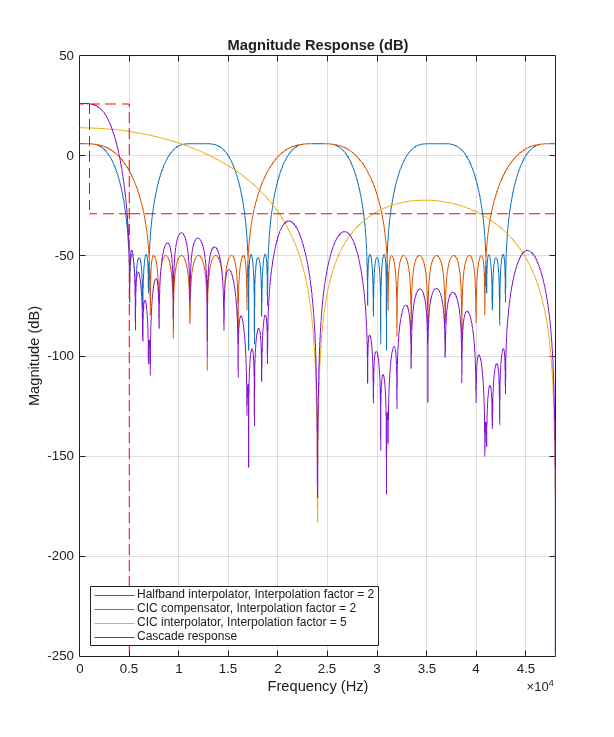

Visualize the response of the interpolation filters.

visualize(upConv)

## More About

### Fixed Point

The block diagram represents the DUC arithmetic with signed fixed-point inputs.

*WL*is the word length of the input, and*FL*is the fraction length of the input.The output of each filter is cast to the filter output data type. In the

`dsp.DigitalUpConverter`

object, you can specify the filter output data type through the`FiltersOutputDataType`

and`CustomFiltersOutputDataType`

properties. In the Digital Up-Converter block, you can specify the filter output data type through the**Stage output**parameter. The casting of the CIC output occurs after the scaling factor is applied.The oscillator output is cast to a word length equal to the filter output data type word length plus one. The fraction length is equal to the filter output data type word length minus one.

The scaling at the output of the CIC interpolator consists of coarse-gain and fine-gain adjustments. The coarse gain is achieved using the

`reinterpretcast`

(Fixed-Point Designer) function on the CIC interpolator output. The fine gain is achieved using full-precision multiplication.

The figure shows the coarse-gain and fine-gain operations.

If the normalization gain is *G* (where 0<*G*≦1), then:

*WL*_{cic}is the word length of the CIC interpolator output, and*FL*_{cic}is the fraction length of the CIC interpolator output.

, indicating the part of*F1*= abs(nextpow2(*G*))*G*achieved by using bit shifts (coarse gain).*F2*is the fraction length specified by the filter output data type.

, which indicates that the remaining gain cannot be achieved with a bit shift (fine gain).*fg*= fi((2^*F1*)**G*,true,16)

## Algorithms

The digital up converter upsamples the input signal using a cascade of three interpolation filters. This algorithm frequency-upconverts the upsampled signal by multiplying it with a complex exponential that has the specified center frequency. In this case, the filter cascade consists of an FIR interpolation stage, a second stage for CIC compensation, and a CIC interpolator. The block diagram shows the architecture of the digital up converter.

The scaling section normalizes the CIC gain and the oscillator power. It can also contain a
correction factor to achieve the desired ripple specification. Depending on how you
set the interpolation factor, the block bypasses the first filter stage. When the
input data type is floating point, the algorithm implements an
*N*-section CIC interpolation filter as a FIR filter with a
response that corresponds to a cascade of *N* boxcar filters. The
algorithm emulates a CIC filter with an FIR filter so that you can run simulations
with floating-point data. When the input data type is a fixed-point type, the
algorithm implements a true CIC filter with actual comb and integrator
sections.

This block diagram represents the DUC arithmetic with floating-point inputs.

For details about fixed-point operation, see Fixed Point.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

See System Objects in MATLAB Code Generation (MATLAB Coder).

This object also supports SIMD code generation using Intel^{®} AVX2 code replacement library when the input signal has a data type of
`single`

or `double`

.

The SIMD technology significantly improves the performance of the generated code. For more information, see SIMD Code Generation. To generate SIMD code from this object, see Use Intel AVX2 Code Replacement Library to Generate SIMD Code from MATLAB Algorithms.

### HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

This object supports HDL code generation with the Filter Design HDL Coder™ product. For workflows and limitations, see Generate HDL Code for Filter System Objects (Filter Design HDL Coder).

## Version History

**Introduced in R2012a**

### R2024b: `visualizeFilterStages`

has been renamed to
`visualize`

The `visualizeFilterStages`

function has been renamed to
`visualize`

. Existing instances of this function continue to run. For
new instances, use `visualize`

.

### R2024b: `visualize`

launches MATLAB figure

The `visualize`

function now launches a MATLAB^{®} figure to display the magnitude response of the digital up converter filter
cascade.

### R2024b: Support for normalized frequencies

When you set the `NormalizedFrequency`

property to
`true`

, you must specify the bandwidth, stopband frequency, and the
center frequency in normalized frequency units (0 to 1). For more information, see the
`NormalizedFrequency`

property description.

## See Also

### Functions

### Objects

### Blocks

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
