plotregression

Plot linear regression

Syntax

plotregression(targets,outputs)

plotregression(targs1,outs1,'name1',targs2,outs2,'name2',...)

plotregression(targets,outputs) plots the linear regression of targets relative to outputs.

plotregression(targs1,outs1,'name1',targs2,outs2,'name2',...)generates multiple plots.

This example shows how to plot the linear regression of a feedforward net.

[x,t] = simplefit_dataset;
net = feedforwardnet(10);
net = train(net,x,t);

y = net(x);

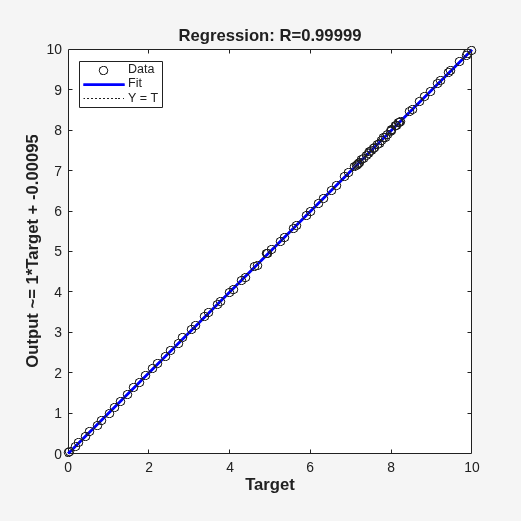

plotregression(t,y,'Regression')

Network targets, specified as a matrix or cell array.

Network outputs, specified as a matrix or cell array.

Introduced in R2008a
