logp
Log unconditional probability density of naive Bayes classification model for incremental learning
Since R2021a
Syntax
Description
returns the log unconditional probability densities
lp
= logp(Mdl
,X
)lp
of the observations in the predictor data X
using the naive Bayes classification model for incremental learning Mdl
. You can use lp
to identify outliers in the training data.
Examples
Detect Outliers in Streaming Data
Train a naive Bayes classification model by using fitcnb
, convert it to an incremental learner, and then use the incremental model to detect outliers in streaming data.
Load and Preprocess Data
Load the human activity data set. Randomly shuffle the data.
load humanactivity rng(1); % For reproducibility n = numel(actid); idx = randsample(n,n); X = feat(idx,:); Y = actid(idx);
For details on the data set, enter Description
at the command line.
Train Naive Bayes Classification Model
Fit a naive Bayes classification model to a random sample of about 25% of the data.
idxtt = randsample([true false false false],n,true); TTMdl = fitcnb(X(idxtt,:),Y(idxtt))
TTMdl = ClassificationNaiveBayes ResponseName: 'Y' CategoricalPredictors: [] ClassNames: [1 2 3 4 5] ScoreTransform: 'none' NumObservations: 6167 DistributionNames: {1x60 cell} DistributionParameters: {5x60 cell}
TTMdl
is a ClassificationNaiveBayes
model object representing a traditionally trained model.
Convert Trained Model
Convert the traditionally trained model to a naive Bayes classification model for incremental learning.
IncrementalMdl = incrementalLearner(TTMdl)
IncrementalMdl = incrementalClassificationNaiveBayes IsWarm: 1 Metrics: [1x2 table] ClassNames: [1 2 3 4 5] ScoreTransform: 'none' DistributionNames: {1x60 cell} DistributionParameters: {5x60 cell}
IncrementalMdl
is an incrementalClassificationNaiveBayes
object. IncrementalMdl
represents a naive Bayes classification model for incremental learning; the parameter values are the same as the parameters in TTMdl
.
Detect Outliers
Determine an unconditional density threshold for outliers by using the traditionally trained model and training data. Outliers are observations in the streaming data that yield densities lower than the threshold.
ttlp = logp(TTMdl,X(idxtt,:)); [~,lower] = isoutlier(ttlp)
lower = -336.0424
Detect these outliers in the rest of the data. Simulate a data stream by processing 1 observation at a time. At each iteration, call logp
to compute the log unconditional probability density of the observation and store each value.
% Preallocation idxil = ~idxtt; nil = sum(idxil); numObsPerChunk = 1; nchunk = floor(nil/numObsPerChunk); lp = zeros(nchunk,1); iso = false(nchunk,1); Xil = X(idxil,:); Yil = Y(idxil); % Incremental processing for j = 1:nchunk ibegin = min(nil,numObsPerChunk*(j-1) + 1); iend = min(nil,numObsPerChunk*j); idx = ibegin:iend; lp(j) = logp(IncrementalMdl,Xil(idx,:)); iso(j) = lp(j) < lower; end

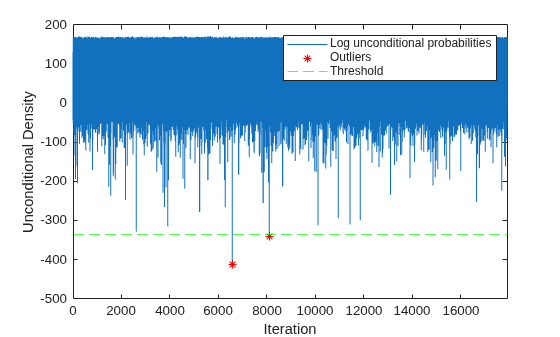

Plot the log unconditional probability densities of the streaming data. Identify the outliers.
figure; h1 = plot(lp); hold on x = 1:nchunk; h2 = plot(x(iso),lp(iso),'r*'); h3 = yline(lower,'g--'); xlim([0 nchunk]); ylabel('Unconditional Density') xlabel('Iteration') legend([h1 h2 h3],["Log unconditional probabilities" "Outliers" "Threshold"]) hold off
Input Arguments
Mdl
— Naive Bayes classification model for incremental learning
incrementalClassificationNaiveBayes
model object
Naive Bayes classification model for incremental learning, specified as an incrementalClassificationNaiveBayes
model object. You can create Mdl
directly or by converting a supported, traditionally trained machine learning model using the incrementalLearner
function. For more details, see the corresponding reference page.
You must configure Mdl
to compute the log conditional probability densities on a batch of observations.
If
Mdl
is a converted, traditionally trained model, you can compute the log conditional probabilities without any modifications.Otherwise,
Mdl.DistributionParameters
must be a cell matrix withMdl.NumPredictors
> 0 columns and at least one row, where each row corresponds to each class name inMdl.ClassNames
.
X
— Batch of predictor data
floating-point matrix
Batch of predictor data with which to compute the log conditional probability densities, specified as an n-by-Mdl.NumPredictors
floating-point matrix.
For each j
= 1 through n, if
X(
contains at least one
j
,:)NaN
, lp(
is
j
)NaN
.
Data Types: single
| double
Output Arguments
lp
— Log conditional probability densities
floating-point vector
Log unconditional probability densities, returned as an n-by-1 floating-point vector. lp(
is the log unconditional probability density of the predictors evaluated at j
)X(
.j
,:)
Data Types: single
| double
More About
Unconditional Probability Density
The unconditional probability density of the predictors is the density's distribution marginalized over the classes.
In other words, the unconditional probability density is
where π(Y = k) is the class prior probability. The conditional distribution of the data given the class (P(X1,..,XP|y = k)) and the class prior probability distributions are training options (that is, you specify them when training the classifier).
Prior Probability
The prior probability of a class is the assumed relative frequency with which observations from that class occur in a population.
Version History
Introduced in R2021a
