fitrsvm

Fit a support vector machine regression model

fitrsvm trains or cross-validates a support vector machine (SVM) regression model on a low- through moderate-dimensional predictor data set. fitrsvm supports mapping the predictor data using kernel functions, and supports SMO, ISDA, or L1 soft-margin minimization via quadratic programming for objective-function minimization.

To train a linear SVM regression model on a high-dimensional data set, that is, data sets that include many predictor variables, use fitrlinear instead.

To train an SVM model for binary classification, see fitcsvm for low- through moderate-dimensional predictor data sets, or fitclinear for high-dimensional data sets.

Syntax

Mdl = fitrsvm(Tbl,ResponseVarName)
Mdl = fitrsvm(Tbl,formula)
Mdl = fitrsvm(Tbl,Y)
Mdl = fitrsvm(X,Y)
Mdl = fitrsvm(___,Name,Value)

Description

example

Mdl = fitrsvm(Tbl,ResponseVarName) returns a full, trained support vector machine (SVM) regression model Mdl trained using the predictors values in the table Tbl and the response values in Tbl.ResponseVarName.

Mdl = fitrsvm(Tbl,formula) returns a full SVM regression model trained using the predictors values in the table Tbl. formula is an explanatory model of the response and a subset of predictor variables in Tbl used to fit Mdl.

Mdl = fitrsvm(Tbl,Y) returns a full, trained SVM regression model trained using the predictors values in the table Tbl and the response values in the vector Y.

Mdl = fitrsvm(X,Y) returns a full, trained SVM regression model trained using the predictors values in the matrix X and the response values in the vector Y.

example

Mdl = fitrsvm(___,Name,Value) returns an SVM regression model with additional options specified by one or more name-value pair arguments, using any of the previous syntaxes. For example, you can specify the kernel function or train a cross-validated model.

Examples

collapse all

Train a support vector machine (SVM) regression model using sample data stored in matrices.

Load the carsmall data set.

load carsmall
rng 'default'  % For reproducibility

Specify Horsepower and Weight as the predictor variables (X) and MPG as the response variable (Y).

X = [Horsepower,Weight];
Y = MPG;

Train a default SVM regression model.

Mdl = fitrsvm(X,Y)
Mdl =
  RegressionSVM
             ResponseName: 'Y'
    CategoricalPredictors: []
        ResponseTransform: 'none'
                    Alpha: [76x1 double]
                     Bias: 43.1920
         KernelParameters: [1x1 struct]
          NumObservations: 93
           BoxConstraints: [93x1 double]
          ConvergenceInfo: [1x1 struct]
          IsSupportVector: [93x1 logical]
                   Solver: 'SMO'


  Properties, Methods

Mdl is a trained RegressionSVM model.

Check the model for convergence.

Mdl.ConvergenceInfo.Converged
ans = logical
   0

0 indicates that the model did not converge.

Retrain the model using standardized data.

MdlStd = fitrsvm(X,Y,'Standardize',true)
MdlStd =
  RegressionSVM
             ResponseName: 'Y'
    CategoricalPredictors: []
        ResponseTransform: 'none'
                    Alpha: [77x1 double]
                     Bias: 22.9131
         KernelParameters: [1x1 struct]
                       Mu: [109.3441 2.9625e+03]
                    Sigma: [45.3545 805.9668]
          NumObservations: 93
           BoxConstraints: [93x1 double]
          ConvergenceInfo: [1x1 struct]
          IsSupportVector: [93x1 logical]
                   Solver: 'SMO'


  Properties, Methods

Check the model for convergence.

MdlStd.ConvergenceInfo.Converged
ans = logical
   1

1 indicates that the model did converge.

Compute the resubstitution (in-sample) mean-squared error for the new model.

lStd = resubLoss(MdlStd)
lStd = 17.0256

Train a support vector machine regression model using the abalone data from the UCI Machine Learning Repository.

Download the data and save it in your current folder with the name 'abalone.csv'.

url = 'https://archive.ics.uci.edu/ml/machine-learning-databases/abalone/abalone.data';
websave('abalone.csv',url);

Read the data into a table. Specify the variable names.

varnames = {'Sex'; 'Length'; 'Diameter'; 'Height'; 'Whole_weight';...
    'Shucked_weight'; 'Viscera_weight'; 'Shell_weight'; 'Rings'};
Tbl = readtable('abalone.csv','Filetype','text','ReadVariableNames',false);
Tbl.Properties.VariableNames = varnames;

The sample data contains 4177 observations. All the predictor variables are continuous except for Sex, which is a categorical variable with possible values 'M' (for males), 'F' (for females), and 'I' (for infants). The goal is to predict the number of rings (stored in Rings) on the abalone and determine its age using physical measurements.

Train an SVM regression model, using a Gaussian kernel function with an automatic kernel scale. Standardize the data.

rng default  % For reproducibility
Mdl = fitrsvm(Tbl,'Rings','KernelFunction','gaussian','KernelScale','auto',...
    'Standardize',true)
Mdl =

  RegressionSVM
           PredictorNames: {1×8 cell}
             ResponseName: 'Rings'
    CategoricalPredictors: 1
        ResponseTransform: 'none'
                    Alpha: [3635×1 double]
                     Bias: 10.8144
         KernelParameters: [1×1 struct]
                       Mu: [1×10 double]
                    Sigma: [1×10 double]
          NumObservations: 4177
           BoxConstraints: [4177×1 double]
          ConvergenceInfo: [1×1 struct]
          IsSupportVector: [4177×1 logical]
                   Solver: 'SMO'


The Command Window shows that Mdl is a trained RegressionSVM model and displays a property list.

Display the properties of Mdl using dot notation. For example, check to confirm whether the model converged and how many iterations it completed.

conv = Mdl.ConvergenceInfo.Converged
iter = Mdl.NumIterations
conv =

  logical

   1


iter =

        2759

The returned results indicate that the model converged after 2759 iterations.

Load the carsmall data set.

load carsmall
rng 'default'  % For reproducibility

Specify Horsepower and Weight as the predictor variables (X) and MPG as the response variable (Y).

X = [Horsepower Weight];
Y = MPG;

Cross-validate two SVM regression models using 5-fold cross-validation. For both models, specify to standardize the predictors. For one of the models, specify to train using the default linear kernel, and the Gaussian kernel for the other model.

MdlLin = fitrsvm(X,Y,'Standardize',true,'KFold',5)
MdlLin =
  classreg.learning.partition.RegressionPartitionedSVM
    CrossValidatedModel: 'SVM'
         PredictorNames: {'x1'  'x2'}
           ResponseName: 'Y'
        NumObservations: 94
                  KFold: 5
              Partition: [1x1 cvpartition]
      ResponseTransform: 'none'


  Properties, Methods

MdlGau = fitrsvm(X,Y,'Standardize',true,'KFold',5,'KernelFunction','gaussian')
MdlGau =
  classreg.learning.partition.RegressionPartitionedSVM
    CrossValidatedModel: 'SVM'
         PredictorNames: {'x1'  'x2'}
           ResponseName: 'Y'
        NumObservations: 94
                  KFold: 5
              Partition: [1x1 cvpartition]
      ResponseTransform: 'none'


  Properties, Methods

MdlLin.Trained
ans = 5x1 cell array
    {1x1 classreg.learning.regr.CompactRegressionSVM}
    {1x1 classreg.learning.regr.CompactRegressionSVM}
    {1x1 classreg.learning.regr.CompactRegressionSVM}
    {1x1 classreg.learning.regr.CompactRegressionSVM}
    {1x1 classreg.learning.regr.CompactRegressionSVM}

MdlLin and MdlGau are RegressionPartitionedSVM cross-validated models. The Trained property of each model is a 5-by-1 cell array of CompactRegressionSVM models. The models in the cell store the results of training on 4 folds of observations, and leaving one fold of observations out.

Compare the generalization error of the models. In this case, the generalization error is the out-of-sample mean-squared error.

mseLin = kfoldLoss(MdlLin)
mseLin = 17.4417
mseGau = kfoldLoss(MdlGau)
mseGau = 16.7397

The SVM regression model using the Gaussian kernel performs better than the one using the linear kernel.

Create a model suitable for making predictions by passing the entire data set to fitrsvm, and specify all name-value pair arguments that yielded the better-performing model. However, do not specify any cross-validation options.

MdlGau = fitrsvm(X,Y,'Standardize',true,'KernelFunction','gaussian');

To predict the MPG of a set of cars, pass Mdl and a table containing the horsepower and weight measurements of the cars to predict.

This example shows how to optimize hyperparameters automatically using fitrsvm. The example uses the carsmall data.

Load the carsmall data set.

load carsmall

Specify Horsepower and Weight as the predictor variables (X) and MPG as the response variable (Y).

X = [Horsepower Weight];
Y = MPG;

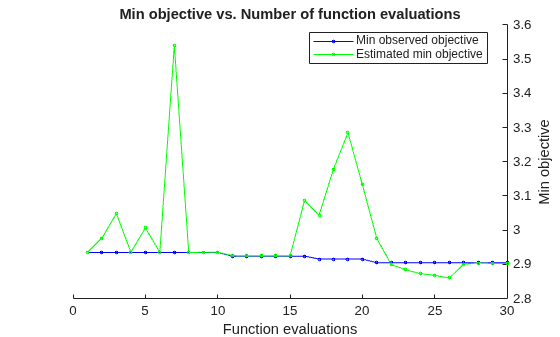

Find hyperparameters that minimize five-fold cross-validation loss by using automatic hyperparameter optimization.

For reproducibility, set the random seed and use the 'expected-improvement-plus' acquisition function.

rng default
Mdl = fitrsvm(X,Y,'OptimizeHyperparameters','auto',...
    'HyperparameterOptimizationOptions',struct('AcquisitionFunctionName',...
    'expected-improvement-plus'))
|====================================================================================================================|
| Iter | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   | BoxConstrain-|  KernelScale |      Epsilon |
|      | result |             | runtime     | (observed)  | (estim.)    | t            |              |              |
|====================================================================================================================|
|    1 | Best   |      6.1124 |      10.779 |      6.1124 |      6.1124 |      0.35664 |     0.043031 |      0.30396 |
|    2 | Best   |      2.9114 |    0.092593 |      2.9114 |       3.088 |        70.67 |       710.65 |       1.6369 |
|    3 | Accept |      4.1884 |    0.051436 |      2.9114 |       3.078 |       14.367 |    0.0059144 |       442.64 |
|    4 | Accept |       4.159 |    0.048154 |      2.9114 |      3.0457 |    0.0030879 |       715.31 |       2.6045 |
|    5 | Best   |      2.9044 |     0.19816 |      2.9044 |      2.9042 |       906.95 |       761.46 |       1.3274 |
|    6 | Best   |      2.8666 |     0.50618 |      2.8666 |      2.8668 |        997.3 |       317.41 |       3.7696 |
|    7 | Accept |      4.1881 |    0.043931 |      2.8666 |      2.8669 |       759.56 |       987.74 |       15.074 |
|    8 | Accept |      2.8992 |      2.5317 |      2.8666 |      2.8669 |       819.07 |       152.11 |       1.5192 |
|    9 | Accept |      2.8916 |     0.16756 |      2.8666 |      2.8672 |       921.52 |       627.48 |       2.3029 |
|   10 | Accept |      2.9001 |     0.28733 |      2.8666 |      2.8676 |       382.91 |       343.04 |       1.5448 |
|   11 | Accept |      3.6573 |      10.023 |      2.8666 |      2.8784 |        945.1 |        8.885 |       3.9207 |
|   12 | Accept |      2.9381 |      0.1064 |      2.8666 |       2.871 |       935.49 |       979.29 |       0.1384 |
|   13 | Accept |      2.9341 |    0.043784 |      2.8666 |      2.8719 |        1.992 |       999.49 |      0.21557 |
|   14 | Accept |      2.9227 |    0.062812 |      2.8666 |      2.8742 |        2.351 |       977.85 |     0.026124 |
|   15 | Accept |      2.9483 |     0.13059 |      2.8666 |      2.8751 |       826.92 |       713.57 |    0.0096305 |
|   16 | Accept |      2.9502 |      1.1689 |      2.8666 |      2.8813 |       345.64 |        129.6 |     0.027832 |
|   17 | Accept |      2.9329 |      0.1059 |      2.8666 |      2.8799 |       836.96 |       970.73 |     0.034398 |
|   18 | Accept |      2.9177 |    0.047944 |      2.8666 |      2.8771 |      0.10167 |       129.91 |    0.0092675 |
|   19 | Accept |        2.95 |       2.513 |      2.8666 |      2.8749 |       199.85 |        68.93 |    0.0092982 |
|   20 | Accept |      4.1964 |     0.06516 |      2.8666 |      2.8685 |    0.0012054 |       940.94 |    0.0097673 |
|====================================================================================================================|
| Iter | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   | BoxConstrain-|  KernelScale |      Epsilon |
|      | result |             | runtime     | (observed)  | (estim.)    | t            |              |              |
|====================================================================================================================|
|   21 | Accept |       2.905 |    0.051353 |      2.8666 |      2.8675 |       5.9475 |       199.82 |     0.013585 |
|   22 | Accept |      2.9329 |     0.10874 |      2.8666 |      2.8747 |      0.33221 |       21.509 |    0.0094248 |
|   23 | Accept |      2.9017 |    0.076283 |      2.8666 |      2.8689 |       13.341 |       554.39 |     0.069216 |
|   24 | Accept |      2.9067 |    0.067107 |      2.8666 |      2.8694 |      0.21467 |       73.415 |     0.028231 |
|   25 | Accept |      2.9046 |    0.052452 |      2.8666 |      2.8731 |      0.68546 |       61.287 |    0.0099165 |
|   26 | Accept |      2.9138 |    0.057869 |      2.8666 |      2.8676 |    0.0012185 |       8.8743 |    0.0093263 |
|   27 | Accept |      2.9193 |    0.059383 |      2.8666 |      2.8731 |    0.0099434 |       30.484 |    0.0093546 |
|   28 | Accept |      8.5384 |      10.335 |      2.8666 |      2.8683 |       992.36 |       1.4043 |    0.0093129 |
|   29 | Accept |      3.2254 |    0.048242 |      2.8666 |      2.8682 |    0.0010092 |       16.917 |       7.3665 |
|   30 | Accept |      4.1884 |     0.06625 |      2.8666 |      2.8683 |       983.95 |       42.654 |       287.19 |

__________________________________________________________
Optimization completed.
MaxObjectiveEvaluations of 30 reached.
Total function evaluations: 30
Total elapsed time: 70.2663 seconds.
Total objective function evaluation time: 39.8961

Best observed feasible point:
    BoxConstraint    KernelScale    Epsilon
    _____________    ___________    _______

        997.3          317.41       3.7696

Observed objective function value = 2.8666
Estimated objective function value = 2.8683
Function evaluation time = 0.50618

Best estimated feasible point (according to models):
    BoxConstraint    KernelScale    Epsilon
    _____________    ___________    _______

        997.3          317.41       3.7696

Estimated objective function value = 2.8683
Estimated function evaluation time = 0.4589
Mdl =
  RegressionSVM
                         ResponseName: 'Y'
                CategoricalPredictors: []
                    ResponseTransform: 'none'
                                Alpha: [35×1 double]
                                 Bias: 48.8155
                     KernelParameters: [1×1 struct]
                      NumObservations: 93
    HyperparameterOptimizationResults: [1×1 BayesianOptimization]
                       BoxConstraints: [93×1 double]
                      ConvergenceInfo: [1×1 struct]
                      IsSupportVector: [93×1 logical]
                               Solver: 'SMO'


  Properties, Methods

The optimization searched over BoxConstraint, KernelScale, and Epsilon. The output is the regression with the minimum estimated cross-validation loss.

Input Arguments

collapse all

Sample data used to train the model, specified as a table. Each row of Tbl corresponds to one observation, and each column corresponds to one predictor variable. Optionally, Tbl can contain one additional column for the response variable. Multi-column variables and cell arrays other than cell arrays of character vectors are not allowed.

If Tbl contains the response variable, and you want to use all remaining variables in Tbl as predictors, then specify the response variable using ResponseVarName.

If Tbl contains the response variable, and you want to use only a subset of the remaining variables in Tbl as predictors, then specify a formula using formula.

If Tbl does not contain the response variable, then specify a response variable using Y. The length of response variable and the number of rows of Tbl must be equal.

If a row of Tbl or an element of Y contains at least one NaN, then fitrsvm removes those rows and elements from both arguments when training the model.

To specify the names of the predictors in the order of their appearance in Tbl, use the PredictorNames name-value pair argument.

Data Types: table

Response variable name, specified as the name of a variable in Tbl. The response variable must be a numeric vector.

You must specify ResponseVarName as a character vector or string scalar. For example, if Tbl stores the response variable Y as Tbl.Y, then specify it as 'Y'. Otherwise, the software treats all columns of Tbl, including Y, as predictors when training the model.

Data Types: char | string

Explanatory model of the response and a subset of the predictor variables, specified as a character vector or string scalar in the form 'Y~X1+X2+X3'. In this form, Y represents the response variable, and X1, X2, and X3 represent the predictor variables. The variables must be variable names in Tbl (Tbl.Properties.VariableNames).

To specify a subset of variables in Tbl as predictors for training the model, use a formula. If you specify a formula, then the software does not use any variables in Tbl that do not appear in formula.

Data Types: char | string

Response data, specified as an n-by-1 numeric vector. The length of Y and the number of rows of Tbl or X must be equal.

If a row of Tbl or X, or an element of Y, contains at least one NaN, then fitrsvm removes those rows and elements from both arguments when training the model.

To specify the response variable name, use the ResponseName name-value pair argument.

Data Types: single | double

Predictor data to which the SVM regression model is fit, specified as an n-by-p numeric matrix. n is the number of observations and p is the number of predictor variables.

The length of Y and the number of rows of X must be equal.

If a row of X or an element of Y contains at least one NaN, then fitrsvm removes those rows and elements from both arguments.

To specify the names of the predictors in the order of their appearance in X, use the PredictorNames name-value pair argument.

Data Types: single | double

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'KernelFunction','gaussian','Standardize',true,'CrossVal','on' trains a 10-fold cross-validated SVM regression model using a Gaussian kernel and standardized training data.

Note

You cannot use any cross-validation name-value pair argument along with the 'OptimizeHyperparameters' name-value pair argument. You can modify the cross-validation for 'OptimizeHyperparameters' only by using the 'HyperparameterOptimizationOptions' name-value pair argument.

Support Vector Machine Options

collapse all

Box constraint for the alpha coefficients, specified as the comma-separated pair consisting of 'BoxConstraint' and a positive scalar value.

The absolute value of the Alpha coefficients cannot exceed the value of BoxConstraint.

The default BoxConstraint value for the 'gaussian' or 'rbf' kernel function is iqr(Y)/1.349, where iqr(Y) is the interquartile range of response variable Y. For all other kernels, the default BoxConstraint value is 1.

Example: BoxConstraint,10

Data Types: single | double

Kernel function used to compute the Gram matrix, specified as the comma-separated pair consisting of 'KernelFunction' and a value in this table.

ValueDescriptionFormula
'gaussian' or 'rbf'Gaussian or Radial Basis Function (RBF) kernel

G(xj,xk)=exp(xjxk2)

'linear'Linear kernel

G(xj,xk)=xjxk

'polynomial'Polynomial kernel. Use 'PolynomialOrder',p to specify a polynomial kernel of order p.

G(xj,xk)=(1+xjxk)q

You can set your own kernel function, for example, kernel, by setting 'KernelFunction','kernel'. kernel must have the following form:

function G = kernel(U,V)
where:

  • U is an m-by-p matrix.

  • V is an n-by-p matrix.

  • G is an m-by-n Gram matrix of the rows of U and V.

And kernel.m must be on the MATLAB® path.

It is good practice to avoid using generic names for kernel functions. For example, call a sigmoid kernel function 'mysigmoid' rather than 'sigmoid'.

Example: 'KernelFunction','gaussian'

Data Types: char | string

Kernel scale parameter, specified as the comma-separated pair consisting of 'KernelScale' and 'auto' or a positive scalar. The software divides all elements of the predictor matrix X by the value of KernelScale. Then, the software applies the appropriate kernel norm to compute the Gram matrix.

  • If you specify 'auto', then the software selects an appropriate scale factor using a heuristic procedure. This heuristic procedure uses subsampling, so estimates can vary from one call to another. Therefore, to reproduce results, set a random number seed using rng before training.

  • If you specify KernelScale and your own kernel function, for example, 'KernelFunction','kernel', then the software throws an error. You must apply scaling within kernel.

Example: 'KernelScale','auto'

Data Types: double | single | char | string

Polynomial kernel function order, specified as the comma-separated pair consisting of 'PolynomialOrder' and a positive integer.

If you set 'PolynomialOrder' and KernelFunction is not 'polynomial', then the software throws an error.

Example: 'PolynomialOrder',2

Data Types: double | single

Kernel offset parameter, specified as the comma-separated pair consisting of 'KernelOffset' and a nonnegative scalar.

The software adds KernelOffset to each element of the Gram matrix.

The defaults are:

  • 0 if the solver is SMO (that is, you set 'Solver','SMO')

  • 0.1 if the solver is ISDA (that is, you set 'Solver','ISDA')

Example: 'KernelOffset',0

Data Types: double | single

Half the width of the epsilon-insensitive band, specified as the comma-separated pair consisting of 'Epsilon' and a nonnegative scalar value.

The default Epsilon value is iqr(Y)/13.49, which is an estimate of a tenth of the standard deviation using the interquartile range of the response variable Y. If iqr(Y) is equal to zero, then the default Epsilon value is 0.1.

Example: 'Epsilon',0.3

Data Types: single | double

Flag to standardize the predictor data, specified as the comma-separated pair consisting of 'Standardize' and true (1) or false (0).

If you set 'Standardize',true:

  • The software centers and scales each column of the predictor data (X) by the weighted column mean and standard deviation, respectively (for details on weighted standardizing, see Algorithms). MATLAB does not standardize the data contained in the dummy variable columns generated for categorical predictors.

  • The software trains the model using the standardized predictor matrix, but stores the unstandardized data in the model property X.

Example: 'Standardize',true

Data Types: logical

Optimization routine, specified as the comma-separated pair consisting of 'Solver' and a value in this table.

ValueDescription
'ISDA'Iterative Single Data Algorithm (see [30])
'L1QP'Uses quadprog to implement L1 soft-margin minimization by quadratic programming. This option requires an Optimization Toolbox™ license. For more details, see Quadratic Programming Definition (Optimization Toolbox).
'SMO'Sequential Minimal Optimization (see [17])

The defaults are:

  • 'ISDA' if you set 'OutlierFraction' to a positive value

  • 'SMO' otherwise

Example: 'Solver','ISDA'

Initial estimates of alpha coefficients, specified as the comma-separated pair consisting of 'Alpha' and a numeric vector. The length of Alpha must be equal to the number of rows of X.

  • Each element of Alpha corresponds to an observation in X.

  • Alpha cannot contain any NaNs.

  • If you specify Alpha and any one of the cross-validation name-value pair arguments ('CrossVal', 'CVPartition', 'Holdout', 'KFold', or 'Leaveout'), then the software returns an error.

If Y contains any missing values, then remove all rows of Y, X, and Alpha that correspond to the missing values. That is, enter:

idx = ~isnan(Y);
Y = Y(idx);
X = X(idx,:);
alpha = alpha(idx);
Then, pass Y, X, and alpha as the response, predictors, and initial alpha estimates, respectively.

The default is zeros(size(Y,1)).

Example: 'Alpha',0.1*ones(size(X,1),1)

Data Types: single | double

Cache size, specified as the comma-separated pair consisting of 'CacheSize' and 'maximal' or a positive scalar.

If CacheSize is 'maximal', then the software reserves enough memory to hold the entire n-by-n Gram matrix.

If CacheSize is a positive scalar, then the software reserves CacheSize megabytes of memory for training the model.

Example: 'CacheSize','maximal'

Data Types: double | single | char | string

Flag to clip alpha coefficients, specified as the comma-separated pair consisting of 'ClipAlphas' and either true or false.

Suppose that the alpha coefficient for observation j is αj and the box constraint of observation j is Cj, j = 1,...,n, where n is the training sample size.

ValueDescription
trueAt each iteration, if αj is near 0 or near Cj, then MATLAB sets αj to 0 or to Cj, respectively.
falseMATLAB does not change the alpha coefficients during optimization.

MATLAB stores the final values of α in the Alpha property of the trained SVM model object.

ClipAlphas can affect SMO and ISDA convergence.

Example: 'ClipAlphas',false

Data Types: logical

Number of iterations between optimization diagnostic message output, specified as the comma-separated pair consisting of 'NumPrint' and a nonnegative integer.

If you specify 'Verbose',1 and 'NumPrint',numprint, then the software displays all optimization diagnostic messages from SMO and ISDA every numprint iterations in the Command Window.

Example: 'NumPrint',500

Data Types: double | single

Expected proportion of outliers in training data, specified as the comma-separated pair consisting of 'OutlierFraction' and a numeric scalar in the interval [0,1). fitrsvm removes observations with large gradients, ensuring that fitrsvm removes the fraction of observations specified by OutlierFraction by the time convergence is reached. This name-value pair is only valid when 'Solver' is 'ISDA'.

Example: 'OutlierFraction',0.1

Data Types: single | double

Flag to replace duplicate observations with single observations in the training data, specified as the comma-separated pair consisting of 'RemoveDuplicates' and true or false.

If RemoveDuplicates is true, then fitrsvm replaces duplicate observations in the training data with a single observation of the same value. The weight of the single observation is equal to the sum of the weights of the corresponding removed duplicates (see Weights).

Tip

If your data set contains many duplicate observations, then specifying 'RemoveDuplicates',true can decrease convergence time considerably.

Data Types: logical

Verbosity level, specified as the comma-separated pair consisting of 'Verbose' and 0, 1, or 2. The value of Verbose controls the amount of optimization information that the software displays in the Command Window and saves the information as a structure to Mdl.ConvergenceInfo.History.

This table summarizes the available verbosity level options.

ValueDescription
0The software does not display or save convergence information.
1The software displays diagnostic messages and saves convergence criteria every numprint iterations, where numprint is the value of the name-value pair argument 'NumPrint'.
2The software displays diagnostic messages and saves convergence criteria at every iteration.

Example: 'Verbose',1

Data Types: double | single

Other Regression Options

collapse all

Categorical predictors list, specified as the comma-separated pair consisting of 'CategoricalPredictors' and one of the values in this table.

ValueDescription
Vector of positive integersAn entry in the vector is the index value corresponding to the column of the predictor data (X or Tbl) that contains a categorical variable.
Logical vectorA true entry means that the corresponding column of predictor data (X or Tbl) is a categorical variable.
Character matrixEach row of the matrix is the name of a predictor variable. The names must match the entries in PredictorNames. Pad the names with extra blanks so each row of the character matrix has the same length.
String array or cell array of character vectorsEach element in the array is the name of a predictor variable. The names must match the entries in PredictorNames.
'all'All predictors are categorical.

By default, if the predictor data is in a table (Tbl), fitrsvm assumes that a variable is categorical if it contains logical values, categorical values, a string array, or a cell array of character vectors. If the predictor data is a matrix (X), fitrsvm assumes all predictors are continuous. To identify any categorical predictors when the data is a matrix, use the 'CategoricalPredictors' name-value pair argument.

Example: 'CategoricalPredictors','all'

Data Types: single | double | logical | char | string | cell

Predictor variable names, specified as the comma-separated pair consisting of 'PredictorNames' and a string array of unique names or cell array of unique character vectors. The functionality of 'PredictorNames' depends on the way you supply the training data.

  • If you supply X and Y, then you can use 'PredictorNames' to give the predictor variables in X names.

    • The order of the names in PredictorNames must correspond to the column order of X. That is, PredictorNames{1} is the name of X(:,1), PredictorNames{2} is the name of X(:,2), and so on. Also, size(X,2) and numel(PredictorNames) must be equal.

    • By default, PredictorNames is {'x1','x2',...}.

  • If you supply Tbl, then you can use 'PredictorNames' to choose which predictor variables to use in training. That is, fitrsvm uses only the predictor variables in PredictorNames and the response variable in training.

    • PredictorNames must be a subset of Tbl.Properties.VariableNames and cannot include the name of the response variable.

    • By default, PredictorNames contains the names of all predictor variables.

    • It is a good practice to specify the predictors for training using either 'PredictorNames' or formula only.

Example: 'PredictorNames',{'SepalLength','SepalWidth','PetalLength','PetalWidth'}

Data Types: string | cell

Response variable name, specified as the comma-separated pair consisting of 'ResponseName' and a character vector or string scalar.

  • If you supply Y, then you can use 'ResponseName' to specify a name for the response variable.

  • If you supply ResponseVarName or formula, then you cannot use 'ResponseName'.

Example: 'ResponseName','response'

Data Types: char | string

Response transformation, specified as the comma-separated pair consisting of 'ResponseTransform' and either 'none' or a function handle. The default is 'none', which means @(y)y, or no transformation. For a MATLAB function or a function you define, use its function handle. The function handle must accept a vector (the original response values) and return a vector of the same size (the transformed response values).

Example: Suppose you create a function handle that applies an exponential transformation to an input vector by using myfunction = @(y)exp(y). Then, you can specify the response transformation as 'ResponseTransform',myfunction.

Data Types: char | string | function_handle

Observation weights, specified as the comma-separated pair consisting of 'Weights' and a vector of numeric values. The size of Weights must equal the number of rows in X. fitrsvm normalizes the values of Weights to sum to 1.

Data Types: single | double

Cross-Validation Options

collapse all

Cross-validation flag, specified as the comma-separated pair consisting of 'CrossVal' and either 'on' or 'off'.

If you specify 'on', then the software implements 10-fold cross-validation.

To override this cross-validation setting, use one of these name-value pair arguments: CVPartition, Holdout, KFold, or Leaveout. To create a cross-validated model, you can use one cross-validation name-value pair argument at a time only.

Alternatively, you can cross-validate the model later using the crossval method.

Example: 'CrossVal','on'

Cross-validation partition, specified as the comma-separated pair consisting of 'CVPartition' and a cvpartition partition object created by cvpartition. The partition object specifies the type of cross-validation and the indexing for the training and validation sets.

To create a cross-validated model, you can use one of these four name-value pair arguments only: CVPartition, Holdout, KFold, or Leaveout.

Example: Suppose you create a random partition for 5-fold cross-validation on 500 observations by using cvp = cvpartition(500,'KFold',5). Then, you can specify the cross-validated model by using 'CVPartition',cvp.

Fraction of the data used for holdout validation, specified as the comma-separated pair consisting of 'Holdout' and a scalar value in the range (0,1). If you specify 'Holdout',p, then the software completes these steps:

  1. Randomly select and reserve p*100% of the data as validation data, and train the model using the rest of the data.

  2. Store the compact, trained model in the Trained property of the cross-validated model.

To create a cross-validated model, you can use one of these four name-value pair arguments only: CVPartition, Holdout, KFold, or Leaveout.

Example: 'Holdout',0.1

Data Types: double | single

Number of folds to use in a cross-validated model, specified as the comma-separated pair consisting of 'KFold' and a positive integer value greater than 1. If you specify 'KFold',k, then the software completes these steps:

  1. Randomly partition the data into k sets.

  2. For each set, reserve the set as validation data, and train the model using the other k – 1 sets.

  3. Store the k compact, trained models in the cells of a k-by-1 cell vector in the Trained property of the cross-validated model.

To create a cross-validated model, you can use one of these four name-value pair arguments only: CVPartition, Holdout, KFold, or Leaveout.

Example: 'KFold',5

Data Types: single | double

Leave-one-out cross-validation flag, specified as the comma-separated pair consisting of 'Leaveout' and 'on' or 'off'. If you specify 'Leaveout','on', then, for each of the n observations (where n is the number of observations excluding missing observations, specified in the NumObservations property of the model), the software completes these steps:

  1. Reserve the observation as validation data, and train the model using the other n – 1 observations.

  2. Store the n compact, trained models in the cells of an n-by-1 cell vector in the Trained property of the cross-validated model.

To create a cross-validated model, you can use one of these four name-value pair arguments only: CVPartition, Holdout, KFold, or Leaveout.

Example: 'Leaveout','on'

Convergence Controls

collapse all

Tolerance for gradient difference between upper and lower violators obtained by SMO or ISDA, specified as the comma-separated pair consisting of 'DeltaGradientTolerance' and a nonnegative scalar.

Example: 'DeltaGradientTolerance',1e-4

Data Types: single | double

Feasibility gap tolerance obtained by SMO or ISDA, specified as the comma-separated pair consisting of 'GapTolerance' and a nonnegative scalar.

If GapTolerance is 0, then fitrsvm does not use this parameter to check convergence.

Example: 'GapTolerance',1e-4

Data Types: single | double

Maximal number of numerical optimization iterations, specified as the comma-separated pair consisting of 'IterationLimit' and a positive integer.

The software returns a trained model regardless of whether the optimization routine successfully converges. Mdl.ConvergenceInfo contains convergence information.

Example: 'IterationLimit',1e8

Data Types: double | single

Tolerance for Karush-Kuhn-Tucker (KKT) violation, specified as the comma-separated pair consisting of 'KKTTolerance' and a nonnegative scalar value.

This name-value pair applies only if 'Solver' is 'SMO' or 'ISDA'.

If KKTTolerance is 0, then fitrsvm does not use this parameter to check convergence.

Example: 'KKTTolerance',1e-4

Data Types: single | double

Number of iterations between reductions of the active set, specified as the comma-separated pair consisting of 'ShrinkagePeriod' and a nonnegative integer.

If you set 'ShrinkagePeriod',0, then the software does not shrink the active set.

Example: 'ShrinkagePeriod',1000

Data Types: double | single

Hyperparameter Optimization

collapse all

Parameters to optimize, specified as the comma-separated pair consisting of 'OptimizeHyperparameters' and one of the following:

  • 'none' — Do not optimize.

  • 'auto' — Use {'BoxConstraint','KernelScale','Epsilon'}.

  • 'all' — Optimize all eligible parameters.

  • String array or cell array of eligible parameter names.

  • Vector of optimizableVariable objects, typically the output of hyperparameters.

The optimization attempts to minimize the cross-validation loss (error) for fitrsvm by varying the parameters. To control the cross-validation type and other aspects of the optimization, use the HyperparameterOptimizationOptions name-value pair.

Note

'OptimizeHyperparameters' values override any values you set using other name-value pair arguments. For example, setting 'OptimizeHyperparameters' to 'auto' causes the 'auto' values to apply.

The eligible parameters for fitrsvm are:

  • BoxConstraintfitrsvm searches among positive values, by default log-scaled in the range [1e-3,1e3].

  • KernelScalefitrsvm searches among positive values, by default log-scaled in the range [1e-3,1e3].

  • Epsilonfitrsvm searches among positive values, by default log-scaled in the range [1e-3,1e2]*iqr(Y)/1.349.

  • KernelFunctionfitrsvm searches among 'gaussian', 'linear', and 'polynomial'.

  • PolynomialOrderfitrsvm searches among integers in the range [2,4].

  • Standardizefitrsvm searches among 'true' and 'false'.

Set nondefault parameters by passing a vector of optimizableVariable objects that have nondefault values. For example,

load carsmall
params = hyperparameters('fitrsvm',[Horsepower,Weight],MPG);
params(1).Range = [1e-4,1e6];

Pass params as the value of OptimizeHyperparameters.

By default, iterative display appears at the command line, and plots appear according to the number of hyperparameters in the optimization. For the optimization and plots, the objective function is log(1 + cross-validation loss) for regression and the misclassification rate for classification. To control the iterative display, set the Verbose field of the 'HyperparameterOptimizationOptions' name-value pair argument. To control the plots, set the ShowPlots field of the 'HyperparameterOptimizationOptions' name-value pair argument.

For an example, see Optimize SVM Regression.

Example: 'OptimizeHyperparameters','auto'

Options for optimization, specified as the comma-separated pair consisting of 'HyperparameterOptimizationOptions' and a structure. This argument modifies the effect of the OptimizeHyperparameters name-value pair argument. All fields in the structure are optional.

Field NameValuesDefault
Optimizer
  • 'bayesopt' — Use Bayesian optimization. Internally, this setting calls bayesopt.

  • 'gridsearch' — Use grid search with NumGridDivisions values per dimension.

  • 'randomsearch' — Search at random among MaxObjectiveEvaluations points.

'gridsearch' searches in a random order, using uniform sampling without replacement from the grid. After optimization, you can get a table in grid order by using the command sortrows(Mdl.HyperparameterOptimizationResults).

'bayesopt'
AcquisitionFunctionName

  • 'expected-improvement-per-second-plus'

  • 'expected-improvement'

  • 'expected-improvement-plus'

  • 'expected-improvement-per-second'

  • 'lower-confidence-bound'

  • 'probability-of-improvement'

Acquisition functions whose names include per-second do not yield reproducible results because the optimization depends on the runtime of the objective function. Acquisition functions whose names include plus modify their behavior when they are overexploiting an area. For more details, see Acquisition Function Types.

'expected-improvement-per-second-plus'
MaxObjectiveEvaluationsMaximum number of objective function evaluations.30 for 'bayesopt' or 'randomsearch', and the entire grid for 'gridsearch'
MaxTime

Time limit, specified as a positive real. The time limit is in seconds, as measured by tic and toc. Run time can exceed MaxTime because MaxTime does not interrupt function evaluations.

Inf
NumGridDivisionsFor 'gridsearch', the number of values in each dimension. The value can be a vector of positive integers giving the number of values for each dimension, or a scalar that applies to all dimensions. This field is ignored for categorical variables.10
ShowPlotsLogical value indicating whether to show plots. If true, this field plots the best objective function value against the iteration number. If there are one or two optimization parameters, and if Optimizer is 'bayesopt', then ShowPlots also plots a model of the objective function against the parameters.true
SaveIntermediateResultsLogical value indicating whether to save results when Optimizer is 'bayesopt'. If true, this field overwrites a workspace variable named 'BayesoptResults' at each iteration. The variable is a BayesianOptimization object.false
Verbose

Display to the command line.

  • 0 — No iterative display

  • 1 — Iterative display

  • 2 — Iterative display with extra information

For details, see the bayesopt Verbose name-value pair argument.

1
UseParallelLogical value indicating whether to run Bayesian optimization in parallel, which requires Parallel Computing Toolbox™. For details, see Parallel Bayesian Optimization.false
Repartition

Logical value indicating whether to repartition the cross-validation at every iteration. If false, the optimizer uses a single partition for the optimization.

true usually gives the most robust results because this setting takes partitioning noise into account. However, for good results, true requires at least twice as many function evaluations.

false
Use no more than one of the following three field names.
CVPartitionA cvpartition object, as created by cvpartition.'Kfold',5 if you do not specify any cross-validation field
HoldoutA scalar in the range (0,1) representing the holdout fraction.
KfoldAn integer greater than 1.

Example: 'HyperparameterOptimizationOptions',struct('MaxObjectiveEvaluations',60)

Data Types: struct

Output Arguments

collapse all

Trained SVM regression model, returned as a RegressionSVM model or RegressionPartitionedSVM cross-validated model.

If you set any of the name-value pair arguments KFold, Holdout, Leaveout, CrossVal, or CVPartition, then Mdl is a RegressionPartitionedSVM cross-validated model. Otherwise, Mdl is a RegressionSVM model.

Limitations

fitrsvm supports low- through moderate-dimensional data sets. For high-dimensional data set, use fitrlinear instead.

Tips

  • Unless your data set is large, always try to standardize the predictors (see Standardize). Standardization makes predictors insensitive to the scales on which they are measured.

  • It is good practice to cross-validate using the KFold name-value pair argument. The cross-validation results determine how well the SVM model generalizes.

  • Sparsity in support vectors is a desirable property of an SVM model. To decrease the number of support vectors, set the BoxConstraint name-value pair argument to a large value. This action also increases the training time.

  • For optimal training time, set CacheSize as high as the memory limit on your computer allows.

  • If you expect many fewer support vectors than observations in the training set, then you can significantly speed up convergence by shrinking the active-set using the name-value pair argument 'ShrinkagePeriod'. It is good practice to use 'ShrinkagePeriod',1000.

  • Duplicate observations that are far from the regression line do not affect convergence. However, just a few duplicate observations that occur near the regression line can slow down convergence considerably. To speed up convergence, specify 'RemoveDuplicates',true if:

    • Your data set contains many duplicate observations.

    • You suspect that a few duplicate observations can fall near the regression line.

    However, to maintain the original data set during training, fitrsvm must temporarily store separate data sets: the original and one without the duplicate observations. Therefore, if you specify true for data sets containing few duplicates, then fitrsvm consumes close to double the memory of the original data.

  • After training a model, you can generate C/C++ code that predicts responses for new data. Generating C/C++ code requires MATLAB Coder™. For details, see Introduction to Code Generation.

Algorithms

  • For the mathematical formulation of linear and nonlinear SVM regression problems and the solver algorithms, see Understanding Support Vector Machine Regression.

  • NaN, <undefined>, empty character vector (''), empty string (""), and <missing> values indicate missing data values. fitrsvm removes entire rows of data corresponding to a missing response. When normalizing weights, fitrsvm ignores any weight corresponding to an observation with at least one missing predictor. Consequently, observation box constraints might not equal BoxConstraint.

  • fitrsvm removes observations that have zero weight.

  • If you set 'Standardize',true and 'Weights', then fitrsvm standardizes the predictors using their corresponding weighted means and weighted standard deviations. That is, fitrsvm standardizes predictor j (xj) using

    xj=xjμjσj.

    • μj=1kwkkwkxjk.

    • xjk is observation k (row) of predictor j (column).

    • (σj)2=v1v12v2kwk(xjkμj)2.

    • v1=jwj.

    • v2=j(wj)2.

  • If your predictor data contains categorical variables, then the software generally uses full dummy encoding for these variables. The software creates one dummy variable for each level of each categorical variable.

    • The PredictorNames property stores one element for each of the original predictor variable names. For example, assume that there are three predictors, one of which is a categorical variable with three levels. Then PredictorNames is a 1-by-3 cell array of character vectors containing the original names of the predictor variables.

    • The ExpandedPredictorNames property stores one element for each of the predictor variables, including the dummy variables. For example, assume that there are three predictors, one of which is a categorical variable with three levels. Then ExpandedPredictorNames is a 1-by-5 cell array of character vectors containing the names of the predictor variables and the new dummy variables.

    • Similarly, the Beta property stores one beta coefficient for each predictor, including the dummy variables.

    • The SupportVectors property stores the predictor values for the support vectors, including the dummy variables. For example, assume that there are m support vectors and three predictors, one of which is a categorical variable with three levels. Then SupportVectors is an m-by-5 matrix.

    • The X property stores the training data as originally input. It does not include the dummy variables. When the input is a table, X contains only the columns used as predictors.

  • For predictors specified in a table, if any of the variables contain ordered (ordinal) categories, the software uses ordinal encoding for these variables.

    • For a variable having k ordered levels, the software creates k – 1 dummy variables. The jth dummy variable is -1 for levels up to j, and +1 for levels j + 1 through k.

    • The names of the dummy variables stored in the ExpandedPredictorNames property indicate the first level with the value +1. The software stores k – 1 additional predictor names for the dummy variables, including the names of levels 2, 3, ..., k.

  • All solvers implement L1 soft-margin minimization.

  • Let p be the proportion of outliers that you expect in the training data. If you set 'OutlierFraction',p, then the software implements robust learning. In other words, the software attempts to remove 100p% of the observations when the optimization algorithm converges. The removed observations correspond to gradients that are large in magnitude.

References

[1] Clark, D., Z. Schreter, A. Adams. A Quantitative Comparison of Dystal and Backpropagation, submitted to the Australian Conference on Neural Networks, 1996.

[2] Fan, R.-E., P.-H. Chen, and C.-J. Lin. “Working set selection using second order information for training support vector machines.” Journal of Machine Learning Research, Vol 6, 2005, pp. 1889–1918.

[3] Kecman V., T. -M. Huang, and M. Vogt. “Iterative Single Data Algorithm for Training Kernel Machines from Huge Data Sets: Theory and Performance.” In Support Vector Machines: Theory and Applications. Edited by Lipo Wang, 255–274. Berlin: Springer-Verlag, 2005.

[4] Lichman, M. UCI Machine Learning Repository, [http://archive.ics.uci.edu/ml]. Irvine, CA: University of California, School of Information and Computer Science.

[5] Nash, W.J., T. L. Sellers, S. R. Talbot, A. J. Cawthorn, and W. B. Ford. The Population Biology of Abalone (Haliotis species) in Tasmania. I. Blacklip Abalone (H. rubra) from the North Coast and Islands of Bass Strait, Sea Fisheries Division, Technical Report No. 48, 1994.

[6] Waugh, S. Extending and benchmarking Cascade-Correlation, Ph.D. thesis, Computer Science Department, University of Tasmania, 1995.

Extended Capabilities

Introduced in R2015b
