report

Generate fairness metrics report

Since R2022b

Syntax

metricsTbl = report(metricsResults)

metricsTbl = report(metricsResults,Name=Value)

Description

metricsTbl = report(metricsResults) generates a table of fairness metrics metricsTbl. By default, metricsTbl contains the bias metrics stored in the BiasMetrics property of the fairnessMetrics object metricsResults.

metricsTbl = report(metricsResults,Name=Value) specifies additional options using one or more name-value arguments. You can specify bias metrics and group metrics to include in metricsTbl by using the BiasMetrics and GroupMetrics name-value arguments, respectively.

Examples

Specify Metrics to Report

Compute fairness metrics for predicted labels with respect to sensitive attributes by creating a fairnessMetrics object. Then, create a metrics table for specified fairness metrics by using the BiasMetrics and GroupMetrics name-value arguments of the report function.

Load the sample data census1994, which contains the training data adultdata and the test data adulttest. The data sets consist of demographic information from the US Census Bureau that can be used to predict whether an individual makes over $50,000 per year. Preview the first few rows of the training data set.

load census1994
head(adultdata)

    age       workClass          fnlwgt      education    education_num       marital_status           occupation        relationship     race      sex      capital_gain    capital_loss    hours_per_week    native_country    salary
    ___    ________________    __________    _________    _____________    _____________________    _________________    _____________    _____    ______    ____________    ____________    ______________    ______________    ______

    39     State-gov                77516    Bachelors         13          Never-married            Adm-clerical         Not-in-family    White    Male          2174             0                40          United-States     <=50K
    50     Self-emp-not-inc         83311    Bachelors         13          Married-civ-spouse       Exec-managerial      Husband          White    Male             0             0                13          United-States     <=50K
    38     Private             2.1565e+05    HS-grad            9          Divorced                 Handlers-cleaners    Not-in-family    White    Male             0             0                40          United-States     <=50K
    53     Private             2.3472e+05    11th               7          Married-civ-spouse       Handlers-cleaners    Husband          Black    Male             0             0                40          United-States     <=50K
    28     Private             3.3841e+05    Bachelors         13          Married-civ-spouse       Prof-specialty       Wife             Black    Female           0             0                40          Cuba              <=50K
    37     Private             2.8458e+05    Masters           14          Married-civ-spouse       Exec-managerial      Wife             White    Female           0             0                40          United-States     <=50K
    49     Private             1.6019e+05    9th                5          Married-spouse-absent    Other-service        Not-in-family    Black    Female           0             0                16          Jamaica           <=50K
    52     Self-emp-not-inc    2.0964e+05    HS-grad            9          Married-civ-spouse       Exec-managerial      Husband          White    Male             0             0                45          United-States     >50K

Each row contains the demographic information for one adult. The information includes sensitive attributes, such as age, marital_status, relationship, race, and sex. The third column flnwgt contains observation weights, and the last column salary shows whether a person has a salary less than or equal to $50,000 per year (<=50K) or greater than $50,000 per year (>50K).

Train a classification tree using the training data set adultdata. Specify the response variable, predictor variables, and observation weights by using the variable names in the adultdata table.

predictorNames = ["capital_gain","capital_loss","education", ...
    "education_num","hours_per_week","occupation","workClass"];
Mdl = fitctree(adultdata,"salary", ...
    PredictorNames=predictorNames,Weights="fnlwgt");

Predict the test sample labels by using the trained tree Mdl.

adulttest.predictions = predict(Mdl,adulttest);

This example evaluates the fairness of the predicted labels with respect to age and marital status. Group the age variable into four bins.

ageGroups = ["Age<30","30<=Age<45","45<=Age<60","Age>=60"];
adulttest.age_group = discretize(adulttest.age, ...
    [min(adulttest.age) 30 45 60 max(adulttest.age)], ...
    categorical=ageGroups);

Compute fairness metrics for the predictions with respect to the age_group and marital_status variables by using fairnessMetrics.

metricsResults = fairnessMetrics(adulttest,"salary", ...
    SensitiveAttributeNames=["age_group","marital_status"], ...
    Predictions="predictions",ModelNames="Tree",Weights="fnlwgt");

fairnessMetrics computes metrics for all supported bias and group metrics. Display the names of the metrics stored in the BiasMetrics and GroupMetrics properties.

metricsResults.BiasMetrics.Properties.VariableNames(4:end)'

ans = 4×1 cell
    {'StatisticalParityDifference'  }
    {'DisparateImpact'              }
    {'EqualOpportunityDifference'   }
    {'AverageAbsoluteOddsDifference'}

metricsResults.GroupMetrics.Properties.VariableNames(4:end)'

ans = 17×1 cell
    {'GroupCount'               }
    {'GroupSizeRatio'           }
    {'TruePositives'            }
    {'TrueNegatives'            }
    {'FalsePositives'           }
    {'FalseNegatives'           }
    {'TruePositiveRate'         }
    {'TrueNegativeRate'         }
    {'FalsePositiveRate'        }
    {'FalseNegativeRate'        }
    {'FalseDiscoveryRate'       }
    {'FalseOmissionRate'        }
    {'PositivePredictiveValue'  }
    {'NegativePredictiveValue'  }
    {'RateOfPositivePredictions'}
    {'RateOfNegativePredictions'}
    {'Accuracy'                 }

Create a table containing fairness metrics by using the report function. Specify BiasMetrics as ["eod","aaod"] to include the equal opportunity difference (EOD) and average absolute odds difference (AAOD) metrics in the report table. fairnessMetrics computes the two metrics by using the true positive rates (TPR) and false positive rates (FPR). Specify GroupMetrics as ["tpr","fpr"] to include TPR and FPR values in the table.

metricsTbl = report(metricsResults, ...
    BiasMetrics=["eod","aaod"],GroupMetrics=["tpr","fpr"]);

Display the fairness metrics for the sensitive attribute age_group only.

metricsTbl(metricsTbl.SensitiveAttributeNames=="age_group",3:end)

ans=4×5 table
      Groups      EqualOpportunityDifference    AverageAbsoluteOddsDifference    TruePositiveRate    FalsePositiveRate
    __________    __________________________    _____________________________    ________________    _________________

    Age<30                -0.041319                       0.044114                   0.41333             0.041709
    30<=Age<45                    0                              0                   0.45465             0.088618
    45<=Age<60             0.061495                       0.031809                   0.51614             0.086495
    Age>=60               0.0060387                       0.011955                   0.46069             0.070746

Create Report with All Supported Metrics

Compute fairness metrics for true labels with respect to sensitive attributes by creating a fairnessMetrics object. Then, create a table with all supported fairness metrics by using the report function.

Read the sample file CreditRating_Historical.dat into a table. The predictor data consists of financial ratios and industry sector information for a list of corporate customers. The response variable consists of credit ratings assigned by a rating agency.

creditrating = readtable("CreditRating_Historical.dat");

Because each value in the ID variable is a unique customer ID—that is, length(unique(creditrating.ID)) is equal to the number of observations in creditrating—the ID variable is a poor predictor. Remove the ID variable from the table, and convert the Industry variable to a categorical variable.

creditrating.ID = [];
creditrating.Industry = categorical(creditrating.Industry);

In the Rating response variable, combine the AAA, AA, A, and BBB ratings into a category of "good" ratings, and the BB, B, and CCC ratings into a category of "poor" ratings.

Rating = categorical(creditrating.Rating);
Rating = mergecats(Rating,["AAA","AA","A","BBB"],"good");
Rating = mergecats(Rating,["BB","B","CCC"],"poor");
creditrating.Rating = Rating;

Compute fairness metrics with respect to the sensitive attribute Industry for the labels in the Rating variable.

metricsResults = fairnessMetrics(creditrating,"Rating", ...
    SensitiveAttributeNames="Industry");

Display the bias metrics by using the report function. By default, the report function creates a table with all bias metrics.

report(metricsResults)

ans=12×4 table
    SensitiveAttributeNames    Groups    StatisticalParityDifference    DisparateImpact
    _______________________    ______    ___________________________    _______________

           Industry              1                 0.077242                  1.2632
           Industry              2                 0.078577                  1.2678
           Industry              3                        0                       1
           Industry              4                 0.088718                  1.3023
           Industry              5                 0.055526                  1.1892
           Industry              6                -0.015004                 0.94887
           Industry              7                 0.014489                  1.0494
           Industry              8                 0.063476                  1.2163
           Industry              9                  0.13948                  1.4753
           Industry              10                 0.13865                  1.4725
           Industry              11                0.009886                  1.0337
           Industry              12                0.029338                     1.1

Create a table with all supported bias and group metrics. Specify GroupMetrics as "all" to include all group metrics.

report(metricsResults,GroupMetrics="all")

ans=12×6 table
    SensitiveAttributeNames    Groups    StatisticalParityDifference    DisparateImpact    GroupCount    GroupSizeRatio
    _______________________    ______    ___________________________    _______________    __________    ______________

           Industry              1                 0.077242                  1.2632           348           0.088505
           Industry              2                 0.078577                  1.2678           336           0.085453
           Industry              3                        0                       1           351           0.089268
           Industry              4                 0.088718                  1.3023           314           0.079858
           Industry              5                 0.055526                  1.1892           341           0.086724
           Industry              6                -0.015004                 0.94887           334           0.084944
           Industry              7                 0.014489                  1.0494           315           0.080112
           Industry              8                 0.063476                  1.2163           325           0.082655
           Industry              9                  0.13948                  1.4753           328           0.083418
           Industry              10                 0.13865                  1.4725           324           0.082401
           Industry              11                0.009886                  1.0337           300           0.076297
           Industry              12                0.029338                     1.1           316           0.080366

Compare Model Predictions Using Fairness Metrics

Train two classification models, and compare the model predictions by using fairness metrics.

Read the sample file CreditRating_Historical.dat into a table. The predictor data consists of financial ratios and industry sector information for a list of corporate customers. The response variable consists of credit ratings assigned by a rating agency.

creditrating = readtable("CreditRating_Historical.dat");

Because each value in the ID variable is a unique customer ID—that is, length(unique(creditrating.ID)) is equal to the number of observations in creditrating—the ID variable is a poor predictor. Remove the ID variable from the table, and convert the Industry variable to a categorical variable.

creditrating.ID = [];
creditrating.Industry = categorical(creditrating.Industry);

In the Rating response variable, combine the AAA, AA, A, and BBB ratings into a category of "good" ratings, and the BB, B, and CCC ratings into a category of "poor" ratings.

Rating = categorical(creditrating.Rating);
Rating = mergecats(Rating,["AAA","AA","A","BBB"],"good");
Rating = mergecats(Rating,["BB","B","CCC"],"poor");
creditrating.Rating = Rating;

Train a support vector machine (SVM) model on the creditrating data. For better results, standardize the predictors before fitting the model. Use the trained model to predict labels and compute the misclassification rate for the training data set.

predictorNames = ["WC_TA","RE_TA","EBIT_TA","MVE_BVTD","S_TA"];
SVMMdl = fitcsvm(creditrating,"Rating", ...
    PredictorNames=predictorNames,Standardize=true);
SVMPredictions = resubPredict(SVMMdl);
resubLoss(SVMMdl)

ans =
0.0872

Train a generalized additive model (GAM).

GAMMdl = fitcgam(creditrating,"Rating", ...
    PredictorNames=predictorNames);
GAMPredictions = resubPredict(GAMMdl);
resubLoss(GAMMdl)

ans =
0.0542

GAMMdl achieves better accuracy on the training data set.

Compute fairness metrics with respect to the sensitive attribute Industry by using the model predictions for both models.

predictions = [SVMPredictions,GAMPredictions];
metricsResults = fairnessMetrics(creditrating,"Rating", ...
    SensitiveAttributeNames="Industry",Predictions=predictions, ...
    ModelNames=["SVM","GAM"]);

Display the bias metrics by using the report function.

report(metricsResults)

ans=48×5 table
              Metrics              SensitiveAttributeNames    Groups       SVM          GAM
    ___________________________    _______________________    ______    _________    __________

    StatisticalParityDifference           Industry              1       -0.028441     0.0058208
    StatisticalParityDifference           Industry              2        -0.04014     0.0063339
    StatisticalParityDifference           Industry              3               0             0
    StatisticalParityDifference           Industry              4        -0.04905    -0.0043007
    StatisticalParityDifference           Industry              5       -0.015615     0.0041607
    StatisticalParityDifference           Industry              6        -0.03818     -0.024515
    StatisticalParityDifference           Industry              7        -0.01514      0.007326
    StatisticalParityDifference           Industry              8       0.0078632      0.036581
    StatisticalParityDifference           Industry              9       -0.013863      0.042266
    StatisticalParityDifference           Industry              10      0.0090218      0.050095
    StatisticalParityDifference           Industry              11      -0.004188      0.001453
    StatisticalParityDifference           Industry              12      -0.041572     -0.028589
    DisparateImpact                       Industry              1         0.92261         1.017
    DisparateImpact                       Industry              2         0.89078        1.0185
    DisparateImpact                       Industry              3               1             1
    DisparateImpact                       Industry              4         0.86654       0.98742
      ⋮

Among the bias metrics, compare the equal opportunity difference (EOD) values. Create a bar graph of the EOD values by using the plot function.

b = plot(metricsResults,"eod");
b(1).FaceAlpha = 0.2;
b(2).FaceAlpha = 0.2;
legend(Location="southwest")

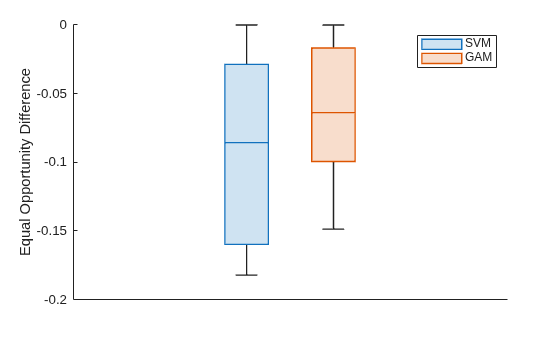

To better understand the distributions of EOD values, plot the values using box plots.

boxchart(metricsResults.BiasMetrics.EqualOpportunityDifference, ...
    GroupByColor=metricsResults.BiasMetrics.ModelNames)
ax = gca;
ax.XTick = [];
ylabel("Equal Opportunity Difference")
legend

The EOD values for GAM are closer to 0 compared to the values for SVM.

Input Arguments

metricsResults — Fairness metrics results

fairnessMetrics object

Fairness metrics results, specified as a fairnessMetrics object.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: BiasMetrics="",GroupMetrics="all" specifies to display all group metrics.

BiasMetrics — List of bias metrics

"all" (default) | [] | character vector | string array | cell array of character vectors

List of bias metrics, specified as "all", [], a character vector or string scalar of a metric name, or a string array or cell array of character vectors containing more than one metric name.

• "all" (default) — The output table metricsTbl returned by the report function includes all bias metrics in the BiasMetrics property of metricsResults.

• [] — metricsTbl does not include any bias metrics.

• One or more bias metric names in the BiasMetrics property — The BiasMetrics property in metricsResults and the output table metricsTbl use full names for the table variable names. However, you can use the full names or short names, as given in the following table, to specify the BiasMetrics name-value argument.

Metric Name	Description	Evaluation Type
"StatisticalParityDifference" or "spd"	Statistical parity difference (SPD)	Data-level or model-level evaluation
"DisparateImpact" or "di"	Disparate impact (DI)	Data-level or model-level evaluation
"EqualOpportunityDifference" or "eod"	Equal opportunity difference (EOD)	Model-level evaluation
"AverageAbsoluteOddsDifference" or "aaod"	Average absolute odds difference (AAOD)	Model-level evaluation

The supported bias metrics depend on whether you specify predicted labels by using the Predictions argument when you create a fairnessMetrics object.

• Data-level evaluation — If you specify true labels and do not specify predicted labels, the BiasMetrics property contains only StatisticalParityDifference and DisparateImpact.

• Model-level evaluation — If you specify both true labels and predicted labels, the BiasMetrics property contains all metrics listed in the table.

For definitions of the bias metrics, see Bias Metrics.

Example: BiasMetrics=["spd","eod"]

Data Types: char | string | cell

DisplayMetricsInRows — Flag to display metrics in rows

true | false

Since R2023a

Flag to display metrics in rows, specified as true or false. A true value indicates that each row of metricsTbl contains values for one fairness metric only.

• When you perform data-level evaluation or model-level evaluation for one model, the default DisplayMetricsInRows value is false.

• When you perform model-level evaluation for two or more models, the default DisplayMetricsInRows value is true.

Example: DisplayMetricsInRows=false

Data Types: logical

GroupMetrics — List of group metrics

[] (default) | "all" | character vector | string array | cell array of character vectors

List of group metrics, specified as [], "all", a character vector or string scalar of a metric name, or a string array or cell array of character vectors containing more than one metric name.

• [] (default) — The output table metricsTbl returned by the report function does not include any group metrics.

• "all" — metricsTbl includes all group metrics in the GroupMetrics property of metricsResults.

• One or more group metric names in the GroupMetrics property — The GroupMetrics property in metricsResults and the output table metricsTbl use full names for the table variable names. However, you can use the full names or short names, as given in the following table, to specify the GroupMetrics name-value argument.

Metric Name	Description	Evaluation Type
"GroupCount"	Group count, or number of samples in the group	Data-level or model-level evaluation
"GroupSizeRatio"	Group count divided by the total number of samples	Data-level or model-level evaluation
"TruePositives" or "tp"	Number of true positives (TP)	Model-level evaluation
"TrueNegatives" or "tn"	Number of true negatives (TN)	Model-level evaluation
"FalsePositives" or "fp"	Number of false positives (FP)	Model-level evaluation
"FalseNegatives" or "fn"	Number of false negatives (FN)	Model-level evaluation
"TruePositiveRate" or "tpr"	True positive rate (TPR), also known as recall or sensitivity, TP/(TP+FN)	Model-level evaluation
"TrueNegativeRate", "tnr", or "spec"	True negative rate (TNR), or specificity, TN/(TN+FP)	Model-level evaluation
"FalsePositiveRate" or "fpr"	False positive rate (FPR), also known as fallout or 1-specificity, FP/(TN+FP)	Model-level evaluation
"FalseNegativeRate", "fnr", or "miss"	False negative rate (FNR), or miss rate, FN/(TP+FN)	Model-level evaluation
"FalseDiscoveryRate" or "fdr"	False discovery rate (FDR), FP/(TP+FP)	Model-level evaluation
"FalseOmissionRate" or "for"	False omission rate (FOR), FN/(TN+FN)	Model-level evaluation
"PositivePredictiveValue", "ppv", or "prec"	Positive predictive value (PPV), or precision, TP/(TP+FP)	Model-level evaluation
"NegativePredictiveValue" or "npv"	Negative predictive value (NPV), TN/(TN+FN)	Model-level evaluation
"RateOfPositivePredictions" or "rpp"	Rate of positive predictions (RPP), (TP+FP)/(TP+FN+FP+TN)	Model-level evaluation
"RateOfNegativePredictions" or "rnp"	Rate of negative predictions (RNP), (TN+FN)/(TP+FN+FP+TN)	Model-level evaluation
"Accuracy" or "accu"	Accuracy, (TP+TN)/(TP+FN+FP+TN)	Model-level evaluation

The supported group metrics depend on whether you specify predicted labels by using the Predictions argument when you create a fairnessMetrics object.

• Data-level evaluation — If you specify true labels and do not specify predicted labels, the GroupMetrics property contains only GroupCount and GroupSizeRatio.

• Model-level evaluation — If you specify both true labels and predicted labels, the GroupMetrics property contains all metrics listed in the table.

Example: GroupMetrics="all"

Data Types: char | string | cell

ModelNames — Names of models to include in report

"all" (default) | character vector | string array | cell array of character vectors

Since R2023a

Names of the models to include in the report metricsTbl, specified as "all", a character vector, a string array, or a cell array of character vectors. The ModelNames value must contain names in the ModelNames property of metricsResults. Using the "all" value is equivalent to specifying metricsResults.ModelNames.

Example: ModelNames="Tree"

Example: ModelNames=["SVM","Ensemble"]

Data Types: char | string | cell

Output Arguments

metricsTbl — Fairness metrics

table

Fairness metrics, returned as a table. The format of the table depends on the type of evaluation and the DisplayMetricsInRows value.

Evaluation Type	DisplayMetricsInRows Value	metricsTbl Format
Data-level evaluation	false	Each row of the table contains values for one sensitive attribute group. The table columns are (in order): SensitiveAttributeNames, Groups, and one column for each metric specified by the BiasMetrics and GroupMetrics name-value arguments.
Data-level evaluation	true	Each row of the table contains values for one sensitive attribute group and one fairness metric. The table columns are (in order): Metrics, SensitiveAttributeNames, Groups, and Data.
Model-level evaluation	false	Each row of the table contains values for one sensitive attribute group and one model. The table columns are (in order): ModelNames, SensitiveAttributeNames, Groups, and one column for each metric specified by the BiasMetrics and GroupMetrics name-value arguments.
Model-level evaluation	true	Each row of the table contains values for one sensitive attribute group and one fairness metric. The table columns are (in order): Metrics, SensitiveAttributeNames, Groups, and one column for each model specified by the ModelNames name-value argument.

More About

Bias Metrics

The fairnessMetrics object supports four bias metrics: statistical parity difference (SPD), disparate impact (DI), equal opportunity difference (EOD), and average absolute odds difference (AAOD). The object supports EOD and AAOD only for evaluating model predictions.

A fairnessMetrics object computes bias metrics for each group in each sensitive attribute with respect to the reference group of the attribute.

• Statistical parity (or demographic parity) difference (SPD)

  The SPD value of the ith sensitive attribute (S_i) for the group s_ij with respect to the reference group s_ir is defined by

  $${\text{SPD}}_{ij}=P\left(Y=+|S_i=s_{ij}\right)-P\left(Y=+|S_i=s_{ir}\right).$$

  The SPD value is the difference between the probability of being in the positive class when the sensitive attribute value is s_ij and the probability of being in the positive class when the sensitive attribute value is s_ir (reference group). This metric assumes that the two probabilities (statistical parities) are equal if the labels are unbiased with respect to the sensitive attribute.

  If you specify the Predictions argument, the software computes SPD for the probabilities of the model predictions $$\widehat{Y}$$ instead of the true labels Y.

• Disparate impact (DI)

  The DI value of the ith sensitive attribute (S_i) for the group s_ij with respect to the reference group s_ir is defined by

  $${\text{DI}}_{ij}=\frac{P\left(Y=+|S_i=s_{ij}\right)}{P\left(Y=+|S_i=s_{ir}\right)}.$$

  The DI value is the ratio of the probability of being in the positive class when the sensitive attribute value is s_ij to the probability of being in the positive class when the sensitive attribute value is s_ir (reference group). This metric assumes that the two probabilities are equal if the labels are unbiased with respect to the sensitive attribute. In general, a DI value less than 0.8 or greater than 1.25 indicates bias with respect to the reference group [2].

  If you specify the Predictions argument, the software computes DI for the probabilities of the model predictions $$\widehat{Y}$$ instead of the true labels Y.

• Equal opportunity difference (EOD)

  The EOD value of the ith sensitive attribute (S_i) for the group s_ij with respect to the reference group s_ir is defined by

  $$\begin{array}{c}{\text{EOD}}_{ij}=\text{TPR}\left(S_i=s_{ij}\right)-\text{TPR}\left(S_i=s_{ir}\right)\\ =P\left(\widehat{Y}=+|Y=+,S_i=s_{ij}\right)-P\left(\widehat{Y}=+|Y=+,S_i=s_{ir}\right).\end{array}$$

  The EOD value is the difference in the true positive rate (TPR) between the group s_ij and the reference group s_ir. This metric assumes that the two rates are equal if the predicted labels are unbiased with respect to the sensitive attribute.

• Average absolute odds difference (AAOD)

  The AAOD value of the ith sensitive attribute (S_i) for the group s_ij with respect to the reference group s_ir is defined by

  $${\text{AAOD}}_{ij}=\frac{1}{2}\left(\left|\text{FPR}\left(S_i=s_{ij}\right)-\text{FPR}\left(S_i=s_{ir}\right)\right|+\left|\text{TPR}\left(S_i=s_{ij}\right)-\text{TPR}\left(S_i=s_{ir}\right)\right|\right).$$

  The AAOD value represents the difference in the true positive rates (TPR) and false positive rates (FPR) between the group s_ij and the reference group s_ir. This metric assumes no difference in TPR and FPR if the predicted labels are unbiased with respect to the sensitive attribute.

References

[1] Mehrabi, Ninareh, et al. “A Survey on Bias and Fairness in Machine Learning.” ArXiv:1908.09635 [cs.LG], Sept. 2019. arXiv.org.

[2] Saleiro, Pedro, et al. “Aequitas: A Bias and Fairness Audit Toolkit.” ArXiv:1811.05577 [cs.LG], April 2019. arXiv.org.

Version History

Introduced in R2022b

R2023a: Compare fairness metrics across models

You can compare fairness metrics across multiple binary classifiers by using the fairnessMetrics function. In the call to the function, use the predictions argument and specify the predicted class labels for each model. To specify the names of the models, you can use the ModelNames name-value argument. The model name information is stored in the BiasMetrics, GroupMetrics, and ModelNames properties of the fairnessMetrics object.

After you create a fairnessMetrics object, use the report or plot object function.

• The report object function returns a fairness metrics table, whose format depends on the value of the DisplayMetricsInRows name-value argument. (For more information, see metricsTbl.) You can specify a subset of models to include in the report table by using the ModelNames name-value argument.

• The plot object function returns a bar graph as an array of Bar objects. The bar colors indicate the models whose predicted labels are used to compute the specified metric. You can specify a subset of models to include in the plot by using the ModelNames name-value argument.

In previous releases, each row of the table returned by report contained fairness metrics for a group in a sensitive attribute. The first and second variables in the table corresponded to the sensitive attribute name (SensitiveAttributeNames) and the group name (Groups), respectively. The rest of the variables corresponded to the bias and group metrics specified by the BiasMetrics and GroupMetrics name-value arguments, respectively. For more information on the current behavior, see metricsTbl.
