Predict labels for Gaussian kernel classification model

Predict the training set labels using a binary kernel classification model, and display the confusion matrix for the resulting classification.

Load the `ionosphere`

data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad (`'b'`

) or good (`'g'`

).

`load ionosphere`

Train a binary kernel classification model that identifies whether the radar return is bad (`'b'`

) or good (`'g'`

).

rng('default') % For reproducibility Mdl = fitckernel(X,Y);

`Mdl`

is a `ClassificationKernel`

model.

Predict the training set, or resubstitution, labels.

label = predict(Mdl,X);

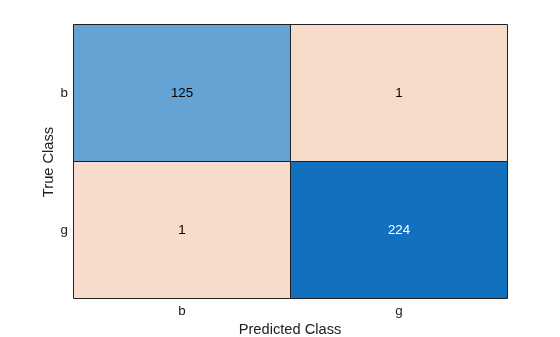

Construct a confusion matrix.

ConfusionTrain = confusionchart(Y,label);

The model misclassifies one radar return for each class.

Predict the test set labels using a binary kernel classification model, and display the confusion matrix for the resulting classification.

Load the `ionosphere`

data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad (`'b'`

) or good (`'g'`

).

`load ionosphere`

Partition the data set into training and test sets. Specify a 15% holdout sample for the test set.

rng('default') % For reproducibility Partition = cvpartition(Y,'Holdout',0.15); trainingInds = training(Partition); % Indices for the training set testInds = test(Partition); % Indices for the test set

Train a binary kernel classification model using the training set. A good practice is to define the class order.

Mdl = fitckernel(X(trainingInds,:),Y(trainingInds),'ClassNames',{'b','g'});

Predict the training-set labels and the test set labels.

labelTrain = predict(Mdl,X(trainingInds,:)); labelTest = predict(Mdl,X(testInds,:));

Construct a confusion matrix for the training set.

ConfusionTrain = confusionchart(Y(trainingInds),labelTrain);

The model misclassifies only one radar return for each class.

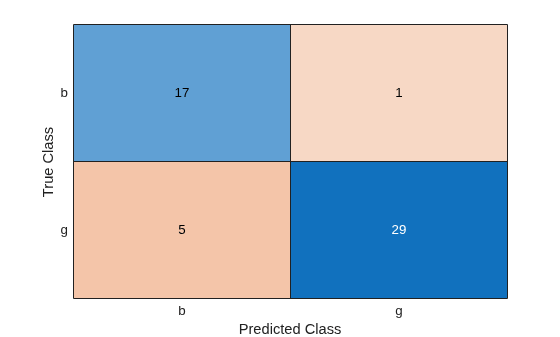

Construct a confusion matrix for the test set.

ConfusionTest = confusionchart(Y(testInds),labelTest);

The model misclassifies one bad radar return as being a good return, and five good radar returns as being bad returns.

Estimate posterior class probabilities for a test set, and determine the quality of the model by plotting a receiver operating characteristic (ROC) curve. Kernel classification models return posterior probabilities for logistic regression learners only.

Load the `ionosphere`

data set. This data set has 34 predictors and 351 binary responses for radar returns, either bad (`'b'`

) or good (`'g'`

).

`load ionosphere`

Partition the data set into training and test sets. Specify a 30% holdout sample for the test set.

rng('default') % For reproducibility Partition = cvpartition(Y,'Holdout',0.30); trainingInds = training(Partition); % Indices for the training set testInds = test(Partition); % Indices for the test set

Train a binary kernel classification model. Fit logistic regression learners.

Mdl = fitckernel(X(trainingInds,:),Y(trainingInds), ... 'ClassNames',{'b','g'},'Learner','logistic');

Predict the posterior class probabilities for the test set.

[~,posterior] = predict(Mdl,X(testInds,:));

Because `Mdl`

has one regularization strength, the output `posterior`

is a matrix with two columns and rows equal to the number of test-set observations. Column `i`

contains posterior probabilities of `Mdl.ClassNames(i)`

given a particular observation.

Obtain false and true positive rates, and estimate the area under the curve (AUC). Specify that the second class is the positive class.

[fpr,tpr,~,auc] = perfcurve(Y(testInds),posterior(:,2),Mdl.ClassNames(2)); auc

auc = 0.9042

The AUC is close to `1`

, which indicates that the model predicts labels well.

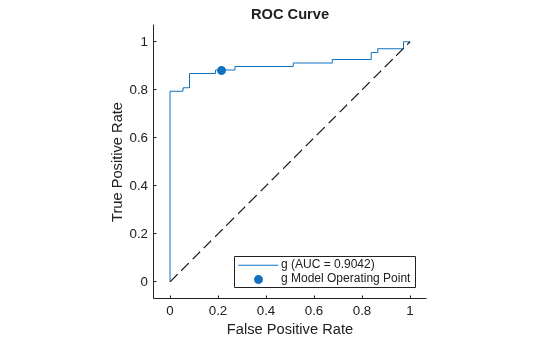

Plot an ROC curve.

figure; plot(fpr,tpr) h = gca; h.XLim(1) = -0.1; h.YLim(2) = 1.1; xlabel('False positive rate') ylabel('True positive rate') title('ROC Curve')

`Mdl`

— Binary kernel classification model`ClassificationKernel`

model objectBinary kernel classification model, specified as a `ClassificationKernel`

model object. You can create a
`ClassificationKernel`

model object using `fitckernel`

.

`X`

— Predictor dataPredictor data, specified as an
*n*-by-*p* numeric matrix, where
*n* is the number of observations and
*p* is the number of predictors used to train
`Mdl`

.

**Data Types: **`single`

| `double`

`Label`

— Predicted class labelscategorical array | character array | logical matrix | numeric matrix | cell array of character vectors

Predicted class labels, returned as a categorical or character array, logical or numeric matrix, or cell array of character vectors.

`Label`

has *n* rows, where
*n* is the number of observations in
`X`

, and has the same data type as the observed class
labels (`Y`

) used to train `Mdl`

.
(The software treats string arrays as cell arrays of character
vectors.)

`predict`

classifies observations into the class
yielding the highest score.

`Score`

— Classification scoresnumeric array

Classification scores, returned as an *n*-by-2
numeric array, where *n* is the number of observations in
`X`

.
`Score(`

is the score for classifying observation * i*,

`j`

`i`

`j`

`Mdl.ClassNames`

stores
the order of the classes.If `Mdl.Learner`

is `'logistic'`

, then
classification scores are posterior probabilities.

For kernel classification models, the raw *classification
score* for classifying the observation *x*, a row vector,
into the positive class is defined by

$$f\left(x\right)=T(x)\beta +b.$$

$$T(\xb7)$$ is a transformation of an observation for feature expansion.

*β*is the estimated column vector of coefficients.*b*is the estimated scalar bias.

The raw classification score for classifying *x* into the negative class is −*f*(*x*). The software classifies observations into the class that yields a
positive score.

If the kernel classification model consists of logistic regression learners, then the
software applies the `'logit'`

score transformation to the raw
classification scores (see `ScoreTransform`

).

Calculate with arrays that have more rows than fit in memory.

This function fully supports tall arrays. For more information, see Tall Arrays (MATLAB).

`ClassificationKernel`

| `confusionchart`

| `fitckernel`

| `perfcurve`

| `resume`
