Workflow for Test Generation

One of the essential steps in the model verification and validation process is generating tests to comprehensively assess model behavior. This involves verifying that the model meets intended requirements and checking model coverage to identify any missing testing scenarios. Additionally, it includes reusing and extending model-based tests to achieve code coverage, ensuring that both model and code behaviors are consistent.​

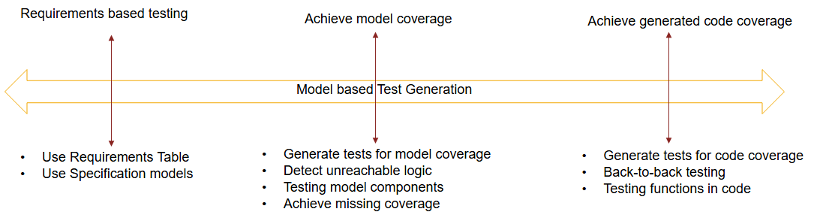

Simulink^® Design Verifier™ provides a comprehensive support for achieving these steps through automatic test generation capability. The sections describe the three important activities in the model-based testing:

• Requirements based testing

• Achieve model coverage

• Achieve generated code coverage

and highlights how Simulink Design Verifier test generation can help you achieve them.

Compatibility Consideration

For a model to generate tests by using Simulink Design Verifier, it has to be compatible. An example of incompatibility is when the solver step is set to variable size. Check Model Compatibility includes capabilities where, a model is incompatible for generating tests. In these cases, you have to use methods like block replacement to make the model suitable for analysis. For more information, see Block Replacement Effects on Test Generation.

Requirements-Based Testing

Simulink Design Verifier supports generating tests for each rows in requirements table. User may also use specification models – which are designed by using standard Simulink or Stateflow^® elements and custom conditions as testing targets. For more information on requirements based test generation, see Construct Specification Models by Using Requirements Table Blocks and Use Specification Models for Requirements-Based Testing.

Requirements modeling	Supported workflow	Related information
Use Requirements/Specification Model	Generating and linking tests to requirements.	Generate and Export Tests from Requirements Table Blocks
	Use custom blocks or APIs to define intended requirements conditions as testing targets	Use Specification Models for Requirements-Based Testing Model Requirements Isolate Verification Logic with Observers

Analyze and Address Missing Model Coverage

Model coverage enables you to evaluate the impact of testing on the design model. It assists in identifying missing requirements and highlights the need to improve the test suite based on coverage metrics. Simulink Design Verifier offers workflows to enhance your test suite by generating tests for model coverage metrics, helping to detect unreachable parts of your design.

Steps	Supported workflow	Related information
Achieve model coverage	Generating tests for condition/decision, MCDC, and relational boundary metrics. This metric is defined for model and C-code functions by using the model.	Model Coverage Objectives for Test Generation Generate Test Cases for Model Decision Coverage Enhanced MCDC Coverage in Simulink Design Verifier
Identify unreachable logic	Detect unreachable logic specified through model coverage or custom conditions. This helps you to evaluate and justify any dead logic identified.	Dead Logic Detection
Testing model components	Perform standalone analysis of model components, such as atomic subsystems or models referenced via model blocks. The test for the model component workflow from Simulink Test™ leverages the test capabilities of Simulink Design Verifier.	Use Test Generation Advisor to Identify Analyzable Components Analyze and Generate Tests for Model Components
Achieve missing coverage	Top-off workflow is used to generate tests that fill coverage gaps achieved by the existing tests. Achieve missing coverage workflow from Simulink Test leverages the test capabilities of Simulink Design Verifier.	Achieve Missing Coverage in Generated Code of RLS Achieve Missing Coverage in Custom Code Achieve Missing Coverage in Referenced Model Achieve Missing Coverage in Closed-Loop Simulation Model

Analyze and Address Missing Code Coverage

The generated code from the model is utilized in subsequent software integration steps on the embedded platform. You can reuse model-level tests and measure code coverage. Simulink Design Verifier helps to generate tests to address any missing code coverage identified in the generated code. Additionally, Simulink Design Verifier supports logging the expected output' during model coverage test generation, enabling back-to-back testing of the model with the generated code in a software-in-loop environment.

Steps	Supported workflow	Related information
Achieve generated code coverage	Top-off workflow is used to generate tests that fill coverage gaps achieved by model-based tests. Achieve missing coverage workflow from Simulink Test leverages the test capabilities of Simulink Design Verifier.	Generate Test Cases for Embedded Coder Generated Code
Back-to-back testing	Log expected outputs for model coverage tests and export these tests to Simulink Test to achieve back-to-back testing.	Design Verifier Pane: Results Export Test Cases to Simulink Test
Testing functions in code	Generating tests for code functions corresponding to a subsystem	Generate Test Cases for a Subsystem

Cross Product Interactions

Simulink Design Verifier enhances model verification by automatically generating test cases, identifying design errors, and proving properties within Simulink models. It easily interacts with other products to provide a comprehensive testing framework. The table describes how Simulink Design Verifier interacts with other products:

Product	Interactions	Related information
Simulink Coverage™	Coverage report for the generated tests Filtering and justification of objectives	Top-Level Model Coverage Report (Simulink Coverage) Filter Objectives by Using Simulink Design Verifier Filter Explorer
Simulink Test	Export generated tests to Simulink Test Workflows that leverage test generation by using Simulink Test are: Tests for model component Add tests for missing coverage	Export Test Cases to Simulink Test Generate Tests and Test Harnesses for a Model or Components (Simulink Test) Increase Test Coverage for a Model (Simulink Test)
Requirements Toolbox™	Generating test cases for requirements table and linking	Generate and Export Tests from Requirements Table Blocks
