addTaskTool

Add tool to help organize and complete task activities

Syntax

addTaskTool(pm,taskTool)

Description

addTaskTool(pm,taskTool) adds a tool to the process model. You can use task tools to help you organize and complete task activities. Starting in R2024a, you can access the tools for a task by pointing to the task in the Tasks column in Process Advisor and opening the options menu (...).

This functionality requires CI/CD Automation for Simulink Check.

Examples

Integrate Custom App into Process Advisor

Starting in R2024a, you can integrate custom apps into your process model by using the addTaskTool function. You create the custom app by using App Designer or uifigure and represent the app by using a padv.TaskTool object. For this example, you add a custom app as a tool for a task and view the tool in the options menu for the task in Process Advisor.

Open the Process Advisor example project. The model AHRS_Voter opens with the Process Advisor pane to the left of the Simulink^® canvas.

processAdvisorExampleStart

Create a custom app for a task in the process.

You can use App Designer to create a custom app that helps you complete activities for a task in your process. In the MATLAB^® Command Window, open App Designer by entering:

appdesigner

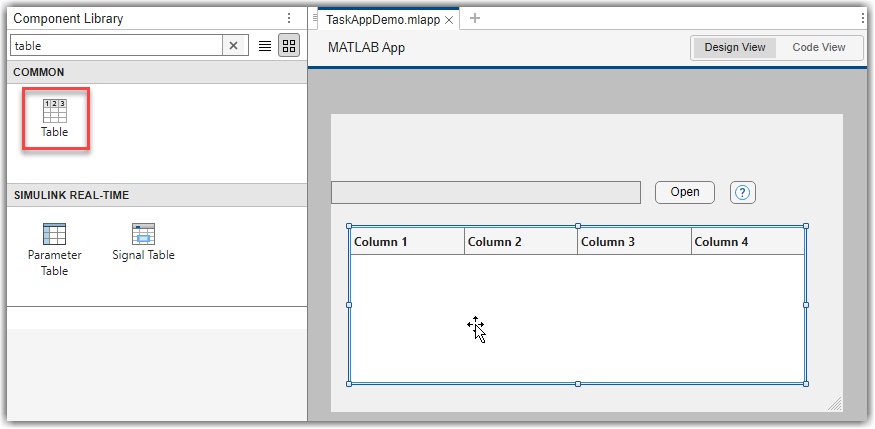

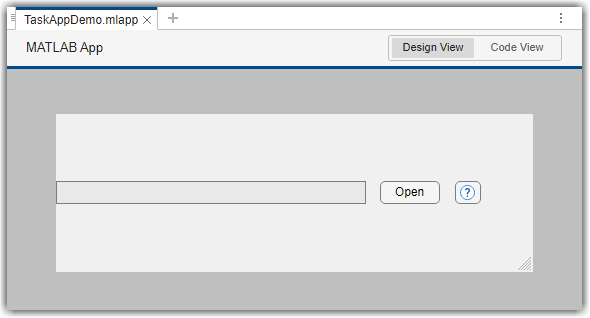

Use the App Designer app to interactively develop an app. For this example, you can create and save a blank app. For more information, see App Designer.

To use your App Designer app as a task tool, you must include a TaskContext property that you pass as a name-value argument in the constructor and your app must return a matlab.ui.Figure object during initialization. You can save your app as an App Designer app (.mlapp), export your App Designer app as an M file, or define your app by using a MATLAB class (.m). For example, the following MATLAB class defines a blank App Designer app that can be a task tool.

classdef blankApp1 < matlab.apps.AppBase
    properties (Access = public)
        UIFigure  matlab.ui.Figure
        TaskContext
    end
    methods (Access = private)
        function createComponents(app)
            app.UIFigure = uifigure('Visible', 'on');
        end
    end
    methods (Access = public)
        function app = blankApp1(NameValueArgs)
            arguments
                NameValueArgs.TaskContext
            end
            app.TaskContext = NameValueArgs.TaskContext;
            createComponents(app);
            if nargout == 0
                clear app
            end
        end
        function delete(app)
            delete(app.UIFigure)
        end
    end
end

In the Process Advisor pane, click the Edit process model button to open the processmodel.m file for the project.

Replace the contents of the processmodel.m file with the following example code. the code defines:

• myTask — A custom task.

• myTaskTool — A custom tool for a task. The tool calls the function specified by the ToolFunction argument. In the Process Advisor context menu for a task, the tool has the title My Custom App. Since the tool function, blankApp1, is a .mlapp file for an App Designer app, the Type is set to TaskApp.

Inside the process model, the code adds the task and tool to the process model and specifies the tool as one of the task tools for the task.

function processmodel(pm)
    % Define process model for project

    arguments
        pm padv.ProcessModel
    end

    % --- Task ---
    myTask = padv.Task("MyCustomTask");

    % --- TaskTool ---
    myTaskTool = padv.TaskTool(ToolFunction="blankApp1",Title="My Custom App",...
        Type=padv.TaskToolType.TaskApp);

    % --- Integrate ---
    pm.addTask(myTask);
    pm.addTaskTool(myTaskTool);
    myTask.TaskTools = myTaskTool;

end

In Process Advisor, update the task information by clicking Refresh Tasks.

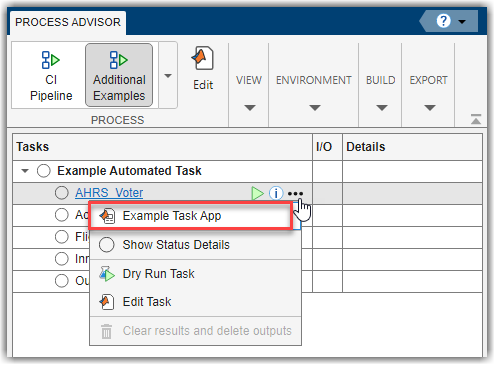

In the Tasks column, point to MyCustomTask, open the options menu (...), and click My Custom App.

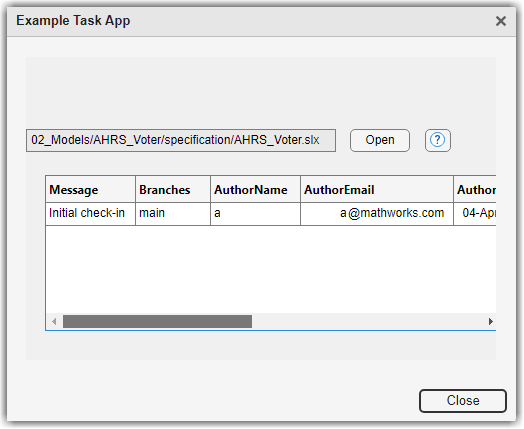

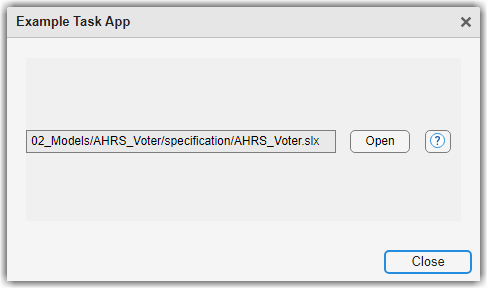

The App Designer app opens inside Process Advisor. You can use your app to help organize and complete activities related to your tasks.

Integrate Custom Commands into Process Advisor

Starting in R2024a, you can integrate custom commands into your process model by using the addTaskTool function. You represent the custom commands by using padv.TaskTool objects. For this example, you add two custom commands as tools for a task and view the tools in the options menu for the task in Process Advisor.

Open the Process Advisor example project. The model AHRS_Voter opens with the Process Advisor pane to the left of the Simulink canvas.

processAdvisorExampleStart

Define your custom command by creating a new MATLAB function file. The function must accept a TaskContext as a name-value argument and must be on the MATLAB path.

For this example, you can create a file named myCustomCommand.m and define a custom function that accepts and displays an input argument.

function out = taskCmd1(inputArg, NamedValueArgs)
    arguments
    inputArg
    NamedValueArgs.TaskContext
    end

    disp(inputArg);

end

In the Process Advisor pane, click the Edit process model button to open the processmodel.m file for the project.

Replace the contents of the processmodel.m file with the following example code. the code defines:

• myTask — A custom task.

• myTaskTool — A custom tool for a task. The tool calls the function specified by the ToolFunction argument. In the Process Advisor context menu for a task, the tool has the title My Command 1. Since the tool function, taskCmd1, is a .m file for a function that defines a command for the task tool to execute, the Type is set to Command. The function accepts an input argument cmd1Arg.

Inside the process model, the code adds the task and tool to the process model and specifies the tool as one of the task tools for the task.

function processmodel(pm)
    % Define process model for project

    arguments
        pm padv.ProcessModel
    end

    % --- Task ---
    myTask = padv.Task("MyTask");
    pm.addTask(myTask);

    % --- TaskTool ---
    cmd1Arg = "myInputArg";
    myTaskTool = padv.TaskTool(ToolFunction="taskCmd1",...
        Title="My Command 1",...
        Type=padv.TaskToolType.Command,...
        Arguments={cmd1Arg});

    % --- Integrate ---
    pm.addTaskTool(myTaskTool);
    myTask.TaskTools = myTaskTool;

end

In Process Advisor, update the task information by clicking Refresh Tasks.

In the Tasks column, point to MyTask, open the options menu (...), and click My Command 1.

Process Advisor executes the command specified in the taskCmd1 function. The function displays the input argument, "myInputArg", in the MATLAB Command Window.

Input Arguments

pm — Process model for project

padv.ProcessModel object (default)

Process model for project, specified as a padv.ProcessModel object.

Example: pm = padv.ProcessModel

taskTool — Tool to help complete task

padv.TaskTool object | array of padv.TaskTool objects

Tool to help complete a task, specified as a padv.TaskTool object or an array of padv.TaskTool objects.

Example: padv.TaskTool(ToolFunction="app1_exported",Title="My App",Type=padv.TaskToolType.TaskApp)

Example: [padv.TaskTool(ToolFunction="app1_exported",Title="My App 1",Type=padv.TaskToolType.TaskApp),padv.TaskTool(ToolFunction="app2_exported",Title="My App 2",Type=padv.TaskToolType.TaskApp)]
