sim3d.graphics.Text

Create text actor

Since R2024a

Description

Use the sim3d.graphics.Text object to create a text object in the 3D environment for displaying relevant information data during simulation. After you create a sim3d.graphics.Text object, you can modify the aspects of the text actor by setting property values. You can create N number of text actors in the 3D environment.

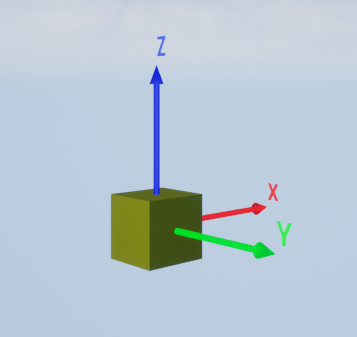

Creation

Syntax

text = sim3d.graphics.Text()

text = sim3d.graphics.Text(Name=Value)

Description

text = sim3d.graphics.Text() creates a default text actor object in the 3D environment.

text = sim3d.graphics.Text(Name=Value) specifies options using one or more name-value arguments. For example, to create a text actor at the position [0,1,1], set Translation to [0,1,1].

Input Arguments

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: text = sim3d.graphics.Text(ActorName='Text',Translation=[0,1,1],Color=[1,1,0],String="Hello") creates a text actor with the specified actor name, position, color, and string.

Example: texts = sim3d.graphics.Text(ActorName='Texts',Translation=[0,-1,1; 0,0,1; 0,1,1],Color=[1,1,0; 1,0,0; 0,1,0],String=["Hello"; "3D"; "World"]) creates three text actors with the specified actor name, positions, colors, and strings.

ActorName — Name of actor

autogenerated name (default) | character array | string

Name of actor, specified as a character array or string. If you do not specify an actor name, then the software assigns the actor an autogenerated name. Use this argument to set the name of the sim3d.graphics.Text object.

Note

If you specify the same name as an actor that already exists, then the software appends actor name you specify with a unique identifier.

Translation — Relative translation

[0,0,0] (default) | real N-by-3 array

Relative translation (x,y,z) of the actor object to its parent actor, specified as a real N-by-3 array, in m. N specifies the number of actors. When you add an actor to the 3D environment, the default parent actor is the Scene Origin at (0,0,0).

Example: Translation=[3,4,3]

Example: Translation=[3,2,3; 3,5,3; 3,3,3]

Data Types: double

Rotation — Relative rotation

[0,0,0] (default) | real N-by-3 array

Relative rotation (roll, pitch, yaw) of the actor object to its parent actor, specified as a real N-by-3 array, in rad.

Example: Rotation=[0,pi/2,-pi/4]

Example: Rotation=[0,pi/2,-pi/4; 0,pi/2,-pi/4; 0,pi/2,-pi/4]

Data Types: double

Color — Base color of actor

[1,0,0] (default) | real N-by-3 array

Base color of actor, specified as real N-by-3 array of RGB triplet values. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green and blue components of the color. The intensities must be in the range [0, 1].

Example: Color=[0,1,0]

Example: Color=[1,0,0; 0,0,1; 1,1,0]

Data Types: double

String — Text to display

" " (default) | string N-by-1 vector

Text to display in 3D environment, specified as string N-by-1 vector. The default value is an empty string "".

Example: String="Hello"

Example: String=["Hello"; "3D"; "World"]

Data Types: string

FontSize — Horizontal and vertical scale of text

1 (default) | real positive N-by-1 vector

Horizontal and vertical scale of text, specified as real positive N-by-1 vector. The default value 1 represents the original size of the text. A value greater than or less than 1 increases or decreases the size of the text, respectively.

Example: FontSize=2

Example: FontSize=[1.5; 1.5; 1.5]

Data Types: double

Hidden — Option to hide actor

0 or false (default) | 1 or true | logical N-by-1 vector

Option to hide the actor from the 3D environment scene, specified as 0 (false) if the actor is visible in the scene or 1 (true) if the actor is hidden in the scene. For N number of actors, specify as a logical N-by-1 vector.

Example: Hidden=1

Example: Hidden=[1; 0; 1]

Properties

Parent — Parent of actor

handle to parent actor object

Parent of actor, specified as a handle to the parent actor object. After you add an actor to the sim3d.World object, the default parent actor is the Scene Origin at [0,0,0]. Use this property to set any actor in the 3D environment as the parent actor of a sim3d.graphics.Text object.

Children — Children of actor

structure

This property is read-only.

Children of actor, specified as a structure. Each field of the structure contains a handle to the child of a sim3d.graphics.Text object.

ParentWorld — Parent world

handle to parent world object

Parent world, specified as a handle to the parent sim3d.World object. You can use this property only if the sim3d.graphics.Text object is added to the parent sim3d.World object.

CoordinateSystem — Actor orientation

'Default' (default) | 'MATLAB' | 'ISO8855' | 'AERO' | 'VRML' | 'SAE'

Actor orientation representation in the 3D environment, specified as 'Default', 'MATLAB', 'ISO8855', 'AERO', 'VRML', or 'SAE'. The values are not case-sensitive. To display the actor transformation in the specified coordinate system, set this property first, and then set the transform properties Translation, Rotation, and Scale.

Coordinate System	Description
'Default'	The default coordinate system, in m and rad. Axes X-axis points away from the viewer. Y-axis points toward right. Z-axis points upward. Rotation Roll — Clockwise rotation about X-axis Pitch — Clockwise rotation about Y-axis Yaw — Counterclockwise rotation about Z-axis
'MATLAB'	The MATLAB® coordinate system, in m and rad. Axes X-axis points away from the viewer. Y-axis points toward left. Z-axis points upward. Rotation Roll — Clockwise rotation about X-axis Pitch — Clockwise rotation about Y-axis Yaw — Clockwise rotation about Z-axis
'ISO8855'	The ISO 8855 standard coordinate system, in m and deg. For more information, see ISO Standards. Axes X-axis points away from the viewer. Y-axis points toward left. Z-axis points upward. Rotation Roll — Clockwise rotation about X-axis Pitch — Clockwise rotation about Y-axis Yaw — Clockwise rotation about Z-axis
'AERO'	The coordinate system for aerospace applications, in m and rad. For more information, see Body Coordinates (Aerospace Blockset). Axes X-axis points away from the viewer. Y-axis points toward right. Z-axis points downward. Rotation Roll — Clockwise rotation about X-axis Pitch — Clockwise rotation about Y-axis Yaw — Clockwise rotation about Z-axis
'VRML'	The X3D ISO standard coordinate system, in m and rad. Axes X-axis points away from the viewer. Y-axis points upward. Z-axis points toward right. Rotation Roll — Clockwise rotation about X-axis Pitch — Counterclockwise rotation about Y-axis Yaw — Counterclockwise rotation about Z-axis
'SAE'	The SAE J670 standard coordinate system, in m and rad. For more information, see SAE International Standards. Axes X-axis points away from the viewer. Y-axis points toward right. Z-axis points downward. Rotation Roll — Clockwise rotation about X-axis Pitch — Clockwise rotation about Y-axis Yaw — Clockwise rotation about Z-axis

Data Types: string

Translation — Relative translation

[0,0,0] (default) | real N-by-3 array

Relative translation (x,y,z) of the actor object to its parent actor, specified as a real N-by-3 array, in m. N specifies the number of actors. When you add an actor to the 3D environment, the default parent actor is the Scene Origin at (0,0,0).

Example: text.Translation = [1,2,1]

Example: texts.Translation = [1,4,2; 1,3,2; 1,2,2]

Rotation — Relative rotation

[0,0,0] (default) | real N-by-3 array

Relative rotation (roll, pitch, yaw) of the actor object to its parent actor, specified as a real N-by-3 array, in rad.

Example: text.Rotation = [0,pi/2,pi/8]

Example: texts.Rotation = [pi/2,pi/4,pi/2; 0,pi/4,pi/2; pi,pi/2,0]

Color — Base color of actor

[1,0,0] (default) | real N-by-3 array

Base color of actor, specified as real N-by-3 array of RGB triplet values. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green and blue components of the color. The intensities must be in the range [0, 1].

Example: text.Color = [0,1,0]

Example: texts.Color = [1,0,0; 0,0,1; 1,1,0]

Data Types: double

String — Text to display

" " (default) | string N-by-1 vector

Text to display in 3D environment, specified as string N-by-1 vector. The default value is an empty string "".

Example: text.String = "Hello"

Example: texts.String = ["Hello"; "3D"; "World"]

Data Types: string

FontSize — Horizontal and vertical scale of text

1 (default) | real positive N-by-1 vector

Horizontal and vertical scale of text, specified as real positive N-by-1 vector. The default value 1 represents the original size of the text. A value greater than or less than 1 increases or decreases the size of the text, respectively.

Example: text.FontSize = 2

Example: texts.FontSize = [3; 3; 3]

Data Types: double

Hidden — Option to hide actor

0 or false (default) | 1 or true | logical N-by-1 vector

Option to hide the actor from the 3D environment scene, specified as 0 (false) if the actor is visible in the scene or 1 (true) if the actor is hidden in the scene. For N number of actors, specify as a logical N-by-1 vector.

Example: text.Hidden = 1

Example: texts.Hidden = [1; 0; 1]

Version History

Introduced in R2024a
