MinMax
Output minimum or maximum input value
Libraries:
Simulink /
Math Operations
HDL Coder /
Math Operations
Description
The MinMax block outputs either the minimum or the maximum element or elements of the inputs. You choose whether the block outputs the minimum or maximum values by setting the Function parameter.
The MinMax block ignores any input value that is NaN
,
except when every input value is NaN
. When all input values are
NaN
, the output is NaN
, either as a scalar or
the value of each output vector element.
Examples
Find Maximum Value of Input
This example shows how to use the MinMax block to output the maximum value of two sine waves.

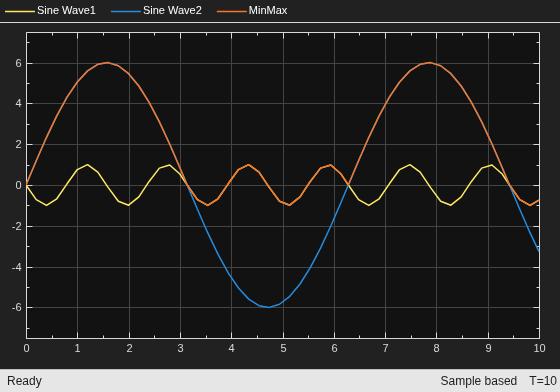

After running the full simulation, you can view the results in the Scope. Initially, the maximum value (orange line) tracks SineWave2. When the SineWave2 values turn negative, the maximum value begins tracking SineWave1. When the SineWave2 values become positive again, the maximum value resumes tracking SineWave2.
Extended Examples
Model Fault-Tolerant Fuel Control System
Combine Stateflow® and Simulink® capabilities to model hybrid systems. This type of modeling is particularly useful for systems that have numerous possible operational modes based on discrete events. Traditional signal flow is handled in Simulink while changes in control configuration are implemented in Stateflow. The model described in this example represents a fuel control system for a gasoline engine. The system is robust in that it detects individual sensor failures, and the control system is dynamically reconfigured for uninterrupted operation.
Ports
Input
Port_1 — Input signal
scalar | vector | matrix
Provide an input signal from which the block outputs the maximum or minimum values.
When the block has one input port, the input must be a scalar or a vector. The block outputs a scalar equal to the minimum or maximum element of the input vector.
When the block has multiple input ports, all nonscalar inputs must have the same dimensions. The block expands any scalar inputs to have the same dimensions as the nonscalar inputs. The block outputs a signal having the same dimensions as the input. Each output element equals the minimum or maximum of the corresponding input elements.
Dependencies
To support matrix input, you must set the Number of input ports parameter to an integer greater than one. All nonscalar inputs must have the same dimensions.
Data Types: half
| single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Port_N — Nth input signal
scalar | vector | matrix
Provide an input signal from which the block outputs the maximum or minimum values.
When the block has multiple input ports, all nonscalar inputs must have the same dimensions. The block expands any scalar inputs to have the same dimensions as the nonscalar inputs. The block outputs a signal having the same dimensions as the input. Each output element equals the minimum or maximum of the corresponding input elements.
Dependencies
To provide more than one input signal, set the Number of input ports to an integer greater than 1.
Data Types: half
| single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Output
Port_1 — Minimum or maximum values of inputs
scalar | vector | matrix
When the block has one input, the output is a scalar value, equal to the minimum or
maximum of the input elements. When the block has multiple inputs, the
output is a signal having the same dimensions as the input. Each output
element equals the minimum or maximum of the corresponding input
elements. If the block input has different input data types, the output
is the same size as the input, but might have less precision. For
example, if one input is int8
and one is
uint8
, the output data type is still 8 bits,
sfix8_E1
, but with less precision.
Data Types: half
| single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Parameters
Main
Function — Specify minimum or maximum
min
(default) | max
Specify whether to apply the function min
or
max
to the input.
Programmatic Use
Block Parameter:
Function |
Type: character vector |
Values:
'min' | 'max' |
Default:
'min' |
Number of input ports — Specify number of input ports
1
(default) | positive integer
Specify the number of inputs to the block.
Programmatic Use
Block Parameter:
Inputs |
Type: character vector |
Values:
positive integer |
Default:
'1' |
Apply over — How to apply function along specified dimensions
All dimensions
(default) | Specified dimension
Specify how to apply the function along specified dimensions.
All dimensions
— Apply function for all input values for all dimensions.Specified dimension
— Apply function for all input values for specified dimension.
For example, in this model, Function is set to
max
, and Apply
over is set to All
dimensions
. The block returns the largest input value from
all dimensions.
Dependencies
To enable this parameter, Number of input
ports must be 1
.
Programmatic Use
Block Parameter:
CollapseMode |
Type: character vector |
Values:
'All dimensions' | 'Specified
dimension' |
Default:
'All dimensions' |
Dimension — Specify the dimension along which to apply function
1
(default) | positive integer | ...
| N
Specify the dimension along which to apply the function as a positive
integer. For example, for a 2-D matrix, 1
applies the
function to each column, and 2
applies the function
to each row.
For example, in this model, Function is set to
max
, Apply over is
set to Specified dimension
, and
Dimension is set to 2
. The
block returns the largest input value from each row.
Dependencies
To enable this parameter, set Apply over to
Specified dimension
.
Programmatic Use
Block Parameter:
CollapseDim |
Type: character vector |
Values: positive integer |
Default:
'1' |
Enable zero-crossing detection — Enable zero-crossing detection
on
(default) | off
Select to enable zero-crossing detection. For more information, see Zero-Crossing Detection.
Programmatic Use
Block Parameter:
ZeroCross |
Type: character vector | string |
Values: 'off' |
'on' |
Default: 'on' |
Sample time (-1 for inherited) — Interval between samples
-1
(default) | scalar | vector
Specify the time interval between samples. To inherit the sample time, set this
parameter to -1
. For more information, see Specify Sample Time.
Dependencies
This parameter is visible only if you set it to a value other than
-1
. To learn more, see Blocks for Which Sample Time Is Not Recommended.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
Parameter: | SampleTime |
Values: | "-1" (default) | scalar or vector in quotes |
Signal Attributes
Require all inputs to have the same data type — Inputs must have the same data type
off
(default) | on
Select this check box to require that all inputs have the same data type.
Programmatic Use
Block Parameter:
InputSameDT |
Type: character vector |
Values:
'off' | 'on' |
Default:
'off' |
Output minimum — Minimum output value for range checking
[]
(default) | scalar
Lower value of the output range that the software checks.
The software uses the minimum to perform:
Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters) for some blocks.
Simulation range checking (see Specify Signal Ranges and Enable Simulation Range Checking).
Automatic scaling of fixed-point data types.
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Tips
Output minimum does not saturate or clip the actual output signal. Use the Saturation block instead.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
Parameter: | OutMin |
Values: | '[]' (default) | scalar in quotes |
Output maximum — Maximum output value for range checking
[]
(default) | scalar
Upper value of the output range that the software checks.
The software uses the maximum value to perform:
Parameter range checking (see Specify Minimum and Maximum Values for Block Parameters) for some blocks.
Simulation range checking (see Specify Signal Ranges and Enable Simulation Range Checking).
Automatic scaling of fixed-point data types.
Optimization of the code that you generate from the model. This optimization can remove algorithmic code and affect the results of some simulation modes such as SIL or external mode. For more information, see Optimize using the specified minimum and maximum values (Embedded Coder).
Tips
Output maximum does not saturate or clip the actual output signal. Use the Saturation block instead.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
Parameter: | OutMax |
Values: | '[]' (default) | scalar in quotes |
Output data type — Specify the output data type
Inherit: Inherit via internal
rule
(default) | Inherit: Inherit via back
propagation
| Inherit: Same as first input
| double
| single
| half
| int8
| uint8
| int16
| uint16
| int32
| uint32
| int64
| uint64
| fixdt(1,16,0)
| fixdt(1,16,2^0,0)
| <data type expression>
Choose the data type for the output. The type can be inherited,
specified directly, or expressed as a data type object such as
Simulink.NumericType
.
The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click . For more information, see Specify Data Types Using Data Type Assistant.
Dependencies
When input is a floating-point data type smaller than single
precision, the Inherit: Inherit via internal
rule
output data type depends on the setting of
the Inherit floating-point output type smaller than single precision configuration parameter. Data types are smaller than single
precision when the number of bits needed to encode the data type is
less than the 32 bits needed to encode the single-precision data
type. For example, half
and
int16
are smaller than single
precision.
Programmatic Use
Block Parameter:
OutDataTypeStr |
Type: character vector |
Values: 'Inherit:
Inherit via internal rule' | 'Inherit:
Inherit via back propagation' | 'Inherit:
Same as first input' | 'double'
| 'single' | 'half' |
'int8' | 'uint8' |
'int16' | 'uint16' |
'int32' | 'uint32' |
'int64' | 'uint64' |
'fixdt(1,16,0)' |
'fixdt(1,16,2^0,0)' | '<data
type expression>' |
Default: 'Inherit:
Inherit via internal rule' |
Lock output data type setting against changes by the fixed-point tools — Option to prevent fixed-point tools from overriding Output data type
off
(default) | on
Select this parameter to prevent the fixed-point tools from overriding the Output data type you specify on the block. For more information, see Use Lock Output Data Type Setting (Fixed-Point Designer).
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
Parameter: | LockScale |
Values: | 'off' (default) | 'on' |
Integer rounding mode — Rounding mode for fixed-point operations
Floor
(default) | Ceiling
| Convergent
| Nearest
| Round
| Simplest
| Zero
Specify the rounding mode for fixed-point operations. For more information, see Rounding Modes (Fixed-Point Designer).
Block parameters always round to the nearest representable value. To control the rounding of a block parameter, enter an expression using a MATLAB® rounding function into the mask field.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
Parameter: | RndMeth |
Values: | 'Floor' (default) | 'Ceiling' | 'Convergent' | 'Nearest' | 'Round' | 'Simplest' | 'Zero' |
Saturate on integer overflow — Method of overflow action
off
(default) | on
Specify whether overflows saturate or wrap.
on
— Overflows saturate to either the minimum or maximum value that the data type can represent.off
— Overflows wrap to the appropriate value that the data type can represent.
For example, the maximum value that the signed 8-bit integer int8
can represent is 127. Any block operation result greater than this maximum value causes
overflow of the 8-bit integer.
With this parameter selected, the block output saturates at 127. Similarly, the block output saturates at a minimum output value of -128.
With this parameter cleared, the software interprets the overflow-causing value as
int8
, which can produce an unintended result. For example, a block result of 130 (binary 1000 0010) expressed asint8
is -126.
Tips
Consider selecting this parameter when your model has a possible overflow and you want explicit saturation protection in the generated code.
Consider clearing this parameter when you want to optimize efficiency of your generated code. Clearing this parameter also helps you to avoid overspecifying how a block handles out-of-range signals. For more information, see Troubleshoot Signal Range Errors.
When you select this parameter, saturation applies to every internal operation on the block, not just the output or result.
In general, the code generation process can detect when overflow is not possible. In this case, the code generator does not produce saturation code.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
Parameter: | SaturateOnIntegerOverflow |
Values: | 'off' (default) | 'on' |
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
Architecture | Additional cycles of latency | Description |
---|---|---|
Tree
(default) | 0 | Generates a tree structure of comparators. |
General | |
---|---|
ConstrainedOutputPipeline | Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is
|
InputPipeline | Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is
|
OutputPipeline | Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is
|
Native Floating Point | |
---|---|
LatencyStrategy | Specify whether to map the blocks in your design to
|
PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced before R2006aR2024a: MinMax block supports specified dimensions
The MinMax block enables you to find minimum or maximum values over a specified dimension using these new parameters:
Apply over — Apply function over all or specified dimensions.
Dimension — Dimension over which to apply the function.
See Also
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
