# Create Weighted Lifetime PD Model

This example shows how to use `fitLifetimePDModel` to create a PD model using weighted credit and macroeconomic data.

`load RetailCreditPanelData.mat`

Join the two data components into a single data set.

```data = join(data,dataMacro); disp(head(data))```
``` ID ScoreGroup YOB Default Year GDP Market __ __________ ___ _______ ____ _____ ______ 1 Low Risk 1 0 1997 2.72 7.61 1 Low Risk 2 0 1998 3.57 26.24 1 Low Risk 3 0 1999 2.86 18.1 1 Low Risk 4 0 2000 2.43 3.19 1 Low Risk 5 0 2001 1.26 -10.51 1 Low Risk 6 0 2002 -0.59 -22.95 1 Low Risk 7 0 2003 0.63 2.78 1 Low Risk 8 0 2004 1.85 9.48 ```

### Create Weights Variable

To create a weighted lifetime PD model, you need a weights variable. In this example, you create a weights variable by exponentially weighting recent data more heavily than older data. Give the most recent year (2004) a weight of `1`, then shrink the weight for each preceding year by a factor of `0.96` relative to the year after. Display the data and weights.

```% Get a list of years in the data set Years = unique(data.Year); n = size(Years,1); % Initialize weights YearWeights = zeros(n,1); w = 1; % The most recent year (2004) has a weight of 1, the weight for each preceding % year is shrunk by a factor of .96 relative to the year after. for i = n:-1:1 YearWeights(i) = w; w = w*.96; end % Put the weights for each year in a table, so you can use join YearWeights = table(Years, YearWeights,'VariableNames',{'Year','YearWeights'}); data = join(data,YearWeights,'Keys','Year'); % Show the weighted data disp(head(data))```
``` ID ScoreGroup YOB Default Year GDP Market YearWeights __ __________ ___ _______ ____ _____ ______ ___________ 1 Low Risk 1 0 1997 2.72 7.61 0.75145 1 Low Risk 2 0 1998 3.57 26.24 0.78276 1 Low Risk 3 0 1999 2.86 18.1 0.81537 1 Low Risk 4 0 2000 2.43 3.19 0.84935 1 Low Risk 5 0 2001 1.26 -10.51 0.88474 1 Low Risk 6 0 2002 -0.59 -22.95 0.9216 1 Low Risk 7 0 2003 0.63 2.78 0.96 1 Low Risk 8 0 2004 1.85 9.48 1 ```

### Partition Data

Partition the data into training and test sets.

```nIDs = max(data.ID); uniqueIDs = unique(data.ID); rng('default'); % For reproducibility c = cvpartition(nIDs,'HoldOut',0.4); TrainIDInd = training(c); TestIDInd = test(c); TrainDataInd = ismember(data.ID,uniqueIDs(TrainIDInd)); TestDataInd = ismember(data.ID,uniqueIDs(TestIDInd));```

### Create a Lifetime PD Model

Select a `ModelType` for the lifetime PD model, then use `fitLifetimePDModel` to fit a weighted model using the `WeightsVar` name-value argument.

`ModelType = "Probit"`
```ModelType = "Probit" ```
```pdModel = fitLifetimePDModel(data(TrainDataInd,:),ModelType,... AgeVar="YOB", ... IDVar="ID", ... LoanVars="ScoreGroup", ... MacroVars={'GDP','Market'}, ... ResponseVar="Default",WeightsVar='YearWeights'); disp(pdModel)```
``` Probit with properties: ModelID: "Probit" Description: "" UnderlyingModel: [1x1 classreg.regr.CompactGeneralizedLinearModel] IDVar: "ID" AgeVar: "YOB" LoanVars: "ScoreGroup" MacroVars: ["GDP" "Market"] ResponseVar: "Default" WeightsVar: "YearWeights" TimeInterval: 1 ```

Display the underlying model.

`disp(pdModel.UnderlyingModel)`
```Compact generalized linear regression model: probit(Default) ~ 1 + ScoreGroup + YOB + GDP + Market Distribution = Binomial Estimated Coefficients: Estimate SE tStat pValue __________ _________ _______ ___________ (Intercept) -1.6275 0.040249 -40.434 0 ScoreGroup_Medium Risk -0.26616 0.015304 -17.392 9.4854e-68 ScoreGroup_Low Risk -0.46622 0.017631 -26.443 4.3347e-154 YOB -0.11399 0.005209 -21.884 3.7215e-106 GDP -0.04152 0.015646 -2.6537 0.0079608 Market -0.0029277 0.0011321 -2.5861 0.0097068 388097 observations, 388091 error degrees of freedom Dispersion: 1 Chi^2-statistic vs. constant model: 1.63e+03, p-value = 0 ```

### Validate Model

Use `modelDiscrimination` to view the area under ROC curve (AUROC) metric for different segments of the validation data. When `ShowDetails` = `true`, you have three extra columns in the `DiscMeasure` output: `Segment`, `SegmentCount`, and `WeightedCount`. `Segment` shows the segmentation variable value corresponding to the given row. `SegmentCount` gives the number of data points contained by the given segment, while `WeightedCount` shows the sum of the weights associated with the segment's data. The default weight for each row is `1`, so if `WeightsVar` is not specified or doesn't exist in the validation data set, then `WeightedCount` is equal to `SegmentCount`.

```DataSetChoice = "Testing"; if DataSetChoice=="Training" Ind = TrainDataInd; else Ind = TestDataInd; end DiscMeasure = modelDiscrimination(pdModel,data(Ind,:),SegmentBy="ScoreGroup",ShowDetails=true)```
```DiscMeasure=3×4 table AUROC Segment SegmentCount WeightedCount _______ _____________ ____________ _____________ Probit, ScoreGroup=High Risk 0.64562 "High Risk" 84242 74228 Probit, ScoreGroup=Medium Risk 0.62503 "Medium Risk" 87397 77172 Probit, ScoreGroup=Low Risk 0.63367 "Low Risk" 86988 76910 ```
`disp(DiscMeasure)`
``` AUROC Segment SegmentCount WeightedCount _______ _____________ ____________ _____________ Probit, ScoreGroup=High Risk 0.64562 "High Risk" 84242 74228 Probit, ScoreGroup=Medium Risk 0.62503 "Medium Risk" 87397 77172 Probit, ScoreGroup=Low Risk 0.63367 "Low Risk" 86988 76910 ```

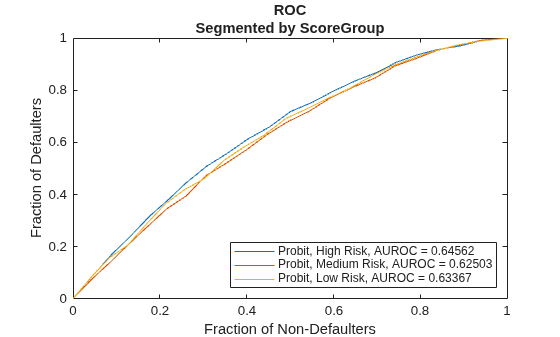

Use `modelDiscriminationPlot` to visualize the ROC curve. The plotted curve accounts for the specified weights.

`modelDiscriminationPlot(pdModel,data(Ind,:),SegmentBy="ScoreGroup")`

Use `modelCalibration` to evaluate the model performance. The `modelCalibration` function requires a grouping variable and compares the observed weighted default rate in the group with the weighted average predicted PD for the group.

```[CalMeasure, CalData] = modelCalibration(pdModel,data(Ind,:),{'YOB','ScoreGroup'}); disp(CalMeasure)```
``` RMSE _________ Probit, grouped by YOB, ScoreGroup 0.0011458 ```

The `CalData` output also contains a `WeightedCount` column that is similar to `DiscMeasure` and shows the sum of the weights associated with the given group. The default weight is `1` for each row, so if `WeightsVar` is unspecified, or if the variable does not exist in the validation set, `WeightedCount` is equal to `GroupCount`.

`disp(CalData)`
``` ModelID YOB ScoreGroup PD GroupCount WeightedCount __________ ___ ___________ __________ __________ _____________ "Observed" 1 High Risk 0.030861 13084 10220 "Observed" 1 Medium Risk 0.013521 12998 10154 "Observed" 1 Low Risk 0.0081327 12646 9879.8 "Observed" 2 High Risk 0.022938 12567 10224 "Observed" 2 Medium Risk 0.012437 12767 10391 "Observed" 2 Low Risk 0.0046497 12478 10156 "Observed" 3 High Risk 0.017818 12067 10223 "Observed" 3 Medium Risk 0.0093478 12520 10613 "Observed" 3 Low Risk 0.0058731 12386 10500 "Observed" 4 High Risk 0.018711 11798 10410 "Observed" 4 Medium Risk 0.0094983 12325 10881 "Observed" 4 Low Risk 0.0044163 12295 10857 "Observed" 5 High Risk 0.016317 11481 10551 "Observed" 5 Medium Risk 0.0080286 12120 11145 "Observed" 5 Low Risk 0.0041782 12217 11236 "Observed" 6 High Risk 0.0096414 11250 10770 "Observed" 6 Medium Risk 0.0054967 11996 11491 "Observed" 6 Low Risk 0.0031086 12138 11629 "Observed" 7 High Risk 0.0058197 7937 7773.6 "Observed" 7 Medium Risk 0.0032354 8334 8159.8 "Observed" 7 Low Risk 0.0015307 8459 8283.6 "Observed" 8 High Risk 0.0022178 4058 4058 "Observed" 8 Medium Risk 0.0009223 4337 4337 "Observed" 8 Low Risk 0.00068666 4369 4369 "Probit" 1 High Risk 0.027597 13084 10220 "Probit" 1 Medium Risk 0.014522 12998 10154 "Probit" 1 Low Risk 0.008584 12646 9879.8 "Probit" 2 High Risk 0.021447 12567 10224 "Probit" 2 Medium Risk 0.011013 12767 10391 "Probit" 2 Low Risk 0.0063911 12478 10156 "Probit" 3 High Risk 0.019195 12067 10223 "Probit" 3 Medium Risk 0.0097721 12520 10613 "Probit" 3 Low Risk 0.00563 12386 10500 "Probit" 4 High Risk 0.018073 11798 10410 "Probit" 4 Medium Risk 0.0091654 12325 10881 "Probit" 4 Low Risk 0.0052668 12295 10857 "Probit" 5 High Risk 0.014643 11481 10551 "Probit" 5 Medium Risk 0.0072 12120 11145 "Probit" 5 Low Risk 0.0040669 12217 11236 "Probit" 6 High Risk 0.010323 11250 10770 "Probit" 6 Medium Risk 0.0049299 11996 11491 "Probit" 6 Low Risk 0.0027131 12138 11629 "Probit" 7 High Risk 0.0063338 7937 7773.6 "Probit" 7 Medium Risk 0.002904 8334 8159.8 "Probit" 7 Low Risk 0.0015449 8459 8283.6 "Probit" 8 High Risk 0.0040971 4058 4058 "Probit" 8 Medium Risk 0.0018064 4337 4337 "Probit" 8 Low Risk 0.00093487 4369 4369 ```

Use `modelCalibrationPlot` to visualize the observed weighted default rates compared to the predicted PD.

`modelCalibrationPlot(pdModel,data(Ind,:),{'YOB','ScoreGroup'})`
