phased.PhaseCodedWaveform

Phase-coded pulse waveform

Description

The phased.PhaseCodedWaveform System object™ creates a phase coded waveform. To create and use a phased.PhaseCodedWaveform System object

1. Create the phased.PhaseCodedWaveform object and set its properties.

2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

waveform = phased.PhaseCodedWaveform()

waveform = phased.PhaseCodedWaveform(Name=Value)

Description

waveform = phased.PhaseCodedWaveform() creates a phase-coded pulse waveform System object, waveform. The object generates samples of a phase-coded pulse.

waveform = phased.PhaseCodedWaveform(Name=Value) creates a phase-coded pulse waveform object, waveform, with additional options specified by one or more Name=Value pair arguments. Name is a property name, and Value is the corresponding value. You can specify several name-value pair arguments in any order as Name=Value1,…,NameN=ValueN.

Properties

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

SampleRate — Sample rate (Hz)

1e6 (default) | positive scalar

Sample rate, specified as a positive scalar. The value of this property must satisfy these constraints:

• (SampleRate./PRF) is a scalar or vector that contains only integers — the number of samples in a pulse must be an integer.

• (SampleRate*ChipWidth) is an integer value — the number of samples in a chip must be an integer.

Example: SampleRate=100e6

Data Types: double

Code — Phase code type

"Frank" (default) | "P1" | "P2" | "Px" | "Zadoff-Chu" | "P3" | "P4" | "Barker" | "Maximum Length Sequence" | "Quadratic Residue Sequence" | "Custom

Phase code type used in phase modulation, specified as:

• "Frank"

• "P1"

• "P2"

• "Px"

• "Zadoff-Chu"

• "P3"

• "P4"

• "Barker"

• "Maximum Length Sequence"

• "Quadratic Residue Sequence"

• "Custom"

Example: Code="Quadratic Residue Sequence"

Data Types: char | string

CustomCode — Custom phase code

[1 -1] (default) | length-M vector of complex values

Custom phase code, specified as a length-M vector of complex values. Each element in the specified vector corresponds to a single chip. You can use these functions and others to create custom phase code:

Custom Code Functions

apaseq	Pseudo-random binary almost perfect autocorrelation sequence
legendreseq	Legendre sequence with a perfect periodic autocorrelation
mlseq	Pseudo-random binary maximum length sequence
pnkcode	Polyphase code

Example: CustomCode=mlseq

Dependencies

To enable this property, set the Code property to "Custom".

Data Types: double | function_handle

ChipWidth — Time duration of each chip (sec)

1e-5 (default) | positive scalar

The time duration of each chip in a phase-coded waveform, specified as a positive scalar. For this waveform, the pulse duration is equal to the product of the chip width and number of chips.

The value of this property must satisfy these constraints:

• ChipWidth is less than or equal to (1./(NumChips*PRF)) – the total time duration of all chips cannot exceed the duration of the pulse.

• (SampleRate*ChipWidth) is an integer value – the number of samples in a chip must be an integer.

Units are in seconds.

Example: Chipwidth=40e-5

Data Types: double

NumChips — Number of chips

4 (default) | positive integer

Number of chips per pulse in a phase-coded waveform, specified as a positive integer. The value of this property must be less than or equal to (1./(ChipWidth*PRF)) – the total time duration of all chips cannot exceed the pulse repetition interval.

This table shows additional constraints on the number of chips for different code types.

If the Code property is ...	Then the NumChips property must be...
"Frank", "P1", or "Px"	A perfect square
"P2"	An even number that is a perfect square
"Barker"	2, 3, 4, 5, 7, 11, or 13

Dependencies

To enable this property, set the Code property to any value except "Custom".

Data Types: double

SequenceIndex — Zadoff-Chu sequence index

1 (default) | positive integer

Sequence index used in Zadoff-Chu code, specified as a positive integer. The value of SequenceIndex must be relatively prime to the value of the NumChips property.

Example: SequenceIndex

Dependencies

To enable this property, set the Code property to "Zadoff-Chu".

Data Types: double

PRF — Pulse repetition frequency (Hz)

10e3 (default) | positive scalar | row vector of positive values

Pulse repetition frequency (PRF), specified as a scalar or a row vector. Units are in Hz. The pulse repetition interval (PRI) is the inverse of the pulse repetition frequency PRF value. The PRF must satisfy these restrictions:

• The product of PRF and PulseWidth must be less than or equal to one. This condition requires that the pulse width is less than one PRI. For the phase-coded waveform, the pulse width is the product of the values of the ChipWidth and NumChips properties.

• The ratio of SampleRate to PRF must be an integer. This condition requires that the number of samples in one PRI is an integer.

You can set the value of PRF using the PRF property settings alone or using property settings in conjunction with the prfidx input argument of the object.

• When PRFSelectionInputPort is false, you set the PRF using the PRF properties alone. You can:

  • Implement a constant PRF by specifying the PRF property as a positive real-valued scalar.

  • Implement a staggered PRF by specifying the PRF property as a row vector with positive real-valued elements. Each call to the object uses successive elements of this vector as the PRF. Once the object reaches the last element of the vector, it continues the process cyclically with the first element of the vector.

• When PRFSelectionInputPort is true, you can set the PRF value using the PRF property in conjunction with the prfidx input argument. You implement a selectable PRF by specifying the PRF property as a row vector with positive real-valued elements. When you execute the object, the object selects a PRF by using the index you specify in the prfidx input argument to index into the PRF vector.

In all cases, the number of output samples is fixed when you set the OutputFormat property to 'Samples'. When you use a varying PRF and also set the OutputFormat property to 'Pulses', the number of samples can vary.

Data Types: double

PRFSelectionInputPort — Enable PRF selection input

false (default) | true

Enable PRF selection input, specified as false or true. When you set this property to true, you can pass an index argument to the object to select a predefined value from the PRF property vector. When you set this property to false, the object uses the PRF property to define the PRF sequence used in the simulation.

Data Types: logical

FrequencyOffsetSource — Source of frequency offset

'Property' (default) | 'Input port'

Source of frequency offset, specified as 'Property' or 'Input port'.

• When you set this property to 'Property', the frequency offset is determined by the value of the FrequencyOffset property.

• When you set this property to 'Input port', the frequency offset is determined by the input argument freqoffset when calling the object.

Example: 'Input port'

Data Types: char | string

FrequencyOffset — Frequency offset (Hz)

0 (default) | scalar

Frequency offset, specified as a scalar. Units are in Hz.

Example: 150.0

Dependencies

To enable this property, set the FrequencyOffsetSource property to 'Property'.

Data Types: double

OutputFormat — Format of output signal

'Pulses' (default) | 'Samples'

Format of output signal, specified as 'Pulses' or 'Samples'.

• When you set the OutputFormat property to 'Pulses', the output of the object takes the form of multiple pulses specified by the value of the NumPulses property. The number of samples per pulse can vary if you change the PRF during the simulation.

• When you set the OutputFormat property to 'Samples', the output of the object takes the form of multiple samples. In this case, the number of output signal samples is the value of the NumSamples property and is fixed.

Data Types: char | string

NumSamples — Number of samples in output

100 (default) | positive integer

Number of samples in each output of the object, specified as a positive integer.

Dependencies

To enable this property, set the OutputFormat property to 'Samples'.

Data Types: double

NumPulses — Number of pulses in output

1 (default) | positive integer

Number of pulses in each output, specified as a positive integer.

Dependencies

To enable this property, set the OutputFormat property to 'Pulses'.

Data Types: double

PRFOutputPort — Enable PRF output

false (default) | true

Enable PRF output, specified as false or true. Set this property to true to output the PRF.

Dependencies

To enable this property, set the OutputFormat property to 'Pulses'.

Data Types: logical

CoefficientsOutputPort — Enable matched filter coefficients output

false (default) | true

Enable matched filter coefficients output, specified as false or true. Set this property to true to enable the object the output of the matched filter coefficients of the waveform used during the simulation.

Data Types: logical

Usage

Syntax

Y = waveform()

Y = waveform(prfidx)

Y = waveform(freqoffset)

[Y,PRF] = waveform(___)

[Y,coeff] = waveform(___)

Description

Y = waveform() returns samplesY of the phase-coded pulse, .

Y = waveform(prfidx) uses the prfidx index to select the PRF from the predefined vector of values specified by the PRF property. To enable this syntax, set the PRFSelectionInputPort property to true.

Y = waveform(freqoffset) uses freqoffset to generate the waveform with a frequency offset. Use this syntax for cases where the transmit pulse frequency needs to be dynamically updated. To enable this syntax applies, set the FrequencyOffsetSource property to "Input port".

[Y,PRF] = waveform(___) also returns the current pulse repetition frequency, PRF. To enable this syntax, set the PRFOutputPort property to true and set the OutputFormat property to "Pulses".

[Y,coeff] = waveform(___) returns the matched filter coefficients, coeff, for the current pulse. To enable this syntax, set CoefficientsOutputPort property to true.

You can combine optional input and output arguments when their enabling properties are set. Optional inputs and outputs must be listed in the same order as the order of the enabling properties. For example, Y,PRF,COEFF] = waveform(prfidx,freqoffset).

Note

The object performs an initialization the first time the object is executed. This initialization locks nontunable properties and input specifications, such as dimensions, complexity, and data type of the input data. If you change a nontunable property or an input specification, the System object issues an error. To change nontunable properties or inputs, you must first call the release method to unlock the object.

Input Arguments

prfidx — Pulse repetition frequency index

positive integer

Pulse repetition frequency (PRF) index, specified as a positive integer. The index identifies which entry in the PRF property is used to determine the PRF. Use this argument when the transmit pulse needs to be dynamically selected. Under such situations, the PRF property includes a list of predetermined choices of PRFs. prfidx selects the PRF for the next transmission.

Example: 10

Dependencies

To enable this argument, set the PRFSelectionInputPort property to true.

Data Types: double

freqoffset — Frequency offset (Hz)

scalar

Frequency offset, specified as a scalar. The offset adds a frequency offset to the generated waveform. Units are in Hz.

Example: 50.0

Dependencies

To enable this argument, set the FrequencyOffsetSource property to Input port.

Output Arguments

Y — Phase-coded waveform

complex-valued column vector

Phase-coded waveform, returned as a complex-valued column vector.

Data Types: single | double
Complex Number Support: Yes

coeff — Matched filter coefficients

N_z-by-1 complex-valued vector

Matched filter coefficients, returned as an N_z-by-1 vector, where N_z is the largest nonzero pulse width.

Dependencies

To enable this output, set the CoefficientsOutputPort property to true.

Data Types: single | double
Complex Number Support: Yes

PRF — Current Pulse repetition frequency (Hz)

positive scalar

Current pulse repetition frequency, returned as a positive scalar.

Example: 250

Dependencies

To enable this output argument, set the OutputFormat property to "Pulses" and the PRFOutputPort property to true.

Data Types: single | double

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

Specific to phased.PhaseCodedWaveform

bandwidth	Bandwidth of phase-coded waveform
getMatchedFilter	Matched filter coefficients for waveform
plot	Plot phase-coded pulse waveform

Common to All System Objects

step	Run System object algorithm
release	Release resources and allow changes to System object property values and input characteristics
reset	Reset internal states of System object

Examples

Create Pulse Coded Waveform

Generate samples of two pulses of a phase-coded pulse waveform that uses the Zadoff-Chu code.

sPCW = phased.PhaseCodedWaveform('Code','Zadoff-Chu',...
    'ChipWidth',1e-6,'NumChips',16,...
    'OutputFormat','Pulses','NumPulses',2);
wav = step(sPCW);
fs = sPCW.SampleRate;
nsamps = size(wav,1);
t = [0:(nsamps-1)]/fs;
plot(t*1e6,real(wav))
title('Waveform: Real Part')
xlabel('Time (\mu sec)')
ylabel('Amplitude')
grid

Plot Phase-Coded Waveform and Spectrum

Create and plot a two-pulse phase-coded waveform that uses the Zadoff-Chu code.

sPCW = phased.PhaseCodedWaveform('Code','Zadoff-Chu',...
    'ChipWidth',5e-6,'NumChips',16,...
    'OutputFormat','Pulses','NumPulses',2);
fs = sPCW.SampleRate;

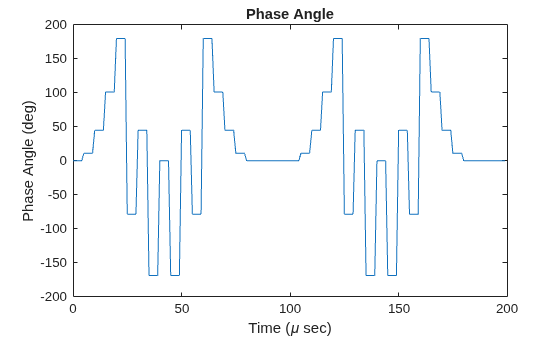

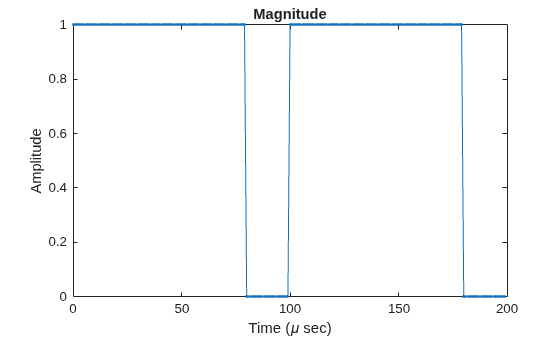

Generate signal samples and plot the magnitude and phase of the waveforms.

wav = step(sPCW);
nsamp = size(wav,1);
t = [0:(nsamp-1)]/fs;
plot(t*1e6,abs(wav),'.-')
title('Magnitude')
xlabel('Time (\mu sec)')
ylabel('Amplitude')

plot(t*1e6,180/pi*angle(wav))
title('Phase Angle')
xlabel('Time (\mu sec)')
ylabel('Phase Angle (deg)')

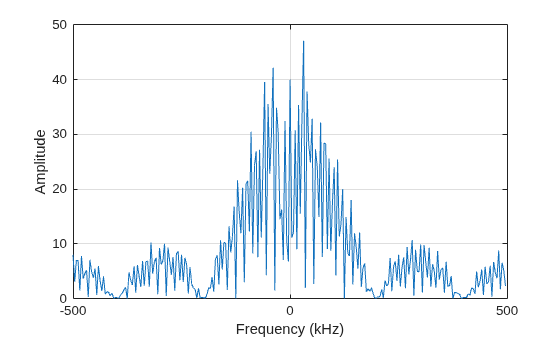

Plot the spectrum.

nsamp = size(wav,1);
nfft = 2^nextpow2(nsamp);
Z = fft(wav,nfft);
fr = [0:(nfft-1)]/nfft*fs;
fr = fr - fs/2;
plot(fr/1000,abs(fftshift(Z)))
xlabel('Frequency (kHz)')
ylabel('Amplitude')
grid

Apply Frequency Offset to Phase-Coded Waveform

Apply a frequency offset to a phase-coded waveform that uses the Zadoff-Chu code. Plot the frequency spectrum of the waveform with and without a frequency offset applied.

Create a phase-coded waveform object which is configured to set the frequency offset from an input when the object is executed.

fs = 1e6;
sPCW = phased.PhaseCodedWaveform('SampleRate',fs,'Code','Zadoff-Chu', ...
    'ChipWidth',8e-6,'NumChips',4,'OutputFormat','Pulses', ...
    'NumPulses',1,'FrequencyOffsetSource','Input port');

Execute the object two times. First set the frequency offset set to 0 Hz, and then to 2e4 Hz.

pcwav = sPCW(0);
pcwav_foffset = sPCW(2e4);

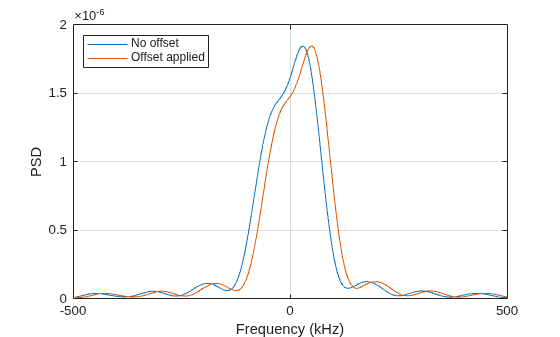

Plot the frequency spectrum of the complex signals. The frequency offset signal is shifted to the right.

[Pxx,f] = pwelch(pcwav,[],[],[],fs,'centered');
[Pxx_offset,foffset] = pwelch(pcwav_foffset,[],[],[],fs,'centered');
plot(f/1000,Pxx,foffset/1000,Pxx_offset)
ylabel('PSD');
xlabel('Frequency (kHz)');
legend({'No offset','Offset applied'},'Location','northwest');
grid on;

Create Two MLS Code Waveforms

Generate two phase-coded waveforms based on m-sequences of length N = 127. Show their ambiguity and crossambiguity functions. The chip width is $1\mu \sec$ and the modulation period is N times the chip width.

N = 127;
S = mlseq(N,[1 2]);

Set the chip width (tau) and the modulation period (T).

tau = 1e-6;
T = tau*N;

Create a custom phase coded waveform object. Set the pulse repetition frequency (PRF) equal to the inverse of the modulation period and set the sampling rate to 10 times the inverse chip width. Initialize the waveform with the first code.

fs = 10/tau;    % Sample rate
pmwaveform = phased.PhaseCodedWaveform('SampleRate',fs,'Code','Custom',...
    'CustomCode',S(:,1),'ChipWidth',tau,'PRF',1/T);

Generate samples of the first waveform.

x1 = pmwaveform();

Generate samples of the second waveform.

release(pmwaveform);
pmwaveform.CustomCode = S(:,2);
x2 = pmwaveform();

Plot the ambiguity and cross-ambiguity functions.

tiledlayout(3, 1)

nexttile
ambgfun(x1,fs,1/T,'Cut','Doppler');
title('Ambiguity Function of the First Waveform')

nexttile
ambgfun(x2,fs,1/T,'Cut','Doppler');
title('Ambiguity Function of the Second Waveform')

nexttile
ambgfun(x1,x2,fs,[1 1]/T,'Cut','Doppler');
title('Cross Ambiguity Function')

Create Phase-Coded Waveform with Variable PRF

Create and plot two-pulse phase-coded waveforms that uses the Zadoff-Chu code. Set the sample rate to 1 MHz, a chip width of 5 microseconds, 16 chips per pulse. Vary the pulse repetition frequency.

fs = 1e6;
PRF = [5000,10000];
waveform = phased.PhaseCodedWaveform('SampleRate',fs,...
    'Code','Zadoff-Chu','PRFSelectionInputPort',true,...
    'ChipWidth',5e-6,'NumChips',16,'PRF',PRF,...
    'OutputFormat','Pulses','NumPulses',2);

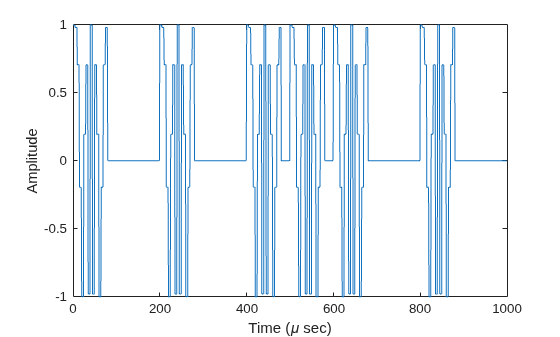

Obtain and plot the phase-coded waveforms. For the first call to the step method, set the PRF to 10kHz using the PRF index. For the next call, set the PRF to 25 kHz. For the final call, set the PRF to 10kHz.

wav = [];
wav1 = waveform(1);
wav = [wav; wav1];
wav1 = waveform(2);
wav = [wav; wav1];
wav1 = waveform(1);
wav = [wav; wav1];
nsamps = size(wav,1);
t = [0:(nsamps-1)]/fs;
plot(t*1e6,real(wav))
xlabel('Time (\mu sec)')
ylabel('Amplitude')

Generate Matched Filter Coefficients of Phase-Coded Waveform

Generate output samples and matched filter coefficients of a Barker coded waveform.

waveform = phased.PhaseCodedWaveform('Code','Barker','NumChips',5, ...
    'CoefficientsOutputPort',true,'PRF',[1e4 2e4],'ChipWidth',5e-6, ...
    'OutputFormat','Samples','NumSamples',150);
[wav,coeff] = waveform();

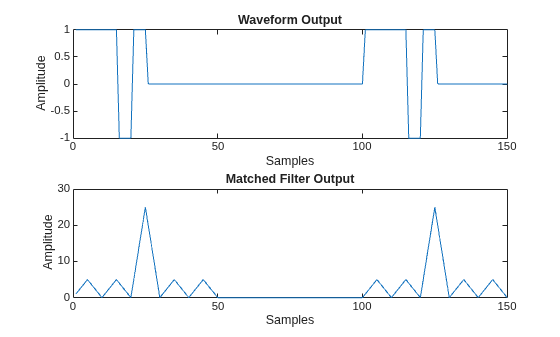

Create a matched filter that applies the coefficients as an input argument. Use the coefficients when applying the matched filter to the waveform. Plot the waveform and matched filter outputs.

mf = phased.MatchedFilter('CoefficientsSource','Input port');
mfOut = mf(wav,coeff);
subplot(211),plot(real(wav));
xlabel('Samples'),ylabel('Amplitude'),title('Waveform Output');
subplot(212),plot(abs(mfOut));
xlabel('Samples'),ylabel('Amplitude'),title('Matched Filter Output');

Algorithms

A 2-chip Barker code can use [1 –1] or [1 1] as the sequence of amplitudes. This software implements [1 –1].

A 4-chip Barker code can use [1 1 –1 1] or [1 1 1 –1] as the sequence of amplitudes. This software implements [1 1 –1 1].

A Zadoff-Chu code can use a clockwise or counterclockwise sequence of phases. This software implements the latter, such as $$\pi \cdot f(k)\cdot \text{SequenceIndex}/\text{NumChips}$$ instead of $$-\pi \cdot f(k)\cdot \text{SequenceIndex}/\text{NumChips}$$. In these expressions, k is the index of the chip and f(k) is a function of k.

For further details, see [1].

References

[1] Levanon, N. and E. Mozeson. Radar Signals. Hoboken, NJ: John Wiley & Sons, 2004.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• The plot object function is not supported.

• See System Objects in MATLAB Code Generation (MATLAB Coder).

Version History

Introduced in R2011b

R2022a: Custom waveforms

This release adds new types of phase modulation codes to the phased.PhaseCodedWaveform System object using the Code property. You can now specify "Maximum Length Sequence", "Quadratic Residue Sequence" and "Custom" codes. The "Custom" option lets you use the new CustomCode property to add your own phase modulation code.
