# rotate

Rotate object about specified origin and direction

## Syntax

``rotate(h,direction,angle)``
``rotate(h,direction,angle,origin)``

## Description

example

``` Note`hgtransform` is recommended over `rotate` because it provides better performance. Consider using `hgtransform` unless you need to specify the origin of the axis of rotation. `rotate(h,direction,angle)` rotates the graphics object `h` in the specified direction by the specified number of degrees. `rotate` modifies the data of the graphics object, including the values of the `Xdata`, `Ydata`, and `Zdata` properties. This behavior is different from that of `view` and `rotate3d`, which modify only the viewpoint.```

example

````rotate(h,direction,angle,origin)` specifies the origin of the axis of rotation. The default origin of the axis of rotation is the center of the plot box. This point is not necessarily the origin of the axes.```

## Examples

collapse all

Create a surface plot of the `peaks` function and return the surface object.

```s = surf(peaks(20)); xlabel("x-axis") ylabel("y-axis") zlabel("z-axis") axis([0 20 0 20 -10 10])```

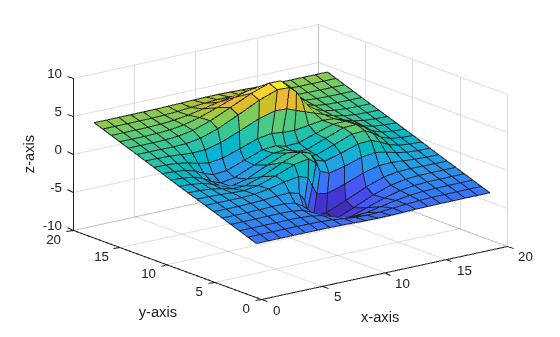

Rotate the surface plot 25 degrees clockwise around its x-axis.

```direction = [1 0 0]; rotate(s,direction,25)```

Create a surface plot of the `peaks` function and return the surface object.

```s = surf(peaks(20)); xlabel("x-axis") ylabel("y-axis") zlabel("z-axis") axis([0 20 0 20 -10 10])```

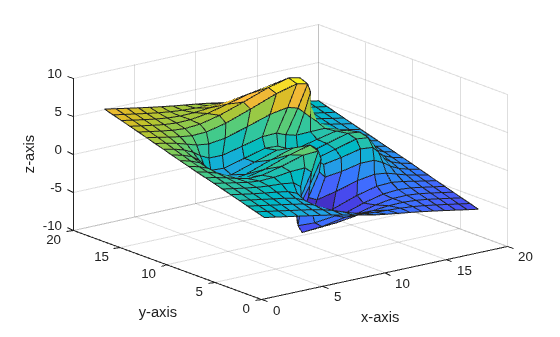

Rotate the surface plot 25 degrees clockwise around its x-axis and y-axis.

```direction = [1 1 0]; rotate(s,direction,25)```

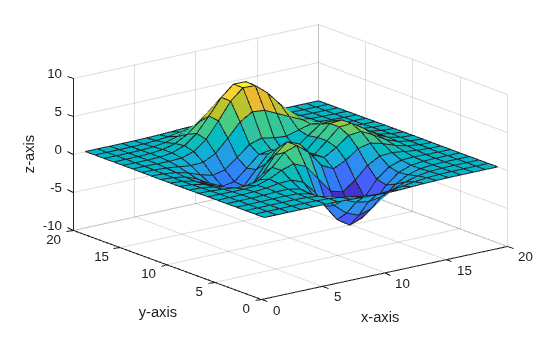

Create a surface plot of the `peaks` function and return the surface object.

```s = surf(peaks(20)); xlabel("x-axis") ylabel("y-axis") zlabel("z-axis") axis([0 20 0 20 -10 10])```

Rotate the surface plot 30 degrees counterclockwise around its y-axis, and set the origin of rotation to (20, 10, 0).

```s = surf(peaks(20)); xlabel("x-axis") ylabel("y-axis") zlabel("z-axis") axis([0 20 0 20 -10 10]) direction = [0 -1 0]; origin = [20 10 0]; rotate(s,direction,30,origin)```

## Input Arguments

collapse all

Graphics object, specified as a single object or a vector of objects of one of these types:

• `Surface` object

• `Patch` object

• `Line` object

• `Text` object

If `h` is a vector of objects, all objects must be children of the same axes.

Note

Image objects do not support 3-D data. Therefore, any rotation of an image out of the xy-plane is not supported.

Direction of the axis of rotation, specified as a two-element vector of spherical coordinates (`[theta phi]`) or a three-element vector of Cartesian coordinates (`[x y z]`). Specify `theta` and `phi` in degrees.

For more information about specifying `direction`, see Axis of Rotation.

Example: `rotate(h,[1 0 0],25)` rotates the specified object clockwise around the x-axis.

Example: `rotate(h,[90 0],25)` rotates the specified object clockwise around the y-axis.

Angle of rotation, specified as a scalar value in degrees.

Example: `rotate(h,[1 0 0],25)` rotates the specified object 25 degrees clockwise around the x-axis.

Origin of the axis of rotation, specified as a three-element vector of Cartesian coordinates `[x y z]`.

The default origin of the axis of rotation is the center of the plot box. This point is not necessarily the origin of the axes.

collapse all

### Axis of Rotation

The axis of rotation is defined by an origin of rotation and a direction vector or point `P`. For the `rotate` function, use the direction input argument to specify `P` as the spherical coordinates ```[theta phi]``` or as the Cartesian coordinates `[x y z]`.

In the two-element form for `direction`, `theta` is the angle in the xy-plane counterclockwise from the positive x-axis. `phi` is the elevation of the direction vector from the xy-plane.

The three-element form for `direction` specifies the Cartesian coordinates of point `P`. The axis of rotation follows the direction vector from the origin of rotation to `P`.

## Version History

Introduced before R2006a
