# makehgtform

Create 4-by-4 transform matrix

## Syntax

```M = makehgtform M = makehgtform('translate',[tx ty tz]) M = makehgtform('scale',s) M = makehgtform('scale',[sx,sy,sz]) M = makehgtform('xrotate',t) M = makehgtform('yrotate',t) M = makehgtform('zrotate',t) M = makehgtform('axisrotate',[ax,ay,az],t) ```

## Description

Use `makehgtform` to create transform matrices for translation, scaling, and rotation of graphics objects. Apply the transform to graphics objects by assigning the transform to the `Matrix` property of a parent transform object.

`M = makehgtform ` returns an identity transform.

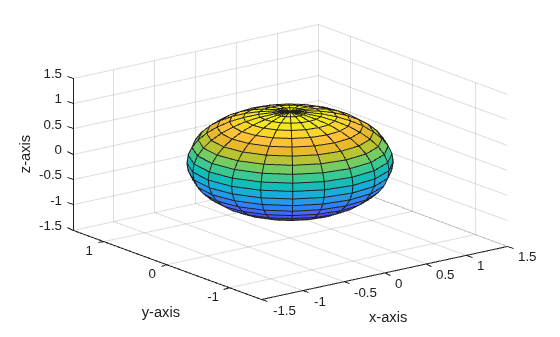

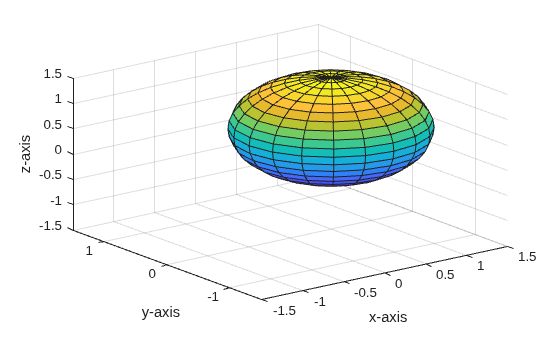

```M = makehgtform('translate',[tx ty tz])``` or M = makehgtform('translate',tx,ty,tz) returns a transform that translates along the x-axis by `tx`, along the y-axis by `ty`, and along the z-axis by `tz`.

`M = makehgtform('scale',s) `returns a transform that scales uniformly along the x-, y-, and z-axes.

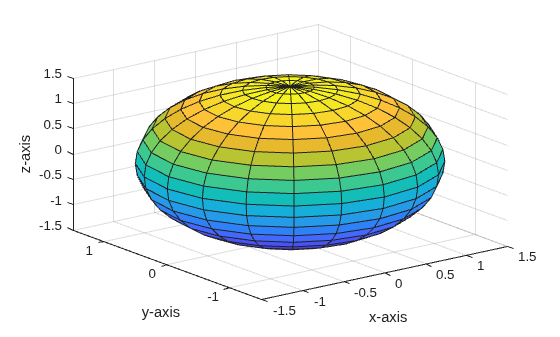

`M = makehgtform('scale',[sx,sy,sz]) `returns a transform that scales along the x-axis by `sx`, along the y-axis by `sy`, and along the z-axis by `sz`.

`M = makehgtform('xrotate',t) `returns a transform that rotates around the x-axis by `t` radians.

`M = makehgtform('yrotate',t) `returns a transform that rotates around the y-axis by `t` radians.

`M = makehgtform('zrotate',t) `returns a transform that rotates around the z-axis by `t` radians.

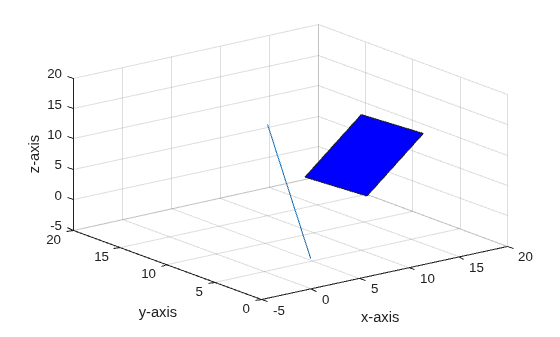

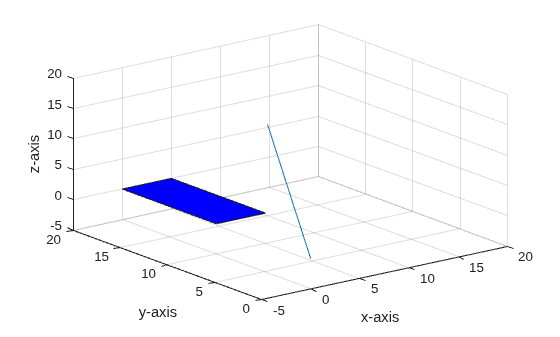

`M = makehgtform('axisrotate',[ax,ay,az],t) `Rotate around axis `[ax ay az]` by `t` radians.

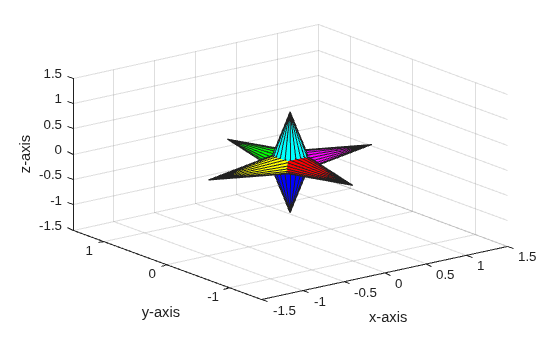

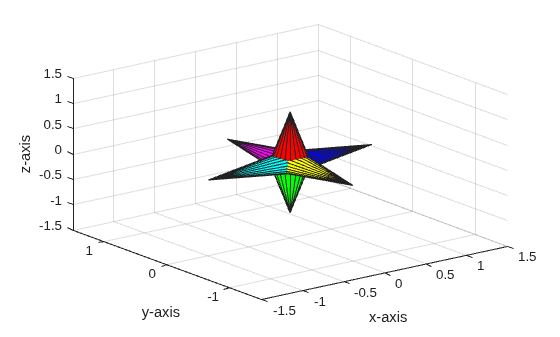

Note that you can specify multiple operations in one call to `makehgtform` and the MATLAB® software returns a transform matrix that is the result of concatenating all specified operations. For example,

`m = makehgtform('xrotate',pi/2,'yrotate',pi/2);`

is the same as

```mx = makehgtform('xrotate',pi/2); my = makehgtform('yrotate',pi/2); m = mx*my;```
