bubblechart

    Description

    Vector Data

    example

    bubblechart(x,y,sz) displays colored circular markers (bubbles) at the locations specified by the vectors x and y. Specify the bubble sizes as the vector sz. The vectors x, y, and sz must be the same length.

    example

    bubblechart(x,y,sz,c) specifies the colors of the bubbles.

    • To use one color for all the bubbles, specify a color name, a hexadecimal color code, or an RGB triplet.

    • To assign a different color to each bubble, specify a vector the same length as x and y. Alternatively, you can specify a three-column matrix of RGB triplets. The number of rows in the matrix must match the length of x and y.

    Table Data

    example

    bubblechart(tbl,xvar,yvar,sizevar) plots the variables xvar and yvar from the table tbl, and uses the variable sizevar for the bubble sizes. To plot one data set, specify one variable each for xvar, yvar, and sizevar. To plot multiple data sets, specify multiple variables for at least one of those arguments. The arguments that specify multiple variables must specify the same number of variables.

    example

    bubblechart(tbl,xvar,yvar,sizevar,cvar) plots the specified variables from the table using the colors specified in the variable cvar. To specify colors for multiple data sets, specify cvar as multiple variables. The number of variables must match the number of data sets.

    Additional Options

    example

    bubblechart(ax,___) displays the bubble chart in the target axes ax. Specify the axes before all other input arguments.

    example

    bubblechart(___,Name,Value) specifies BubbleChart properties using one or more name-value pair arguments. Specify the properties after all other input arguments. For a list of properties, see BubbleChart Properties.

    example

    bc = bubblechart(___) returns the BubbleChart object. Use bc to modify properties of the chart after creating it. For a list of properties, see BubbleChart Properties.

    Examples

    collapse all

    Define the bubble coordinates as the vectors x and y. Define sz as a vector that specifies the bubble sizes. Then create a bubble chart of x and y.

    x = 1:20;
    y = rand(1,20);
    sz = rand(1,20);
    bubblechart(x,y,sz);

    Figure contains an axes object. The axes object contains an object of type bubblechart.

    Define the bubble coordinates as the vectors x and y. Define sz as a vector that specifies the bubble sizes. Then create a bubble chart of x and y, and specify the color as red. By default, the bubbles are partially transparent.

    x = 1:20;
    y = rand(1,20);
    sz = rand(1,20);
    bubblechart(x,y,sz,'red');

    Figure contains an axes object. The axes object contains an object of type bubblechart.

    For a custom color, you can specify an RGB triplet or a hexadecimal color code. For example, the hexadecimal color code '#7031BB' specifies a shade of purple.

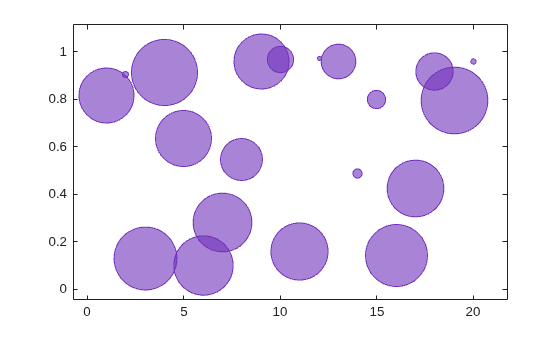

    bubblechart(x,y,sz,'#7031BB');

    Figure contains an axes object. The axes object contains an object of type bubblechart.

    You can also specify a different color for each bubble. For example, specify a vector to select colors from the figure's colormap.

    c = 1:20;
    bubblechart(x,y,sz,c)

    Figure contains an axes object. The axes object contains an object of type bubblechart.

    Define the bubble coordinates as the vectors x and y. Define sz as a vector that specifies the bubble sizes. Then create a bubble chart of x and y. By default, the bubbles are 60% opaque, and the edges are completely opaque with the same color.

    x = 1:20;
    y = rand(1,20);
    sz = rand(1,20);
    bubblechart(x,y,sz);

    Figure contains an axes object. The axes object contains an object of type bubblechart.

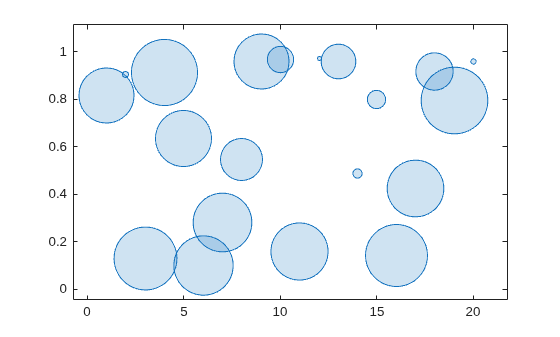

    You can customize the opacity and the outline color by setting the MarkerFaceAlpha and MarkerEdgeColor properties, respectively. One way to set a property is by specifying a name-value pair argument when you create the chart. For example, you can specify 20% opacity by setting the MarkerFaceAlpha value to 0.20.

    bc = bubblechart(x,y,sz,'MarkerFaceAlpha',0.20);

    Figure contains an axes object. The axes object contains an object of type bubblechart.

    If you create the chart by calling the bubblechart function with a return argument, you can use the return argument to set properties on the chart after creating it. For example, you can change the outline color to purple.

    bc.MarkerEdgeColor = [0.5 0 0.5];

    Figure contains an axes object. The axes object contains an object of type bubblechart.

    Define a data set that shows the contamination levels of a certain toxin across different towns in a metropolitan area. Define towns as the population of each town. Define nsites as the number of industrial sites in the corresponding towns. Define levels as the contamination levels in the towns. Then display the data in a bubble chart with axis labels. Call the bubblesize function to decrease the bubble sizes, and add a bubble legend that shows the relationship between the bubble size and population.

    towns = randi([25000 500000],[1 30]);
    nsites = randi(10,1,30);
    levels = (3 * nsites) + (7 * randn(1,30) + 20);

    % Display bubble chart with axis labels and legend
    bubblechart(nsites,levels,towns)
    xlabel('Number of Industrial Sites')
    ylabel('Contamination Level')
    bubblesize([5 30])
    bubblelegend('Town Population','Location','eastoutside')

    Figure contains an axes object and an object of type bubblelegend. The axes object contains an object of type bubblechart.

    When you display multiple data sets in the same axes, you can include multiple legends. To manage the alignment of the legends, create your chart in a tiled chart layout.

    Create two sets of data, and plot them together in the same axes object within a tiled chart layout.

    x = 1:20;
    y1 = rand(1,20);
    y2 = rand(1,20);
    sz1 = randi([20 500],[1,20]);
    sz2 = randi([20 500],[1,20]);

    % Plot data in a tiled chart layout
    t = tiledlayout(1,1);
    nexttile
    bubblechart(x,y1,sz1)
    hold on
    bubblechart(x,y2,sz1)
    hold off

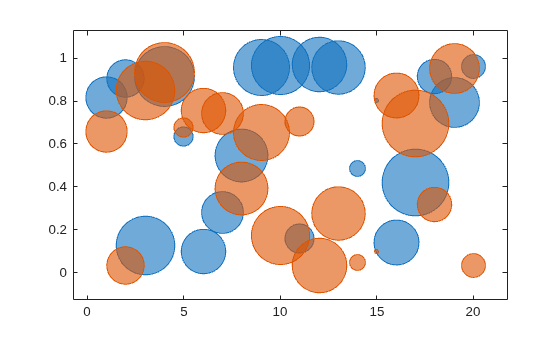

    Figure contains an axes object. The axes object contains 2 objects of type bubblechart.

    Add a bubble legend for illustrating the bubble sizes, and add another legend for illustrating the colors. Call the bubblelegend and legend functions with a return argument to store each legend object. Move the legends to the right outer tile of the tiled chart layout by setting the Layout.Tile property on each object to 'east'.

    blgd = bubblelegend('Population');
    lgd = legend('Springfield','Fairview');
    blgd.Layout.Tile = 'east';
    lgd.Layout.Tile = 'east';

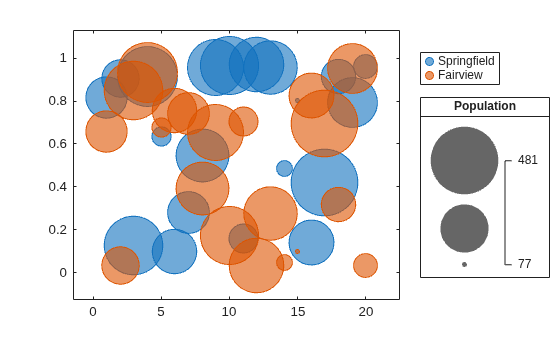

    Figure contains an axes object. The axes object contains 2 objects of type bubblechart. These objects represent Springfield, Fairview.

    A convenient way to plot data from a table is to pass the table to the bubblechart function and specify the variables you want to plot. For example, read patients.xls as a table tbl. Plot the Systolic, Diastolic, and Weight variables by passing tbl as the first argument to the bubblechart function followed by the variable names. By default, the axis labels match the variable names.

    tbl = readtable('patients.xls');
    bubblechart(tbl,'Systolic','Diastolic','Weight');

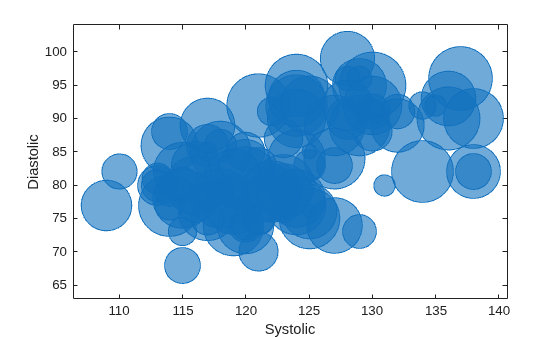

    Figure contains an axes object. The axes object contains an object of type bubblechart.

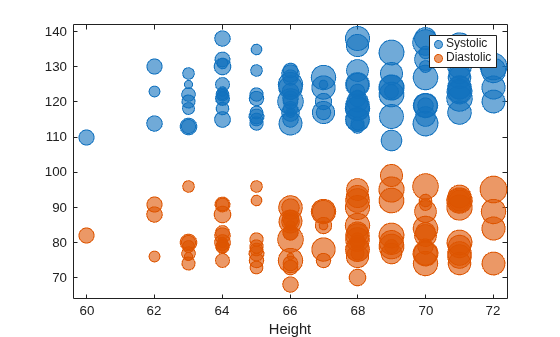

    You can also plot multiple variables at the same time. For example, plot both blood pressure variables versus the Height variable by specifying the yvar argument as the cell array {'Systolic','Diastolic'}. Change the range of bubble sizes to be between 5 and 20 points. Then add a legend. The legend labels match the variable names.

    bubblechart(tbl,'Height',{'Systolic','Diastolic'},'Weight');
    bubblesize([5 20])
    legend

    Figure contains an axes object. The axes object contains 2 objects of type bubblechart.

    You can plot data from a table and customize the colors by specifying the cvar argument when you call bubblechart.

    For example, create a table with four variables of random numbers, and plot the X and Y variables. Vary the bubble sizes according to the Sz variable, and vary the colors according to the Colors variable.

    tbl = table(randn(15,1)-10,randn(15,1)+10,rand(15,1),rand(15,1), ...
      'VariableNames',{'X','Y','Sz','Colors'});

    bubblechart(tbl,'X','Y','Sz','Colors');

    Figure contains an axes object. The axes object contains an object of type bubblechart.

    Define two sets of data that show the contamination levels of a certain toxin across different towns on the east and west sides of a certain metropolitan area. Define towns1 and towns2 as the populations across the towns. Define nsites1 and nsites2 as the number of industrial sites in the corresponding towns. Then define levels1 and levels2 as the contamination levels in the towns.

    towns1 = randi([25000 500000],[1 30]);
    towns2 = towns1/3;
    nsites1 = randi(10,1,30);
    nsites2 = randi(10,1,30);
    levels1 = (5 * nsites2) + (7 * randn(1,30) + 20);
    levels2 = (3 * nsites1) + (7 * randn(1,30) + 20);

    Create a tiled chart layout so you can visualize the data side-by-side. Then create an axes object in the first tile and plot the data for the west side of the city. Add a title and axis labels. Then, repeat the process in the second tile to plot the east side data.

    tiledlayout(1,2,'TileSpacing','compact')

    % West side
    ax1 = nexttile;
    bubblechart(ax1,nsites1,levels1,towns1);
    title('West Side')
    xlabel('Number of Industrial Sites')

    % East side
    ax2 = nexttile;
    bubblechart(ax2,nsites2,levels2,towns2);
    title('East Side')
    xlabel('Number of Industrial Sites')
    ylabel('Contamination Level')

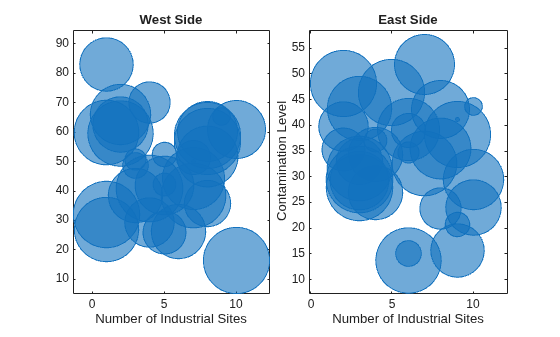

    Figure contains 2 axes objects. Axes object 1 with title West Side contains an object of type bubblechart. Axes object 2 with title East Side contains an object of type bubblechart.

    Reduce all the bubble sizes to make it easier to see all the bubbles. In this case, change the range of diameters to be between 5 and 30 points.

    bubblesize(ax1,[5 30])
    bubblesize(ax2,[5 30])

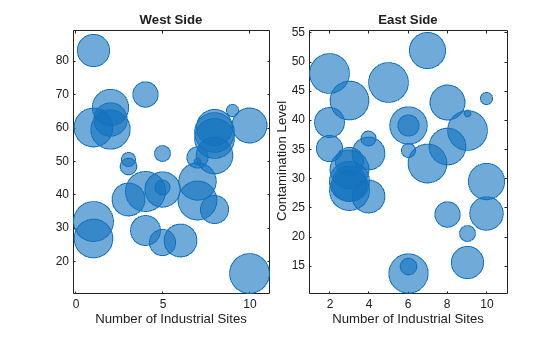

    Figure contains 2 axes objects. Axes object 1 with title West Side contains an object of type bubblechart. Axes object 2 with title East Side contains an object of type bubblechart.

    The west side towns are three times the size of the east side towns, but the bubble sizes do not reflect this information in the preceding charts. This is because the smallest and largest bubbles map to the smallest and largest data points in each of the axes. To display the bubbles on the same scale, define a vector called alltowns that includes the populations from both sides of the city. Use the bubblelim function to reset the scaling for both charts. Next, use the xlim and ylim functions to display the charts with the same x- and y-axis limits.

    % Adjust scale of the bubbles
    alltowns = [towns1 towns2];
    newlims = [min(alltowns) max(alltowns)];
    bubblelim(ax1,newlims)
    bubblelim(ax2,newlims)

    % Adjust x-axis limits
    allx = [xlim(ax1) xlim(ax2)];
    xmin = min(allx);
    xmax = max(allx);
    xlim([ax1 ax2],[xmin xmax]);

    % Adjust y-axis limits
    ally = [ylim(ax1) ylim(ax2)];
    ymin = min(ally);
    ymax = max(ally);
    ylim([ax1 ax2],[ymin ymax]);

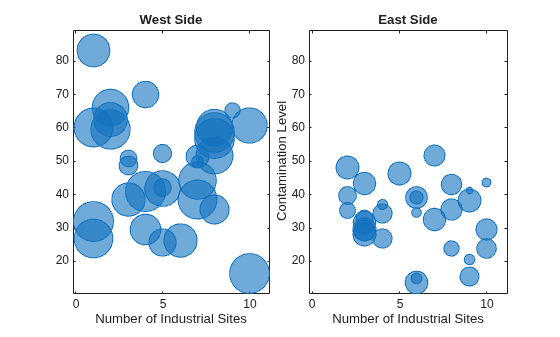

    Figure contains 2 axes objects. Axes object 1 with title West Side contains an object of type bubblechart. Axes object 2 with title East Side contains an object of type bubblechart.

    Input Arguments

    collapse all

    x-coordinates, specified as a numeric scalar or vector the same length as y.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | categorical

    y-coordinates, specified as a numeric scalar or vector the same length as x.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | categorical

    Bubble sizes, specified as a numeric scalar or vector the same length as x and y.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Bubble color, specified as an RGB triplet, a color name, a hexadecimal color code, a matrix of RGB triplets, or a vector of colormap indices. You can display all the bubbles with the same color, or you can display each bubble with a different color. By default, the bubbles are filled with partially transparent color, and the edges of the bubbles are opaque.

    Display the Bubbles with the Same Color

    Specify one of the following values to display all the bubbles with the same color:

    • RGB triplet — 1-by-3 row vector whose elements specify the intensities of the red, green, and blue components of a color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

    • Hexadecimal color code — Character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes '#FF8800', '#ff8800', '#F80', and '#f80' are equivalent.

    • Color name or short name — Color name or short name from the table below.

    Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
    'red''r'[1 0 0]'#FF0000'

    Sample of the color red

    'green''g'[0 1 0]'#00FF00'

    Sample of the color green

    'blue''b'[0 0 1]'#0000FF'

    Sample of the color blue

    'cyan' 'c'[0 1 1]'#00FFFF'

    Sample of the color cyan

    'magenta''m'[1 0 1]'#FF00FF'

    Sample of the color magenta

    'yellow''y'[1 1 0]'#FFFF00'

    Sample of the color yellow

    'black''k'[0 0 0]'#000000'

    Sample of the color black

    'white''w'[1 1 1]'#FFFFFF'

    Sample of the color white

    Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.

    RGB TripletHexadecimal Color CodeAppearance
    [0 0.4470 0.7410]'#0072BD'

    Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

    [0.8500 0.3250 0.0980]'#D95319'

    Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

    [0.9290 0.6940 0.1250]'#EDB120'

    Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

    [0.4940 0.1840 0.5560]'#7E2F8E'

    Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

    [0.4660 0.6740 0.1880]'#77AC30'

    Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

    [0.3010 0.7450 0.9330]'#4DBEEE'

    Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

    [0.6350 0.0780 0.1840]'#A2142F'

    Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

    Display the Bubbles with Different Colors

    Specify one of the following values to assign a different color to each bubble:

    • Three-column matrix of RGB triplets — Each row of the matrix specifies an RGB triplet color for the corresponding bubble. The values in each row specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]. The number of rows must equal the length of the coordinate vectors.

    • Vector of colormap indices — An m-by-1 vector of numbers that index into the current colormap. The values in the vector cover the full range of the colormap. The length of c must equal the length of the coordinate vectors. To change the colormap for the axes, use the colormap function.

    Source table containing the data to plot. Specify this argument as a table or a timetable.

    Table variables containing the x-coordinates, specified as one or more table variable indices.

    Specifying Table Indices

    Use any of the following indexing schemes to specify the desired variable or variables.

    Indexing SchemeExamples

    Variable names:

    • A character vector or a string scalar.

    • A cell array or string vector.

    • 'A' or "A" — A variable called A

    • {'A','B'} or ["A","B"] — Two variables called A and B

    Variable numbers:

    • An index number that refers to the location of a variable in the table.

    • A vector of numbers.

    • 3 — The third variable from the table

    • [2 3] — The second and third variables from the table

    Logical vector:

    • An n-element vector logical vector, where logical 1 (true) values indicate the desired variables.

    • Optionally, omit the trailing false values after the last true value.

    • [false false true false] — The third variable from an m-by-4 table

    • [false false true] — The third variable from any size table

    • [false true true] — The second and third variables from any size table

    Variable type:

    • A vartype command that selects table variables of a specified type.

    • vartype('categorical') — All the variables containing categorical values

    Plotting Your Data

    The table variables you specify can contain numeric, categorical, datetime, or duration values.

    To plot one data set, specify one variable each for xvar, yvar, sizevar, and optionally cvar. For example, read Patients.xls into the table tbl. Plot the Height and Weight variables, and vary the bubble sizes according to the Age variable.

    tbl = readtable('Patients.xls');
    bubblechart(tbl,'Height','Weight','Age')

    To plot multiple data sets together, specify multiple variables for at least one of xvar, yvar, sizevar, or optionally cvar. If you specify multiple variables for more than one argument, the number of variables must be the same for each of those arguments.

    For example, plot the Weight variable on the x-axis, and the Systolic and Diastolic variables on the y-axis. Specify the Age variable for the bubble sizes.

    bubblechart(tbl,'Weight',{'Systolic','Diastolic'},'Age')

    You can also use different indexing schemes for the table variables. For example, specify xvar as a variable name, yvar as an index number, and sizevar as a logical vector.

    bubblechart(tbl,'Height',6,[false false true])

    Table variables containing the y-coordinates, specified as one or more table variable indices.

    Specifying Table Indices

    Use any of the following indexing schemes to specify the desired variable or variables.

    Indexing SchemeExamples

    Variable names:

    • A character vector or a string scalar.

    • A cell array or string vector.

    • 'A' or "A" — A variable called A

    • {'A','B'} or ["A","B"] — Two variables called A and B

    Variable numbers:

    • An index number that refers to the location of a variable in the table.

    • A vector of numbers.

    • 3 — The third variable from the table

    • [2 3] — The second and third variables from the table

    Logical vector:

    • An n-element vector logical vector, where logical 1 (true) values indicate the desired variables.

    • Optionally, omit the trailing false values after the last true value.

    • [false false true false] — The third variable from an m-by-4 table

    • [false false true] — The third variable from any size table

    • [false true true] — The second and third variables from any size table

    Variable type:

    • A vartype command that selects table variables of a specified type.

    • vartype('categorical') — All the variables containing categorical values

    Plotting Your Data

    The table variables you specify can contain numeric, categorical, datetime, or duration values.

    To plot one data set, specify one variable each for xvar, yvar, sizevar, and optionally cvar. For example, read Patients.xls into the table tbl. Plot the Height and Weight variables, and vary the bubble sizes according to the Age variable.

    tbl = readtable('Patients.xls');
    bubblechart(tbl,'Height','Weight','Age')

    To plot multiple data sets together, specify multiple variables for at least one of xvar, yvar, sizevar, or optionally cvar. If you specify multiple variables for more than one argument, the number of variables must be the same for each of those arguments.

    For example, plot the Weight variable on the x-axis, and the Systolic and Diastolic variables on the y-axis. Specify the Age variable for the bubble sizes.

    bubblechart(tbl,'Weight',{'Systolic','Diastolic'},'Age')

    You can also use different indexing schemes for the table variables. For example, specify xvar as a variable name, yvar as an index number, and sizevar as a logical vector.

    bubblechart(tbl,'Height',6,[false false true])

    Table variables containing the bubble size data, specified as one or more table variable indices.

    Specifying Table Indices

    Use any of the following indexing schemes to specify the desired variable or variables.

    Indexing SchemeExamples

    Variable names:

    • A character vector or a string scalar.

    • A cell array or string vector.

    • 'A' or "A" — A variable called A

    • {'A','B'} or ["A","B"] — Two variables called A and B

    Variable numbers:

    • An index number that refers to the location of a variable in the table.

    • A vector of numbers.

    • 3 — The third variable from the table

    • [2 3] — The second and third variables from the table

    Logical vector:

    • An n-element vector logical vector, where logical 1 (true) values indicate the desired variables.

    • Optionally, omit the trailing false values after the last true value.

    • [false false true false] — The third variable from an m-by-4 table

    • [false false true] — The third variable from any size table

    • [false true true] — The second and third variables from any size table

    Variable type:

    • A vartype command that selects table variables of a specified type.

    • vartype('categorical') — All the variables containing categorical values

    Plotting Your Data

    The table variables you specify can contain any type of numeric values.

    If you are plotting one data set, specify one variable for sizevar. For example, read Patients.xls into the table tbl. Plot the Height and Weight variables, and vary the bubble sizes according to the Age variable.

    tbl = readtable('Patients.xls');
    bubblechart(tbl,'Height','Weight','Age')

    If you are plotting multiple data sets, you can specify multiple variables for at least one of xvar, yvar, sizevar, or optionally cvar. If you specify multiple variables for more than one argument, the number of variables must be the same for each of those arguments.

    For example, plot the Weight variable on the x-axis and the Height variable on the y-axis. Specify the Systolic and Diastolic variables for the bubble sizes. The resulting plot shows two sets of bubbles with the same coordinates, but different bubble sizes.

    bubblechart(tbl,'Weight','Height',{'Systolic','Diastolic'})

    Table variables containing the bubble color data, specified as one or more table variable indices.

    Specifying Table Indices

    Use any of the following indexing schemes to specify the desired variable or variables.

    Indexing SchemeExamples

    Variable names:

    • A character vector or a string scalar.

    • A cell array or string vector.

    • 'A' or "A" — A variable called A

    • {'A','B'} or ["A","B"] — Two variables called A and B

    Variable numbers:

    • An index number that refers to the location of a variable in the table.

    • A vector of numbers.

    • 3 — The third variable from the table

    • [2 3] — The second and third variables from the table

    Logical vector:

    • An n-element vector logical vector, where logical 1 (true) values indicate the desired variables.

    • Optionally, omit the trailing false values after the last true value.

    • [false false true false] — The third variable from an m-by-4 table

    • [false false true] — The third variable from any size table

    • [false true true] — The second and third variables from any size table

    Variable type:

    • A vartype command that selects table variables of a specified type.

    • vartype('categorical') — All the variables containing categorical values

    Plotting Your Data

    The table variables you specify can contain values of any numeric type. Each variable can be:

    • A column of numbers that linearly map into the current colormap.

    • A three-column array of RGB triplets. RGB triplets are three-element vectors whose values specify the intensities of the red, green, and blue components of specific colors. The intensities must be in the range [0,1]. For example, [0.5 0.7 1] specifies a shade of light blue.

    If you are plotting one data set, specify one variable for cvar. For example, create a table with six variables of random numbers. Plot the X1 and Y variables. Vary the bubble sizes according to the SZ variable, and vary the colors according to the Color1 variable.

    tbl = table(randn(50,1)-5,randn(50,1)+5,rand(50,1), ...
      rand(50,1),rand(50,1),rand(50,1),...
      'VariableNames',{'X1','X2','Y','SZ','Color1','Color2'});

    bubblechart(tbl,'X1','Y','SZ','Color1')

    If you are plotting multiple data sets, you can specify multiple variables for at least one of xvar, yvar, sizevar, or cvar. If you specify multiple variables for more than one argument, the number of variables must be the same for each of those arguments.

    For example, plot the X1 and X2 variables on the x-axis and the Y variable on the y-axis. Vary the bubble sizes according to the SZ variable. Specify the Color1 and Color2 variables for the colors. The resulting plot shows two sets of bubbles with the same y-coordinates and bubble sizes, but different x-coordinates and colors.

    bubblechart(tbl,{'X1','X2'},'Y','SZ',{'Color1','Color2'})

    Target axes, specified as an Axes, PolarAxes, or GeographicAxes object. If you do not specify the axes, MATLAB plots into the current axes, or it creates an Axes object if one does not exist.

    Name-Value Arguments

    Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

    Example: bubblechart([1 2 3],[4 10 9],[1 2 3],'MarkerFaceColor','red') creates red bubbles.

    Note

    The properties listed here are only a subset. For a complete list, see BubbleChart Properties.

    Marker outline color, specified 'flat', an RGB triplet, a hexadecimal color code, a color name, or a short name. The default value of 'flat' uses colors from the CData property.

    For a custom color, specify an RGB triplet or a hexadecimal color code.

    • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

    • A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes '#FF8800', '#ff8800', '#F80', and '#f80' are equivalent.

    Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

    Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
    'red''r'[1 0 0]'#FF0000'

    Sample of the color red

    'green''g'[0 1 0]'#00FF00'

    Sample of the color green

    'blue''b'[0 0 1]'#0000FF'

    Sample of the color blue

    'cyan' 'c'[0 1 1]'#00FFFF'

    Sample of the color cyan

    'magenta''m'[1 0 1]'#FF00FF'

    Sample of the color magenta

    'yellow''y'[1 1 0]'#FFFF00'

    Sample of the color yellow

    'black''k'[0 0 0]'#000000'

    Sample of the color black

    'white''w'[1 1 1]'#FFFFFF'

    Sample of the color white

    'none'Not applicableNot applicableNot applicableNo color

    Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.

    RGB TripletHexadecimal Color CodeAppearance
    [0 0.4470 0.7410]'#0072BD'

    Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

    [0.8500 0.3250 0.0980]'#D95319'

    Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

    [0.9290 0.6940 0.1250]'#EDB120'

    Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

    [0.4940 0.1840 0.5560]'#7E2F8E'

    Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

    [0.4660 0.6740 0.1880]'#77AC30'

    Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

    [0.3010 0.7450 0.9330]'#4DBEEE'

    Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

    [0.6350 0.0780 0.1840]'#A2142F'

    Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

    Example: [0.5 0.5 0.5]

    Example: 'blue'

    Example: '#D2F9A7'

    Marker fill color, specified as 'flat', 'auto', an RGB triplet, a hexadecimal color code, a color name, or a short name. The 'flat' option uses the CData values. The 'auto' option uses the same color as the Color property for the axes.

    For a custom color, specify an RGB triplet or a hexadecimal color code.

    • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1]; for example, [0.4 0.6 0.7].

    • A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Thus, the color codes '#FF8800', '#ff8800', '#F80', and '#f80' are equivalent.

    Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

    Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
    'red''r'[1 0 0]'#FF0000'

    Sample of the color red

    'green''g'[0 1 0]'#00FF00'

    Sample of the color green

    'blue''b'[0 0 1]'#0000FF'

    Sample of the color blue

    'cyan' 'c'[0 1 1]'#00FFFF'

    Sample of the color cyan

    'magenta''m'[1 0 1]'#FF00FF'

    Sample of the color magenta

    'yellow''y'[1 1 0]'#FFFF00'

    Sample of the color yellow

    'black''k'[0 0 0]'#000000'

    Sample of the color black

    'white''w'[1 1 1]'#FFFFFF'

    Sample of the color white

    'none'Not applicableNot applicableNot applicableNo color

    Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.

    RGB TripletHexadecimal Color CodeAppearance
    [0 0.4470 0.7410]'#0072BD'

    Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

    [0.8500 0.3250 0.0980]'#D95319'

    Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

    [0.9290 0.6940 0.1250]'#EDB120'

    Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

    [0.4940 0.1840 0.5560]'#7E2F8E'

    Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

    [0.4660 0.6740 0.1880]'#77AC30'

    Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

    [0.3010 0.7450 0.9330]'#4DBEEE'

    Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

    [0.6350 0.0780 0.1840]'#A2142F'

    Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

    Example: [0.3 0.2 0.1]

    Example: 'green'

    Example: '#D2F9A7'

    Width of marker edge, specified as a positive value in point units.

    Example: 0.75

    Marker edge transparency, specified as a scalar in the range [0,1] or 'flat'. A value of 1 is opaque and 0 is completely transparent. Values between 0 and 1 are semitransparent.

    To set the edge transparency to a different value for each point in the plot, set the AlphaData property to a vector the same size as the XData property, and set the MarkerEdgeAlpha property to 'flat'.

    Marker face transparency, specified as a scalar in the range [0,1] or 'flat'. A value of 1 is opaque and 0 is completely transparent. Values between 0 and 1 are partially transparent.

    To set the marker face transparency to a different value for each point, set the AlphaData property to a vector the same size as the XData property, and set the MarkerFaceAlpha property to 'flat'.

    Introduced in R2020b
