bubblelegend
Syntax
Description
bubblelegend
creates a bubble legend in the current axes. Bubble
legends are useful for showing the relationship between the bubbles and the size data for
charts you create with the bubblechart
,
bubblechart3
, and polarbubblechart
functions.
bubblelegend(
specifies a title for
the legend. Specify titletext
)titletext
as a character vector, cell array of
character vectors, or a string array.
bubblelegend(___,
sets
bubble legend properties using one or more name-value pair arguments. Specify the properties
after all other input arguments.Name,Value
)
bubblelegend(
creates the
legend in the specified target axes ax
,___)ax
. Specify the axes before all other
input arguments.
blgd = bubblelegend(___)
returns the
BubbleLegend
object. Use blgd
to modify properties
of the legend after creating it. For a list of properties, see BubbleLegend Properties.
Examples
Add Legend to Bubble Chart
Create a bubble chart and add a bubble legend.
x = 1:10;
y = exp(-0.5*x) + .05 * randn(1,10);
sz = randi([20 500],[1,10]);
bubblechart(x,y,sz)
bubblelegend('Population')
Specify Legend Style
Create a bubble chart and add a bubble legend. Specify the 'telescopic'
style for a more compact presentation.
x = 1:15; y = exp(-0.5*x) + .1 * randn(1,15); sz = randi([20 500],[1,15]); bubblechart(x,y,sz) bubblelegend('Population','Style','telescopic');
Specify Location and Number of Bubbles
Create a bubble chart. Then call the bubblelegend
function with a return argument to store the BubbleLegend
object as blgd
. Move the legend outside the plot box by setting the Location
property on the object to 'northeastoutside'
. Display two bubbles instead of three by setting the NumBubbles
property to 2
.

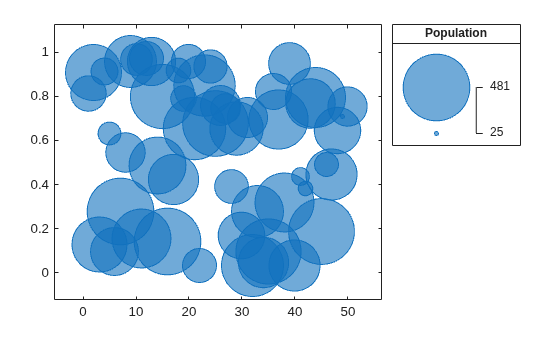

x = 1:50; y = rand(1,50); sz = randi([20 500],[1,50]); bubblechart(x,y,sz) % Create bubble legend and set properties blgd = bubblelegend('Population'); blgd.Location = 'northeastoutside'; blgd.NumBubbles = 2;
Align Multiple Legends
When you display multiple data sets with different colors or different types of plot objects, you can include multiple legends. To manage the alignment of the legends, create your chart in a tiled chart layout.
Create two sets of data, and plot them together in the same axes object within a tiled chart layout.

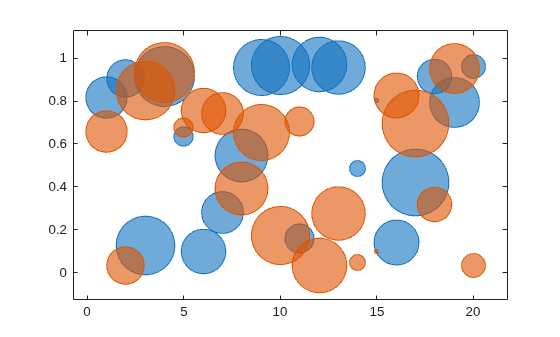

x = 1:20; y1 = rand(1,20); y2 = rand(1,20); sz1 = randi([20 500],[1,20]); sz2 = randi([20 500],[1,20]); % Plot data in a tiled chart layout t = tiledlayout(1,1); nexttile bubblechart(x,y1,sz1) hold on bubblechart(x,y2,sz1) hold off
Add a bubble legend for illustrating the bubble sizes, and add another legend for illustrating the colors. Call the bubblelegend
and legend
functions using a return argument to store the legend objects. Move the legends to the east tile by setting the Layout.Tile
property on each object to 'east'
. Placing the legends together in a tile keeps them aligned.

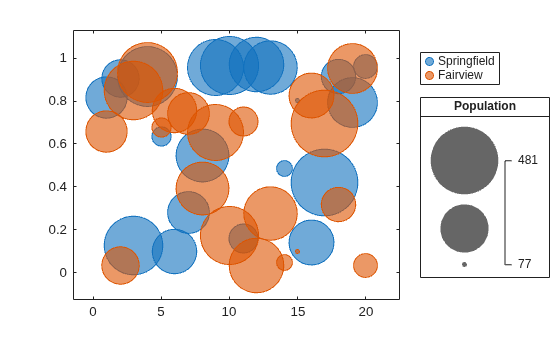

blgd = bubblelegend('Population'); lgd = legend('Springfield','Fairview'); blgd.Layout.Tile = 'east'; lgd.Layout.Tile = 'east';
Input Arguments
titletext
— Title text
''
(default) | character vector | cell array of character vectors | string array
Title text, specified as a character vector, cell array of character vectors, or string array. To create a multiline title, specify a cell array of character vectors or a string array.
Example: bubblelegend('My Legend')
ax
— Target axes
Axes
object | PolarAxes
object | GeographicAxes
object
Target axes, specified as an Axes
, PolarAxes
,
or GeographicAxes
object. If you do not specify the axes,
MATLAB® plots into the current axes, or it creates an Axes
object if one does not exist.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: bubblelegend('Style','telescopic')
creates a telescopic
legend.
Note
The properties listed here are only a subset. For a complete list, see BubbleLegend Properties.
Location
— Location with respect to axes
'north'
| 'south'
| 'east'
| 'west'
| 'northeast'
| ...
Location with respect to the axes, specified as one of the location values listed in this table.
Value | Description |
---|---|
'north' | Inside top edge of the axes. |
'south' | Inside bottom edge of the axes. |
'east' | Inside right edge of the axes. |
'west' | Inside left edge of the axes. |
'northeast' | Inside top-right corner of the axes. |
'northwest' | Inside top-left corner of the axes. |
'southeast' | Inside bottom-right corner of the axes. |
'southwest' | Inside bottom-left corner of the axes. |
'northoutside' | Above the axes. |
'southoutside' | Below the axes. |
'eastoutside' | To the right of the axes. |
'westoutside' | To the left of the axes. |
'northeastoutside' | Outside top-right corner of the axes. |
'northwestoutside' | Outside top-left corner of the axes. |
'southeastoutside' | Outside bottom-right corner of the axes. |
'southwestoutside' | Outside bottom-left corner of the axes |
'layout' | A tile in a tiled chart layout. To move the legend to a different tile, set the Layout property. |
'none' | A location determined by the Position property. Use the
Position property to specify a custom
location. |
Style
— Legend style
'vertical'
(default) | 'horizontal'
| 'telescopic'
Legend style, specified as one of the values from the table. The images in the table show how a legend with three bubbles looks with the different styles.
Style Value | Appearance |
---|---|
'vertical' |
|
'horizontal' |
|
'telescopic' |
|
NumBubbles
— Number of bubbles
3
(default) | 2
Number of bubbles to display in the legend, specified as 2
or 3
. This table shows how a vertical bubble legend looks with 2 and 3 bubbles.
NumBubbles Value | Appearance |
---|---|
2 | |
3 |
LimitLabels
— Limit labels
cell array of character vectors | string array
Limit labels, specified as a two- or three-element cell array of character vectors or string array. The first label appears next to the smallest bubble in the legend, and the last label appears next to the largest bubble. If you specify three labels, the second label does not display when the legend is horizontal or if the legend only has two bubbles. This table shows some common scenarios.
Example | Result |
---|---|
Create a vertical legend with three bubbles, and specify three limit labels. blgd = bubblelegend; blgd.LimitLabels = {'Shortage','Abundance','Surplus'}; |
|
Create a telescopic legend with three bubbles, and specify three limit labels. blgd = bubblelegend('Style','telescopic'); blgd.LimitLabels = {'Shortage','Abundance','Surplus'}; |
|
Create a vertical legend with two bubbles, and specify three limit labels. blgd = bubblelegend('NumBubbles',2); blgd.LimitLabels = {'Shortage','Abundance','Surplus'}; |
|
Create a horizontal legend with three bubbles, and specify three limit labels. blgd = bubblelegend('Style','horizontal'); blgd.LimitLabels = {'Shortage','Abundance','Surplus'}; |
|
BubbleSizeOrder
— Order of bubble sizes
'descending'
(default) | 'ascending'
Order of the bubble sizes, specified as one of the values from the table. The table shows the effect of the different values on a vertical legend that has three bubbles.
BubbleSizeOrder Value | Appearance |
---|---|
'descending' | |
'ascending' |
Version History
Introduced in R2020b
