imreconstruct

Morphological reconstruction

Syntax

J = imreconstruct(marker,mask)
J = imreconstruct(marker,mask,conn)

Description

example

J = imreconstruct(marker,mask) performs morphological reconstruction of the image marker under the image mask, and returns the reconstruction in J. The elements of marker must be less than or equal to the corresponding elements of mask. If the values in marker are greater than corresponding elements in mask, then imreconstruct clips the values to the mask level before starting the procedure.

You optionally can perform morphological reconstruction of 2-D images using a GPU (requires Parallel Computing Toolbox™). For more information, see Image Processing on a GPU.

J = imreconstruct(marker,mask,conn) performs morphological reconstruction with the specified connectivity, conn.

Examples

collapse all

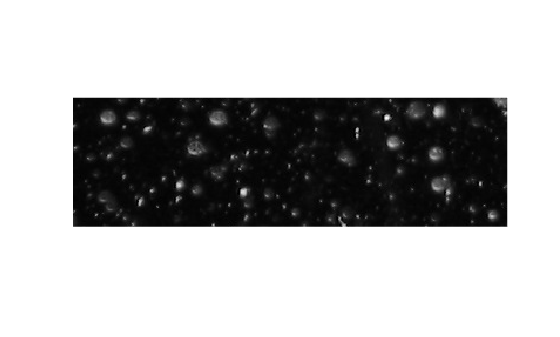

Read a grayscale image and display it.

I = imread('snowflakes.png');
figure
imshow(I)

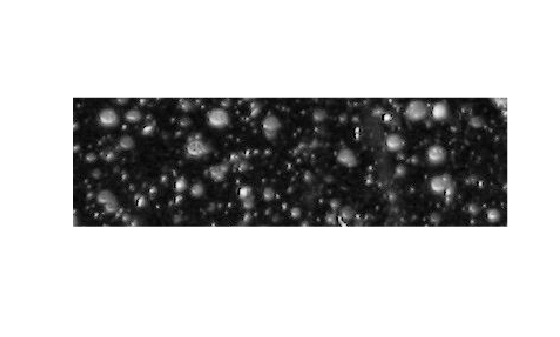

Adjust the contast of the image to create the mask image and display results.

mask = adapthisteq(I);
figure
imshow(mask)

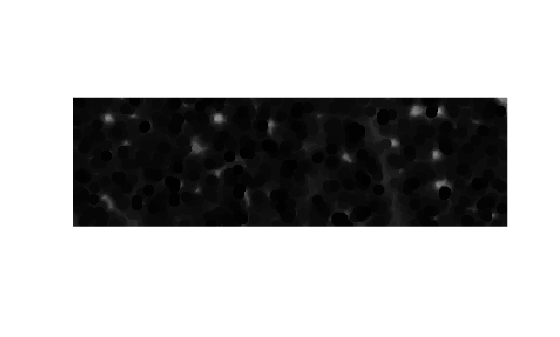

Create a marker image that identifies high-intensity objects in the image using morphological erosion and display results.

se = strel('disk',5);
marker = imerode(mask,se);
imshow(marker)

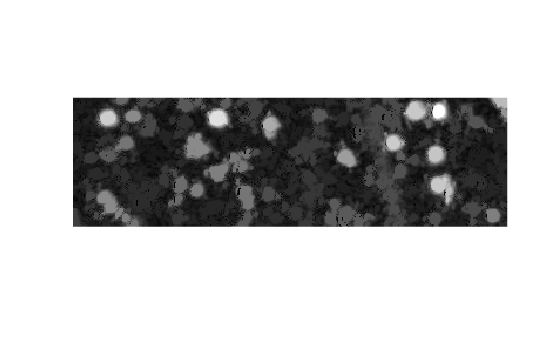

Perform morphological opening on the mask image, using the marker image to identify high-intensity objects in the mask. Display results.

obr = imreconstruct(marker,mask);
figure
imshow(obr,[])

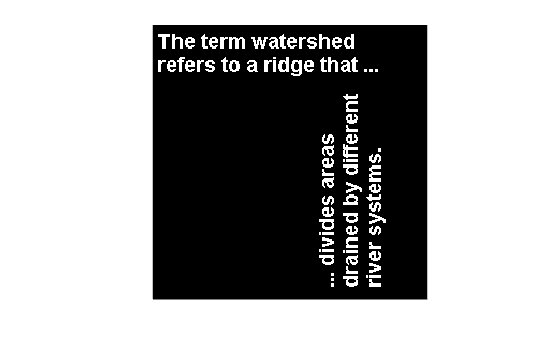

Read a logical image into workspace and display it. This is the mask image.

mask = imread('text.png');
figure
imshow(mask)

Create a marker image that identifies the object in the image you want to extract through segmentation. For this example, identify the "w" in the word "watershed".

marker = false(size(mask));
marker(13,94) = true;

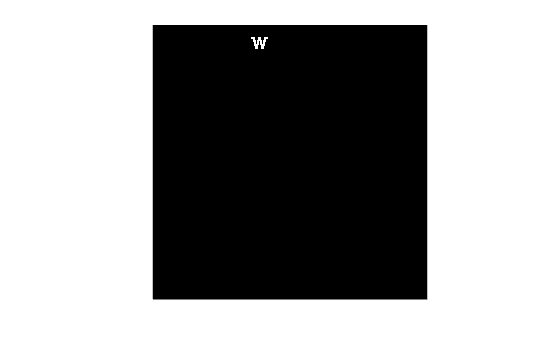

Perform segmentation of the mask image using the marker image.

im = imreconstruct(marker,mask);
figure
imshow(im)

Read mask image and create gpuArray.

mask = gpuArray(imread('text.png'));
figure, imshow(mask)

Create marker image gpuArray.

marker = gpuArray.false(size(mask));
marker(13,94) = true;

Perform the segmentation and display the result.

J = imreconstruct(marker,mask);
figure, imshow(J)

Input Arguments

collapse all

Input image, specified as a numeric or logical array.

To perform the morphological reconstruction using a GPU, specify marker as a gpuArray that contains a 2-D numeric or logical matrix. imreconstruct does not support RGB images and 3-D images on a GPU.

Example: se = strel('disk',5); marker = imerode(mask,se);

Example: marker = gpuArray(imread('text.png'));

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Mask image, specified as a numeric or logical array of the same size and data type as marker.

To perform the morphological reconstruction using a GPU, specify mask as a gpuArray that contains a 2-D numeric or logical matrix. imreconstruct does not support RGB images and 3-D mask images on a GPU.

Example: mask = imread('text.png');

Example: mask = gpuArray(imread('text.png'));

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Pixel connectivity, specified as one of the values in this table. The default connectivity is 8 for 2-D images, and 26 for 3-D images.

Value

Meaning

Two-Dimensional Connectivities

4-connected

Pixels are connected if their edges touch. The neighborhood of a pixel are the adjacent pixels in the horizontal or vertical direction.

8-connected

Pixels are connected if their edges or corners touch. The neighborhood of a pixel are the adjacent pixels in the horizontal, vertical, or diagonal direction.

Three-Dimensional Connectivities

6-connected

Pixels are connected if their faces touch. The neighborhood of a pixel are the adjacent pixels in:

  • One of these directions: in, out, left, right, up, and down

18-connected

Pixels are connected if their faces or edges touch. The neighborhood of a pixel are the adjacent pixels in:

  • One of these directions: in, out, left, right, up, and down

  • A combination of two directions, such as right-down or in-up

26-connected

Pixels are connected if their faces, edges, or corners touch. The neighborhood of a pixel are the adjacent pixels in:

  • One of these directions: in, out, left, right, up, and down

  • A combination of two directions, such as right-down or in-up

  • A combination of three directions, such as in-right-up or in-left-down

For higher dimensions, imreconstruct uses the default value conndef(ndims(marker),'maximal').

Connectivity can also be defined in a more general way for any dimension by specifying a 3-by-3-by- ... -by-3 matrix of 0s and 1s. The 1-valued elements define neighborhood locations relative to the center element of conn. Note that conn must be symmetric about its center element. See Specifying Custom Connectivities for more information.

Data Types: double | logical

Output Arguments

collapse all

Reconstructed image, returned as a numeric or logical array, depending on the input image, that is the same size as the input image.

If the morphological reconstruction is performed using a GPU, then J is returned as a gpuArray that contains a numeric or logical matrix.

Tips

  • Morphological reconstruction is the algorithmic basis for several other Image Processing Toolbox™ functions, including imclearborder, imextendedmax, imextendedmin, imfill, imhmax, imhmin, and imimposemin.

  • Performance note: This function may take advantage of hardware optimization for data types logical, uint8, uint16, single, and double to run faster. Hardware optimization requires marker and mask to be 2-D images and conn to be either 4 or 8.

Algorithms

imreconstruct uses the fast hybrid grayscale reconstruction algorithm described in [1].

References

[1] Vincent, L., "Morphological Grayscale Reconstruction in Image Analysis: Applications and Efficient Algorithms," IEEE Transactions on Image Processing, Vol. 2, No. 2, April, 1993, pp. 176-201.
