plotTrackLog

Plot log of tracks

Since R2023b

Syntax

plotTrackLog(viewer,tracklog)

plotTrackLog(___,frame)

plotTrackLog(___,Name=Value)

Description

plotTrackLog(viewer,tracklog) plots a log of tracks on the tracking globe viewer.

plotTrackLog(___,frame) specifies the reference frame used to interpret the coordinates of the tracks.

plotTrackLog(___,Name=Value) specifies options using one or more name-value arguments. For example, plotTrackLog(viewer,tracklog,LineWidth=2) specifies the width of the track trajectory line as 2.

Examples

Plot Track Log on Tracking Globe Viewer

Create a trackingGlobeViewer object and set its reference location. Also, set the camera view.

viewer = trackingGlobeViewer(BaseMap="darkwater",ReferenceLocation=[42.366978 -71.022362 50]);
campos(viewer,[42.3670  -71.0220  110]);

Create a track log that contains five tracks.

tracklog1 = cell(1,5);
for t = 1:5
    tracklog1{t} = objectTrack(State=[0 0 t*10 0 0 0],UpdateTime=t);
end

Plot the track log on the globe viewer.

plotTrackLog(viewer,tracklog1,FontSize=12);

Take a snapshot and show the results.

drawnow
snapshot(viewer)

Create a second log of tracks.

tracklog2 = cell(1,5);
for t = 1:t
    tracklog2{t} = objectTrack(State=[10 0 t*10 0 0 0],UpdateTime=t,TrackID=2);
end

Plot the second log and only show the labels of the first and last tracks.

sampleTimes = [tracklog2{1}.UpdateTime tracklog2{end}.UpdateTime];
plotTrackLog(viewer,tracklog2,LabelSampling=sampleTimes,FontSize=14);

Take a snapshot and show the results.

drawnow
snapshot(viewer)

Plot the first and second logs together on the globe viewer.

tracklogs = [tracklog1{:} tracklog2{:}];
plotTrackLog(viewer,tracklogs,LabelSampling=sampleTimes,FontSize=14);

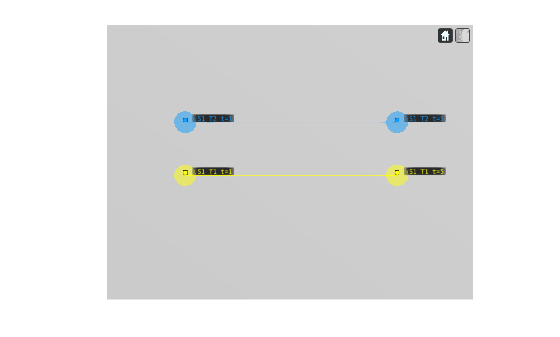

Take a snapshot and show the results.

drawnow
snapshot(viewer)

Input Arguments

viewer — Tracking globe viewer

trackingGlobeViewer object

Tracking globe viewer, specified as a trackingGlobeViewer object.¹

tracklog — Log of tracks

array of objectTrack objects | cell array of objectDetection objects

Log of tracks, specified as an array of objectTrack objects or a cell array of objectTrack objects.

frame — Reference frame

"NED" (default) | "ENU" | "ECEF"

Reference frame, specified as "NED" for north-east down, "ENU" for east-north-up, or "ECEF" for Earth-centered-Earth-fixed. When specified as "NED" or "ENU", the origin of the reference frame is at the location specified by the ReferenceLocation property of the viewer object.

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: plotTrackLog(viewer,tracklog,LineWidth=2)

LabelSampling — Label sampling

vector of nonnegative scalars

Label sampling, specified as a vector of nonnegative scalars of time values. Each time value in the vector must be the same as the UpdateTime property of at least one track in the tracklog input.

PositionSelector — Position selector

[1 0 0 0 0 0 ; 0 0 1 0 0 0; 0 0 0 0 1 0] (default) | M-by-N matrix of 0s and 1s | cell array of position selector matrices

Position selector, specified as an M-by-N matrix of 0s and 1s, where M is the dimension of the position state and N is the dimension of the track state. The selector selects the position state from the track state by premultiplying the track state. The default value [1 0 0 0 0 0 ; 0 0 1 0 0 0; 0 0 0 0 1 0] selects [x; y; z] from a six-dimensional state [x; v_x; y; v_y; z; v_z]. See getTrackPositions for more details.

Data Types: single | double

FontSize — Font size

10 (default) | positive scalar

Font size of the track labels, specified as a positive scalar in point units. One point equals 1/72 inch.

Example: 11

Data Types: single | double

LineWidth — Line width of track trajectory line

1 (default) | nonnegative scalar

Line width of the track trajectory line, specified as a nonnegative scalar in point units, where 1 point = 1/72 of an inch.

Tip

If you specify the line width as 0, then the plot does not show the trajectory line.

Example: 2

Version History

Introduced in R2023b
