fScoreMetric

Deep learning F-score metric

Since R2023b

Description

Use an FScoreMetric object to track the F_β-score value when you train or test a deep neural network.

To specify which metrics to use during training, specify the Metrics option of the trainingOptions function. You can use this option only when you train a network using the trainnet function.

To plot the metrics during training, in the training options, specify Plots as "training-progress". If you specify the ValidationData training option, then the software also plots and records the metric values for the validation data. To output the metric values to the Command Window during training, in the training options, set Verbose to true.

You can also access the metrics after training using the TrainingHistory and ValidationHistory fields from the second output of the trainnet function.

To specify which metrics to use when you test a neural network, use the metrics argument of the testnet function.

Creation

Syntax

metric = fScoreMetric

metric = fScoreMetric(Name=Value)

Description

metric = fScoreMetric creates an FScoreMetric object. You can then specify metric as the Metrics name-value argument in the trainingOptions function or the metrics argument of the testnet function. With no additional options specified, this syntax is equivalent to specifying the metric as "fscore".

This metric is valid only for classification tasks.

metric = fScoreMetric(Name=Value) sets the Name, NetworkOutput, Beta (since R2024b), AverageType, and ClassificationMode properties using name-value arguments.

Properties

Name — Metric name

"FScore" (default) | string scalar | character vector

Metric name, specified as a string scalar or character vector. The metric name appears in the training plot, the verbose output, the training information that you can access as the second output of the trainnet function, and table output of the testnet function.

Data Types: char | string

NetworkOutput — Name of layer to apply metric to

[] (default) | string scalar | character vector

This property is read-only.

Name of the layer to apply the metric to, specified as [], a string scalar, or a character vector. When the value is [], the software passes all of the network outputs to the metric.

Note

You can apply the built-in metric to only a single output. If you have a network with multiple outputs, then you must specify the NetworkOutput name-value argument. To apply built-in metrics to multiple outputs, you must create a metric object for each output.

Data Types: char | string

Beta — F-score beta

1 (default) | nonnegative scalar

Since R2024b

F-score beta value, specified as nonnegative scalar. For more information, see Fβ Score.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

AverageType — Type of averaging to use

"macro" (default) | "micro" | "weighted"

This property is read-only.

Type of averaging to use to compute the metric, specified as one of these values:

• "micro" — Calculate the metric across all classes.

• "macro" — Calculate the metric for each class and return the average.

• "weighted" — Calculate the metric for each class and return the weighted average. The weight for a class is the proportion of observations from that class.

For more information, see Averaging Type.

Data Types: char | string

ClassificationMode — Type of classification task

"single-label" (default) | "multilabel"

This property is read-only.

Type of classification task, specified as one of these values:

• "single-label" — Each observation is exclusively assigned one class label (single-label classification).

• "multilabel" — Each observation can be assigned more than one independent class label (multilabel classification). The software uses a softmax threshold of 0.5 to assign class labels.

To select the classification mode for binary classification, consider the final layer of the network:

• If the final layer has an output size of one, such as with a sigmoid layer, use "multilabel".

• If the final layer has an output size of two, such as with a softmax layer, use "single-label".

Note

This metric is not supported when the ClassificationMode is set to "single-label" and the network output has a channel dimension of size 1. For example, if you have a single class and the output is a sigmoidLayer object (binary-sigmoid task).

Data Types: char | string

Maximize — Flag to maximize metric

1 (true)

This property is read-only.

Flag to maximize metric, specified as 1 (true) if the optimal value for the metric occurs when the metric is maximized.

For this metric, the Maximize value is always set to 1 (true).

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Object Functions

trainingOptions	Options for training deep learning neural network
trainnet	Train deep learning neural network

Examples

Plot and Record F-Score During Training

Plot and record the training and validation F-score when you train a deep neural network.

Unzip the digit sample data and create an image datastore. The imageDatastore function automatically labels the images based on folder names.

unzip("DigitsData.zip")
imds = imageDatastore("DigitsData", ...
    IncludeSubfolders=true, ...
    LabelSource="foldernames");

The datastore contains 10,000 synthetic images of digits from 0 to 9. Each image in the data set has a size of 28-by-28-by-1 pixels. You can train a deep learning network to classify the digit in the image.

Use a subset of the data as the validation set.

numTrainingFiles = 750;
[imdsTrain,imdsVal] = splitEachLabel(imds,numTrainingFiles,"randomize");

Create an image classification network.

layers = [ ...
    imageInputLayer([28 28 1])
    convolution2dLayer(5,20)
    reluLayer
    maxPooling2dLayer(2,Stride=2)
    fullyConnectedLayer(10)
    softmaxLayer];

Create an FScoreMetric object and set AverageType to "macro". You can use this object to record and plot the training and validation F-score.

metric = fScoreMetric(AverageType="macro")

metric =
  FScoreMetric with properties:

                  Name: "FScore"
           AverageType: "macro"
                  Beta: 1
    ClassificationMode: "single-label"
         NetworkOutput: []
              Maximize: 1

Specify the F-score metric in the training options. To plot the F-score during training, set Plots to "training-progress". To output the values during training, set Verbose to true.

options = trainingOptions("adam", ...
    MaxEpochs=5, ...
    Metrics=metric, ...
    ValidationData=imdsVal, ...
    ValidationFrequency=50, ...
    Plots="training-progress", ...
    Verbose=true);

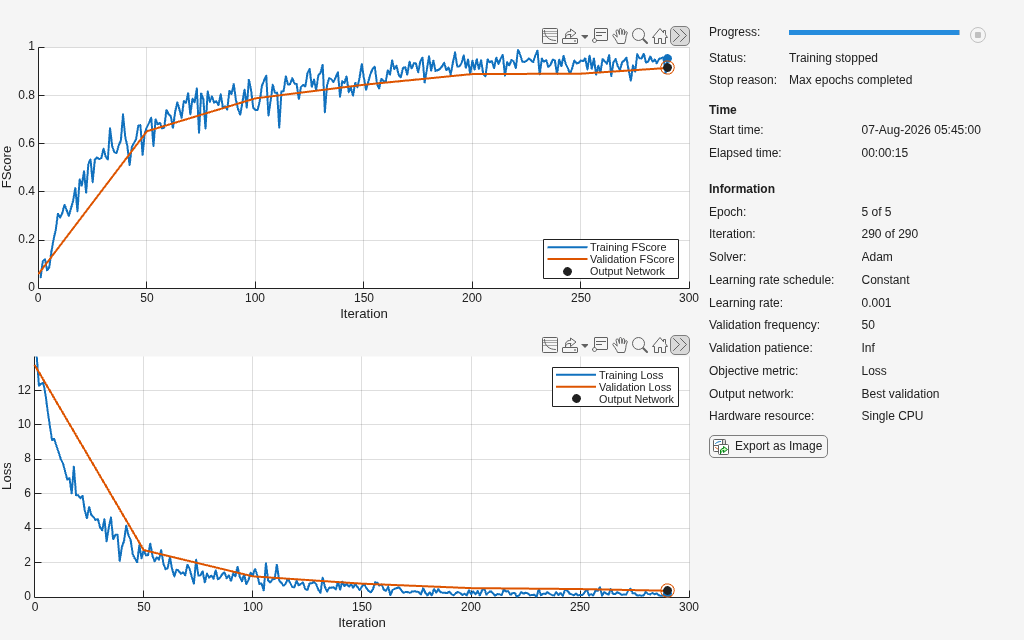

Train the network using the trainnet function.

[net,info] = trainnet(imdsTrain,layers,"crossentropy",options);

    Iteration    Epoch    TimeElapsed    LearnRate    TrainingLoss    ValidationLoss    TrainingFScore    ValidationFScore
    _________    _____    ___________    _________    ____________    ______________    ______________    ________________
            0        0       00:00:04        0.001                            13.488                               0.05937
            1        1       00:00:04        0.001          13.974                             0.04248
           50        1       00:00:22        0.001          2.7428            2.7443            0.6692             0.65164
          100        2       00:00:41        0.001           1.291            1.2181           0.75184             0.78996
          150        3       00:01:04        0.001         0.64684           0.79978           0.87255             0.84397
          200        4       00:01:20        0.001         0.18809           0.53245           0.94547             0.88966
          250        5       00:01:35        0.001         0.14852           0.49394           0.94487             0.89426
          290        5       00:01:47        0.001          0.2689            0.3885           0.93345             0.91493
Training stopped: Max epochs completed

Access the loss and F-score values for the validation data.

info.ValidationHistory

ans=7×3 table
    Iteration     Loss      FScore
    _________    _______    _______

         0        13.488    0.05937
        50        2.7443    0.65164
       100        1.2181    0.78996
       150       0.79978    0.84397
       200       0.53245    0.88966
       250       0.49394    0.89426
       290        0.3885    0.91493

More About

F_β Score

The F_β-score value is a performance metric that balances the precision and recall:

$${\text{F}}_{\beta }\text{ =}\frac{(\text{1+}{\beta }^2)(precision\times recall)}{({\beta }^2\times precision)+recall}=\frac{(\text{1+}{\beta }^2)\times \text{True Positive}}{((\text{1+}{\beta }^2)\times \text{True Positive})+({\beta }^2\times \text{False Negative})\text{ + False Positive}}.$$

The β value controls the importance of the recall and precision:

• β<1 gives more weight to precision and therefore emphasizes false positives.

• β=1 gives equal weight to precision and recall.

• β>1 gives more weight to recall and therefore emphasizes false negatives.

A common β value is 1, which is often referred to as the F₁-score value.

Averaging Type

When you compute a metric, you can aggregate the results into a single value in several ways.

• Micro average — Combine contributions of all observations from each class. For example, calculate the true positive (TP), false positive (FP), true negative (TN), and false negative (FN) across all C classes and then compute the metric.

• Macro average — Calculate the metric for each class and then take the average across all the classes. For example, use the true positive rate for just those observations in class i (TP_i).

• Weighted average — Calculate the metric for each class and then take the weighted average.

Micro Average	Macro Average	Weighted Average
$$F_{\beta }=\frac{(1+{\beta }^2)TP}{(1+{\beta }^2)TP+{\beta }^{2}FN+FP}$$	$$F_{\beta }={\displaystyle \sum _{i=1}^C{w}_i\frac{(1+{\beta }^2)T{P}_i}{(1+{\beta }^2)T{P}_i+{\beta }^{2}F{N}_i+F{P}_i}}$$	$$F_{\beta }={\displaystyle \sum _{i=1}^C{w}_i\frac{(1+{\beta }^2)T{P}_i}{(1+{\beta }^2)T{P}_i+{\beta }^{2}F{N}_i+F{P}_i}}$$

The weight w_i controls the weighting for each class in macro and weighted averaging according to these formulas.

• Macro — $$w_i=\frac{1}{C}$$

• Weighted — $$w_i=\frac{n_i}{n}$$, where n_i is the number of observations in class i and n is the total number of observations.

Version History

Introduced in R2023b

R2024b: Specify β Value

The FScoreMetric object now has the Beta property. You can use this property to compute the F_β-score for any valid β value. Before R2024b, only F₁-score was supported.
