comm.OFDMDemodulator

Demodulate using OFDM method

Description

The comm.OFDMDemodulator System object™ demodulates a time domain signal by using the orthogonal frequency division multiplexing (OFDM) method. For more information, see OFDM Demodulation. The output is a baseband representation of the input to the comm.OFDMModulator companion object.

To demodulate an OFDM signal:

1. Create the comm.OFDMDemodulator object and set its properties.

2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

ofdmDemod = comm.OFDMDemodulator

ofdmDemod = comm.OFDMDemodulator(Name=Value)

ofdmDemod = comm.OFDMDemodulator(odfmMod)

Description

ofdmDemod = comm.OFDMDemodulator creates an OFDM demodulator System object that demodulates an input signal by using the orthogonal frequency division demodulation method.

ofdmDemod = comm.OFDMDemodulator(Name=Value) specifies Properties using one or more name-value arguments. For example, comm.OFDMDemodulator(FFTLength=128) configures the object for a total of 128 subcarriers.

ofdmDemod = comm.OFDMDemodulator(odfmMod) sets the OFDM demodulator object properties based on the specified OFDM modulator object.

Properties

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

FFTLength — Number of FFT points

64 (default) | positive integer

Number of fast Fourier transform (FFT) points, specified as a positive, integer scalar. The length of the FFT must be greater than or equal to 8 and is equivalent to the number of subcarriers.

NumGuardBandCarriers — Number of subcarriers allocated to left and right guard bands

[6; 5] (default) | 2-by-1 integer vector

Number of subcarriers allocated to the left and right guard bands, specified as a 2-by-1 integer vector. The number of left and right guard-band subcarriers, [N_leftG; N_rightG], must fall within [0,⌊N_FFT / 2 ⌋ − 1], where N_FFT is the total number of subcarriers in the OFDM signal specified by FFTLength. For more information, see Subcarrier Allocation, Guard Bands, and Guard Intervals.

RemoveDCCarrier — Option to remove DC subcarrier

false or 0 (default) | true or 1

Option to remove the null DC subcarrier, specified as a numeric or logical 0 (false) or 1 (true). The null DC subcarrier is at the center of the frequency band and has the index value:

• (N_FFT / 2) + 1 when N_FFT is even.

• (N_FFT + 1) / 2 when N_FFT is odd.

N_FFT is the total number of subcarriers in the OFDM signal specified by FFTLength.

PilotOutputPort — Option to output pilot subcarriers

false or 0 (default) | true or 1

Option to output pilot subcarriers, specified as a numeric or logical 0 (false) or 1 (true). When you set this property to:

• false — Pilot information may be present but remains embedded in the output data.

• true — The object separates the pilot subcarriers, specified by PilotCarrierIndices, from the output data and outputs the demodulated pilot signal to the pilot output variable.

PilotCarrierIndices — Indices of pilot subcarrier locations

[12; 26; 40; 54] (default) | column vector | matrix | 3D array

Indices of the pilot subcarrier locations, specified as a column vector, matrix, or 3D array with integer-element values in the range

$$\left[N_{\text{leftG}}+1,N_{\text{FFT}}/2\right]\cup \left[N_{\text{FFT}}/2+2,N_{\text{FFT}}-N_{\text{rightG}}\right],$$

where N_FFT is the total number of subcarriers specified by FFTLength, and N_leftG and N_rightG are the left and right guard bands specified by NumGuardBandCarriers.

You can assign the N_Pilot pilot carrier indices to the same or different N_Sym subcarriers for each symbol, and across N_TxStreams transmit streams.

• When the pilot indices are the same for every symbol and transmit stream, the property has dimensions of N_Pilot-by-1.

• When the pilot indices vary across symbols, the property has dimensions of N_Pilot-by-N_Sym.

• If the received signal assigned one symbol across multiple transmit streams, the property has dimensions of N_Pilot-by-1-by-N_TxStreams.

• If the indices vary across the number of symbols and transmit streams, the property has dimensions of N_Pilot-by-N_Sym-by-N_TxStreams.

Tip

To minimize interference between transmissions across more than one transmit stream, the pilot indices per symbol must be mutually distinct across the streams.

Dependencies

This property applies when you set PilotOutputPort to 1.

CyclicPrefixLength — Length of cyclic prefix

16 (default) | positive integer | row vector

Length of the cyclic prefix for each OFDM symbol, specified as a positive, integer scalar or row vector containing NumSymbols elements. The cyclic prefix length must be in the range [0, N_FFT], where N_FFT is the total number of subcarriers in the OFDM signal specified by FFTLength. When you specify the cyclic prefix length as a:

• Scalar — The cyclic prefix length is the same for all symbols through all streams.

• Row vector — The cyclic prefix length may vary across symbols but does not vary across streams.

OversamplingFactor — Oversampling factor

1 (default) | positive scalar

Oversampling factor, specified as a positive scalar. The oversampling factor must satisfy these constraints:

• (OversamplingFactor×FFTLength) must be an integer value.

• (OversamplingFactor×CyclicPrefixLength) must be an integer value.

Tip

If you set the oversampling factor to a noninteger rational number, specify a fractional value rather than a decimal value. For example, with an FFT length of 12 and an oversampling factor of 4/3, their product is the integer 16. However, rounding 4/3 to 1.333 when setting the oversampling factor results in a noninteger product of 15.9960, which results in a code error.

Data Types: double

NumSymbols — Number of OFDM symbols

1 (default) | positive integer

Number of OFDM symbols in the time-frequency grid, specified as a positive, integer scalar.

NumReceiveAntennnas — Number of receive streams

1 (default) | positive integer

Number of receive streams to receive the OFDM modulated signal, specified as a positive, integer scalar less than or equal to 64. The value must be less than or equal the physical number of receive antennas.

Usage

Syntax

Y = ofdmDemod(X)

[Y,pilot] = ofdmDemod(X)

Description

Y = ofdmDemod(X) demodulates the input time domain signal using the OFDM method and returns the OFDM-demodulated baseband signal.

[Y,pilot] = ofdmDemod(X) separates the pilot signal on the subcarriers specified by the PilotCarrierIndices property value. To enable this syntax, set the PilotOutputPort property to true.

Input Arguments

X — OFDM-modulated baseband signal

matrix

OFDM-modulated baseband signal, specified as an (osf × N_In)-by-N_Streams matrix.

• osf is the oversampling factor, as determined by OversamplingFactor.

• When CyclicPrefixLength is a scalar, N_CP = CyclicPrefixLength and N_In = N_Sym × (N_FFT + N_CP)

• When CyclicPrefixLength is a row vector, N_CPTotal = sum(CyclicPrefixLength) and N_In = (N_Sym × N_FFT) + N_CPTotal.

• N_Sym represents the number of symbols, determined by NumSymbols.

• N_FFT represents the number of subcarriers, determined by FFTLength.

• N_Streams represents the number of receive streams, as determined by NumReceiveAntennnas. N_Streams must be less than or equal to the physical number of receive antennas.

You can determine the dimensions by using the info object function.

Data Types: double | single
Complex Number Support: Yes

Output Arguments

Y — Output baseband signal

matrix | 3D array

Output baseband signal, returned as a matrix or N_DataSC-by-N_Sym-by-N_Streams array of the same data type as the input signal. The output reduces to a matrix when N_Streams is 1.

• N_DataSC is the number of data subcarriers. For more information, see the info object function.

• N_Sym is the number of symbols, as specified by NumSymbols.

• N_Streams is the number of receive streams, as specified by NumReceiveAntennnas. N_Streams is less than or equal to the physical number of receive antennas.

For more information, see Subcarrier Allocation, Guard Bands, and Guard Intervals.

Data Types: double | single
Complex Number Support: Yes

pilot — Pilot signal

3D array | 4D array

Pilot signal, returned with the same data type as the input signal and as a:

• 3D array with dimensions N_Pilot-by-N_Sym-by-N_Streams when PilotCarrierIndices is a vector or matrix.

• 4D array with dimensions N_Pilot-by-N_Sym-by-N_T-by-N_Streams array when PilotCarrierIndices is a 3D array.

Where:

• N_Pilot is the number of pilot subcarriers in each symbol, as specified by size(PilotCarrierIndices,1).

• N_Sym is the number of symbols, as specified by NumSymbols.

• N_Streams is the number of receive streams, as specified by NumReceiveAntennnas. N_Streams is less than or equal the physical number of receive antennas.

• N_T is the number of transmit antennas.

Dependencies

To return this output, set the PilotOutputPort property to true.

Data Types: double | single
Complex Number Support: Yes

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

Specific to comm.OFDMDemodulator

info	Provide dimensioning information for OFDM demodulator
showResourceMapping	Show subcarrier mapping of OFDM symbols created by OFDM modulator or demodulator System object

Common to All System Objects

step	Run System object algorithm
release	Release resources and allow changes to System object property values and input characteristics
reset	Reset internal states of System object

Examples

Create and Modify OFDM Demodulator

Create an OFDM demodulator System object™ with default properties. Modify some of the properties. Inspect the object configuration by using the info object function.

ofdmDemod = comm.OFDMDemodulator

ofdmDemod =
  comm.OFDMDemodulator with properties:

               FFTLength: 64
    NumGuardBandCarriers: [2×1 double]
         RemoveDCCarrier: false
         PilotOutputPort: false
      CyclicPrefixLength: 16
      OversamplingFactor: 1
              NumSymbols: 1
      NumReceiveAntennas: 1

info(ofdmDemod)

ans = struct with fields:
         InputSize: [80 1]
    DataOutputSize: [53 1]

Modify the number of subcarriers, symbols, and receive streams. Also enable the pilot output.

ofdmDemod.FFTLength = 128;
ofdmDemod.PilotOutputPort = 1;
ofdmDemod.NumSymbols = 2;
ofdmDemod.NumReceiveAntennas = 2;

Verify that the number of subcarriers and the number of symbols changed. Reinspect the input and output signal dimensions by using the info object function. Notice the addition of the pilot output dimensions to the information structure. Because the number of receive streams is greater than 1, the data and pilot output dimensions are 3D arrays rather than matrices.

ofdmDemod

ofdmDemod =
  comm.OFDMDemodulator with properties:

               FFTLength: 128
    NumGuardBandCarriers: [2×1 double]
         RemoveDCCarrier: false
         PilotOutputPort: true
     PilotCarrierIndices: [4×1 double]
      CyclicPrefixLength: 16
      OversamplingFactor: 1
              NumSymbols: 2
      NumReceiveAntennas: 2

info(ofdmDemod)

ans = struct with fields:
          InputSize: [288 2]
     DataOutputSize: [113 2 2]
    PilotOutputSize: [4 2 2]

Create OFDM Demodulator from OFDM Modulator

Creating the demodulator by using the configured modulator ensures a matched modulator and demodulator pair.

Create an OFDM modulator specifying four transmit streams.

ofdmMod = comm.OFDMModulator(NumTransmitAntennas=4);

Use the OFDM modulator to create the OFDM demodulator.

ofdmDemod = comm.OFDMDemodulator(ofdmMod);

Display the properties of the OFDM modulator and demodulator, verifying that the applicable properties match. The number of transmit streams is independent of the number of receive streams.

ofdmMod

ofdmMod =
  comm.OFDMModulator with properties:

               FFTLength: 64
    NumGuardBandCarriers: [2×1 double]
            InsertDCNull: false
          PilotInputPort: false
      CyclicPrefixLength: 16
               Windowing: false
      OversamplingFactor: 1
              NumSymbols: 1
     NumTransmitAntennas: 4

ofdmDemod

ofdmDemod =
  comm.OFDMDemodulator with properties:

               FFTLength: 64
    NumGuardBandCarriers: [2×1 double]
         RemoveDCCarrier: false
         PilotOutputPort: false
      CyclicPrefixLength: 16
      OversamplingFactor: 1
              NumSymbols: 1
      NumReceiveAntennas: 1

Visualize Time-Frequency Resource Assignments

The showResourceMapping object function shows the time-frequency resource mapping for each transmit stream.

Create an OFDM demodulator.

demod = comm.OFDMDemodulator;

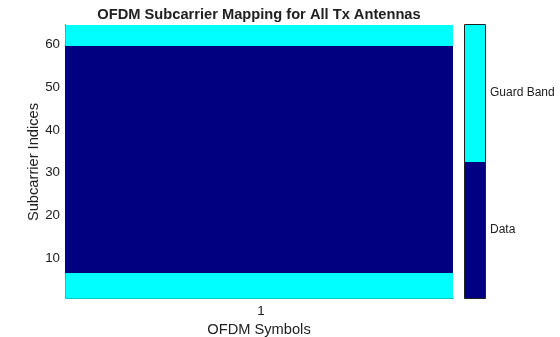

Display the OFDM subcarrier mapping by using the showResourceMapping object function.

showResourceMapping(demod)

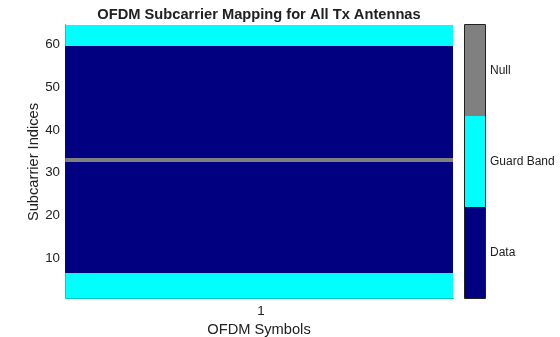

Remove the DC subcarrier.

demod.RemoveDCCarrier = true;

Show the resource mapping after removing the DC subcarrier.

showResourceMapping(demod)

Demodulate OFDM Data

Create an OFDM modulator with an inserted DC null, seven guard-band subcarriers, and two symbols that have different pilot indices for each symbol.

ofdmMod = comm.OFDMModulator( ...
    NumGuardBandCarriers=[4; 3], ...
    PilotInputPort=true, ...
    PilotCarrierIndices=cat(2,[12; 26; 40; 54],[11; 27; 39; 55]), ...
    NumSymbols=2, ...
    InsertDCNull=true);

Determine input data, pilot, and output data dimensions.

modDim = info(ofdmMod)

modDim = struct with fields:
     DataInputSize: [52 2]
    PilotInputSize: [4 2]
        OutputSize: [160 1]

Generate random data symbols for the OFDM modulator. Determine the number of data symbols by using the structure variable, modDim.

dataIn = complex( ...
    randn(modDim.DataInputSize),randn(modDim.DataInputSize));

Create a pilot signal that has the correct dimensions.

pilotIn = complex( ...
    rand(modDim.PilotInputSize),rand(modDim.PilotInputSize));

Apply OFDM modulation to the data and pilot signals.

modSig = ofdmMod(dataIn,pilotIn);

Use the OFDM modulator object to create the corresponding OFDM demodulator.

ofdmDemod = comm.OFDMDemodulator(ofdmMod);

Demodulate the OFDM signal and output the data and pilot signals.

[dataOut,pilotOut] = ofdmDemod(modSig);

Verify that the input data and pilot symbols match the output data and pilot symbols.

isSame = (max(abs([dataIn(:) - dataOut(:); ...
    pilotIn(:) - pilotOut(:)])) < 1e-10)

isSame = logical
   1

Oversample and Filter OFDM Signal Through SISO Channel

Filter an OFDM modulated signal with data and pilot inputs and outputs generated at four times the sample rate through a single-input single-output (SISO) channel. Demodulate the channel-filtered signal and compare to the original data.

Create an OFDM demodulator object that has three symbols and different pilot subcarrier indices and cyclic prefix lengths for each symbol.

ofdmDemod = comm.OFDMDemodulator( ...
    NumGuardBandCarriers=[9;8], ...
    RemoveDCCarrier=true, ...
    PilotOutputPort=true, ...
    PilotCarrierIndices=[[12;26;40;54],[14;28;38;52],[12;26;40;54]], ...
    CyclicPrefixLength=[16 32 16], ...
    OversamplingFactor=4, ...
    NumSymbols=3);

Create an OFDM modulator System object from the OFDM demodulator object, ofdmDemod.

ofdmMod = comm.OFDMModulator(ofdmDemod);

Show the configured subcarrier resource mapping for data, pilot, guard band and null signals by using the showResourceMapping object function. Obtain the input and output dimension information by using the info object function.

showResourceMapping(ofdmDemod);

modDim = info(ofdmMod);

Create random data and pilot inputs and apply QAM modulation.

M = 16;
xd  = randi([0 M-1],modDim.DataInputSize);
dataIn = qammod(xd,M,UnitAveragePower=true);
xp = randi([0 M-1],modDim.PilotInputSize);
pilotIn = qammod(xp,M,UnitAveragePower=true);

Apply OFDM modulation to the data and pilot QAM signals. Filter the signal through an AWGN channel. To recover the data and pilot symbols, apply OFDM demodulation and then QAM-demodulation.

modOut = ofdmMod(dataIn,pilotIn);
chanOut = awgn(modOut,20,"measured");
[dataOut, pilotOut] = ofdmDemod(chanOut);
yd = qamdemod(dataOut,M,UnitAveragePower=true);
yp = qamdemod(pilotOut,M,UnitAveragePower=true);

Verify that the data and pilots are unchanged through this process.

dataSame = isequal(xd,yd)

dataSame = logical
   1

pilotSame = isequal(xp,yp)

pilotSame = logical
   1

Algorithms

OFDM Demodulation

The orthogonal frequency division multiplexing (OFDM) method demodulates an OFDM input signal by using an FFT operation that results in N parallel data streams.

The figure shows an OFDM demodulator consisting of a bank of N correlators with one correlator assigned to each OFDM subcarrier. A parallel-to-serial conversion follows the correlator bank.

Subcarrier Allocation, Guard Bands, and Guard Intervals

Individual OFDM subcarriers are allocated as data, pilot, or null subcarriers.

As shown here, subcarriers are designated as data, DC, pilot, or guard-band subcarriers.

• Data subcarriers transmit user data.

• Pilot subcarriers are for channel estimation.

• Null subcarriers transmit no data. Subcarriers with no data provide a DC null and serve as buffers between OFDM resource blocks.

  • The null DC subcarrier is the center of the frequency band with an index value of (nfft/2 + 1) if nfft is even, or ((nfft + 1) / 2) if nfft is odd.

  • The guard bands provide buffers between adjacent signals in neighboring bands to reduce interference caused by spectral leakage.

Null subcarriers enable you to model guard bands and DC subcarrier locations for specific standards, such as the various 802.11 formats, LTE, WiMAX, or for custom allocations. You can allocate the location of nulls by assigning a vector of null subcarrier indices.

Similar to guard bands, guard intervals protect the integrity of transmitted signals in OFDM by reducing intersymbol interference.

Assignment of guard intervals is analogous to the assignment of guard bands. You can model guard intervals to provide temporal separation between OFDM symbols. The guard intervals help preserve intersymbol orthogonality after the signal passes through time-dispersive channels. You create guard intervals by using cyclic prefixes. Cyclic prefix insertion copies the last part of an OFDM symbol as the first part of the OFDM symbol.

OFDM benefits from the use of cyclic prefix insertion as long as the span of the time dispersion does not exceed the duration of the cyclic prefix.

Inserting a cyclic prefix results in a fractional reduction of user data throughput because the cyclic prefix occupies bandwidth that could be used for data transmission.

References

[1] Dahlman, E., S. Parkvall, and J. Skold. 4G LTE/LTE-Advanced for Mobile Broadband. London: Elsevier Ltd., 2011.

[2] Andrews, J. G., A. Ghosh, and R. Muhamed. Fundamentals of WiMAX. Upper Saddle River, NJ: Prentice Hall, 2007.

[3] IEEE^® Standard 802.16-2017. "Part 16: Air Interface for Broadband Wireless Access Systems." March 2018.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

See System Objects in MATLAB Code Generation (MATLAB Coder).

Version History

Introduced in R2014a

R2023b: Single data type support

If the input signal is of type single, then the object natively computes in single precision, and the returned output is also of type single.

R2023a: Adds support for oversampling

comm.OFDMDemodulator now supports oversampling.
