yamnetPreprocess

Preprocess audio for YAMNet classification

Since R2021a

Syntax

features = yamnetPreprocess(audioIn,fs)

features = yamnetPreprocess(audioIn,fs,OverlapPercentage=OP)

[features,cf,ts] = yamnetPreprocess(___)

Description

features = yamnetPreprocess(audioIn,fs) generates mel spectrograms from audioIn that can be fed to the YAMNet pretrained network.

features = yamnetPreprocess(audioIn,fs,OverlapPercentage=OP) specifies the overlap percentage between consecutive audio frames. For example, features = yamnetPreprocess(audioIn,fs,OverlapPercentage=75) applies a 75% overlap between consecutive frames used to generate the spectrograms.

[features,cf,ts] = yamnetPreprocess(___) also returns the center frequencies of the bands and the time locations of the windows in the generated spectrograms.

Examples

Classify Sounds Using YAMNet

Read in an audio signal to classify it.

[audioIn,fs] = audioread("TrainWhistle-16-44p1-mono-9secs.wav");

Plot and listen to the audio signal.

t = (0:numel(audioIn)-1)/fs;
plot(t,audioIn)
xlabel("Time (s)")
ylabel("Ampltiude")
axis tight

sound(audioIn,fs)

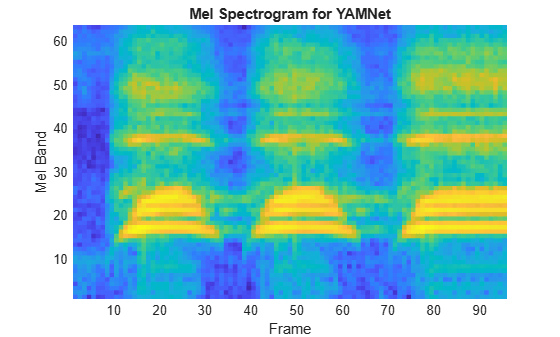

YAMNet requires you to preprocess the audio signal to match the input format used to train the network. The preprocesssing steps include resampling the audio signal and computing an array of mel spectrograms. To learn more about mel spectrograms, see melSpectrogram. Use yamnetPreprocess to preprocess the signal and extract the mel spectrograms to be passed to YAMNet. Visualize one of these spectrograms chosen at random.

spectrograms = yamnetPreprocess(audioIn,fs);

arbitrarySpect = spectrograms(:,:,1,randi(size(spectrograms,4)));
surf(arbitrarySpect,EdgeColor="none")
view([90 -90])
xlabel("Mel Band")
ylabel("Frame")
title("Mel Spectrogram for YAMNet")
axis tight

Create a YAMNet neural network using the audioPretrainedNetwork function. Call predict with the network on the preprocessed mel spectrogram images. Convert the network output to class labels using scores2label.

[net,classNames] = audioPretrainedNetwork("yamnet");
scores = predict(net,spectrograms);
classes = scores2label(scores,classNames);

The classification step returns a label for each of the spectrogram images in the input. Classify the sound as the most frequently occurring label in the output.

mySound = mode(classes)

mySound = categorical
     Whistle

Transfer Learning Using YAMNet

Download and unzip the air compressor data set [1]. This data set consists of recordings from air compressors in a healthy state or one of 7 faulty states.

url = "https://www.mathworks.com/supportfiles/audio/AirCompressorDataset/AirCompressorDataset.zip";
downloadFolder = fullfile(tempdir,"aircompressordataset");
datasetLocation = tempdir;

if ~exist(fullfile(tempdir,"AirCompressorDataSet"),"dir")
    loc = websave(downloadFolder,url);
    unzip(loc,fullfile(tempdir,"AirCompressorDataSet"))
end

Create an audioDatastore object to manage the data and split it into train and validation sets.

ads = audioDatastore(downloadFolder,IncludeSubfolders=true,LabelSource="foldernames");

[adsTrain,adsValidation] = splitEachLabel(ads,0.8,0.2);

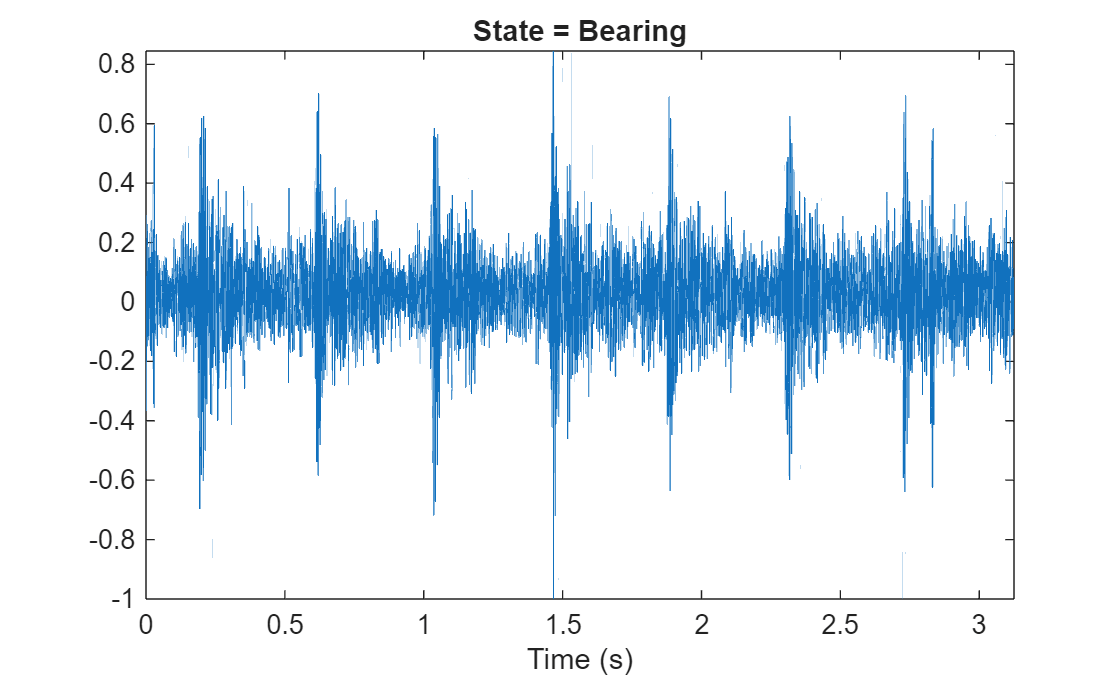

Read an audio file from the datastore and save the sample rate for later use. Reset the datastore to return the read pointer to the beginning of the data set. Listen to the audio signal and plot the signal in the time domain.

[x,fileInfo] = read(adsTrain);
fs = fileInfo.SampleRate;

reset(adsTrain)

sound(x,fs)

figure
t = (0:size(x,1)-1)/fs;
plot(t,x)
xlabel("Time (s)")
title("State = " + string(fileInfo.Label))
axis tight

Extract Mel spectrograms from the train set using yamnetPreprocess. There are multiple spectrograms for each audio signal. Replicate the labels so that they are in one-to-one correspondence with the spectrograms.

emptyLabelVector = adsTrain.Labels;
emptyLabelVector(:) = [];

trainFeatures = [];
trainLabels = emptyLabelVector;
while hasdata(adsTrain)
    [audioIn,fileInfo] = read(adsTrain);
    features = yamnetPreprocess(audioIn,fileInfo.SampleRate);
    numSpectrums = size(features,4);
    trainFeatures = cat(4,trainFeatures,features);
    trainLabels = cat(2,trainLabels,repmat(fileInfo.Label,1,numSpectrums));
end

Extract features from the validation set and replicate the labels.

validationFeatures = [];
validationLabels = emptyLabelVector;
while hasdata(adsValidation)
    [audioIn,fileInfo] = read(adsValidation);
    features = yamnetPreprocess(audioIn,fileInfo.SampleRate);
    numSpectrums = size(features,4);
    validationFeatures = cat(4,validationFeatures,features);
    validationLabels = cat(2,validationLabels,repmat(fileInfo.Label,1,numSpectrums));
end

The air compressor data set has only 8 classes. Call audioPretrainedNetwork with NumClasses set to 8 to load a pretrained YAMNet network with the desired number of output classes for transfer learning.

classNames = unique(adsTrain.Labels);
numClasses = numel(classNames);

net = audioPretrainedNetwork("yamnet",NumClasses=numClasses);

To define training options, use trainingOptions.

miniBatchSize = 128;
validationFrequency = floor(numel(trainLabels)/miniBatchSize);
options = trainingOptions('adam', ...
    InitialLearnRate=3e-4, ...
    MaxEpochs=2, ...
    MiniBatchSize=miniBatchSize, ...
    Shuffle="every-epoch", ...
    Plots="training-progress", ...
    Metrics="accuracy", ...
    Verbose=false, ...
    ValidationData={single(validationFeatures),validationLabels'}, ...
    ValidationFrequency=validationFrequency);

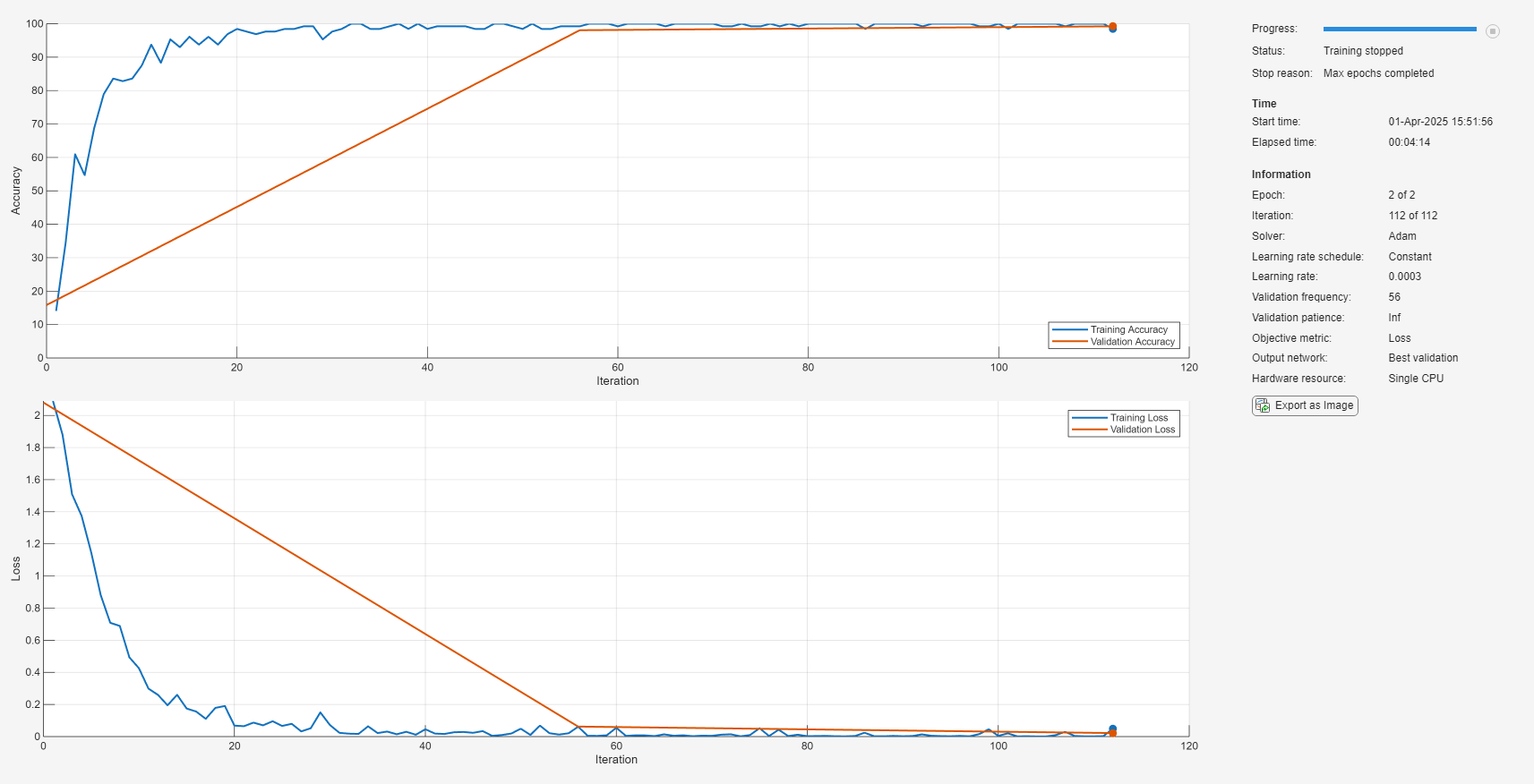

To train the network, use trainnet.

airCompressorNet = trainnet(trainFeatures,trainLabels',net,"crossentropy",options);

Save the trained network to airCompressorNet.mat. You can now use this pre-trained network by loading the airCompressorNet.mat file.

save airCompressorNet.mat airCompressorNet

References

[1] Verma, Nishchal K., et al. “Intelligent Condition Based Monitoring Using Acoustic Signals for Air Compressors.” IEEE Transactions on Reliability, vol. 65, no. 1, Mar. 2016, pp. 291–309. DOI.org (Crossref), doi:10.1109/TR.2015.2459684.

Visualize Mel Spectrogram for YAMNet Input

Read in an audio signal

[audioIn,fs] = audioread("TrainWhistle-48-mono-2p5sec.opus");

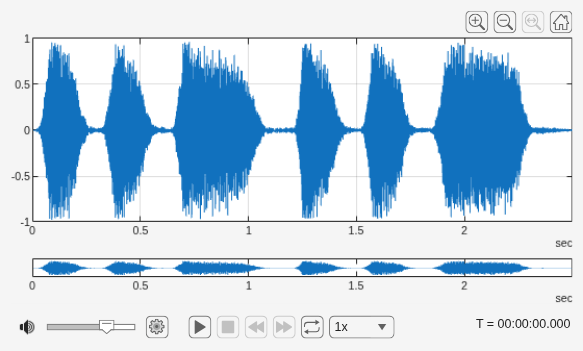

Use audioViewer to visualize and listen to the audio.

audioViewer(audioIn,fs)

Use yanmetPreprocess to generate mel spectrograms that can be fed to the YAMNet pretrained network. Specify additional outputs to get the center frequencies of the bands and the locations of the windows in time.

[spectrograms,cf,ts] = yamnetPreprocess(audioIn,fs);

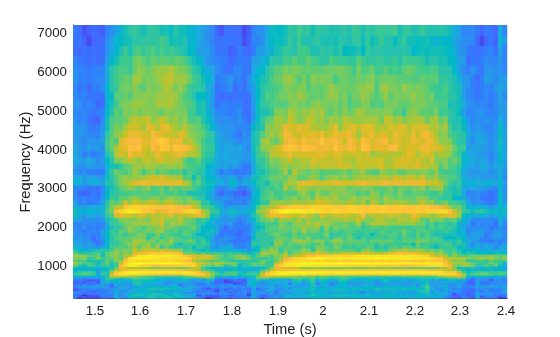

Choose a random spectrogram from the input to visualize. Use the center frequency and time location information to label the axes.

spectIdx = randi(size(spectrograms,4));
randSpect = spectrograms(:,:,1,spectIdx);
surf(cf,ts(:,spectIdx),randSpect,EdgeColor="none")
view([90 -90])
xlabel("Frequency (Hz)")
ylabel("Time (s)")
axis tight

Input Arguments

audioIn — Input signal

column vector | matrix

Input signal, specified as a column vector or matrix. If you specify a matrix, yamnetPreprocess treats the columns of the matrix as individual audio channels.

Data Types: single | double

fs — Sample rate (Hz)

positive scalar

Sample rate of the input signal in Hz, specified as a positive scalar.

Data Types: single | double

OP — Overlap percentage between consecutive mel spectrograms

50 (default) | scalar in the range [0,100)

Percentage overlap between consecutive mel spectrograms, specified as a scalar in the range [0,100).

Data Types: single | double

Output Arguments

features — Mel spectrograms that can be fed to YAMNet pretrained network

96-by-64-by-1-by-K array

Mel spectrograms generated from audioIn, returned as a 96-by-64-by-1-by-K array, where:

• 96 –– Represents the number of 25 ms frames in each mel spectrogram

• 64 –– Represents the number of mel bands spanning 125 Hz to 7.5 kHz

• K –– Represents the number of mel spectrograms and depends on the length of audioIn, the number of channels in audioIn, as well as OverlapPercentage

  Note

  Each 96-by-64-by-1 patch represents a single mel spectrogram image. For multichannel inputs, mel spectrograms are stacked along the fourth dimension.

Data Types: single

cf — Center frequencies of mel bandpass filters

row vector

Center frequencies of the mel bandpass filters in Hz, returned as a row vector with length 64.

ts — Time location of each window

96-by-K matrix

Time location of the center of each analysis window of audio in seconds, returned as a 96-by-K matrix where K corresponds to the number of spectrograms in features. For multichannel inputs, the time stamps are stacked along the second dimension.

References

[1] Gemmeke, Jort F., et al. “Audio Set: An Ontology and Human-Labeled Dataset for Audio Events.” 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2017, pp. 776–80. DOI.org (Crossref), doi:10.1109/ICASSP.2017.7952261.

[2] Hershey, Shawn, et al. “CNN Architectures for Large-Scale Audio Classification.” 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2017, pp. 131–35. DOI.org (Crossref), doi:10.1109/ICASSP.2017.7952132.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

This function fully supports GPU arrays. For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2021a

R2024b: Additional outputs for center frequencies of bands and locations of windows in time

Call yamnetPreprocess with additional output arguments to get the center frequencies of the bands and the time locations of the windows in the generated spectrograms.
