Student Competition: Mobile Robotics Training, Part 3: Designing Line Following Algorithms

From the series: Student Competition: Mobile Robotics Training

Connell D'Souza, MathWorks

Learn how to design line following algorithms for a mobile robot.

You will understand how line sensors work and their characteristics, like the output value range, and to use a single sensor to track the edge of a line. You will then learn to design on-off and PID-based line following algorithms in Simulink®, and observe the difference in the results between the two.

In this video, you will also be introduced to the Simulation Map Generator App that will allow you to create a line following map from an actual image of the line track. You will learn how to use the generated map for simulating and testing your algorithms within Simulink.

A VEX EDR robot is used to demonstrate the performance of the line following algorithms on the microcontroller and to observe the difference in the results between the On-Off and PID algorithms.

Additional Resources:

  • Line Follower with Arm and Claw Position Control using Line Tracker, Potentiometer, and Encoder
  • Line Follower Application for Arduino Robot
  • Mobile Robotics Training Toolbox
  • Understanding Control Systems
  • Simulink Coder Support for VEX Microcontroller
  • Path Following for a Differential Drive Robot
  • Parameter Tuning and Signal Logging with Serial External Modee -

Recorded: 27 Jun 2017

Download Code and Files

Download Files: Mobile Robotics Training

Related Products

  • Simulink
  • MATLAB
  • Stateflow
  • Simulink Coder

Learn More

Send feedback about this video
Watch related videos for students
MathWorks Support for Student Competitions
Related Information
Download Files: Mobile Robotics Training

Feedback

Featured Product

Simulink

  • Request Trial
  • Get Pricing

Up Next:

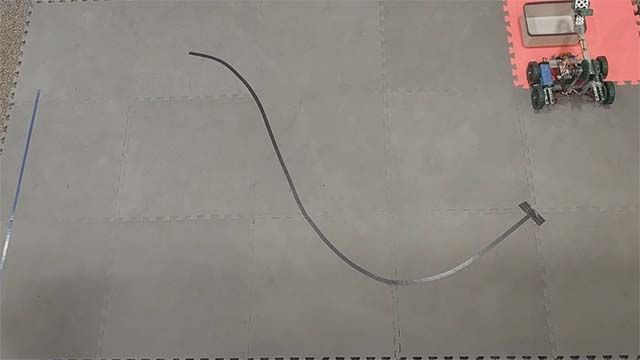

Learn how to design obstacle detection algorithms for a mobile robot
