Design, evaluate, and implement SoC hardware and software architectures

Get Started:

Simulate and Analyze SoC Architectures

Develop and combine software algorithms, hardware logic, memory systems, and I/O devices into your SoC application. Evaluate architecture alternatives before deploying to hardware.

Develop SoC Architectures from Specifications

You can start with a functional architecture of your application in System Composer™, and allocate functional components to the SoC hardware architecture (processor), programmable logic (FPGA), and memory. Simulate the behavior of the entire application and verify its functional correctness. Then evaluate the implementation to decide how to allocate its functional components between hardware and software.

Analyze Algorithm Resource Usage

Allocate functional components to SoC hardware architecture components using System Composer.

Analyze Algorithm Resource Usage

Analyze Simulink models or MATLAB® functions to generate reports summarizing the number of arithmetic operators required for implementation. Use these reports to compare different architectures for FPGA, ASIC, and SoC devices, perform design tradeoffs, and explore hardware/software partitioning.

View the estimated number and type of operators needed to implement MATLAB functions or Simulink models

View the estimated number and type of operators needed to implement MATLAB functions or Simulink models.

Memory Transactions

Model DDR memory and simulate shared memory transactions between hardware logic and embedded processors. Configure DMA memory controllers to arbitrate memory traffic. Account for memory latency and throughput in simulation.

Task Execution

Model task execution of embedded software as managed by the operating system (OS). Simulate tasks with accurate timing, accounting for context switching, task preemption, and execution duration. Model software interrupts generated by FPGA fabric. Apply statistics to simulate nondeterministic task duration, or apply task durations recorded during hardware testing.

Visualize task preemption, context switching, and execution duration with timing diagrams.

Visualize task preemption, context switching, and execution duration with timing diagrams.

SoC Model Templates

Build complete models of SoC applications from scratch using a step-by-step approach, or start from predefined templates for hardware/software coprocessing, including templates for vision and communication applications.

Build models for SoC applications using predefined model templates.

Build models for SoC applications using predefined model templates.

Simulation with Recorded I/O Data

Record hardware peripheral sources such as RF signals or HDMI data, and then play back recordings as sources in simulations or hardware testing.

Play back recordings as a source for simulation.

Play back recordings as a source for simulation.

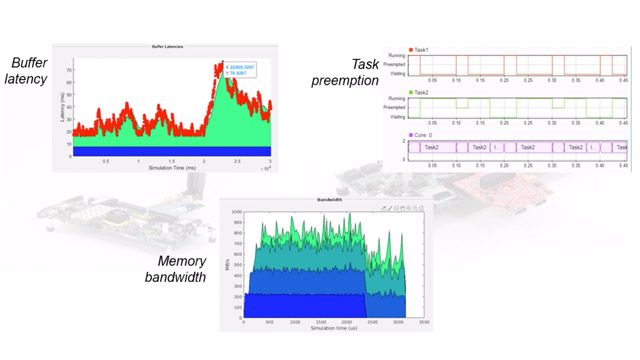

Analyze System Performance

Evaluate memory performance and task execution through simulation and perform on-device profiling.

Task Execution Analysis

Simulate the software system of SoC applications by running Simulink models that incorporate timer-driven and event-driven tasks. Visualize task execution timing, preemption, rate overruns, drops, and core utilization. Replay task executions in simulation using task timing data captured from previous simulations or directly from SoC devices.

Task Execution Analysis

The Task Execution report provides minimum, maximum, and typical timing of tasks as well as processor core usage statistics.

DDR Memory Performance

Analyze the memory bandwidth of system designs. Visualize simulation results and bandwidth metrics before deploying to the SoC device.

Simulate shared memory transactions and analyze performance.

Simulate shared memory transactions and analyze performance.

On-Device Memory Performance Monitoring and Task Execution Profiling

Measure memory performance and task execution on an SoC device, and then visualize and analyze these measurements to tune an SoC model to meet your system performance requirements. Interact in real time with SoC devices from MATLAB or from your Simulink test bench.

Measure task execution with code instrumentation profiler.

Measure task execution with code instrumentation profiler.

Deploy to SoC and FPGA Devices

Generate reference designs and RTL code for programmable logic. Generate C/C++ code for processor tasks. Deploy complete hardware/software applications to development boards.

Generate Embedded Software Project

When used with Embedded Coder®, SoC Blockset generates complete embedded software projects from models, including schedulers, software tasks, and I/O device driver integration.

Generate complete embedded software projects from models.

Generate complete embedded software projects from models.

Generate Reference Designs

Generate reference designs for programmable logic. Reference designs are configured networks of IP cores with data and control paths that may be connected to external memories and software applications. SoC Blockset connects to Xilinx and Intel design tools to produce bitstreams and then programs FPGA and SoC boards.

Generate reference designs for use with HDL algorithm IP generated using HDL Coder.

Generate reference designs for use with HDL algorithm IP generated using HDL Coder.

Target COTS Boards and Customer Boards

Implement hardware/software applications on supported hardware kits including Xilinx Zynq UltraScale+ MPSoCs and RFSoCs, Zynq-7000 SoCs and Intel Cyclone and Arria SoC FPGAs. Target boards using hardware support packages or build support for custom boards.

Explore gallery (4 images).

Featured Applications

Develop and deploy hardware/software applications for wireless communications, video and image processing, and controls.

Wireless Communications and Radar

Evaluate wireless communications and radar applications while accounting for the effects of processor, FPGA and DDR memory subsystems. Use predefined models of Xilinx Zynq UltraScale+ MPSoC and RFSoC devices to simulate hardware/software applications, then deploy to development boards and configure the data converters of RFSoC devices.

Use SoC Blockset to model, simulate, and deploy applications like range Doppler radars targeted to Xilinx UltraScale+ RFSoCs.

Video and Image Processing

Data-intensive video and image processing applications require designers to assess memory bandwidth requirements to ensure the application’s frame rate and frame size requirements are met. Use SoC Blockset to model external DDR memory and evaluate memory bandwidth dynamically with simulation. Then generate the fully-compliant AXI4 interface IP using HDL Coder™.

Video and Image Processing

Modeling a video application using SoC Blockset blocks.

Motor and Power Control

Implement real-time motor and power electronics control on multicore microcontrollers or SoCs by partitioning control tasks into different computing units. Simulate the ADC/PWM peripheral/inter-processor communication with plant and deploy to prototype systems.

Motor and Power Control

Partition algorithms between multiple processors.

Simulate and Deploy to Microcontrollers and Microprocessors

Develop software algorithms, incorporating effects of operating system and hardware components, then deploy to hardware.

Peripheral Modeling

Perform closed-loop simulations that include the behavior of peripherals such as ADCs and PWMs. Models can account for ADC-PWM synchronization and latency.

Use ADC, PWM and Task Manager blocks to model triggering behavior.

Use ADC, PWM and Task Manager blocks to model triggering behavior.

Multiprocessor Architecture Modeling

Partition algorithms between multiple processors to achieve design modularity and to improve performance. Model multiprocessor execution and inter-processor data communication.

IPC Channels simulate communication between bare-metal processes executing on separate processors.

IPC Channels simulate communication between bare-metal processes executing on separate processors.

Deploy to Microcontroller and Microprocessor Boards

Perform rapid prototyping on hardware boards by generating software applications with Embedded Coder. Perform on-device profiling to fine-tune applications.

Deploy software applications to the TI Delfino F28379D LaunchPad.

Deploy software applications to the TI Delfino F28379D LaunchPad.
