drawframe(49);
Write your drawframe function below
function drawframe(f)
persistent thetaList ratio pntHdl lineColHdl lineRowHdl Xpnt Ypnt XlineCol YlineCol XlineRow YlineRow lineMatHdl
if f==1||f==49
ax=gca;hold on
ax.Color=[102,117,149]./255;
ax.Position=[0,0,1,1];
ax.XColor='none';ax.XLim=[.4,8.6];ax.YTick=[];
ax.YColor='none';ax.YLim=[.4,8.6];ax.XTick=[];
ax.DataAspectRatio=[1,1,1];
ax.InnerPosition=[0,0,1,1];
% 绘制圆圈
t=linspace(0,2*pi,200)';
X=cos(t).*0.42;Y=sin(t).*0.42;
plot(X+ones(1,7),Y+(1:7),'Color',[1,1,1,.7],'LineWidth',2);
plot(X+(2:8),Y+ones(1,7).*8,'Color',[1,1,1,.7],'LineWidth',2);
% 绘制点和基础线
[Xpnt,Ypnt]=meshgrid(2:8,1:7);
pntHdl=plot(Xpnt+0.42,Ypnt,'Color',[1,1,1],'LineStyle','none',...
'Marker','o','MarkerFaceColor',[1,1,1]);
XlineCol=2:8;YlineCol=8.*ones(1,7);
XlineRow=ones(1,7);YlineRow=1:7;
lineColHdl=plot([XlineCol;Xpnt(1,:)]+0.42,[YlineCol;Ypnt(1,:)],...
'Color',[1,1,1,.5],'LineStyle','-.','Marker','o','MarkerFaceColor',[1,1,1]);
lineRowHdl=plot([XlineRow;Xpnt(:,end)']+0.42,[YlineRow;Ypnt(:,end)'],...
'Color',[1,1,1,.5],'LineStyle','-.','Marker','o','MarkerFaceColor',[1,1,1]);
% 绘制折线句柄
for m=1:7
for n=1:7
lineMatHdl{m,n}=plot(Xpnt(n,m),Ypnt(n,m),...
'Color',[1,1,1,.6],'LineWidth',1.2);
end
end
ratio=1:7;
thetaList=linspace(0,2*pi,49);
end
% 循环绘图
theta=thetaList(f).*ratio;
tX=cos(theta).*0.42;
tY=sin(theta).*0.42;
for j=1:7
pntHdl(j).XData=Xpnt(:,j)+tX(j);
pntHdl(j).YData=Ypnt(:,j)+tY(end:-1:1)';
lineColHdl(j).XData=[XlineCol(j);Xpnt(1,j)]+tX(j);
lineColHdl(j).YData=[YlineCol(j);Ypnt(1,j)]+[tY(j);tY(7)];
lineRowHdl(j).XData=[XlineRow(j);Xpnt(j,end)']+[tX(8-j);tX(7)];
lineRowHdl(j).YData=[YlineRow(j);Ypnt(j,end)']+tY(8-j);
end
%
ttList=thetaList(1:f);
for m=1:7
for n=1:7
lineMatHdl{m,n}.XData=cos(ttList.*m).*0.42+Xpnt(n,m);
lineMatHdl{m,n}.YData=sin(ttList.*(8-n)).*0.42+Ypnt(n,m);
end
end
end

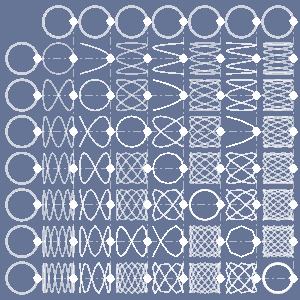

Animation
