The Wavelet Toolbox™ provides a number of functions for the estimation of an unknown function (signal or image) in noise. You can use these functions to denoise signals and as a method for nonparametric function estimation.
The most general 1D model for this is
s(n) = f(n) + σe(n)
where n = 0,1,2,...N1. The e(n) are Gaussian random variables distributed as N(0,1). The variance of the σe(n) is σ^{2}.
In practice, s(n) is often a discretetime signal with equal time steps corrupted by additive noise and you are attempting to recover that signal.
More generally, you can view s(n) as an Ndimensional random vector
$$\left(\begin{array}{cc}f(0)+\sigma e(0)& \\ f(1)+\sigma e(1)& \\ f(2)+\sigma e(2)& \\ .& \\ .& \\ .& \\ f(N1)+\sigma e(N1)& \end{array}\right)=\left(\begin{array}{cc}f(0)& \\ f(1)& \\ f(2)& \\ .& \\ .& \\ .& \\ f(N1)& \end{array}\right)+\left(\begin{array}{cc}\sigma e(0)& \\ \sigma e(1)& \\ \sigma e(2)& \\ .& \\ .& \\ .& \\ \sigma e(N1)& \end{array}\right)$$
In this general context, the relationship between denoising and regression is clear.
You can replace the Nby1 random vector by NbyM random matrices to obtain the problem of recovering an image corrupted by additive noise.
You can obtain a 1D example of this model with the following code.
load cuspamax; y = cuspamax+0.5*randn(size(cuspamax)); plot(y); hold on; plot(cuspamax,'r','linewidth',2); axis tight; legend('f(n)+\sigma e(n)','f(n)', 'Location', 'NorthWest');
For a broad class of functions (signals, images) that possess certain smoothness properties, wavelet techniques are optimal or near optimal for function recovery.
Specifically, the method is efficient for families of functions f that have only a few nonzero wavelet coefficients. These functions have a sparse wavelet representation. For example, a smooth function almost everywhere, with only a few abrupt changes, has such a property.
The general wavelet–based method for denoising and nonparametric function estimation is to transform the data into the wavelet domain, threshold the wavelet coefficients, and invert the transform.
You can summarize these steps as:
Decompose
Choose a wavelet and a level N. Compute the wavelet decomposition of the signal s down to level N.
Threshold detail coefficients
For each level from 1 to N, threshold the detail coefficients.
Reconstruct
Compute wavelet reconstruction using the original approximation coefficients of level N and the modified detail coefficients of levels from 1 to N.
The Wavelet
Toolbox supports a number of denoising methods. Four denoising methods are
implemented in the
thselect
. Each method corresponds
to a tptr
option in the command
thr = thselect(y,tptr)
which returns the threshold value.
Option  Denoising Method

'rigrsure'  Selection using principle of Stein's Unbiased Risk Estimate (SURE)
'sqtwolog'  Fixed form (universal) threshold equal to $$\sqrt{2\mathrm{ln}(N)}$$ with N the length of the signal.
'heursure'  Selection using a mixture of the first two options
'minimaxi'
Option 'rigrsure'
uses for the
soft threshold estimator a threshold selection rule based on Stein's
Unbiased Estimate of Risk (quadratic loss function). You get an estimate
of the risk for a particular threshold value t.
Minimizing the risks in t gives a selection of
the threshold value.
Option 'sqtwolog'
uses a fixed form threshold yielding minimax performance multiplied
by a small factor proportional to log(length(s)).
Option 'heursure'
is a mixture
of the two previous options. As a result, if the signaltonoise ratio
is very small, the SURE estimate is very noisy. So if
such a situation is detected, the fixed form threshold is used.
Option 'minimaxi'
uses a fixed
threshold chosen to yield minimax performance
for mean square error against an ideal procedure. The minimax principle
is used in statistics to design estimators. Since the denoised signal
can be assimilated to the estimator of the unknown regression function,
the minimax estimator is the option that realizes the minimum, over
a given set of functions, of the maximum mean square error.
The following example shows the denoising methods for a 1000by1 N(0,1) vector. The signal here is
$$f(n)+e(n)\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.05em}}e(n)~N(0,1)$$
with f(n) = 0.
rng default; sig = randn(1e3,1); thr_rigrsure = thselect(sig,'rigrsure') thr_univthresh = thselect(sig,'sqtwolog') thr_heursure = thselect(sig,'heursure') thr_minimaxi = thselect(sig,'minimaxi') histogram(sig); h = findobj(gca,'Type','patch'); set(h,'FaceColor',[0.7 0.7 0.7],'EdgeColor','w'); hold on; plot([thr_rigrsure thr_rigrsure], [0 300],'linewidth',2); plot([thr_univthresh thr_univthresh], [0 300],'r','linewidth',2); plot([thr_minimaxi thr_minimaxi], [0 300],'k','linewidth',2); plot([thr_rigrsure thr_rigrsure], [0 300],'linewidth',2); plot([thr_univthresh thr_univthresh], [0 300],'r','linewidth',2); plot([thr_minimaxi thr_minimaxi], [0 300],'k','linewidth',2);
For Stein's Unbiased Risk Estimate (SURE) and minimax thresholds, approximately 3% of coefficients are retained. In the case of the universal threshold, all values are rejected.
We know that the detail coefficients vector is the superposition of the coefficients of f and the coefficients of e, and that the decomposition of e leads to detail coefficients, which are standard Gaussian white noises.
After you use thselect
to
determine a threshold, you can threshold each level of a . This second
step can be done using wthcoef
, directly handling
the wavelet decomposition structure of the original signal s.
Hard and soft thresholding are examples of shrinkage rules. After you have determined your threshold, you have to decide how to apply that threshold to your data.
The simplest scheme is hard thresholding. Let T denote the threshold and x your data. The hard thresholding is
$$\eta (x)=\{\begin{array}{ll}x\hfill & \leftx\right\text{\hspace{0.05em}}\text{\hspace{0.05em}}\ge T\hfill \\ 0\hfill & \leftx\right\text{\hspace{0.05em}}\text{\hspace{0.05em}}<T\hfill \end{array}$$
The soft thresholding is
$$\eta (x)=\{\begin{array}{ll}xT\hfill & x>T\hfill \\ 0\hfill & \leftx\right\le T\hfill \\ x+T\hfill & x<T\hfill \end{array}$$
You can apply your threshold using the hard or soft rule with wthresh
.
y = linspace(1,1,100); thr = 0.4; ythard = wthresh(y,'h',thr); ytsoft = wthresh(y,'s',thr); subplot(131); plot(y); title('Original Data'); subplot(132); plot(ythard,'*'); title('Hard Thresholding'); subplot(133); plot(ytsoft,'*'); title('Soft Thresholding');
Usually in practice the basic model cannot be used directly. We examine here the
options available to deal with model deviations in the main denoising function
wdenoise
.
The simplest use of wdenoise
is
sd = wdenoise(s)
sd
of the original signal s
obtained
by using default settings for parameters including wavelet, denoising method, and
soft or hard thresholding. Any of the default settings can be
changed:sd = wdenoise(s,n,'DenoisingMethod',tptr,'Wavelet',wav,... 'ThresholdRule',sorh,'NoiseEstimate',scal)
sd
of the original signal
s
obtained using the tptr
denoising
method. Other parameters needed are sorh
,
scal
, and wname
. The parameter
sorh
specifies the thresholding of details coefficients of
the decomposition at level n
of s
by the
wavelet called wav
. The remaining parameter
scal
is to be specified. It corresponds to the method of
estimating variance of noise in the data.
Option  Noise Estimate Method

'LevelIndependent'

'LevelDependent'

For a more general procedure, the wdencmp
function
performs wavelet coefficients thresholding for both denoising and
compression purposes, while directly handling 1D and 2D data. It
allows you to define your own thresholding strategy selecting in
xd = wdencmp(opt,x,wav,n,thr,sorh,keepapp);
where
opt = 'gbl'
and thr
is
a positive real number for uniform threshold.
opt = 'lvd'
and thr
is
a vector for level dependent threshold.
keepapp = 1
to keep approximation
coefficients, as previously and
keepapp = 0
to allow approximation
coefficients thresholding.
x
is the signal to be denoised
and wav
, n
, sorh
are
the same as above.
We begin the examples of 1D denoising methods with the first example credited to Donoho and Johnstone.
Blocks Signal Thresholding
First set a signaltonoise ratio (SNR) and set a random seed.
sqrt_snr = 4; init = 2055615866;
Generate an original signal xref
and a noisy version x
by adding standard Gaussian white noise. Plot both signals.

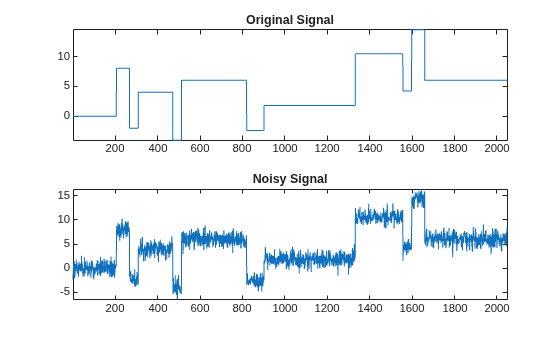

[xref,x] = wnoise(1,11,sqrt_snr,init); subplot(2,1,1) plot(xref) axis tight title('Original Signal') subplot(2,1,2) plot(x) axis tight title('Noisy Signal')
Denoise the noisy signal using soft heuristic SURE thresholding on detail coefficients obtained from the wavelet decomposition of x
using the sym8
wavelet. Use the default settings of wdenoise
for the remaining parameters. Compare with the original signal.

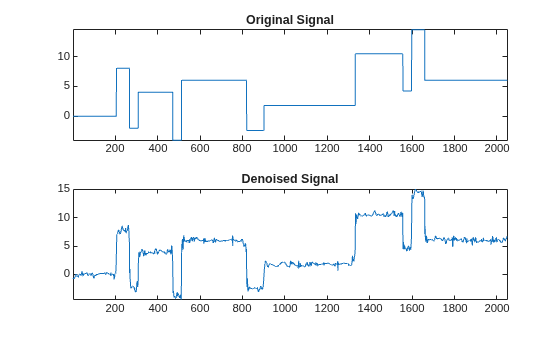

xd = wdenoise(x,'Wavelet','sym8','DenoisingMethod','SURE','ThresholdRule','Soft'); figure subplot(2,1,1) plot(xref) axis tight title('Original Signal') subplot(2,1,2) plot(xd) axis tight title('Denoised Signal')
Since only a small number of large coefficients characterize the original signal, the method performs very well.
Electrical Signal Denoising
When you suspect a nonwhite noise, thresholds must be rescaled by a leveldependent estimation of the level noise. As a second example, let us try the method on the highly perturbed part of an electrical signal.
First load the electrical signal and select a segment from it. Plot the segment.

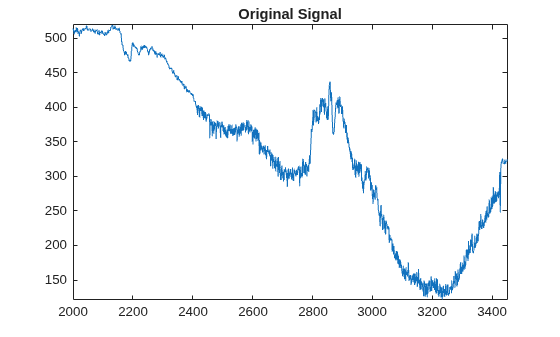

load leleccum indx = 2000:3450; x = leleccum(indx); figure plot(indx,x) axis tight title('Original Signal')
Denoise the signal using the db3
wavelet and a threelevel wavelet decomposition and soft fixed form thresholding. To deal with the nonwhite noise, use leveldependent noise size estimation. Compare with the original signal.

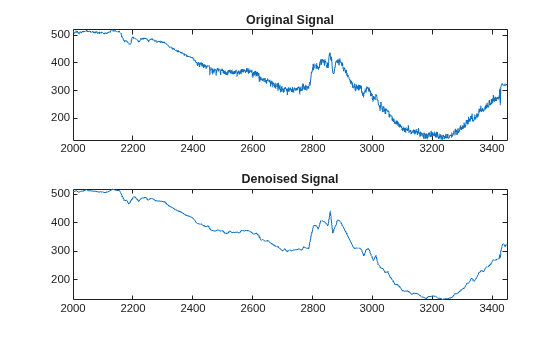

xd = wdenoise(x,3,'Wavelet','db3',... 'DenoisingMethod','UniversalThreshold',... 'ThresholdRule','Soft',... 'NoiseEstimate','LevelDependent'); figure subplot(2,1,1) plot(indx,x) axis tight title('Original Signal') subplot(2,1,2) plot(indx,xd) axis tight title('Denoised Signal')
The result is quite good in spite of the time heterogeneity of the nature of the noise after and before the beginning of the sensor failure around time 2410.
The denoising method described for the 1D case applies also to images and applies well to geometrical images. A direct translation of the 1D model is
where is a white Gaussian noise with unit variance.
The 2D denoising procedure has the same three steps and uses 2D wavelet tools instead of 1D tools. For the threshold selection, prod(size(s))
is used instead of length(s)
if the fixed form threshold is used.
Note that except for the "automatic" 1D denoising case, 2D denoising and compression are performed using wdencmp
. To illustrate 2D denoising, load an image and create a noisy version of it. For purposes of reproducibility, set the random seed.
init = 2055615866;
rng(init);
load woman
img = X;
imgNoisy = img + 15*randn(size(img));
Use ddencmp
to find the denoising values. In this case, fixed form threshold is used with estimation of level noise, thresholding is soft and the approximation coefficients are kept.
[thr,sorh,keepapp] = ddencmp('den','wv',imgNoisy); thr
thr = 107.9838
thr
is equal to estimated_sigma*sqrt(log(prod(size(img))))
.
Denoise the noisy image using the global threshold option. Display the results.

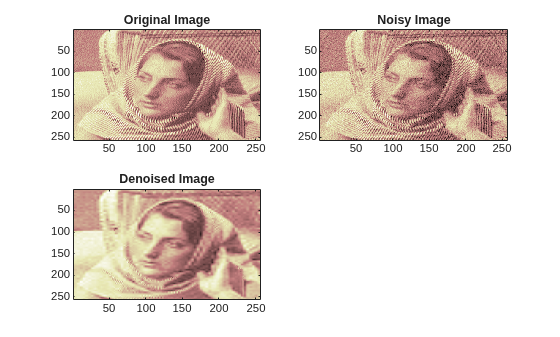

imgDenoised = wdencmp('gbl',imgNoisy,'sym4',2,thr,sorh,keepapp); figure colormap(pink(255)) sm = size(map,1); subplot(2,2,1) image(wcodemat(img,sm)) title('Original Image') subplot(2,2,2) image(wcodemat(imgNoisy,sm)) title('Noisy Image') subplot(2,2,3) image(wcodemat(imgDenoised,sm)) title('Denoised Image')
The denoised image compares well with the original image.
The idea is to define level by level timedependent thresholds, and then increase the capability of the denoising strategies to handle nonstationary variance noise models.
More precisely, the model assumes (as previously) that the observation is equal to the interesting signal superimposed on noise
But the noise variance can vary with time. There are several different variance values on several time intervals. The values as well as the intervals are unknown.
Let us focus on the problem of estimating the change points or equivalently the intervals. The algorithm used is based on an original work of Marc Lavielle about detection of change points using dynamic programming (see [Lav99] in References).
Let us generate a signal from a fixeddesign regression model with two noise variance change points located at positions 200 and 600. For purposes of reproducibility, set the random seed.
init = 2055615866;
rng(init);
x = wnoise(1,10);
bb = randn(1,length(x));
cp1 = 200;
cp2 = 600;
x = x+[bb(1:cp1),bb(cp1+1:cp2)/4,bb(cp2+1:end)];

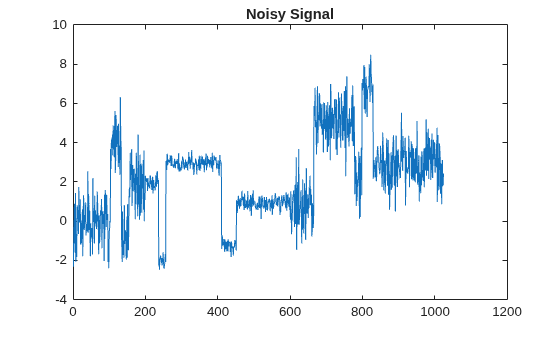

plot(x)
title('Noisy Signal')
The aim of this example is to recover the two change points from the signal x
.
Step 1. Recover a noisy signal by suppressing an approximation. First perform a singlelevel wavelet decomposition using the db3
wavelet. Then reconstruct the detail at level 1.

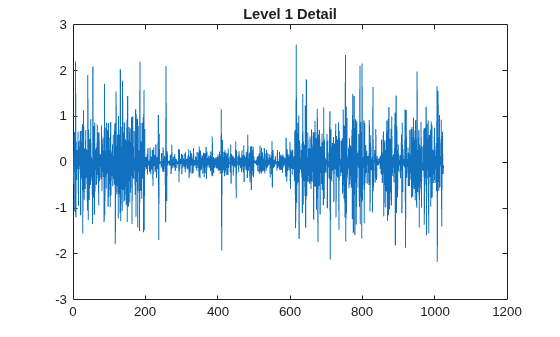

wname = 'db3'; lev = 1; [c,l] = wavedec(x,lev,wname); det = wrcoef('d',c,l,wname,1); figure plot(det) title('Level 1 Detail')
The reconstructed detail at level 1 recovered at this stage is almost signal free. It captures the main features of the noise from a change points detection viewpoint if the interesting part of the signal has a sparse wavelet representation. To remove almost all the signal, we replace the biggest values by the mean.
Step 2. To remove almost all the signal, replace 2% of biggest values by the mean.
x = sort(abs(det)); v2p100 = x(fix(length(x)*0.98)); ind = find(abs(det)>v2p100); det(ind) = mean(det);
Step 3. Use the wvarchg
function to estimate the change points with the following parameters:
The minimum delay between two change points is d = 10.
The maximum number of change points is 5.
[cp_est,kopt,t_est] = wvarchg(det,5)
cp_est = 1×2
259 611
kopt = 2
t_est = 6×6
1024 0 0 0 0 0
612 1024 0 0 0 0
259 611 1024 0 0 0
198 259 611 1024 0 0
198 235 259 611 1024 0
198 235 260 346 611 1024
Two change points and three intervals are proposed. Since the three interval variances for the noise are very different the optimization program detects easily the correct structure. The estimated change points are close to the true change points: 200 and 600.
Step 4. (Optional) Replace the estimated change points.
For 2 i
6, t_est(i,1:i1)
contains the i1
instants of the variance change points, and since kopt
is the proposed number of change points, then
cp_est = t_est(kopt+1,1:kopt);
You can replace the estimated change points by computing:
for k=1:5 cp_New = t_est(k+1,1:k) end
cp_New = 612
cp_New = 1×2
259 611
cp_New = 1×3
198 259 611
cp_New = 1×4
198 235 259 611
cp_New = 1×5
198 235 260 346 611
The following measurements and settings are useful for analyzing wavelet signals and images:
M S E — Mean square error (MSE) is the squared norm of the difference between the data and the signal or image approximation divided by the number of elements.
Max Error — Maximum absolute squared deviation in the signal or image approximation.
L2Norm Ratio — Ratio of the squared L2norm of the signal or image approximation to the input signal or image. For images, the image is reshaped as a column vector before taking the L2norm
P S N R — Peak signaltonoise ratio (PSNR) in decibels. PSNR is meaningful only for data encoded in terms of bits per sample or bits per pixel.
B P P — Bits per pixel ratio (BPP), which is the compression ratio (Comp. Ratio) multiplied by 8, assuming one byte per pixel (8 bits).
Comp Ratio — Compression ratio, which is the number of elements in the compressed image divided by the number of elements in the original image expressed as a percentage.
