To Video Display

Display images or video frames

•

Libraries:
Computer Vision Toolbox / Sinks

Description

The To Video Display block displays RGB or YCbCr formatted images and video frames. The display created by the block is lightweight and high performance, capable of displaying high definition video at high frame rates.

Examples

Read, Convert, and View Video from File

Read RGB video frames from a multimedia file, convert them to intensity frames, and display them using the To Video Display block.

• Open Model

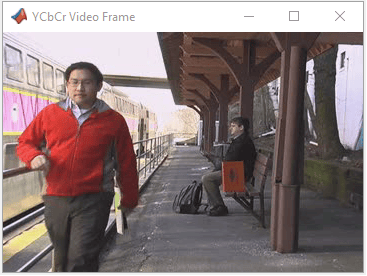

Read and Display YCbCr Video from File

Read video frames from a multimedia file as their luma and chrominance components, and then display them.

• Open Model

Ports

Input

Image — Input image

matrix | array

Input image or video, specified as an M-by-N matrix, M-by-N-by-T array, or M-by-N-by-C-by-T array. If the input is a 3-D array, the third dimension is the number of frames in the video. If the input is a 4-D array, the third dimension is the number of color channels, and the fourth dimension is the number of frames in the video.

Dependencies

To enable this port, set the Input Color Format parameter to RGB, and set Image signal to One multidimensional signal.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

R — Red color component of image

matrix | array

Red color component of the input image or video, specified as an M-by-N matrix or M-by-N-by-T array. If the input is a 3-D array, the third dimension is the number of frames in the video.

Note

Inputs to the R, G, and B ports must have the same dimensions and data type.

Dependencies

To enable this port, set the Input Color Format parameter to RGB, and set Image signal to Separate color signals.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

G — Green color component of image

matrix | array

Green color component of the input image or video, specified as an M-by-N matrix or M-by-N-by-T array. If the input is a 3-D array, the third dimension is the number of frames in the video.

Note

Inputs to the R, G, and B ports must have the same dimensions and data type.

Dependencies

To enable this port, set the Input Color Format parameter to RGB, and set Image signal to Separate color signals.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

B — Blue color component of image

matrix | array

Blue color component of the input image or video, specified as an M-by-N matrix or M-by-N-by-T array. If the input is a 3-D array, the third dimension is the number of frames in the video.

Note

Inputs to the R, G, and B ports must have the same dimensions and data type.

Dependencies

To enable this port, set the Input Color Format parameter to RGB, and set Image signal to Separate color signals.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

Y — Luma component of image

matrix | array

Luma component of the input image or video, specified as an M-by-N matrix or M-by-N-by-T array. If the input is a 3-D array, the third dimension is the number of frames in the video.

Dependencies

To enable this port, set the Input Color Format parameter to YCbCr 4:2:2.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

Cb — Blue-difference chroma component of image

matrix | array

Blue-difference chroma component of the input image or video, specified as an M-by-N/2 matrix or M-by-N/2-by-T array. If the input is a 3-D array, the third dimension is the number of frames in the video.

Dependencies

To enable this port, set the Input Color Format parameter to YCbCr 4:2:2.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

Cr — Red-difference chroma component of image

matrix | array

Red-difference chroma component of the input image or video, specified as an M-by-N/2 matrix or M-by-N/2-by-T array. If the input is a 3-D array, the third dimension is the number of frames in the video.

Dependencies

To enable this port, set the Input Color Format parameter to YCbCr 4:2:2.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

Parameters

View

Window size — Display window size

Normal (default) | Full-screen (Esc to exit) | True size (1:1)

Display the video stream in various window sizes:

• Normal — Modify the display size at the start of the simulation.

• Full-screen (Esc to exit) — Display the video stream in a full-screen window. To exit the full-screen view, press Esc.

• True size (1:1) — Display the input image at a one-to-one pixel ratio, at the start of the simulation.

Open at Start of Simulation — Open window at start of simulation

on (default) | off

To set the Video Display window to open automatically and display video frames when the simulation begins, select Open at Start of Simulation. If you clear this parameter, the block is not included during runtime, and the simulation runs in Accelerator Mode (Simulink).

Settings

Input Color Format — Input color format

RGB (default) | YCbCr 4:2:2

Specify the color format of the input image:

• RGB — Specify the input colorspace as RGB. You can select whether to input the image as a single signal or as individual color signals using the Image signal parameter.

• YCbCr 4:2:2— Specify the input colorspace as YCbCr. You must input the image as separate signals to the three input ports, Y, Cb and Cr.

Image signal — Configure input port

One multidimensional signal (default) | Separate color signals

Specify whether the block accepts an RGB color input as a single signal or as separate signals for each color channel..

• One multidimensional signal — The block accepts RGB input as a single array through one port.

• Separate color signals — The block accepts RGB input as three separate matrices or arrays, one for each color channel, to the R, G, and B ports.

Dependencies

To enable this parameter, set the Input Color Format parameter to RGB.

Block Characteristics

Data Types	Boolean | double | integer | single
Multidimensional Signals	yes
Variable-Size Signals	yes

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Note

This block supports code generation for platforms that have file I/O available. You cannot use this block with Simulink^® Desktop Real-Time™ software, because that product does not support file I/O.

The generated code for this block relies on prebuilt library files. You can run this code outside the MATLAB^® environment, or redeploy it, but be sure to account for these extra library files when doing so. The packNGo function creates a single ZIP file containing all of the pieces required to run or rebuild this code. See packNGo (Simulink Coder) for more information.

To know the code generation process of Simulink blocks, see Simulink Coder. To run an executable file that was generated from a model containing this block, you may need to add precompiled shared library files to your system path. See Simulink Shared Library Dependencies and Accelerating Simulink Models for details.

Usage notes and limitations:

• Host computer only. Excludes Simulink Desktop Real-Time code generation.

• The executable generated from this block relies on prebuilt dynamic library files (.dll files) included with MATLAB. Use the packNGo function to package the code generated from this block and all the relevant files in a compressed ZIP file. Using this ZIP file, you can relocate, unpack, and rebuild your project in another development environment where MATLAB is not installed. For more details, see Code Generation, GPU, and Third-Party Support.

Version History

Introduced before R2006a
