Detect and estimate pose for AprilTag in image



[id,loc] = readAprilTag(I) detects AprilTags in the input image I and returns the locations and IDs associated with the tags.

[id,loc] = readAprilTag(I,tagFamily) detects AprilTags of only the specified families, tagFamily.

[___,pose] = readAprilTag(___,intrinsics,tagSize) returns the poses of the tags with respect to the specified camera intrinsic parameters, intrinsics and size of the tags tagSize in addition to any combination of arguments in previous syntaxes.

[___,detectedFamily] = readAprilTag(___) returns the recognized AprilTag families, detectedFamily.


collapse all

Read an image into the workspace.

I = imread("aprilTagsMulti.jpg");

Specify the AprilTag formats to search in the image.

tagFamily = ["tag36h11","tagCircle21h7","tagCircle49h12","tagCustom48h12","tagStandard41h12"];

Detect tags and tag locations in the image, and read the tag IDs.

[id,loc,detectedFamily] = readAprilTag(I,tagFamily);

for idx = 1:length(id)
        % Display the ID and tag family
        disp("Detected Tag ID, Family: " + id(idx) + ", " ...
            + detectedFamily{idx});
        % Insert markers to indicate the locations
        markerRadius = 8;
        numCorners = size(loc,1);
        markerPosition = [loc(:,:,idx),repmat(markerRadius,numCorners,1)];
        I = insertShape(I,"FilledCircle",markerPosition,"Color","red","Opacity",1);
Detected Tag ID, Family: 30, tag36h11
Detected Tag ID, Family: 32, tagCircle21h7
Detected Tag ID, Family: 98, tagStandard41h12
Detected Tag ID, Family: 195, tagCustom48h12
Detected Tag ID, Family: 884, tagCircle49h12

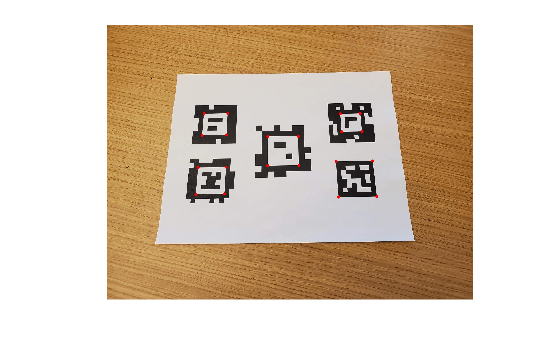

Display the image with markers to indicate the corner locations of the detected tags.


Figure contains an axes. The axes contains an object of type image.

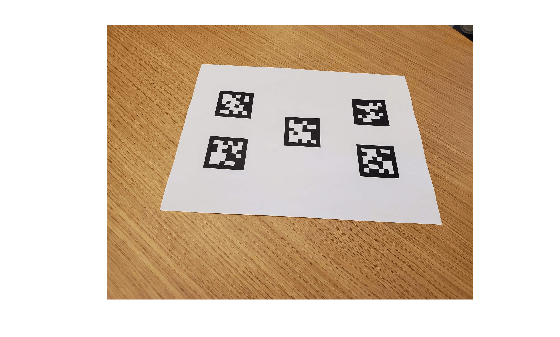

Read an image that contains AprilTags into the workspace. Display the image.

I = imread("aprilTag36h11.jpg");

Load the camera intrinsic parameters.

data = load("camIntrinsicsAprilTag.mat");
intrinsics = data.intrinsics;

Specify the tag size in meters.

tagSize = 0.04;

Undistort the input image using the camera intrinsic parameters.

I = undistortImage(I,intrinsics,"OutputView","same");

Detect a specific family of AprilTags and estimate the tag poses.

[id,loc,pose] = readAprilTag(I,"tag36h11",intrinsics,tagSize);

Set the origin for the axes vectors and for the tag frames.

worldPoints = [0 0 0; tagSize/2 0 0; 0 tagSize/2 0; 0 0 tagSize/2];

Add the tag frames and IDs to the image.

for i = 1:length(pose)
    % Get image coordinates for axes.
    imagePoints = worldToImage(intrinsics,pose(i).Rotation, ...

    % Draw colored axes.
    I = insertShape(I,"Line",[imagePoints(1,:) imagePoints(2,:); ...
        imagePoints(1,:) imagePoints(3,:); imagePoints(1,:) imagePoints(4,:)], ...

    I = insertText(I,loc(1,:,i),id(i),"BoxOpacity",1,"FontSize",25);

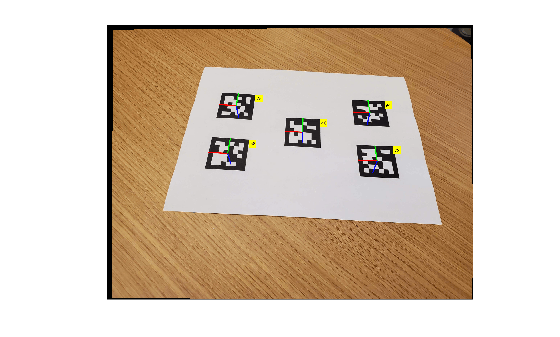

Display the annotated image.


Input Arguments

collapse all

Input image, specified as an M-by-N-by-3 truecolor image or an M-by-N grayscale image.

AprilTag families, specified as one or more of the valid AprilTag families listed in this table. Specifying a family can reduce the run time of the function by restricting the search.

AprilTag Family

Data Types: char | string | cell

Camera intrinsic parameters, specified as a cameraIntrinsics object.

Size of the tags in world units (such as millimeters), specified as a positive scalar. The function defines the size of the tags as the length between two adjacent corner outer black edges.

Output Arguments

collapse all

Tag IDs, returned a vector of positive integers.

Locations of tags in image, returned as a 4-by-2-by-N array. The array contains the (x,y) locations for each of the four corners for N tags.

Poses of tags with respect to the camera, returned as an array of rigid3d objects. Each object encapsulates the 3-D rigid transformation of a tag in the same world units as the tagSize input argument. The origin of each tag frame is located at the center of the corresponding tag.

Detected tag families, returned as a vector of strings.


  • For applications that require real-time performance, while also minimizing false-positive detections, consider using the "tag36h11" family tag.

  • For applications that require a faster detection time as opposed to the number of supported IDs, use the "tagStandard41h12" family tag.

  • For pregenerated tags for all supported tag families, see Pregenerated AprilTag Images on GitHub.

Introduced in R2020b
