boxLabelDatastore

Datastore for bounding box label data

Description

The boxLabelDatastore object creates a datastore for bounding box label data. Use this object to read labeled bounding box data for object detection.

To read bounding box label data from a boxLabelDatastore object, use the read function. This object function returns a cell array with either two or three columns. You can create a datastore that combines the boxLabelDatastore object with an ImageDatastore object using the combine object function. Use the combined datastore to train object detectors using the training functions such as trainYOLOv4ObjectDetector and trainSSDObjectDetector. To modify the ReadSize property, you can use dot notation.

Creation

Syntax

blds = boxLabelDatastore(tbl1,...,tbln)

blds = boxLabelDatastore(tbl1,...,tbln,bSet)

Description

blds = boxLabelDatastore(tbl1,...,tbln) creates a boxLabelDatastore object from one or more tables containing labeled bounding box data.

blds = boxLabelDatastore(tbl1,...,tbln,bSet) creates a boxLabelDatastore object for block-based labeled bounding box data. The blocks have resolution level, block size, and block positions specified by the block locations in bSet.

Input Arguments

tbl1,...,tbln — Labeled bounding box data (as separate arguments)

table with one or more columns

Labeled bounding box data, specified as a table with one or more columns. Each table corresponds to a set of labels. The bounding boxes can be axis-aligned rectangles, rotated rectangles, or cuboids. The table below describes the format of the bounding boxes.

Bounding Box	Description
Axis-aligned rectangle	Defined in spatial coordinates as an M-by-4 numeric matrix with rows of the form [x y w h], where: M is the number of axis-aligned rectangles. x and y specify the upper-left corner of the rectangle. w specifies the width of the rectangle, which is its length along the x-axis. h specifies the height of the rectangle, which is its length along the y-axis.
Rotated rectangle	Defined in spatial coordinates as an M-by-5 numeric matrix with rows of the form [xctr yctr xlen ylen yaw], where: M is the number of rotated rectangles. xctr and yctr specify the center of the rectangle. xlen specifies the width of the rectangle, which is its length along the x-axis before rotation. ylen specifies the height of the rectangle, which is its length along the y-axis before rotation. yaw specifies the rotation angle in degrees. The rotation is clockwise-positive around the center of the bounding box.
Cuboid	Defined in spatial coordinates as an M-by-9 numeric matrix with rows of the form [xctr yctr zctr xlen ylen zlen xrot yrot zrot], where: M is the number of cuboids. xctr, yctr, and zctr specify the center of the cuboid. xlen, ylen, and zlen specify the length of the cuboid along the x-axis, y-axis, and z-axis, respectively, before rotation. xrot, yrot, and zrot specify the rotation angles of the cuboid around the x-axis, y-axis, and z-axis, respectively. The xrot, yrot, and zrot rotation angles are in degrees about the cuboid center. Each rotation is clockwise-positive with respect to the positive direction of the associated spatial axis. The function computes rotation matrices assuming ZYX order Euler angles [xrot yrot zrot]. The figure shows how these values determine the position of a cuboid.
Projected Cuboid	M-by-8 vector of the form [x1, y1, w1, h1, x2, y2, w2, h2], where: M is the number of labels in the frame. x1, y1 specifies the x,y coordinates for the upper-left location of the front-face of the projected cuboid w1 specifies the width for the front-face of the projected cuboid. h1 specifies the height for the front-face of the projected cuboid. x2, y2 specifies the x,y coordinates for the upper-left location of the back-face of the projected cuboid. w2 specifies the width for the back-face of the projected cuboid. h2 specifies the height for the back-face of the projected cuboid. The figure shows how these values determine the position of a cuboid.

• A table with one or more columns:

  All columns contain bounding boxes. Each column must be a cell vector containing M-by-N matrices. M is the number of images and N represents a single object class, such as stopSign, carRear, or carFront.



• A table with two columns.

  The first column contains bounding boxes. The second column must be a cell vector that contains the label names corresponding to each bounding box. Each element in the cell vector must be an M-by-1 categorical or string vector, where M represents the number of labels.



To create a ground truth table, use the Image Labeler or Video Labeler app. To create a table of training data from the generated ground truth, use the objectDetectorTrainingData function.

Data Types: table

bSet — Block locations

blockLocationSet object

Block locations, specified as a blockLocationSet object. You can create this object by using the balanceBoxLabels function.

Properties

LabelData — Labeled bounding box data

N-by-2 cell array

This property is read-only.

Labeled bounding box data, specified as an N-by-2 cell matrix of N images. The first column must be a cell vector that contains bounding boxes. Each element in the cell contains a vector representing either an axis-aligned rectangle, rotated rectangle, or a cuboid. The second column must be a cell vector that contains the label names corresponding to each bounding box. An M-by-1 categorical vector represents each label name.

Bounding Box Descriptions

Bounding Box	Cell Vector	Format
Axis-aligned rectangle	M-by-4 for M bounding boxes	[x,y,width,height]
Rotated rectangle	M-by-5 for M bounding boxes	[xcenter,ycenter,width,height,yaw]
Cuboid	M-by-9 for M bounding boxes	[xcenter,ycenter,zcenter,width,height,depth,rx,ry,rz]
Projected cuboid	M-by-8 vector for M bounding boxes	[x1,y1,w1,h1,x2,y2,w2,h2]

ReadSize — Maximum number of rows of label data

1 (default) | positive integer

Maximum number of rows of label data to read in each call to the read function, specified as a positive integer.

Object Functions

combine	Combine data from multiple datastores
countEachLabel	Count occurrence of pixel or box labels
hasdata	Determine if data is available to read from label datastore
numpartitions	Number of partitions for label datastore
partition	Partition label datastore
preview	Read first row of data in datastore
progress	Percentage of data read from a datastore
read	Read data from label datastore
readall	Read all data in label datastore
reset	Reset label datastore to initial state
shuffle	Return shuffled version of label datastore
subset	Create subset of datastore or FileSet
transform	Transform datastore
isPartitionable	Determine whether datastore is partitionable
isShuffleable	Determine whether datastore is shuffleable

Examples

Estimate Anchor Boxes for YOLO v2 Object Detection Network

This example shows how to estimate anchor boxes using a table containing the training data. The first column contains the training images and the remaining columns contain the labeled bounding boxes.

data = load("vehicleTrainingData.mat");
trainingData = data.vehicleTrainingData;

Create a boxLabelDatastore object using the labeled bounding boxes from the training data.

blds = boxLabelDatastore(trainingData(:,2:end));

Specify the class names using the labels from the training data.

classes = trainingData.Properties.VariableNames(2:end);

Estimate the anchor boxes using the boxLabelDatastore object.

numAnchors = 5;
anchorBoxes = estimateAnchorBoxes(blds,numAnchors);

Specify the image size.

inputImageSize = [128 228 3];

Use a pretrained ResNet-50 network as a base network for the YOLO v2 network.

baseNet = imagePretrainedNetwork("resnet50");

Specify the network layer to use for feature extraction. You can use the analyzeNetwork function to see all the layer names in a network.

featureLayer = "activation_49_relu";

Create the YOLO v2 object detection network.

detector = yolov2ObjectDetector(baseNet,classes,anchorBoxes, ...
    DetectionNetworkSource=featureLayer)

detector =
  yolov2ObjectDetector with properties:

                  Network: [1×1 dlnetwork]
                InputSize: [224 224 3]
        TrainingImageSize: [224 224]
              AnchorBoxes: [5×2 double]
               ClassNames: vehicle
    ReorganizeLayerSource: ''
              LossFactors: [5 1 1 1]
                ModelName: ''

Visualize the network using the network analyzer.

analyzeNetwork(detector.Network)

Combine Box Label Datastore and Image Label Datastore

Load a table of vehicle class training data that contains bounding boxes with labels.

data = load('vehicleTrainingData.mat');
trainingData = data.vehicleTrainingData;

Add the fullpath to the local vehicle data folder.

dataDir = fullfile(toolboxdir('vision'),'visiondata');
trainingData.imageFilename = fullfile(dataDir,trainingData.imageFilename);

Create an imageDatastore object using the file names in the table.

imds = imageDatastore(trainingData.imageFilename);

Create a boxLabelDatastore object using the table with label data.

blds = boxLabelDatastore(trainingData(:,2:end));

Combine the imageDatastore and boxLabelDatastore objects.

cds = combine(imds,blds);

Read the data for training. Use the read object function to return images, bounding boxes, and labels.

read(cds)

ans=1×3 cell array
    {128x228x3 uint8}    {[126 78 20 16]}    {[vehicle]}

Combine Multiple Class Ground Truth Data

Load a table of vehicle class training data that contains bounding boxes with labels.

load('vehicleTrainingData.mat');

Load a table of stop signs and cars class training data that contains bounding boxes with labels.

load('stopSignsAndCars.mat');

Create ground truth tables from the training data.

vehiclesTbl  = vehicleTrainingData(:,2:end);
stopSignsTbl = stopSignsAndCars(:,2:end);

Create a boxLabelDatastore object using two tables: one with vehicle label data and the other with the stop signs and cars label data.

blds = boxLabelDatastore(vehiclesTbl,stopSignsTbl);

Create an imageDatastore object using the file names in the training data tables.

dataDir = fullfile(toolboxdir('vision'),'visiondata');
vehicleFiles = fullfile(dataDir,vehicleTrainingData.imageFilename);
stopSignFiles = fullfile(dataDir,stopSignsAndCars.imageFilename);
imds = imageDatastore([vehicleFiles;stopSignFiles]);

Combine the imageDatastore and boxLabelDatastore objects.

cds = combine(imds,blds);

Read the data for training. Use the read object function to return images, bounding boxes, and labels.

read(cds)

ans=1×3 cell array
    {128x228x3 uint8}    {[126 78 20 16]}    {[vehicle]}

Sample Block Sets to Use in Blocked Image Object Detection

Load box labels data that contains boxes and labels for one image. The height and width of each box is 20-by-20 pixels.

d = load("balanceBoxLabelsData.mat");
boxLabels = d.BoxLabels;

Create a blocked image of size 500-by-500 pixels.

blockedImages = blockedImage(zeros([500 500]));

Choose the images size of each observation.

blockSize = [50 50];

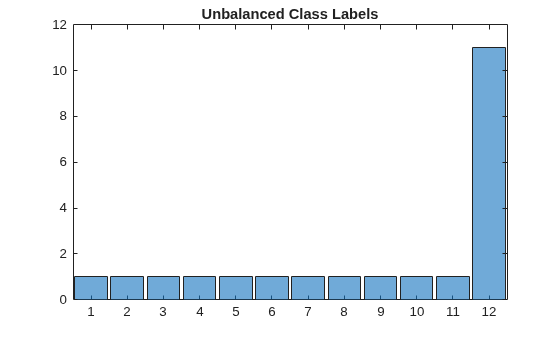

Visualize using a histogram to identify any class imbalance in the box labels.

blds = boxLabelDatastore(boxLabels);
datasetCount = countEachLabel(blds);
figure
unbalancedLabels = datasetCount.Label;
unbalancedCount  = datasetCount.Count;
h1 = histogram(Categories=unbalancedLabels,BinCounts=unbalancedCount);
title("Unbalanced Class Labels")

Measure the distribution of box labels. If the coefficient of variation is more than 1, then there is class imbalance.

cvBefore = std(datasetCount.Count)/mean(datasetCount.Count)

cvBefore =
1.5746

Choose a heuristic value for number of observations by finding the mean of the counts of each class, multiplied by the number of classes.

numClasses = height(datasetCount);
numObservations = mean(datasetCount.Count) * numClasses;

Control the amount a box can be cut using OverlapThreshold. Using a lower threshold value will cut objects more at the border of a block. Increase this value to reduce the amount an object can be clipped at the border, at the expense of a less balanced box labels.

ThresholdValue = 0.5;

Balance boxLabels using the balanceBoxLabels function.

locationSet = balanceBoxLabels(boxLabels,blockedImages,blockSize, ...
        numObservations,OverlapThreshold=ThresholdValue);

[==================================================] 100%
Elaps[==================================================] 100%
Elapsed time: 00:00:00
Estimated time remaining: 00:00:00
Balancing box labels complete.

Count the labels that are contained within the image blocks.

bldsBalanced = boxLabelDatastore(boxLabels,locationSet);
balancedDatasetCount = countEachLabel(bldsBalanced);

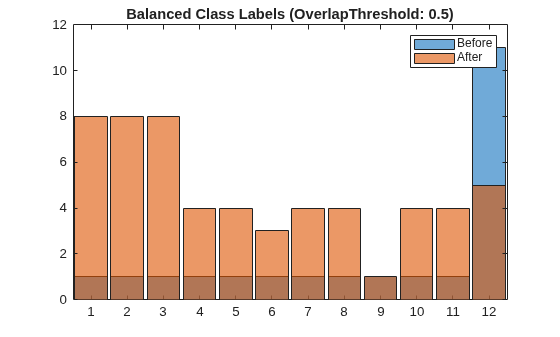

Overlay another histogram against the original label count to see if the box labels are balanced. If the labels appear to be not balanced by looking at the histograms, increase the value for numObservations.

hold on
balancedLabels = balancedDatasetCount.Label;
balancedCount  = balancedDatasetCount.Count;
h2 = histogram(Categories=balancedLabels,BinCounts=balancedCount);
title(h2.Parent,"Balanced Class Labels (OverlapThreshold: " + ThresholdValue + ")" )
legend(h2.Parent,["Before" "After"])

Measure the distribution of the new balanced box labels.

cvAfter = std(balancedCount)/mean(balancedCount)

cvAfter =
0.4588

Version History

Introduced in R2019b

R2022b: Project cuboids from 3-D world coordinates to 2-D image coordinates

Updated to support 3-D projected cuboid labels.
