violinplot

Plot tire data in tiled violin plot

Since R2026a

Syntax

violinplot(obj)

violinplot(___,Name=Value)

Description

Add-On Required: This feature requires the Extended Tire Features for Vehicle Dynamics Blockset add-on.

violinplot(obj) plots a tireData object in a tiled violin plot.

violinplot(___,Name=Value) specifies additional options using one or more name-value arguments.

Examples

Create Violin Plot of Tire Measurement Data

Create a violin plot from tire measurement data.

Import tire data to plot.

td=tireData.import("sample_tire_data.tdx");

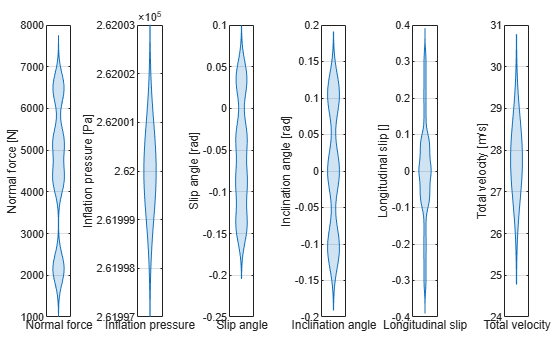

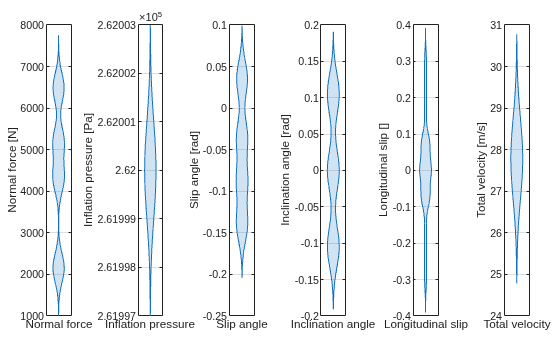

Create a violin plot with default options.

violinplot(td);

Create Violin Plot of Tire Measurement Data with Additional Options

Create a violin plot from tire measurement data and specify a title, subtitle, and tire data channels.

Import tire data to plot.

td=tireData.import("sample_tire_data.tdx");

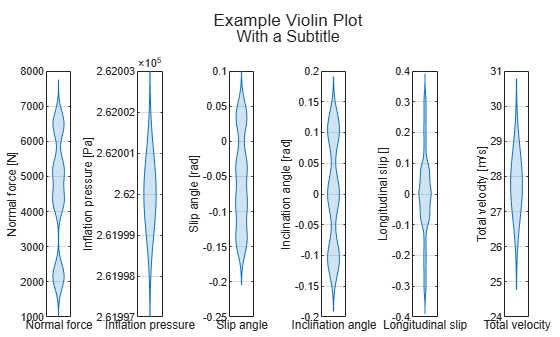

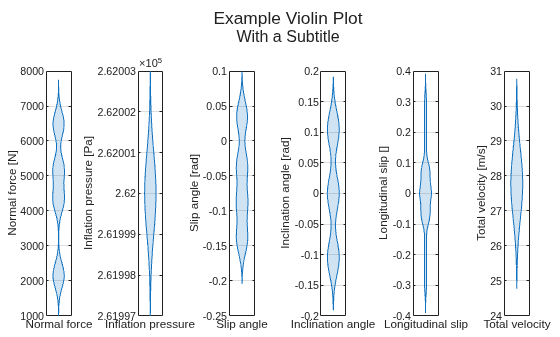

Create a violin plot with a title and subtitle.

violinplot(td,Title="Example Violin Plot",Subtitle="With a Subtitle");

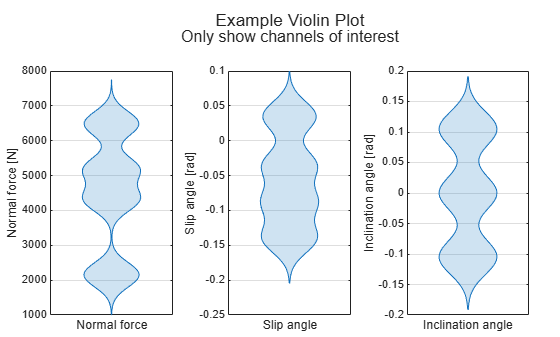

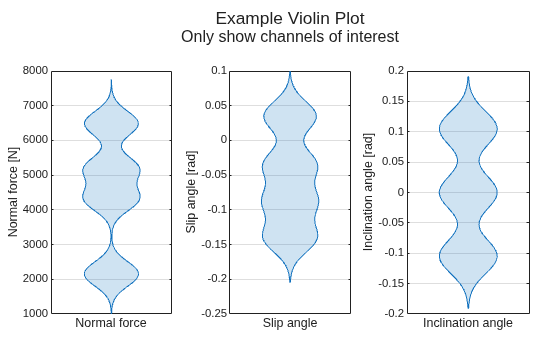

Create a violin plot that specifies tire data channels to plot.

violinplot(td,Title="Example Violin Plot", ...
    Subtitle="Only show channels of interest", ...
    Channels=["Fz","alpha","gamma"]);

Input Arguments

obj — Tire data

tireData object | array of tireData objects

Tire data, specified as a tireData object or an array of tireData objects.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: violinplot(td, Channels=["Fx", "Fy"])

Channels — Tire data channels

vector of strings

Tire data channels, specified as a vector of strings.

Example: violinplot(td, Channels=["Fx", "Fy"])

Data Types: string

Parent — Parent container

Figure object | Panel object | Tab object | TiledChartLayout object

Parent container, specified as a Figure, Panel, Tab, or TiledChartLayout object. If Parent is not specified, a new figure is created.

Title — Plot title

string

Plot title, specified as a string.

Example: Title="Plot Title"

Data Types: string

Subtitle — Plot subtitle

string

Plot subtitle, specified as a string.

Example: Subtitle="Plot Subtitle"

Data Types: string

Version History

Introduced in R2026a
