plotprofile

Plot MANOVA response variable means with grouping

Since R2023b

    Description

    plotprofile(maov) creates a profile plot of the mean responses grouped by the values of the factor in the one-way manova object maov.

    example

    plotprofile(maov,factors) creates a profile plot of the mean responses for each combination of the values of the categorical factors specified in factors.

    plotprofile(ax,___) plots into the axes specified by ax instead of the current axes (gca) using any of the input argument combinations in the previous syntaxes.

    example

    lines = plotprofile(___) returns an array of Line objects for the lines in the plot.

    Examples

    collapse all

    Load the fisheriris data set.

    load fisheriris

    The column vector species contains iris flowers of three different species: setosa, versicolor, and virginica. The matrix meas contains four types of measurements for the flower: the length and width of sepals and petals in centimeters.

    Perform a one-way MANOVA with species as the factor and the measurements in meas as the response variables.

    maov = manova(species,meas,FactorNames="species",ResponseNames=["SepalLength" "SepalWidth"...
        "PetalLength" "PetalWidth"])
    maov =
    1-way manova

    SepalLength,SepalWidth,PetalLength,PetalWidth ~ 1 + species

        Source     DF     TestStatistic    Value       F       DFNumerator    DFDenominator      pValue
        _______    ___    _____________    ______    ______    ___________    _____________    __________

        species      2       pillai        1.1919    53.466          8             290         9.7422e-53
        Error      147
        Total      149


      Properties, Methods




    maov is a manova object that contains the results of the one-way MANOVA. The small p-value for species indicates that the flower species has a statistically significant effect on at least one of the flower measurements.

    Create a profile plot of the mean measurements for each flower species.

    plotprofile(maov)
    legend

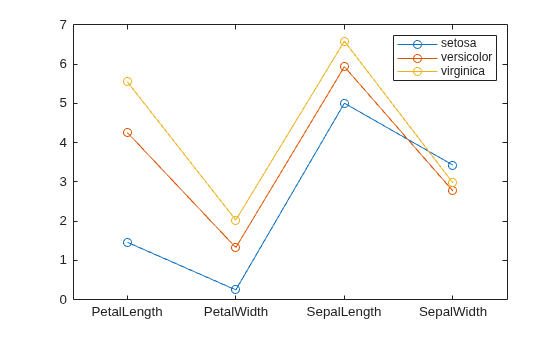

    Figure contains an axes object. The axes object contains 3 objects of type line. These objects represent setosa, versicolor, virginica.

    The profile plot shows that the means are the most spread out for the petal length measurement, and that setosa has smaller measurements, on average, than the other two flower species.

    Load the carsmall data set.

    load carsmall

    The variable Model_Year contains data for the year a car was manufactured, and the variable Cylinders contains data for the number of engine cylinders in the car. The Acceleration and Displacement variables contain data for car acceleration and displacement.

    Use the table function to create a table from the data in Model_Year, Cylinders, Acceleration, and Displacement.

    tbl = table(Model_Year,Cylinders,Acceleration,Displacement,VariableNames=["Year" "Cylinders" "Acceleration" "Displacement"]);

    Perform a two-way MANOVA using the table variables Year and Cylinders as factors, and the Acceleration and Displacement variables as response variables.

    maov = manova(tbl,"Acceleration,Displacement ~ Cylinders + Year")
    maov =
    2-way manova

    Acceleration,Displacement ~ 1 + Year + Cylinders

         Source      DF    TestStatistic     Value        F       DFNumerator    DFDenominator      pValue
        _________    __    _____________    ________    ______    ___________    _____________    __________

        Year          2       pillai        0.084893    2.1056          4             190           0.081708
        Cylinders     2       pillai         0.94174     42.27          4             190         2.5049e-25
        Error        95
        Total        99


      Properties, Methods




    maov is a manova object that contains the results of the two-way MANOVA. The table output shows that the p-value for the MANOVA model term Year is too large to conclude that Year has a statistically significant effect on the mean response vector. However, the small p-value for Cylinders indicates that enough evidence exists to conclude that Cylinders has a statistically significant effect on the mean response vector.

    Create a profile plot of the means for Acceleration and Displacement grouped by the combinations of values for Year and Cylinders. Use the axes function to create axes that plot lines in magenta, green, and black.

    lineColors = [1 0 1; 0 1 0; 0 0 0];
    ax = axes(ColorOrder=lineColors);
    plotprofile(ax,maov,["Year" "Cylinders"])
    legend

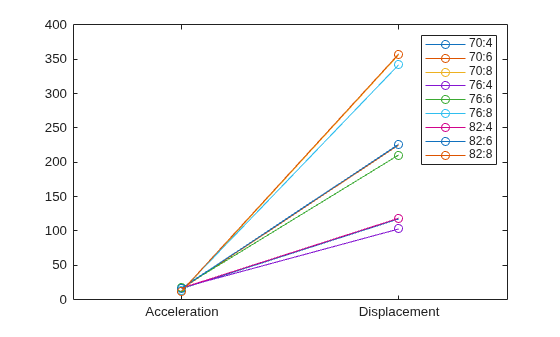

    Figure contains an axes object. The axes object contains 9 objects of type line. These objects represent 70:4, 70:6, 70:8, 76:4, 76:6, 76:8, 82:4, 82:6, 82:8.

    The profile plot shows that the means for Acceleration are similar. However, the color coding shows that the means for Displacement are clustered by their corresponding values in Cylinders. The top cluster, shown in black, corresponds to cars with eight-cylinder engines. The middle cluster, shown in green, corresponds to cars with six-cylinder engines. The bottom cluster, shown in magenta, corresponds to cars with four-cylinder engines. This result supports the conclusion that Cylinders has a statistically significant effect on the mean response vector, but Year does not.

    Input Arguments

    collapse all

    MANOVA results, specified as a manova object. The properties of maov contain the factor values and response data used by plotprofile to create the profile plot.

    Factors used to group the response data, specified as a string vector or a cell array of character vectors. The plotprofile function groups the response data by the combinations of values for the factors in factors. The factors argument must be one or more categorical factor names in maov.FactorNames.

    Example: ["Factor1","Factor2"]

    Data Types: string | cell

    Target axes, specified as an Axes object. If you do not specify the axes, then plotprofile uses the current axes (gca).

    Output Arguments

    collapse all

    Profile plot lines, returned as an array of Line object handles. You can modify the properties of the Line objects to customize the profile plot. For a complete list of Line properties, see Line Properties.

    Version History

    Introduced in R2023b
