## Operations for Fixed-Point Data in Stateflow

Stateflow^{®} charts in Simulink^{®} models have an action language property that defines the syntax that you use to
compute with fixed-point data:

MATLAB

^{®}as the action language.C as the action language.

For more information, see Differences Between MATLAB and C as Action Language Syntax.

### Binary Operations

This table summarizes the interpretation of all binary operations on fixed-point operands according to their order of precedence (0 = highest, 9 = lowest). Binary operations are left associative so that, in any expression, operators with the same precedence are evaluated from left to right.

Operation | Precedence | MATLAB as the Action Language | C as the Action Language |
---|---|---|---|

0 | Power. Not supported for fixed-point operands defined by using either a slope that is not an integer power of two or a nonzero bias. Exponent operand must be a constant whose value is a non-negative integer. | Power. Enable this operation by clearing the | |

| 1 | Multiplication. For fixed-point operands defined by using either a
slope that is not an integer power of two or a nonzero bias, specify a chart
| Multiplication. Not supported for fixed-point operands defined by using a nonzero bias. See Multiplication. |

| 1 | Division. Not supported for fixed-point operands defined by using either a slope that is not an integer power of two or a nonzero bias. See Division. | Division. Not supported for fixed-point operands defined by using a nonzero bias. See Division. |

| 2 | Addition. For fixed-point operands defined by using either a slope that
is not an integer power of two or a nonzero bias, specify a chart
| Addition. See Addition and Subtraction. |

| 2 | Subtraction. For fixed-point operands defined by using either a slope
that is not an integer power of two or a nonzero bias, specify a chart
| Subtraction. See Addition and Subtraction. |

| 3 | Comparison, greater than. See Relational Operations for Fixed-Point Data. | Comparison, greater than. Not supported for fixed-point operands with mismatched biases. See Relational Operations for Fixed-Point Data. |

| 3 | Comparison, less than. See Relational Operations for Fixed-Point Data. | Comparison, less than. Not supported for fixed-point operands with mismatched biases. See Relational Operations for Fixed-Point Data. |

| 3 | Comparison, greater than or equal to. See Relational Operations for Fixed-Point Data. | Comparison, greater than or equal to. Not supported for fixed-point operands with mismatched biases. See Relational Operations for Fixed-Point Data. |

| 3 | Comparison, less than or equal to. See Relational Operations for Fixed-Point Data. | Comparison, less than or equal to. Not supported for fixed-point operands with mismatched biases. See Relational Operations for Fixed-Point Data. |

| 4 | Comparison, equal to. See Relational Operations for Fixed-Point Data. | Comparison, equal to. Not supported for fixed-point operands with mismatched biases. See Relational Operations for Fixed-Point Data. |

| 4 | Comparison, not equal to. See Relational Operations for Fixed-Point Data. | Comparison, not equal to. Not supported for fixed-point operands with mismatched biases. See Relational Operations for Fixed-Point Data. |

| 4 | Not supported. Use the operation | Comparison, not equal to. Not supported for fixed-point operands with mismatched biases. See Relational Operations for Fixed-Point Data. |

| 4 | Not supported. Use the operation | Comparison, not equal to. Not supported for fixed-point operands with mismatched biases. See Relational Operations for Fixed-Point Data. |

| 8 | Logical AND. See Logical Operations for Fixed-Point Data. | Logical AND. See Logical Operations for Fixed-Point Data. |

| 9 | Logical OR. See Logical Operations for Fixed-Point Data. | Logical OR. See Logical Operations for Fixed-Point Data. |

### Unary Operations and Actions

This table summarizes the interpretation of all unary operations and actions on fixed-point operands. Unary operations:

Have higher precedence than binary operators.

Are right associative so that, in any expression, they are evaluated from right to left.

Operation | MATLAB as the Action Language | C as the Action Language |
---|---|---|

| Not supported. Use the expression | Logical NOT. Enable this operation by clearing the |

| Not supported. Use the expression | Logical NOT. See Logical Operations for Fixed-Point Data. |

| Negative. See Unary Minus. | Negative. See Unary Minus. |

| Not supported. Use the expression | Increment. Equivalent to |

| Not supported. Use the expression | Decrement. Equivalent to |

### Assignment Operations

This table summarizes the interpretation of assignment operations on fixed-point operands.

Operation | MATLAB as the Action Language | C as the Action Language |
---|---|---|

| Simple assignment. | Simple assignment. |

| Not supported. To override fixed-point promotion rules, use explicit type cast operations. See Type Cast Operations. | Special assignment that overrides fixed-point promotion rules. See Override Fixed-Point Promotion in C Charts. |

| Not supported. Use the expression | Equivalent to |

| Not supported. Use the expression | Equivalent to |

| Not supported. Use the expression | Equivalent to |

| Not supported. Use the expression | Equivalent to |

#### Override Fixed-Point Promotion in C Charts

In charts that use C as the action language, a simple assignment of the form
`a = b`

calculates an intermediate value for `b`

according to the fixed-point promotion rules. Then this intermediate value is cast to the
type of `a`

by using an online conversion. See Promotion Rules for Fixed-Point Operations
and Conversion Operations. Simple assignments
are most efficient when both types have equal bias and slopes that either are equal or are
both powers of two.

In contrast, a special assignment of the form `a := b`

overrides this
behavior by initially using the type of `a`

as the result type for the
value of `b`

.

Constants in

`b`

are converted to the type of`a`

by using offline conversions.The expression

`b`

can contain at most one arithmetic operator (`+`

,`-`

,`*`

, or`/`

). The result is determined by using an online conversion.If

`b`

contains anything other than an arithmetic operation or a constant, then the special assignment operation behaves like the simple assignment operation (`=`

).

Use the special assignment operation `:=`

when you want to:

Avoid an overflow in an arithmetic operation. For example, see Avoid Overflow in Fixed-Point Addition.

Retain precision in a multiplication or division operation. For example, see Improve Precision in Fixed-Point Division.

**Note**

Using the special assignment operation `:=`

can result in generated
code that is less efficient than the code you generate by using the normal fixed-point
promotion rules.

#### Avoid Overflow in Fixed-Point Addition

You can use the special assignment operation `:=`

to avoid overflow
when performing an arithmetic operation on two fixed-point numbers. For example, consider
a chart that computes the sum `a+b`

where `a`

= 2^{12}-1 = 4095 and `b`

= 1.

Suppose that:

Both inputs are signed 16-bit fixed-point numbers with three fraction bits (type

`fixdt(1,16,3)`

).The output

`c`

is a signed 32-bit fixed-point number with three fraction bits (type`fixdt(1,32,3)`

).The integer word size for production targets is 16 bits.

Because the target integer size is 16 bits, the simple assignment ```
c =
a+b
```

adds the inputs in 16 bits before casting the sum to 32 bits. The
intermediate result is 4096, which, as a type `fixdt(1,16,3)`

value,
results in an overflow.

In contrast, the special assignment `c := a+b`

casts the inputs to 32
bits before computing the sum. The result of 4096 is safely computed as a type
`fixdt(1,32,3)`

value without an overflow.

#### Improve Precision in Fixed-Point Division

You can use the special assignment operation `:=`

to obtain a more
precise result when multiplying or dividing two fixed-point numbers. For example, consider
a chart that computes the ratio `a/b`

where `a`

= 2 and `b`

= 3.

Suppose that:

The input

`a`

is a fixed-point number with four fraction bits (type`fixdt(1,16,4)`

).The input

`b`

is a fixed-point number with three fraction bits (type`fixdt(1,16,3)`

).The output

`c`

is a signed 16-bit fixed-point number with six fraction bits (type`fixdt(1,16,6)`

).

The inputs correspond to these slopes and quantized integers:

*S*

=
2_{a}^{–4},
*Q*

= 32_{a}

*S*

=
2_{b}^{–3},
*Q*

= 24._{b}

The simple assignment `c = a/b`

first calculates an intermediate
value for `a/b`

according to the fixed-point promotion rules. The
quantized integer is rounded to the floor:

*S*_{int} =
*S*

/_{a}*S*

= 2_{b}^{-4}/2^{-3} =
2^{-1}

*Q*_{int} =
*Q*

/_{a}*Q*

= 32/24 ≈ 1._{b}

The intermediate result is then cast as a signed 16-digit fixed-point number with six fraction bits:

*S*

=
2_{c}^{-6} = 1/64

*Q*

=
_{c}*S*_{int}*Q*_{int}/*S*

= 2_{c}^{-1}/2^{-6} =
2^{5} = 32.

Therefore, the approximate real-world value for `c`

is *V*

≈
_{c}*S*_{c}*Q*

= 32/64 = 0.5. This result is not a good approximation of the actual value of
2/3._{c}

In contrast, the special assignment `c := a/b`

calculates
`a/b`

directly as a signed 16-digit fixed-point number with six
fraction bits. Again, the quantized integer is rounded to the floor:

*S*

=
2_{c}^{-6} = 1/64

*Q*

=
(_{c}*S*_{a}*Q*

)/(_{a}*S*_{c}*S*_{b}*Q*

)
= 128/3 ≈ 42._{b}

Therefore, the approximate real-world value for `c`

is *V*

≈
_{c}*S*_{c}*Q*

= 42/64 = 0.6563. This result is a better approximation to the actual value of
2/3._{c}

### Compare Results of Fixed-Point Arithmetic

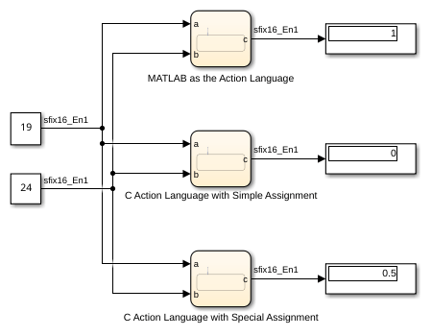

This example shows the difference between various implementations of fixed-point arithmetic in Stateflow charts. The model contains three charts that calculate the ratio `a/b`

where `a`

= 19 and `b`

= 24. Both inputs are signed 16-digit fixed-point numbers with one fraction bit (type `fixdt(1,16,1)`

). They correspond to these slopes and quantized integers:

The model calculates the value of `a/b`

as a floating-point number of type `fixdt(1,16,1)`

in three different ways:

A type casting operation in a chart that uses MATLAB as the action language.

A simple assignment operation in a chart that uses C as the action language.

A special assignment operation in a chart that uses C as the action language.

**Type Casting in Chart That Uses MATLAB as the Action Language**

The chart at the top of the model computes an intermediate value for `a/b`

. The quantized integer for the intermediate value is rounded to the nearest integer:

The intermediate value is then cast as a signed 16-digit fixed-point number `c`

with one fraction bit:

The output value from this chart is

**Simple Assignment in Chart That Uses C as the Action Language**

The middle chart also computes an intermediate value for `a/b`

. In this case, the quantized integer for the intermediate value is rounded to the floor:

The intermediate value is then cast as a signed 16-digit fixed-point number `c`

with one fraction bit:

The output value from this chart is

**Special Assignment in Chart That Uses C as the Action Language**

The chart at the bottom of the model uses a special assignment of the form `c := a/b`

. The value of the division is calculated directly as a signed 16-digit fixed-point number with one fraction bit. The quantized integer is rounded to the floor:

Therefore, the output value from this chart is

The three results exhibit loss of precision compared to the floating-point answer of 19/24 = 0.7917. To minimize the loss of precision to an acceptable level in your application, adjust the encoding scheme in your fixed-point data.
