Execute Target Computer Command-Line Commands Via SSH

To enter target computer RTOS commands, type the commands by using a keyboard attached to the target computer or by using an SSH utility (such as PuTTY) to send commands to the target computer from a MATLAB^® development computer.

The target computer commands are case-sensitive. For more information, see Target Computer Command-Line Interface.

The command examples use the PuTTy SSH utility. You can download and install this utility from www.putty.org.

Note

To run user commands, log in as user slrt by using password slrt. To run the system commands, login as user root by using password root.

1. Boot the target computer.

2. Boot the development computer that is connected by Ethernet to the target computer.

3. Start the SSH utility on the development computer. This example uses PuTTY.

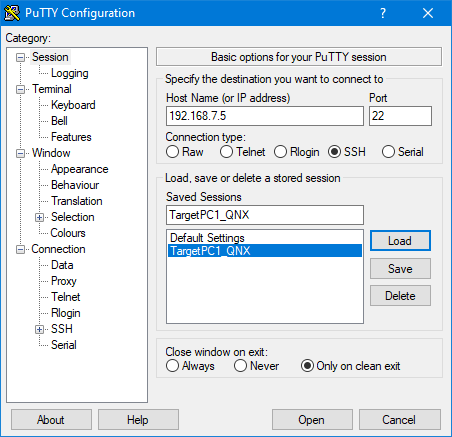

4. Load the PuTTY configuration that opens a SSH session to the target computer and click Open.



5. To execute target computer command-line commands (such as slrealtime install), log in to the PuTTY session as user slrt with password slrt.

6. Install the real-time application slrt_ex_osc (which was previously copied to the target computer) by using this target computer command line:

   slrealtime install --AppName slrt_ex_osc
