For Each Subsystem

Apply algorithm to individual elements or subarrays of input signals or mask parameters

•

Libraries:
Simulink / Ports & Subsystems
HDL Coder / Ports & Subsystems

Description

The For Each Subsystem block is a Subsystem block preconfigured as a starting point for creating a subsystem that repeats execution during a simulation time step on each element or subarray of an input signal or mask parameter array.

The set of blocks within the subsystem represents the algorithm applied to a single element or subarray of the original signal or mask parameter array. Inside the subsystem, each block that has states maintains separate sets of states for each element or subarray that it processes. Consequently, the operation of this subsystem is similar in behavior to copying the contents of the subsystem for each element in the original input signal or mask parameter array and then processing each element using its respective copy of the subsystem. As the set of blocks in the subsystem processes the elements or subarrays, the subsystem concatenates the results to form output signals.

Configure the Subsystem

The For Each Subsystem block contains a For Each block that acts as a control block for the subsystem. Specify the parameters of the For Each block to configure the decomposition of the subsystem inputs or mask parameters into elements or subarrays and to configure the concatenation of the individual results into output signals. The block parameters Partition Dimension and Partition Width specify the dimension through which to slice the input signal or mask parameter array and the width of each slice, respectively. To partition a row vector, specify the Partition Dimension as 2. To partition a column vector, specify the Partition Dimension as 1. Use the parameter Partition Offset to specify a gap or an overlap between partitions. Specify a Number of iterations to limit processing to a subset of the data. To learn more about the block parameters, see For Each.

Partition Input Signals to the Subsystem

To specify which input signals to partition for each iteration in a for-each subsystem, use the Input Partition tab in the dialog box of the For Each block. When specifying a signal to be partitioned, specify the Partition Dimension, Partition Width, and Partition Offset parameters.

Partition Mask Parameters of the Subsystem

You can partition the mask parameters of a For Each Subsystem block. Partitioning is useful for systems that have identical structures in each iteration but different parameter values. In this case, changing the model to partition extra input signals for each parameter is cumbersome. Instead, add a mask parameter to a for-each subsystem. For more information, see Create a Simple Mask. To select the mask parameter for partitioning, use the Parameter Partition tab of the For Each block dialog box. For more information, see Select Partition Parameters, below.

Concatenate Output

Define the dimension along which to concatenate the results by specifying the Concatenation Dimension in the Output Concatenation tab.

The results generated by the block for each subarray are stacked along the concatenation dimension. By default, dimension 1 (y-axis) is used, meaning that the results are stacked vertically. However, if you specify a concatenation dimension of 2, the results concatenate along the horizontal direction (x-axis). Thus, if the process generates row vectors, then the concatenated result is a matrix in the first case and a row vector in the second case. For an example, see Specifying the Concatenation Dimension in the For Each Block.

Select Partition Parameters

When selecting an input signal or subsystem mask parameter for partitioning, you must specify how to decompose it into elements or subarrays for each iteration. Set integer values for the Partition Dimension, Partition Width, and Partition Offset parameters.

As an illustration, consider an input signal matrix A of the form:

The labels d₁ and d₂ define dimensions 1 and 2, respectively. If you retain the default setting of 1 for both the partition dimension and the partition width and 0 for the partition offset, then Simulink^® slices perpendicular to partition dimension 1 at a width equal to the partition width, that is one element:

Matrix A decomposes into these three row vectors:

If you specify 2 as the partition dimension instead, Simulink slices perpendicular to dimension 2 to form three column vectors:

In addition to setting the Partition Dimension to 2, if you set the Partition Width to 2 and the Partition Offset to -1, Simulink uses two overlapping 3-by-2 partitions for processing.

For an example, see Partitioning an Input Signal with the For Each Block.

By default, all partitions of the input signal or mask parameter are processed. To process a subset of the partitions, enter the number of partitions to process as the Number of iterations. In the matrix examples above, if Partition Offset is set to 0 (the default) and Number of iterations is set to 2, only the first 2 rows or columns of the input matrix A are processed.

Note

Only signals are considered one-dimensional in Simulink. Mask parameters are row or column vectors, according to their orientation. To partition a row vector, specify the partition dimension as 2, along the columns. To partition a column vector, specify the partition dimension as 1, along the rows.

Code Reuse Support

For certain models, the For Each Subsystem block improves code reuse in Simulink Coder™ generated code. Consider a model containing two reusable Atomic Subsystem blocks with the same scalar algorithm applied to each element of the signal. If the input signal dimensions of these subsystems are different, Simulink Coder generated code includes two distinct functions. You can replace these two subsystems with two identical For Each Subsystem blocks that are configured to process each element of their respective inputs using the same algorithm. In this case, Simulink Coder generated code consists of a single function parameterized by the number of input signal elements. This function is invoked twice, once for each unique instance of the For Each Subsystem block in the model. For each of these cases, the input signal elements have different values.

Multicore Execution Support

When you simulate your model in rapid accelerator mode, Simulink uses multicore execution for faster simulation of for-each subsystems. Simulink automatically profiles each eligible for-each subsystem the first two time steps it runs in rapid accelerator mode to compare parallel and serial execution times. Simulink then designates the for-each subsystem for parallel, multicore execution in subsequent time steps of the simulation run if doing so would speed up execution time. For nested for-each subsystems, multicore execution applies only to the top-level subsystem. Multicore execution does not apply to for-each subsystems containing continuous states or Function Caller blocks.

To suppress multicore execution for a given for-each subsystem, set the MultithreadedSim parameter of the For Each block within the subsystem to 'off'.

set_param(ForEachBlockName,'MultithreadedSim','off')

Note that this is a parameter of the For Each block within the subsystem, not the For Each Subsystem block itself. To suppress multicore execution for all for-each subsystems in a model, set the MultithreadedSim parameter of the model to 'off'.

set_param(ModelName,'MultithreadedSim','off')

To re-enable multicore execution, set the relevant MultithreadedSim parameter to its default value of 'auto'.

For an example, see Multithreaded Simulation Using For Each Subsystem.

Note

If you simulate your model in rapid accelerator mode or generate code from your model, and you partition mask parameters in a for-each subsystem, then any expression inside the for-each subsystem that references a partitioned parameter must be a tunable expression. See Tunable Expression Limitations (Simulink Coder).

S-Function Support

The For Each Subsystem block supports both C-MEX S-functions and Level-2 MATLAB^® S-functions, provided that the S-function supports multiple execution instances using one of these techniques:

• A C-MEX S-function must declare ssSupportsMultipleExecInstances(S, true) in the mdlSetWorkWidths method.

• A Level-2 MATLAB S-function must declare block.SupportsMultipleExecInstances = true in the setup method.

If you use these specifications:

• Do not cache run-time data such as DWork and Block I/O using global or persistent variables or within the user data of the S-function.

• In a For Each Subsystem block, every S-function execution method from mdlStart up to mdlTerminate is called once for each element processed by the S-function. Consequently, you must make sure not to free the same memory on repeated calls to mdlTerminate. For example, consider a C-MEX S-function that allocates memory for a run-time parameter within mdlSetWorkWidths. The memory only needs to be freed once in mdlTerminate. As a solution, set the pointer to be empty after the first call to mdlTerminate.

Examples

Simulink Subsystem Semantics

This set of examples shows different types of Simulink® Subsystems and what semantics are used when simulating these subsystems. Each example provides a description of the model and the subtleties governing how the model is executed.

• Open Live Script

Modeling Objects with Identical Dynamics Using For Each Subsystem

Model multiple objects with identical dynamics using the For Each subsystem. The number of objects is parameterized by the length of the input signal.

• Open Model

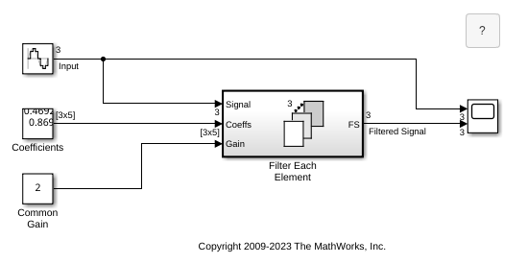

Vectorizing a Scalar Algorithm with a For-Each Subsystem

Use the for-each subsystem. In this example, the operations are performed on a vector for simplicity.

• Open Model

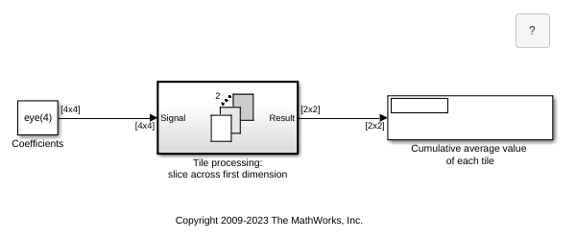

Tiled Processing of 2-D Signals with For-Each Subsystem

Use a for-each subsystem. In this example, the operations are performed on matrices.

• Open Model

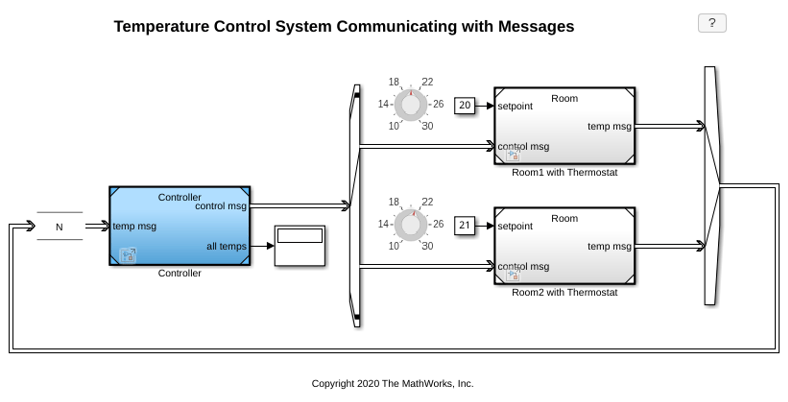

Temperature Control System Communicating with Messages

Distributed control of room temperatures by processing messages from room thermostats and communicating control commands using messages to different receivers.

• Open Model

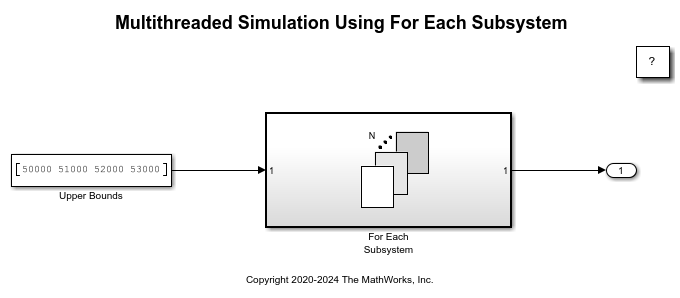

Multithreaded Simulation Using For Each Subsystem

Speed up execution of a model on multiple cores using a For Each Subsystem in Rapid Accelerator simulation.

• Open Model

Limitations

For information regarding limitations of the For Each Subsystem block, see Limitations of For-Each Subsystems.

Ports

Input

In — Signal input to Subsystem block

scalar | vector | matrix

Signal input to a Subsystem block, specified as a scalar, vector, or matrix. Placing an Inport block in a Subsystem block adds an external input port to the block. The port label matches the name of the Inport block.

Use Inport blocks to receive signals from the local environment.

Data Types: half | single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated | bus

Output

Out — Signal output from Subsystem block

scalar | vector | matrix

Signal output from a Subsystem block, returned as a scalar, vector, or matrix. Placing an Outport block in a Subsystem block adds an external output port to the block. The port label matches the name of the Outport block.

Use Outport blocks to send signals to the local environment.

Data Types: half | single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated | bus

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Main

Show port labels — Display options for port labels

FromPortIcon (default) | FromPortBlockName | SignalName | none

Select how to display port labels on the Subsystem block icon.

• none — Do not display port labels.

• FromPortIcon — If the corresponding port icon displays a signal name, display the signal name on the Subsystem block. Otherwise, display the port block name or the port number if the block name is a default name.

• FromPortBlockName — Display the name of the corresponding port block on the Subsystem block.

• SignalName — If the signal connected to the port is named, display the name of the signal on the Subsystem block. Otherwise, display the name of the corresponding port block.

For port label editing on Subsystem blocks, see Edit Port Labels on Subsystem Blocks.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	ShowPortLabels
Values:	'FromPortIcon' (default) | 'FromPortBlockName' | 'SignalName' | 'none'

Read/Write permissions — Levels of access to contents of subsystem

ReadWrite (default) | ReadOnly | NoReadOrWrite

Control user access to the contents of the subsystem.

• ReadWrite — Enable opening and modification of subsystem contents.

• ReadOnly — Enable opening but not modification of the subsystem. If the subsystem resides in a block library, you can create and open links to the subsystem and can make and modify local copies of the subsystem but cannot change the permissions or modify the contents of the original library instance.

• NoReadOrWrite — Disable opening or modification of subsystem. If the subsystem resides in a library, you can create links to the subsystem in a model but cannot open, modify, change permissions, or create local copies of the subsystem.

You do not receive a response if you attempt to view the contents of a subsystem whose Read/Write permissions parameter is set to NoReadOrWrite. For example, when double-clicking such a subsystem, the software does not open the subsystem and does not display any messages.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	Permissions
Values:	'ReadWrite' (default) | 'ReadOnly' | 'NoReadOrWrite'

Name of error callback function — Name of function to be called if error occurs

no default

Enter the name of a function to be called if an error occurs while the software executes the subsystem.

The software passes two arguments to the function: the handle of the subsystem and a character vector that specifies the error type. If no function is specified, the software displays a generic error message if executing the subsystem causes an error.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	ErrorFcn
Values:	'' (default) | function name in quotes
Data Types:	char | string

Permit hierarchical resolution — Resolution for workspace variable names

All (default) | ExplicitOnly | None

Select whether to resolve names of workspace variables referenced by this subsystem.

For more information, see Symbol Resolution and Symbol Resolution Process.

• All — Resolve all names of workspace variables used by this subsystem, including those used to specify block parameter values and Simulink data objects (for example, Simulink.Signal objects).

• ExplicitOnly — Resolve only names of workspace variables used to specify block parameter values, data store memory (where no block exists), signals, and states marked as “must resolve”.

• None — Do not resolve any workspace variable names.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	PermitHierarchicalResolution
Values:	'All' (default) | 'ExplicitOnly' | 'None'

Minimize algebraic loop occurrences — Option to eliminate artificial algebraic loops

off (default) | on

Try to eliminate any artificial algebraic loops that include the atomic subsystem

• off — Do not try to eliminate any artificial algebraic loops that include the atomic subsystem.

• on — Try to eliminate any artificial algebraic loops that include the atomic subsystem.

Dependencies

To enable this parameter, select Treat as atomic unit.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	MinAlgLoopOccurrences
Values:	'off' (default) | 'on'

Code Generation

Parameters on the Code Generation tab require a Simulink Coder or Embedded Coder^® license.

Function packaging — Code format

Auto | Inline | Nonreusable function | Reusable function

Select the code format to be generated for an atomic (nonvirtual) subsystem.

• Auto — The software chooses the optimal format for you based on the type and number of instances of the subsystem that exist in the model.

• Inline — The software inlines the subsystem unconditionally.

• Nonreusable function — If Filename options is set to Auto, the software packages separate functions in the model file. If File name options is set to Use subsystem name, Use function name, or User specified using different filenames, the software packages separate functions in separate files.

  Subsystems with this setting generate functions that might have arguments depending on the Function interface parameter setting. You can name the generated function and file using parameters Function name and File name (no extension), respectively. These functions are not reentrant.

• Reusable function — The software generates a function with arguments that allows reuse of subsystem code when a model includes multiple instances of the subsystem.

  This option also generates a function with arguments that allows subsystem code to be reused in the generated code of a model reference hierarchy that includes multiple instances of a subsystem across referenced models. In this case, the subsystem must be in a library.

For more information, see:

• Generate Code and Executables for Individual Subsystems (Simulink Coder)

• Generate Inlined Subsystem Code (Simulink Coder)

• Generate Subsystem Code as Separate Function and Files (Simulink Coder)

• Generate Reusable Code from Library Subsystems Shared Across Models (Simulink Coder)

The default value depends on the block configuration. For example, the default value for the Subsystem block is Auto. The default value for the CodeReuseSubsystem block is Reusable function.

Tips

• When you want multiple instances of a subsystem to be represented as one reusable function, you can designate each one of them as Auto or as Reusable function. Using one or the other is best, as using both creates two reusable functions, one for each designation. The outcomes of these choices differ only when reuse is not possible. Selecting Auto does not allow control of the function or filename for the subsystem code.

• The Reusable function and Auto options both try to determine if multiple instances of a subsystem exist and if the code can be reused. The difference between the behavior of each option is that when reuse is not possible:

  • Auto yields inlined code, or if circumstances prohibit inlining, separate functions for each subsystem instance.

  • Reusable function yields a separate function with arguments for each subsystem instance in the model.

• If you select Reusable function while your generated code is under source control, set File name options to Use subsystem name, Use function name, or User specified. Otherwise, the names of your code files change whenever you modify your model, which prevents source control on your files.

• If you select an option other than Auto or Inline and the model configuration parameter States, the code generator produces separate output and update methods. The code generator does not take into account the Combine output and update methods for code generation and simulation specification.

Dependencies

• This parameter requires a Simulink Coder license for code generation.

• To enable this parameter, select Treat as atomic unit.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWSystemCode
Values:	'Auto' | 'Inline' | 'Nonreusable function' | 'Reusable function'

Function name options — How to name generated function

Auto | Use subsystem name | User specified

Select how the software names the function it generates for the subsystem.

If you have an Embedded Coder license, you can control function names with options on the Configuration Parameter Code Generation > Identifiers pane.

• Auto — Assign a unique function name using the default naming convention, model_subsystem(), where model is the name of the model and subsystem is the name of the subsystem, or that of an identical one when code is being reused.

  If you select Reusable function for the Function packaging parameter and a model reference hierarchy contains multiple instances of the reusable subsystem, in order to generate reusable code for the subsystem, Function name options must be set to Auto.

• Use subsystem name — Use the subsystem name as the function name. By default, the function name uses the naming convention model_subsystem.

  When a subsystem is in a library block and the subsystem parameter Function packaging is set to Reusable function, if you set the Use subsystem name option, the code generator uses the name of the library block for the subsystem function name and filename.

• User specified — Enable the Function name field. Enter any legal C or C++ function name, which must be unique.

For more information, see Generate Subsystem Code as Separate Function and Files (Simulink Coder).

The default value depends on the block configuration. For example, the default value for the Subsystem block is Auto. The default value for the CodeReuseSubsystem block is Use subsystem name.

Dependencies

• This parameter requires a Simulink Coder license.

• To enable this parameter, set Function packaging to Nonreusable function or Reusable function.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWFcnNameOpts
Values:	'Auto' | 'Use subsystem name' | 'User specified'

Function name — Name of function for subsystem code

no default

Specify a unique, valid C or C++ function name for subsystem code.

Use this parameter if you want to give the function a specific name instead of allowing the Simulink Coder code generator to assign its own autogenerated name or use the subsystem name. For more information, see Generate Subsystem Code as Separate Function and Files (Simulink Coder).

Dependencies

• This parameter requires a Simulink Coder license.

• To enable this parameter, set Function name options to User specified.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWFcnName
Values:	'' (default) | function name in quotes
Data Types:	char | string

File name options — How to name generated file

Auto | Use subsystem name | Use function name | User specified

Select how the software names the separate file for the function it generates for the subsystem.

• Auto — Depending on the configuration of the subsystem and how many instances are in the model, Auto yields different results.

  • If the code generator does not generate a separate file for the subsystem, the subsystem code is generated within the code module generated from the subsystem parent system. If the subsystem parent is the model itself, the subsystem code is generated within model.c or model.cpp.

  • If you select Reusable function for the Function packaging parameter and your generated code is under source control, consider specifying a File name options value other than Auto. This prevents the generated filename from changing due to unrelated model modifications, which is problematic for using source control to manage configurations.

  • If you select Reusable function for the Function packaging parameter and a model reference hierarchy contains multiple instances of the reusable subsystem, in order to generate reusable code for the subsystem, File name options must be set to Auto.

• Use subsystem name — The code generator generates a separate file, using the subsystem (or library block) name as the filename.

  When File name options is set to Use subsystem name, the subsystem filename is mangled if the model contains Model blocks, or if a model reference target is being generated for the model. In these situations, the filename for the subsystem consists of the subsystem name prefixed by the model name.

• Use function name — The code generator uses the function name specified by Function name options as the filename.

• User specified — This option enables the File name (no extension) text entry field. The code generator uses the name you enter as the filename. Enter any filename, but do not include the .c or .cpp (or any other) extension. This filename need not be unique.

  While a subsystem source filename need not be unique, you must avoid giving nonunique names that result in cyclic dependencies. For example, sys_a.h includes sys_b.h, sys_b.h includes sys_c.h, and sys_c.h includes sys_a.h.

The default value depends on the block configuration. For example, the default value for the Subsystem block is Auto. The default value for the CodeReuseSubsystem block is Use function name.

Dependencies

• This parameter requires a Simulink Coder license.

• To enable this parameter, set Function packaging to Nonreusable function or Reusable function.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWFileNameOpts
Values:	'Auto' | 'Use subsystem name' | 'Use function name' | 'User specified'

File name (no extension) — Name of generated file

no default

The filename that you specify does not have to be unique. However, avoid giving non-unique names that result in cyclic dependencies. For example, sys_a.h includes sys_b.h, sys_b.h includes sys_c.h, and sys_c.h includes sys_a.h.

For more information, see Generate Subsystem Code as Separate Function and Files (Simulink Coder).

Dependencies

• This parameter requires a Simulink Coder license.

• To enable this parameter, set File name options to User specified.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWFileName
Values:	'' (default) | filename in quotes
Data Types:	char | string

Function interface — How to use arguments with generated function

void_void (default) | Allow arguments (Optimized) | Allow arguments (Match graphical interface)

Select how to use arguments with the generated function.

• void_void — Generate a function without arguments and pass data as global variables. For example:

  void subsystem_function(void)

• Allow arguments (Optimized) — Generate a function that uses arguments instead of passing data as global variables. This specification reduces global RAM. This option might reduce code size and improve execution speed and enable the code generator to apply additional optimizations. For example:

  void subsystem_function(real_T rtu_In1, real_T rtu_In2,
                          real_T *rty_Out1)

  In some cases, when generating optimized code, the code generator might not generate a function that has arguments.

• Allow arguments (Match graphical interface) — Generate a function interface that uses arguments that match the Subsystem graphical block interface. The generated function interface is predictable and does not change. A predictable interface can be useful for debugging and testing your code and integrating with external applications. For example, if a model has two Inport blocks and two Outport blocks, then the generated function interface is:

  void subsystem_function(real_T rtu_In1, real_T rtu_In2,
                          real_T *rty_Out1, real_T *rty_Out2)

For more information, see:

• Reduce Global Variables in Nonreusable Subsystem Functions (Embedded Coder)

• Generate Predictable Function Interface to Match Graphical Block Interface (Embedded Coder)

• Generate Modular Function Code for Nonvirtual Subsystems (Embedded Coder)

Dependencies

• This parameter requires an Embedded Coder license and an ERT-based system target file.

• To enable this parameter, set Function packaging to Nonreusable function.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	FunctionInterfaceSpec
Values:	'void_void' (default) | 'Allow arguments (Optimized)' | 'Allow arguments (Match graphical interface)'

Function with separate data — Control code generation for subsystem

off (default) | on

Generate subsystem function code in which the internal data for an atomic subsystem is separated from its parent model and is owned by the subsystem.

• off — Do not generate subsystem function code in which the internal data for an atomic subsystem is separated from its parent model and is owned by the subsystem.

• on — Generate subsystem function code in which the internal data for an atomic subsystem is separated from its parent model and is owned by the subsystem. The subsystem data structure is declared independently from the parent model data structures. A subsystem with separate data has its own block I/O and DWork data structure. As a result, the generated code for the subsystem is easier to trace and test. The data separation also tends to reduce the maximum size of global data structures throughout the model, because they are split into multiple data structures.

For details on how to generate modular function code for an atomic subsystem, see Generate Modular Function Code for Nonvirtual Subsystems (Embedded Coder).

For details on how to apply memory sections to atomic subsystems, see Override Default Memory Placement for Subsystem Functions and Data (Embedded Coder).

Dependencies

• This parameter requires an Embedded Coder license and an ERT-based system target file.

• To enable this parameter, set Function packaging to Nonreusable function.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	FunctionWithSeparateData
Values:	'off' (default) | 'on'

Memory section for initialize/terminate functions — How to apply memory sections

Inherit from model (default) | Default | model memory section

Select how the software applies memory sections to the subsystem initialization and termination functions.

• Inherit from model — Apply the root model memory sections to the subsystem function code.

• Default — Do not apply memory sections to the subsystem system code, overriding any model-level specification.

• Apply one of the model memory sections to the subsystem.

Tips

• The possible values vary depending on what, if any, package of memory sections you have set for the model configuration. See Control Data and Function Placement in Memory by Inserting Pragmas (Embedded Coder) and Model Configuration Parameters: Code Generation (Simulink Coder).

• If you have not configured the model with a package, Inherit from model is the only available value. Otherwise, the list includes Default and all memory sections the model package contains.

• These options can be useful for overriding the model memory section settings for the given subsystem. For details on how to apply memory sections to atomic subsystems, see Override Default Memory Placement for Subsystem Functions and Data (Embedded Coder).

Dependencies

• This parameter requires an Embedded Coder license and an ERT-based system target file.

• To enable this parameter, set Function packaging to Nonreusable function or Reusable function.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWMemSecFuncInitTerm
Values:	'Inherit from model' (default) | 'Default' | model memory section in quotes

Memory section for execution functions — How to apply memory sections

Inherit from model (default) | Default | model memory section

Select how Embedded Coder applies memory sections to the subsystem execution functions.

• Inherit from model — Apply the root model memory sections to the subsystem function code.

• Default — Do not apply memory sections to the subsystem system code, overriding any model-level specification.

• Apply one of the model memory sections to the subsystem.

Tips

• The possible values vary depending on what, if any, package of memory sections you have set for the model configuration. See Control Data and Function Placement in Memory by Inserting Pragmas (Embedded Coder) and Model Configuration Parameters: Code Generation (Simulink Coder).

• If you have not configured the model with a package, Inherit from model is the only available value. Otherwise, the list includes Default and all memory sections the model package contains.

• These options can be useful for overriding the model memory section settings for the given subsystem. For details on how to apply memory sections to atomic subsystems, see Override Default Memory Placement for Subsystem Functions and Data (Embedded Coder).

Dependencies

• This parameter requires an Embedded Coder license and an ERT-based system target file.

• To enable this parameter, set Function packaging to Nonreusable function or Reusable function.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWMemSecFuncExecute
Values:	'Inherit from model' (default) | 'Default' | model memory section in quotes

Memory section for constants — How to apply memory sections

Inherit from model (default) | Default | model memory section

Select how the software applies memory sections to the subsystem constants.

• Inherit from model — Apply the root model memory sections to the subsystem data.

• Default — Do not apply memory sections to the subsystem data, overriding any model-level specification.

• Apply one of the model memory sections to the subsystem.

Tips

• The memory section that you specify applies to the corresponding global data structures in the generated code. For basic information about the global data structures generated for atomic subsystems, see Standard Data Structures (Simulink Coder).

• The possible values vary depending on what, if any, package of memory sections you have set for the model configuration. See Control Data and Function Placement in Memory by Inserting Pragmas (Embedded Coder).

• If you have not configured the model with a package, Inherit from model is the only available value. Otherwise, the list includes Default and all memory sections the model package contains.

• These options can be useful for overriding the model memory section settings for the given subsystem. For details on how to apply memory sections to atomic subsystems, see Override Default Memory Placement for Subsystem Functions and Data (Embedded Coder).

Dependencies

• This parameter requires an Embedded Coder license and an ERT-based system target file.

• To enable this parameter, set Function packaging to Nonreusable function and select the Function with separate data parameter.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWMemSecDataConstants
Values:	'Inherit from model' (default) | 'Default' | model memory section in quotes

Memory section for internal data — How to apply memory sections

Inherit from model (default) | Default | model memory section

Select how the software applies memory sections to the subsystem internal data.

• Inherit from model — Apply the root model memory sections to the subsystem data.

• Default — Do not apply memory sections to the subsystem data, overriding any model-level specification.

• Apply one of the model memory sections to the subsystem.

Tips

• The memory section that you specify applies to the corresponding global data structures in the generated code. For basic information about the global data structures generated for atomic subsystems, see Standard Data Structures (Simulink Coder).

• The possible values vary depending on what, if any, package of memory sections you have set for the model configuration. See Control Data and Function Placement in Memory by Inserting Pragmas (Embedded Coder).

• If you have not configured the model with a package, Inherit from model is the only available value. Otherwise, the list includes Default and all memory sections the model package contains.

• These options can be useful for overriding the model memory section settings for the given subsystem. For details on how to apply memory sections to atomic subsystems, see Override Default Memory Placement for Subsystem Functions and Data (Embedded Coder).

Dependencies

• This parameter requires an Embedded Coder license and an ERT-based system target file.

• To enable this parameter, set Function packaging to Nonreusable function and select the Function with separate data parameter.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWMemSecDataInternal
Values:	'Inherit from model' (default) | 'Default' | model memory section in quotes

Memory section for parameters — How to apply memory sections

Inherit from model (default) | Default | model memory section

Select how the software applies memory sections to the subsystem parameters.

• Inherit from model — Apply the root model memory sections to the subsystem function code.

• Default — Do not apply memory sections to the subsystem system code, overriding any model-level specification.

• Apply one of the model memory sections to the subsystem.

Tips

• The memory section that you specify applies to the corresponding global data structure in the generated code. For basic information about the global data structures generated for atomic subsystems, see Standard Data Structures (Simulink Coder).

• The possible values vary depending on what, if any, package of memory sections you have set for the model configuration. See Control Data and Function Placement in Memory by Inserting Pragmas (Embedded Coder).

• If you have not configured the model with a package, Inherit from model is the only available value. Otherwise, the list includes Default and all memory sections the model package contains.

• These options can be useful for overriding the model memory section settings for the given subsystem. For details on how to apply memory sections to atomic subsystems, see Override Default Memory Placement for Subsystem Functions and Data (Embedded Coder).

Dependencies

• This parameter requires an Embedded Coder license and an ERT-based system target file.

• To enable this parameter, set Function packaging to Nonreusable function and select the Function with separate data parameter.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	RTWMemSecDataParameters
Values:	'Inherit from model' (default) | 'Default' | model memory section in quotes

Block Characteristics

Data Types	Booleana | busa | doublea | enumerateda | fixed pointa | halfa | integera | singlea
Direct Feedthrough	no
Multidimensional Signals	yesa
Variable-Size Signals	no
Zero-Crossing Detection	no
a Actual data type or capability support depends on block implementation.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Actual code generation support depends on block implementation.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

When you generate HDL code for the For Each Subsystem, the code generator attempts to use a for-generate loop that iterates through elements of the input and output signals. The for-generate loop improves readability and reduces the number of lines of code, which could otherwise be hundreds of lines of code for large vector signals. The subsystem supports vector and 3D matrix input signals. See Generate HDL Code for Blocks Inside For Each Subsystem (HDL Coder).

You can use a nonzero partition offset for HDL code generation. The code generator supports a scalar, vector, or matrix as mask parameter values. You can generate HDL code for element, 1D, and 2D partitions of mask parameters inside a For Each Subsystem block. Inside the For Each Subsystem block, use the mask parameter as the Constant value parameter in Constant blocks or as the Gain parameter in Gain blocks.

Limitations

• You cannot use the For Each Subsystem block as the DUT.

• You cannot set the SpecifiedNumIters parameter of the For Each block for HDL code generation. HDL code generation returns an error when the value of SpecifiedNumIters is not equal to the default value of -1.

HDL Architecture

Architecture	Description
Module (default)	Generate code for the subsystem and the blocks within the subsystem.
BlackBox	Generate a black box interface. The generated HDL code includes only the input/output port definitions for the subsystem. Therefore, you can use a subsystem in your model to generate an interface to existing, manually written HDL code. The black-box interface generation for subsystems is similar to the Model block interface generation without the clock signals.
No HDL	Remove the subsystem from the generated code. You can use the subsystem in simulation, however, treat it as a “no-op” in the HDL code.

Black Box Interface Customization

For the BlackBox architecture, you can customize port names and set attributes of the external component interface. See Customize Black Box or HDL Cosimulation Interface (HDL Coder).

HDL Block Properties

General
AdaptivePipelining	Automatic pipeline insertion based on the synthesis tool, target frequency, and multiplier word-lengths. The default is inherit. See also AdaptivePipelining (HDL Coder).
BalanceDelays	Detects introduction of new delays along one path and inserts matching delays on the other paths. The default is inherit. See also BalanceDelays (HDL Coder).
ClockRatePipelining	Insert pipeline registers at a faster clock rate instead of the slower data rate. The default is inherit. See also ClockRatePipelining (HDL Coder).
ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
DistributedPipelining	Pipeline register distribution, or register retiming. The default is inherit. See also DistributedPipelining (HDL Coder).
DSPStyle	Synthesis attributes for multiplier mapping. The default is none. See also DSPStyle (HDL Coder).
FlattenHierarchy	Remove subsystem hierarchy from generated HDL code. The default is inherit. See also FlattenHierarchy (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline (HDL Coder).
SharingFactor	Number of functionally equivalent resources to map to a single shared resource. The default is 0. See also Resource Sharing (HDL Coder).
StreamingFactor	Number of parallel data paths, or vectors, that are time multiplexed to transform into serial, scalar data paths. The default is 0, which implements fully parallel data paths. See also Streaming (HDL Coder).

Target Specification

This block cannot be the DUT, so the block property settings in the Target Specification tab are ignored.

Complex Data Support

The block does not support complex data signals for HDL code generation. To input complex signals, convert the complex signal to an array of signals, and then input to the block. To learn more, see Generate HDL Code for Blocks Inside For Each Subsystem (HDL Coder).

Generate HDL Code with Algebraic Loops

To generate HDL code for models that contain For Each Subsytem blocks:

• In the Configuration Parameters dialog box, click Diagnostics, and set the Algebraic loop parameter to none or warning.

• Open the block mask for the For Each Subsytem block and select the Minimize algebraic loop occurrences parameter.

Fixed-Point Conversion

Design and simulate fixed-point systems using Fixed-Point Designer™.

Actual data type support depends on block implementation.

Version History

Introduced in R2010a

R2024b: Add signal breakpoints and port value labels to iteration number outputs in iterator subsystems

You can now pause a simulation on a particular iteration of an iterator subsystem by adding signal breakpoints to signals produced by:

• Iteration number output ports of While Iterator blocks inside While Iterator Subsystem blocks

• Iterator value output ports of For Iterator blocks inside For Iterator Subsystem blocks

• Partition index output ports of For Each blocks inside For Each Subsystem blocks

In previous releases, you could add a breakpoint in these locations, but the breakpoints did not pause the simulation and appeared as invalid in the block diagram.

Port value labels at the same locations now display the iteration number. In previous releases, port value labels at these locations showed inaccessible.

For an example, see Debug Simulation of Iterator Subsystem.
