# Implement Control Algorithm Using Enabled Subsystem

This example shows how to use an enabled subsystems to implement a control algorithm based on a binary logic signal. The enabled subsystems execute when the binary signal has a positive value and implements the control algorithm. In this example, the super-twisting control algorithm is used to stabilize an unstable dynamic system. The super-twisting algorithm is one of the well known sliding mode control techniques for its robust performance.

Open the model.

```mdl = 'enablesub.slx'; open_system(mdl);```

### Dynamic System

The dynamic system under consideration is governed by the following equations:

`$\begin{array}{l}{\underset{}{\overset{˙}{x}}}_{1}={x}_{2}\\ {\underset{}{\overset{˙}{x}}}_{2}=2{x}_{1}-3{x}_{2}+u+d\left(t\right)\end{array}$`

$u$ is the control input and $d\left(t\right)$is the external disturbance.

### Controller and Control Signal

The control input ($u$) has two components, ${u}_{1}$ and ${u}_{2}$, which are governed by the super-twisting algorithm. This logic-based design for ${u}_{2}$ is implemented using the enabled subsystem.

`$u\left(t\right)={u}_{1}+{u}_{2}$`

`${\underset{}{\overset{˙}{u}}}_{1}=\gamma sign\left(\sigma \right)$`

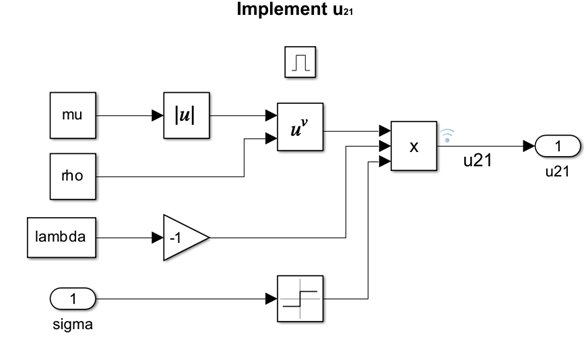

`${u}_{21}=-\lambda |\mu {|}^{\rho }sign\left(\sigma \right)for|\sigma |>\mu$`

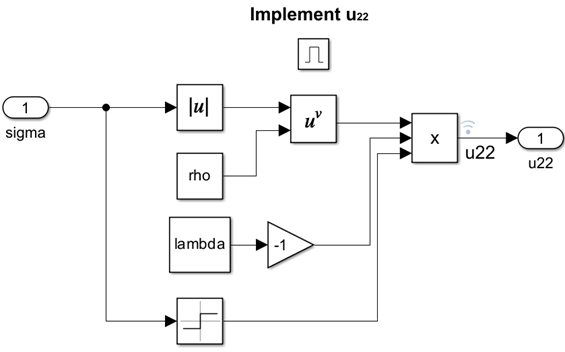

`${u}_{22}=-\lambda |\sigma {|}^{\rho }sign\left(\sigma \right)for|\sigma |\le \mu$`

`$u={u}_{21}+{u}_{22}$`

$\sigma ={x}_{1}+{x}_{2}$, $\gamma =2,\lambda =0.8,\mu =0.55,$ and $\rho =0.6$. These parameters are loaded from the model callback parameter, PreLoadFcn.

### Run Simulation and Visualize Results

Run the simulation and visualize the results using a Scope block and Simulink Data Inspector.

`out = sim(mdl);`

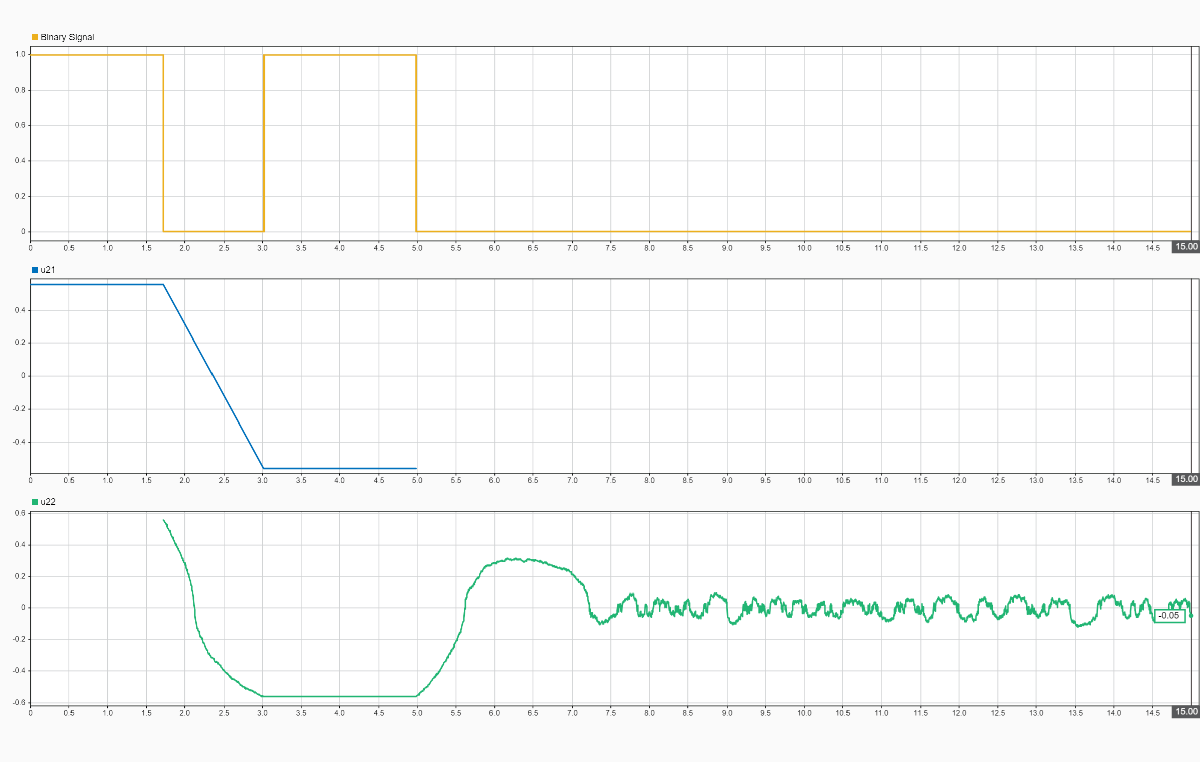

#### Visualize Controller Input

The Simulink Data Inspector shows subsystem output based on the binary signal. The output ${u}_{21}$ and ${u}_{22}$ are the two components of controller gain ${u}_{2}$.

• The subsystem containing ${u}_{21}$ is enabled between 0 and 1.8 seconds and between 3 and 5 seconds.

• The subsystem containing ${u}_{22}$ is enabled between 1.8 and 3 seconds and between 5 and 15 seconds.

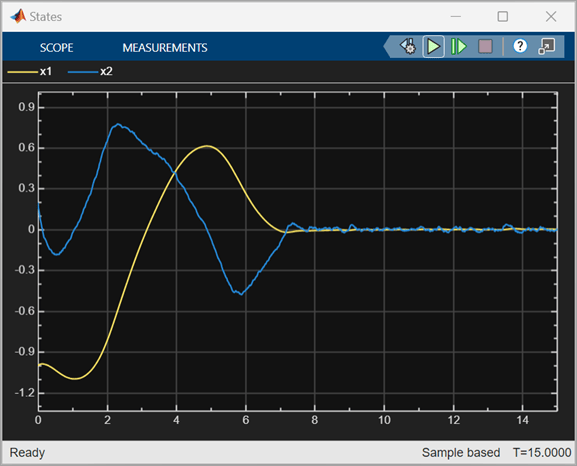

#### State Output

The state output shows that the controller stabilizes the system.

## References

[1] Shtessel, Yuri, Christopher Edwards, Leonid Fridman, and Arie Levant. "Sliding mode control and observation." Vol. 10. New York: Springer New York, 2014. https://link.springer.com/book/10.1007/978-0-8176-4893-0
