addSubtree

Add subtree to robot

Description

addSubtree(robot,bodyname,subtreerobot) attaches the robot model, newSubtree, to an existing robot model, robot, at the body specified by bodyname. The subtree base is not added as a body.

example

addSubtree(___,ReplaceBase=MODE) replaces the current base of the subtree with bodyname when MODE is set to true. MODE is true by default.

example

Examples

collapse all

Make changes to an existing rigidBodyTree object. You can get replace joints, bodies and subtrees in the rigid body tree.

Load an ABB IRB-120T manipulator from the Robotics System Toolbox™ loadrobot. It is specified as a rigidBodyTree object.

manipulator = loadrobot("abbIrb120T");

View the robot with show and read the details of the robot using showdetails.

show(manipulator);
showdetails(manipulator)

Get a specific body to inspect the properties. The only child of the link_3 body is the link_4 body. You can copy a specific body as well.

body3 = getBody(manipulator,"link_3");
childBody = body3.Children{1}
body3Copy = copy(body3);

Replace the joint on the link_3 body. You must create a new Joint object and use replaceJoint to ensure the downstream body geometry is unaffected. Call setFixedTransform if necessary to define a transform between the bodies instead of with the default identity matrices.

newJoint = rigidBodyJoint("prismatic");
replaceJoint(manipulator,"link_3",newJoint);

showdetails(manipulator)

Remove an entire body and get the resulting subtree using removeBody. The removed body is included in the subtree.

subtree = removeBody(manipulator,"link_4")
show(subtree);

Remove the modified link_3 body. Add the original copied link_3 body to the link_2 body, followed by the returned subtree. The robot model remains the same. See a detailed comparison through showdetails.

removeBody(manipulator,"link_3");
addBody(manipulator,body3Copy,"link_2")
addSubtree(manipulator,"link_3",subtree)

showdetails(manipulator)

Load the UR10 robot manipulator from the Robotics System Toolbox™ loadrobot. It is specified as a rigidBodyTree object.

ur10 = loadrobot("universalUR10");

Load the Robotiq 2F-85 gripper to attach it to the manipulator arm.

gripper = loadrobot("robotiq2F85");

Attach the gripper to the end of the UR10 arm.

addSubtree(ur10, 'tool0', gripper, ReplaceBase=false);

View the robot with show and read the details of the robot using showdetails to view the modified joint of the rigidBodyTree object.

show(ur10)

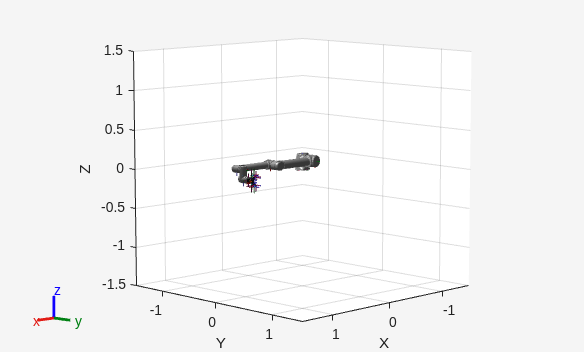

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 61 objects of type patch, line. These objects represent world, base_link, base, shoulder_link, upper_arm_link, forearm_link, wrist_1_link, wrist_2_link, wrist_3_link, ee_link, tool0, robotiq_arg2f_base_link, left_outer_knuckle, left_outer_finger, left_inner_finger, left_inner_finger_pad, left_inner_knuckle, right_inner_knuckle, right_outer_knuckle, right_outer_finger, right_inner_finger, right_inner_finger_pad, base_link_mesh, shoulder_link_mesh, upper_arm_link_mesh, forearm_link_mesh, wrist_1_link_mesh, wrist_2_link_mesh, wrist_3_link_mesh, robotiq_arg2f_base_link_mesh, left_outer_knuckle_mesh, left_outer_finger_mesh, left_inner_finger_mesh, left_inner_finger_pad_mesh, left_inner_knuckle_mesh, right_inner_knuckle_mesh, right_outer_knuckle_mesh, right_outer_finger_mesh, right_inner_finger_mesh, right_inner_finger_pad_mesh.

ans =
  Axes (Primary) with properties:

             XLim: [-1.5000 1.5000]
             YLim: [-1.5000 1.5000]
           XScale: 'linear'
           YScale: 'linear'
    GridLineStyle: '-'
         Position: [0.1300 0.1100 0.7750 0.8150]
            Units: 'normalized'

  Use GET to show all properties

showdetails(ur10)
--------------------
Robot: (21 bodies)

 Idx                      Body Name                            Joint Name                            Joint Type                      Parent Name(Idx)   Children Name(s)
 ---                      ---------                            ----------                            ----------                      ----------------   ----------------
   1                      base_link                           world_joint                                 fixed                              world(0)   base(2)  shoulder_link(3)
   2                           base            base_link-base_fixed_joint                                 fixed                          base_link(1)
   3                  shoulder_link                    shoulder_pan_joint                              revolute                          base_link(1)   upper_arm_link(4)
   4                 upper_arm_link                   shoulder_lift_joint                              revolute                      shoulder_link(3)   forearm_link(5)
   5                   forearm_link                           elbow_joint                              revolute                     upper_arm_link(4)   wrist_1_link(6)
   6                   wrist_1_link                         wrist_1_joint                              revolute                       forearm_link(5)   wrist_2_link(7)
   7                   wrist_2_link                         wrist_2_joint                              revolute                       wrist_1_link(6)   wrist_3_link(8)
   8                   wrist_3_link                         wrist_3_joint                              revolute                       wrist_2_link(7)   ee_link(9)  tool0(10)
   9                        ee_link                        ee_fixed_joint                                 fixed                       wrist_3_link(8)
  10                          tool0        wrist_3_link-tool0_fixed_joint                                 fixed                       wrist_3_link(8)   robotiq_arg2f_base_link(11)
  11        robotiq_arg2f_base_link           robotiq_arg2f_base_link_jnt                                 fixed                             tool0(10)   left_outer_knuckle(12)  left_inner_knuckle(16)  right_inner_knuckle(17)  right_outer_knuckle(18)
  12             left_outer_knuckle                          finger_joint                              revolute           robotiq_arg2f_base_link(11)   left_outer_finger(13)
  13              left_outer_finger               left_outer_finger_joint                                 fixed                left_outer_knuckle(12)   left_inner_finger(14)
  14              left_inner_finger               left_inner_finger_joint                              revolute                 left_outer_finger(13)   left_inner_finger_pad(15)
  15          left_inner_finger_pad           left_inner_finger_pad_joint                                 fixed                 left_inner_finger(14)
  16             left_inner_knuckle              left_inner_knuckle_joint                              revolute           robotiq_arg2f_base_link(11)
  17            right_inner_knuckle             right_inner_knuckle_joint                              revolute           robotiq_arg2f_base_link(11)
  18            right_outer_knuckle             right_outer_knuckle_joint                              revolute           robotiq_arg2f_base_link(11)   right_outer_finger(19)
  19             right_outer_finger              right_outer_finger_joint                                 fixed               right_outer_knuckle(18)   right_inner_finger(20)
  20             right_inner_finger              right_inner_finger_joint                              revolute                right_outer_finger(19)   right_inner_finger_pad(21)
  21         right_inner_finger_pad          right_inner_finger_pad_joint                                 fixed                right_inner_finger(20)
--------------------

Input Arguments

collapse all

Robot model, specified as a rigidBodyTree object.

Parent body name, specified as a string scalar or character vector. This parent body must already exist in the robot model. The new body is attached to this parent body.

Data Types: char | string

Subtree robot model, specified as a rigidBodyTree object.

Replaces the current base of the subtree with bodyname when MODE is specified as true. The default value of MODE is set to true.

Data Types: logical

Extended Capabilities

Version History

Introduced in R2016b
