Superheterodyne Receiver Using RF Budget Analyzer App

This example shows how to:

• Analyze the receiver's RF budget for gain, noise figure, and IP3 using the RF Budget Analyzer app

• Verify your analysis using RF Blockset circuit envelope simulation.

You can either build all the superheterodyne receiver components using MATLAB command line or using the RF Budget Analyzer app. This example shows you how to design the receiver components in MATLAB command line and view the analysis using the RF Budget Analyzer app. The receiver bandwidth is between 5.825 GHz and 5.845 GHz and the receiver is a part of a transmitter-receiver system described in the IEEE conference papers, [1] and [2].

Introduction

RF system designers begin the design process with a budget specification for how much gain, noise figure (NF), and nonlinearity (IP3) the entire system must satisfy. To assure the feasibility of an architecture modeled as a simple cascade of RF elements, designers calculate both the per-stage and cascade values of gain, noise figure and IP3 (third-intercept point).

Using the RF Budget Analyzer app, you can:

• Build a cascade of RF elements.

• Calculate the per-stage and cascade output power, gain, noise figure, SNR, and IP3 of the system.

• Export the per-stage and cascade values to the MATLAB™ workspace.

• Export the system design to RF Blockset for simulation.

• Export the system design to RF Blockset measurement testbench as a DUT (device under test) subsystem and verify the results obtained using the App.

Video Walkthrough

For a walkthrough of the example, play the video.

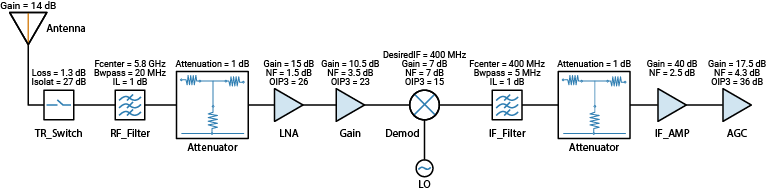

The first components in the superheterodyne receiver system architecture are the antenna and TR switch. You can replace the antenna element with the effective power reaching the switch.

1. The receiver uses the TR switch to switch between the transmitter and the receiver. The switch adds a loss of 1.3 dB to the system. Use the `rfelement` object to create a TR switch with a gain of -1.3 dB, and OIP3 of 37 dBm. To match the RF budget results from reference [1], the noise figure is assumed to be 2.3 dB.

`elements(1) = rfelement('Name','TRSwitch','Gain',-1.3,'NF',2.3,'OIP3',37);`

2. Next element in the chain is the RF bandpass filter. Use an `rffilter` object to model an RF bandpass filter. For more information about the design specification of the RF Bandpass filter used in this example, see Design IF Butterworth Bandpass Filter

```Fcenter = 5.8e9; Bwpass = 20e6; elements(2) = rffilter('ResponseType','Bandpass', ... 'FilterType','Butterworth','FilterOrder',6, ... 'PassbandAttenuation',10*log10(2), ... 'Implementation','Transfer function', ... 'PassbandFrequency',[Fcenter-Bwpass/2 Fcenter+Bwpass/2], ... 'Name','RF_Filter');```

3. The S-parameters for element(2) filter are not ideal. Therefore, use an 1 dB attenuator to model the insertion loss of the filter into the system.

`elements(3) = attenuator("Attenuation",1);`

4. Use the `amplifier` object to model a `Low Noise Amplifier` block with a gain of 15 dB, noise figure of 1.5 dB, and OIP3 of 26 dBm.

`elements(4) = amplifier('Name','LNA','Gain',15,'NF',1.5,'OIP3',26);`

5. Model a `Gain` block with a gain of 10.5 dB, noise figure of 3.5 dB, and OIP3 of 23 dBm.

`elements(5) = amplifier('Name','Gain','Gain',10.5,'NF',3.5,'OIP3',23);`

6. The receiver downconverts the RF frequency to an IF frequency of 400 MHz. Use the `modulator` object to create Demodulator block with a LO (Local Oscillator) frequency of 5.4 GHz, gain of -7 dB, noise figure of 7 dB, and OIP3 of 15 dBm.

```elements(6) = modulator('Name','Demod','Gain',-7,'NF',7,'OIP3',15, ... 'LO',5.4e9, 'ConverterType','Down');```

7. Now model an IF bandpass filter using `rffilter` object.

```Fcenter = 400e6; Bwpass = 5e6; elements(7) = rffilter('ResponseType','Bandpass', ... 'FilterType','Chebyshev','FilterOrder',4, ... 'PassbandAttenuation',0.1, ... 'Implementation','Transfer function', ... 'PassbandFrequency',[Fcenter-Bwpass/2 Fcenter+Bwpass/2], ... 'Name','IF_Filter');```

8. The S-parameters for element(7) filter are not ideal. Therefore, use an 1 dB attenuator to model the insertion loss of the filter into the system.

`elements(8) = attenuator("Attenuation",1);`

9. Model an `IF Amplifier` block with a gain of 40 dB and a noise figure of 2.5 dB.

`elements(9) = amplifier('Name','IFAmp','Gain',40,'NF',2.5);`

10. As seen in the references, the receiver uses an AGC (Automatic Gain Control) block where the gain varies with the available input power level. For an input power of -80 dB, the AGC gain is at a maximum of 17.5 dB. Use an Amplifier block to model an AGC. Model an `AGC` block with a gain of 17.5 dB, noise figure of 4.3 dB, and OIP3 of 36 dBm.

`elements(10) = amplifier('Name','AGC','Gain',17.5,'NF',4.3,'OIP3',36);`

Add all the elements in cascade to construct an RF chain. Use the `rfbudget` object to calculate the RF budget of the superheterodyne receiver. Set `Input frequency` to 5.8 GHz and `Signal bandwidth` to 20 MHz. Replace the antenna element with the effective `Available input power` which is estimated to be -66 dB reaching the TRswitch.

`superhet = rfbudget('Elements',elements,'InputFrequency',5.8e9, 'AvailableInputPower',-66,'SignalBandwidth',20e6)`
```superhet = rfbudget with properties: Elements: [1x10 rf.internal.rfbudget.Element] InputFrequency: 5.8 GHz AvailableInputPower: -66 dBm SignalBandwidth: 20 MHz Solver: Friis AutoUpdate: true Analysis Results OutputFrequency: (GHz) [ 5.8 5.8 5.8 5.8 5.8 0.4 0.4 0.4 0.4 0.4] OutputPower: (dBm) [-67.3 -67.3 -68.3 -53.3 -42.8 -49.8 -49.9 -50.9 -10.9 6.6] TransducerGain: (dB) [ -1.3 -1.3 -2.3 12.7 23.2 16.2 16.1 15.1 55.1 72.6] NF: (dB) [ 2.3 2.3 3.112 4.39 4.494 4.524 4.524 4.534 4.57 4.57] IIP2: (dBm) [] OIP2: (dBm) [] IIP3: (dBm) [ 38.3 38.3 38.3 13.29 -0.3904 -3.824 -3.824 -3.824 -3.824 -36.6] OIP3: (dBm) [ 37 37 36 25.99 22.81 12.38 12.28 11.28 51.28 36] SNR: (dB) [32.66 32.66 31.85 30.57 30.47 30.44 30.44 30.43 30.39 30.39] ```

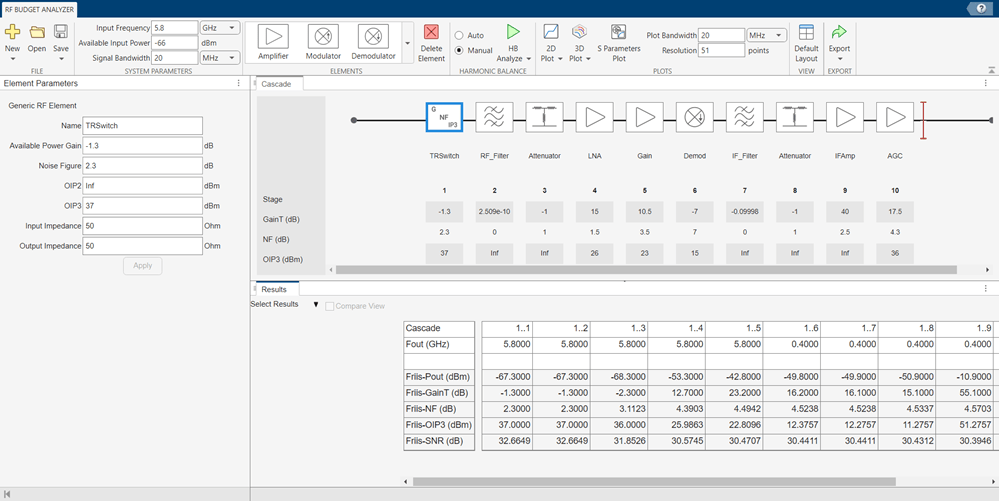

View the analysis in the RF Budget Analyser app by typing this command at the command line. The app displays the cascade values such as: output frequency of the receiver, output power, gain, noise figure, OIP3, and SNR (Signal-to- Noise-Ratio). The RF Budget Analyzer app saves the model in a MAT-file format.

```show(superhet); ```

Plot the cascade transducer gain of the receiver using the `rfplot` function. You can also use the Plot button on the RF Budget Analyzer app to plot the different output values.

```rfplot(superhet,'GainT') view(90,0)```

```rfplot(superhet,'NF') view(90,0)```

Export to MATLAB Script

Export the model to a MATLAB script. You can use this script to edit your RF chain or share your receiver system with others.

`h = exportScript(superhet);`

The script opens automatically in a MATLAB Editor window.

`h.closeNoPrompt`

Verify Output Power and Transducer Gain Using RF Blockset Simulation

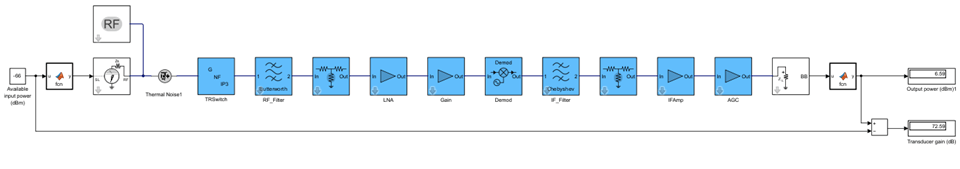

Use the Export button to export the receiver to RF Blockset to perform circuit envelope simulation. You can use circuit envelope simulation to verify the analysis results that you generated in the app.You can also use the `exportRFBlockset` function to export the chain to RF Blockset.

```exportRFBlockset(superhet) ```

Run the RF Blockset model to calculate the Output power (dBm) and Transducer gain (dB) of the receiver. Note that the results match the Pout (dBm) and the GainT (dB) values of the receiver obtained using the RF Budget Analyzer app.

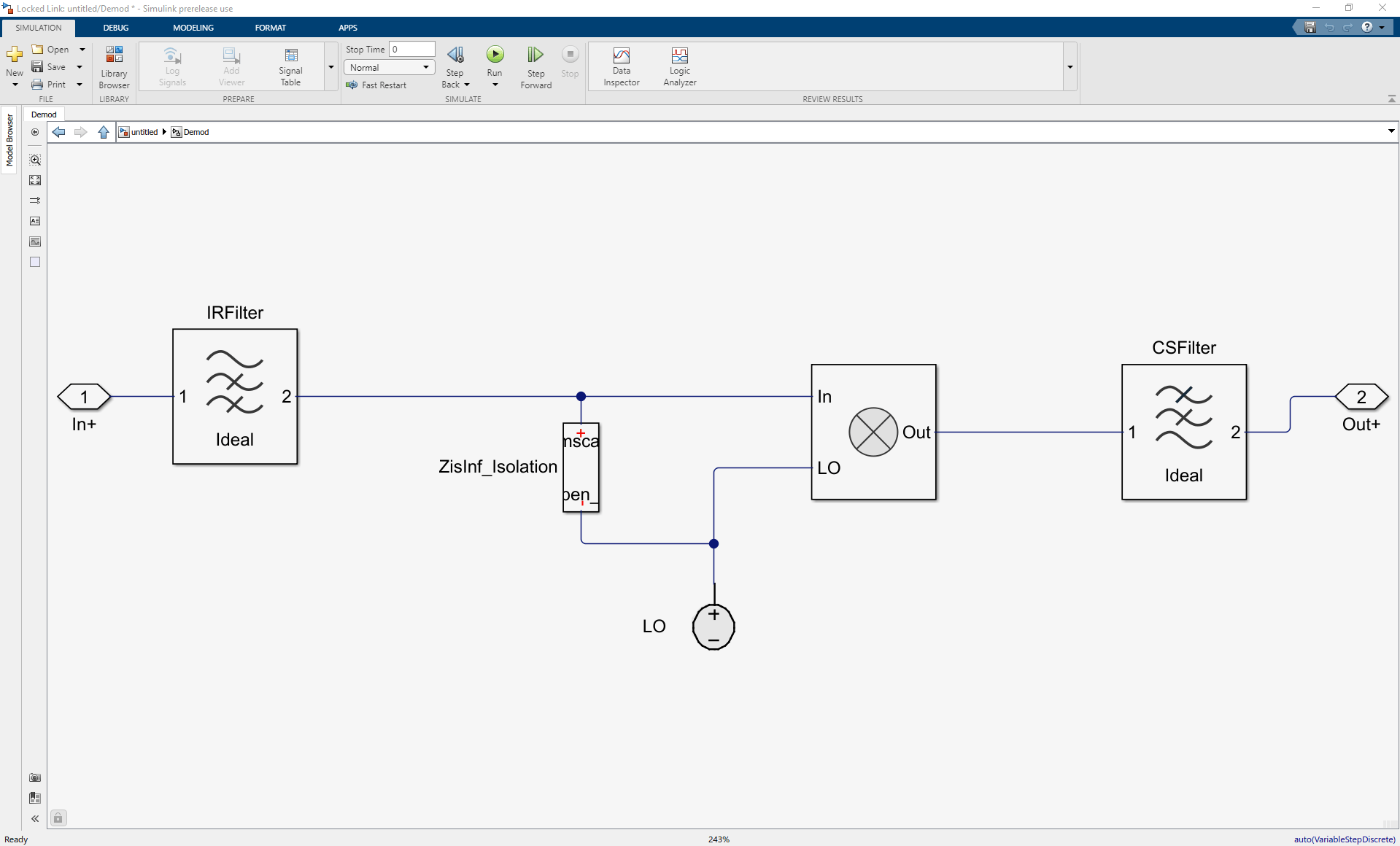

Look under the mask of the Demodulator block. This block consists of an ideal filter and a channel select filter and an LO (local oscillator) for frequency up or down conversion. The stop time for the simulation is zero. To simulate time-varying results, you need to change the stop time.

Export to RF Blockset Testbench

Use the Export button to export the receiver to RF Blockset measurement testbench. Measurement of properties such as gain, noise figure, and intercept points (IPs) in RF systems is crucial to the system design and analysis. Such measurements are accomplished by placing a device under test (DUT) in a testbench. Use the testbenches blocks to measure RF properties and verify the response of the DUT.

The RF Blockset testbench consists of two subsystems, `RF Measurement Unit` and `Device Under Test`.

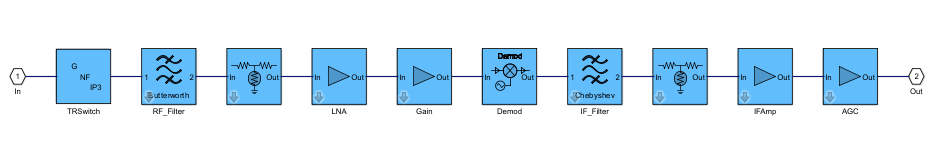

The `Device Under Test` subsystem block contains the superheterodyne receiver you exported from the RF Budget Analyzer app. Double-click on the DUT subsystem block to look inside.

Double-click on the `RF Measurement Unit` subsystem block to see the system parameters. By default, RF Blockset testbench verifies gain.

Verify Gain, Noise Figure, and IP3 Using RF Blockset Testbench

You can verify the gain, noise figure, and IP3 measurements using the RF Blockset testbench.

By default, the model verifies the gain measurement of the device under test. Run the model to check the gain value. The simulated gain value matches the cascade transducer gain value from the app. The scope shows an output power of approximately 6.7 dB at 400 MHz that matches the output power value in the RF Budget Analyzer app.

The RF Blockset testbench calculates the spot noise figure. The calculation assumes a frequency independent system within a given bandwidth. To simulate a frequency independent system and calculate the correct noise figure value, you need to reduce the broad bandwidth of 20 MHz to a narrow bandwidth.

To do so, first, stop all simulations. Double-click on the `RF Measurement Unit` Block. This opens the RF measurement unit parameters. In the Measured Quantity parameter drop down, change the parameter to NF (noise figure). In the Parameters tab, change the Baseband bandwidth (Hz) to 2000 Hz. Click Apply. To learn more about how to manipulate noise figure verification, click the Instructions tab.

Run the model again to check the noise figure value. The testbench noise figure value matches the cascade noise figure value from the RF Budget Analyzer app.

IP3 measurements rely on the creation and measurement of intermodulation tones that are usually small in amplitude and may be below the DUT's noise floor. For accurate IP3 measurements, clear the Simulate noise checkbox.

To verify OIP3 (output third-order intercept), stop all simulations. Open the `RF Measurement Unit` dialog box. Clear the Simulate noise (both stimulus and DUT internal) check box. Change the Measured Quantity parameter to IP3. Keep the IP Type as Output referred. To learn more about how to manipulate OIP3 verification, click the Instructions tab. Click Apply.

Run the model. The testbench OIP3 value matches the cascade OIP3 value of the app.

To verify IIP3 (input third-order intercept), stop all simulations. Open `RF Measurement Unit` dialog box. Clear the Simulate noise (both stimulus and DUT internal) check box. Change the Measured Quantity parameter in block parameters to IP3. Change the IP Type to Input referred. To learn more about how to manipulate IIP3 verification, click the Instructions tab. Click Apply.

Run the model again to check the IIP3 value.

To sum it up, in this example, you have seen how to build, analyze, and verify a superheterodyne receiver. Similarly, you can build and analyze an RF chain programmatically in the MATLAB command line or interactively using the RF Budget Analyzer app, and generate circuit envelope models for system-level simulation.
