exportTestbench

Export RF budget object to RF Blockset measurement testbench model

Syntax

exportTestbench(rfobj)

exportTestbench(rfobj,Library='IdealizedBaseband')

sys = exportRFBlockset(___)

Description

exportTestbench(rfobj) exports the RF budget object robj to a measurement testbench model in the RF Blockset™ Circuit Envelope library environment. You can then use the model to measure the cumulative gain, input second-order intercept point (IIP2), output second-order intercept point (OIP2), input third-order intercept point (IIP3), output third-order intercept point (OIP3), noise figure, noise floor, and DC offsets.

example

exportTestbench(rfobj,Library='IdealizedBaseband') exports the RF budget object to a measurement testbench model in the RF Blockset Idealized Baseband library environment. You can then use the model to measure gain, intercept points, and noise floor. Idealized baseband simulation provides shorter simulation time because the simulation assume perfect impedance matching and a nominal impedance of 1 ohm in the RF system. (since R2023a)

example

sys = exportRFBlockset(___) returns the system name.

Note

The exportTestbench function requires a license for RF Blockset and DSP System Toolbox™.

Examples

collapse all

Measurement Testbench From RF Budget Object

This example uses:

Open Live Script

Create an amplifier with a gain of 4 dB.

a = amplifier(Gain=4);

Create a modulator with an OIP3 of 13 dBm.

m = modulator(OIP3=13);

Create an RF element with a gain of 10 dB.

r = rfelement(Gain=10);

Calculate the RF budget of a series of RF elements at an input frequency of 2.1 GHz, an available input power of –30 dBm, and a bandwidth of 10 MHz.

rfobj = rfbudget([a m r],2.1e9,-30,10e6)

rfobj =
  rfbudget with properties:

               Elements: [1x3 rf.internal.rfbudget.RFElement]
         InputFrequency: 2.1 GHz
    AvailableInputPower: -30 dBm
        SignalBandwidth:  10 MHz
                 Solver: Friis
             AutoUpdate: true

   Analysis Results
        OutputFrequency: (GHz) [  2.1    3.1    3.1]
            OutputPower: (dBm) [  -26    -26    -16]
         TransducerGain: (dB)  [    4      4     14]
                     NF: (dB)  [    0      0      0]
                   IIP2: (dBm) []
                   OIP2: (dBm) []
                   IIP3: (dBm) [  Inf      9      9]
                   OIP3: (dBm) [  Inf     13     23]
                    SNR: (dB)  [73.98  73.98  73.98]

Create the measurement testbench from the RF budget object.

exportTestbench(rfobj)

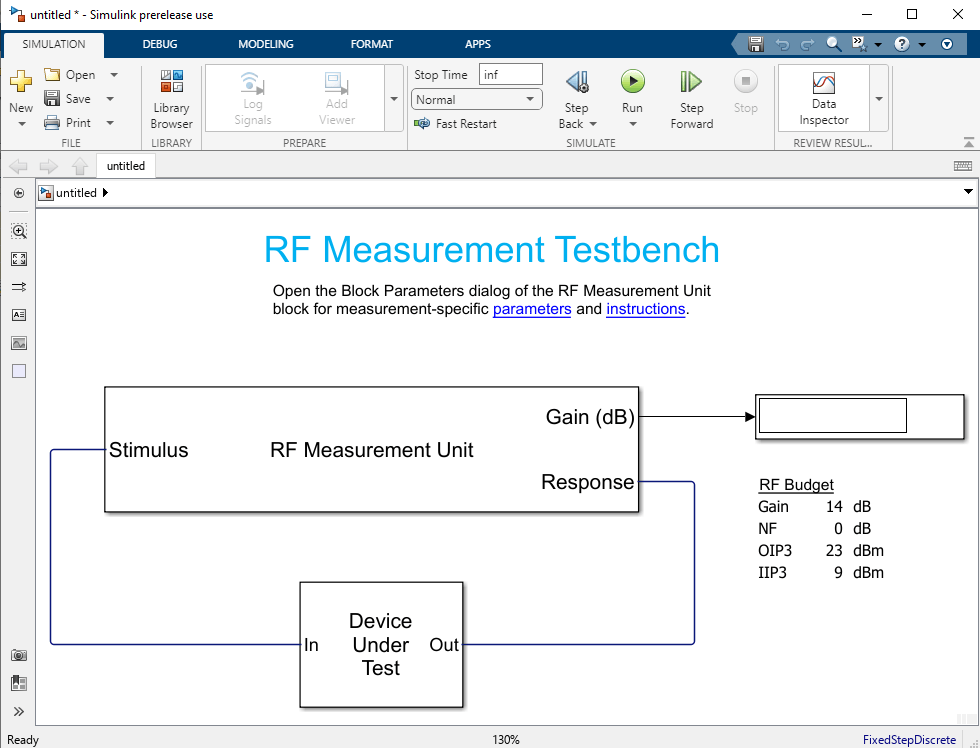

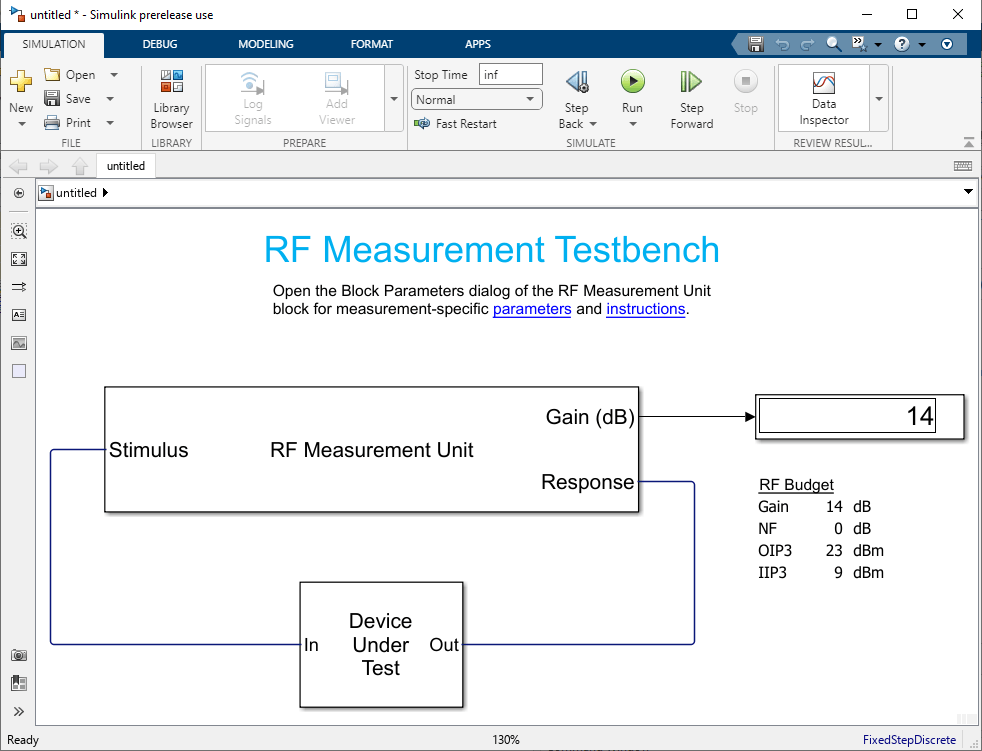

Select Run to simulate your testbench.

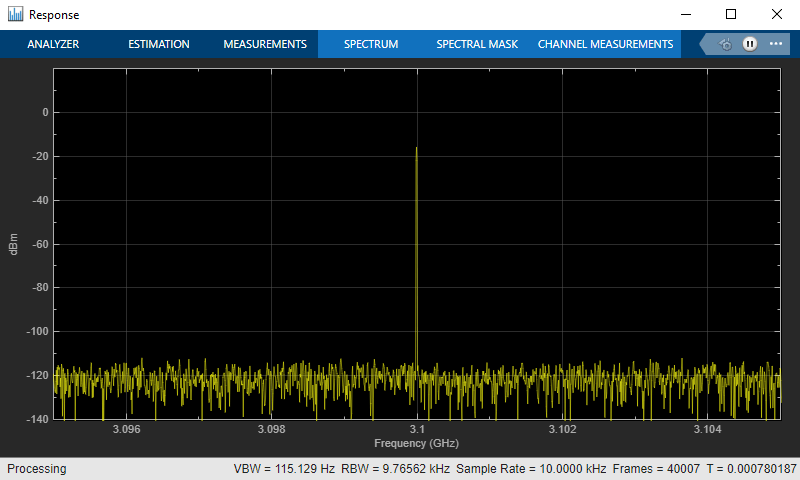

The response will be displayed when you run the testbench.

Idealized Baseband Measurement Testbench Model from RF Budget Object

Since R2023a

This example uses:

Open Script

Create an amplifier with a gain of 4 dB.

a = amplifier(Gain=4);

Create a modulator with an OIP3 of 13 dBm.

m = modulator(OIP3=13);

Calculate the RF budget of a series of RF elements at an input frequency of 2.1 GHz, an available input power of – 30 dBm, and a bandwidth of 10 MHz.

rfobj = rfbudget([a m ],2.1e9,-30,10e6);

Export the RF budget object to an RF Blockset measurement testbench model created using Idealized Baseband library blocks.

exportTestbench(rfobj,Library='IdealizedBaseband')

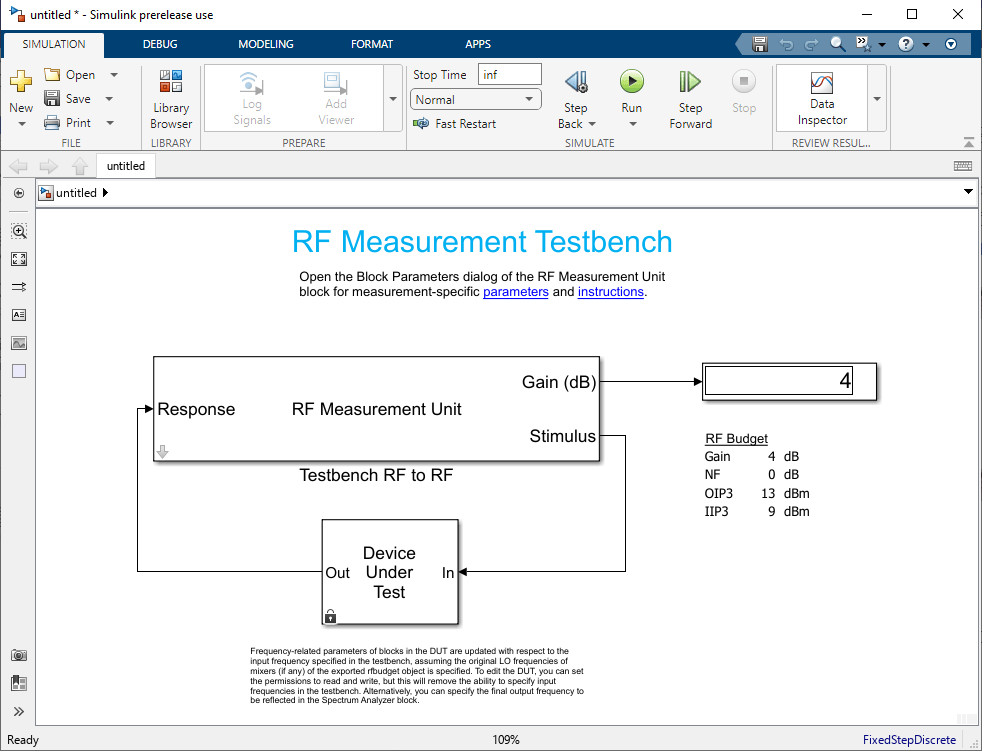

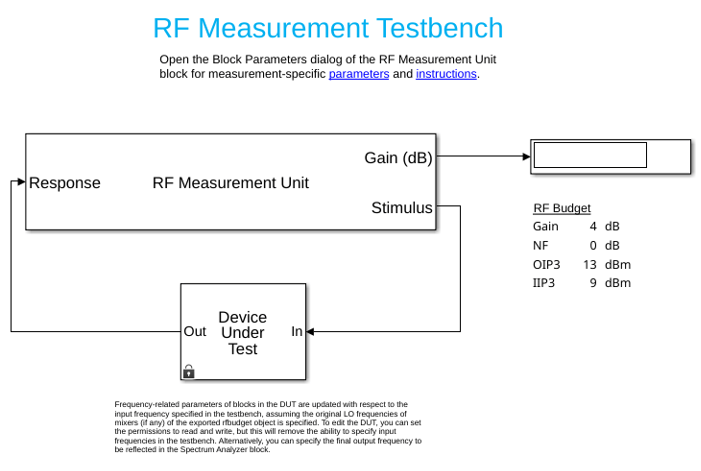

Use the RF Measurement testbench to verify the cumulative gain, noise figure or noise floor, and nonlinearity (IP3) values while taking advantage of the shorter simulation times of the Idealized Baseband library by assuming perfect impedance matching and a nominal impedance of 1 ohm.

Modify the RF system in the device under test for further analysis

Input Arguments

collapse all

`rfobj` — RF budget object
`rfbudget` object

RF budget object, specified as an rfbudget object.

Note

You cannot export an RF budget object to an RF Blockset Idealized Baseband measurement testbench model if one of the elements in the object is an rfelement. (since R2023a)
