# surfaceToSurfaceSettings

## Description

A `surfaceToSurfaceSettings`

object contains
information about the parameters for thermal radiation analysis between surfaces without
conductive media. The settings include all defined enclosures, names of enclosures currently
participating in radiation analysis, and computed view factors.

## Creation

The `setupRadiation`

function creates a `surfaceToSurfaceSettings`

object stored in the
`ThermalRadiation`

property of an `femodel`

object.

When calling `setupRadiation`

, use `fem`

as both the
input and output argument to assign the resulting `surfaceToSurfaceSettings`

object to the `ThermalRadiation`

property of the specified model.

## Properties

`ViewFactors`

— Computed view factors

numeric matrix

This property is read-only.

Computed view factors, stored as a numeric matrix. Computing view factors involves determining which mesh facet on the boundary sees which other facets, including the effect of shadowing. The toolbox uses ray tracing to determine shadowing, while it uses the double area integral method or the Monte Carlo method to compute the view factors themselves.

**Data Types: **`double`

`ViewFactorMethod`

— Method for computing view factors

`"areaintegral"`

(default) | `"montecarlo"`

*Since R2024a*

This property is read-only.

Method for computing view factors, stored as `"areaintegral"`

or
`montecarlo"`

.

Computing view factors involves determining which mesh facet on the boundary sees which other facets, including the effect of shadowing. The toolbox uses ray tracing to determine shadowing. By default, it uses the double area integral method to compute view factors. Using the Monte Carlo method instead improves results for enclosures with a shared edge, such as two orthogonal faces of a box, but it can take longer.

**Data Types: **`string`

`Enclosures`

— Enclosures for surface-to-surface radiation analysis

dictionary (`string`

⟼
`enclosureDefinition`

)

Enclosures for surface-to-surface radiation analysis, stored as a dictionary with
`string`

keys and `enclosureDefinition`

values. Each
enclosure is a group of surfaces between which heat transfer occurs due to radiation
without conductive media.

`ParticipatingEnclosures`

— Names of enclosures participating in radiation analysis

string | vector of strings

This property is read-only.

Names of enclosures participating in radiation analysis, stored as a string or a vector of strings.

**Data Types: **`string`

## Examples

### Specify Radiation Parameters

Specify radiation parameters for heat transfer between two parallel plates.

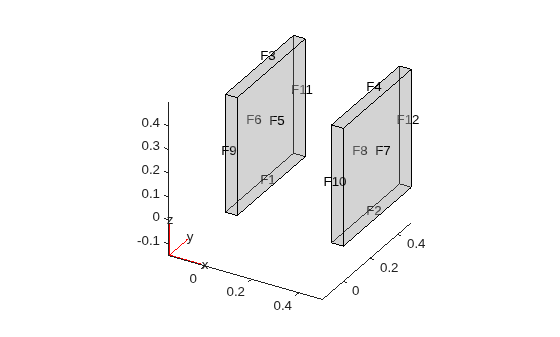

Create the geometry representing two parallel plates of the same dimensions. The distance between the plates is 0.4 m.

dist = 0.4; W = 0.05; L = 0.5; H = 0.5; R1 = [3 4 0 W W 0 0 0 L L]; R2 = [3 4 W+dist 2*W+dist 2*W+dist W+dist 0 0 L L]; geom2D = fegeometry(decsg([R1(:) R2(:)], ... 'R1+R2',[char('R1')' char('R2')'])); geom3D = extrude(geom2D,H); pdegplot(geom3D,FaceLabels="on",FaceAlpha=0.3)

Create a finite element model for thermal analysis and include the geometry.

`fem = femodel(AnalysisType="thermalSteady",Geometry=geom3D);`

Generate a mesh.

fem = generateMesh(fem,Hmax=H/4);

Account for surface-to-surface radiation in the enclosure formed by the plates by using the `setupRadiation`

function.

fem = setupRadiation(fem,EnclosureFaces=[5 6]); fem.ThermalRadiation

ans = surfaceToSurfaceSettings with properties: ViewFactors: [204x204 double] ViewFactorMethod: "areaintegral" Enclosures: dictionary (string --> enclosureDefinition) with 1 entry ParticipatingEnclosures: "Enclosure_1"

If you do not specify enclosure names, `setupRadiation`

uses the default names, such as `"Enclosure_1"`

. The function also sets the enclosure perfectness to `true`

, which means that the solver ignores ambient radiation. To change these settings, use the `EnclosureNames`

and `PerfectEnclosure`

name-value arguments.

fem = setupRadiation(fem,EnclosureFaces=[5 6], ... EnclosureNames="two_plates", ... PerfectEnclosure=false); fem.ThermalRadiation

ans = surfaceToSurfaceSettings with properties: ViewFactors: [204x204 double] ViewFactorMethod: "areaintegral" Enclosures: dictionary (string --> enclosureDefinition) with 1 entry ParticipatingEnclosures: "two_plates"

Specify ambient temperature and emissivity for the enclosure formed by the plates.

fem.FaceLoad([5 6]) = faceLoad(AmbientTemperature=0,Emissivity=0.5);

### Compute View Factors

*Since R2024a*

Find view factors in a cubical cavity using the double area integral method and the Monte Carlo method.

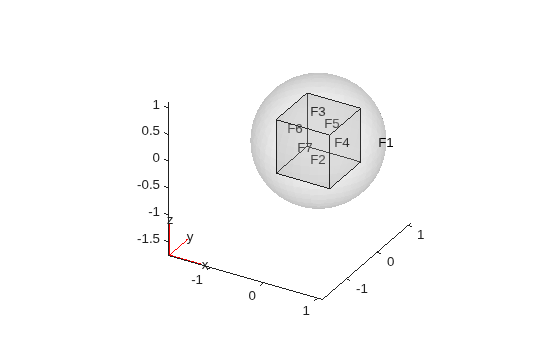

Create and plot a geometry of a sphere with a cubical cavity.

```
L = 1;
g1 = multisphere(L*1.1);
g2 = multicuboid(L,L,L,Zoffset=-L/2);
g1 = addVoid(g1,g2);
pdegplot(g1,FaceAlpha=0.2,FaceLabels="on")
```

Create a finite element model for thermal analysis and include the geometry.

`fem = femodel(AnalysisType="thermalSteady",Geometry=g1);`

Generate a mesh.

fem = generateMesh(fem,Hmax=0.1*L);

Account for surface-to-surface radiation in the enclosure represented by the cubical cavity. By default, the `setupRadiation`

function uses the double area integral method to compute view factors.

fem = setupRadiation(fem,EnclosureFaces=2:7);

The toolbox computes view factors based on the finite element mesh. Use the `extractGeometricAreaViewFactors`

helper function to map the computed mesh view factors to the geometric face view factors. To view the code for this function, see Helper Function.

[~,ViewFactors] = extractGeometricAreaViewFactors(fem); ViewFactors

`ViewFactors = `*6×6*
0.0000 0.2020 0.2114 0.2116 0.2110 0.2116
0.2020 0.0000 0.2106 0.2112 0.2109 0.2113
0.2113 0.2121 0.0000 0.2112 0.2019 0.2114
0.2111 0.2115 0.2114 0.0000 0.2112 0.2019
0.2117 0.2117 0.2019 0.2114 0.0000 0.2110
0.2110 0.2113 0.2112 0.2019 0.2115 0.0000

The view factors between each face must be 0.2, which means that all off-diagonal entries in `ViewFactors`

must be very close to 0.2. Now, compute the view factors using the Monte Carlo method and compare the results.

fem = setupRadiation(fem, ... EnclosureFaces=2:7, ... ViewFactorMethod="montecarlo");

The Monte Carlo method improves results for enclosures with a shared edge, but it can take longer to compute view factors.

[~,ViewFactors_MC] = extractGeometricAreaViewFactors(fem); ViewFactors_MC

`ViewFactors_MC = `*6×6*
0 0.2023 0.2030 0.1988 0.2022 0.1980
0.2037 0 0.2029 0.2036 0.2020 0.2014
0.2009 0.2007 0 0.2028 0.2041 0.2012
0.2021 0.2035 0.1975 0 0.1993 0.2045
0.1974 0.1986 0.2012 0.2009 0 0.2047
0.2052 0.2063 0.2035 0.2036 0.2013 0

**Helper Function**

This code defines the `extractGeometricAreaViewFactors`

helper function, which maps view factors from a mesh to a geometry.

function [A,F] = extractGeometricAreaViewFactors(fem) map = []; for i = 1:length(fem.ThermalRadiation.ParticipatingEnclosures) map = [map, ... fem.ThermalRadiation.Enclosures( ... fem.ThermalRadiation.ParticipatingEnclosures(i) ... ).BoundaryFacetMapping]; end A = zeros(size(map,2),1); F = zeros(size(map,2)); for i = 1:size(map,2) FacetsIDi = map(2:3,i); FacetsIDi = FacetsIDi(1):FacetsIDi(end); FacetsAi = fem.ThermalRadiation.Area(FacetsIDi); Ai = sum(FacetsAi); A(i) = Ai; for j = 1:size(map,2) FacetsIDj = map(2:3,j); FacetsIDj = FacetsIDj(1):FacetsIDj(end); FacetsFij = ... fem.ThermalRadiation.ViewFactors(FacetsIDj, ... FacetsIDi); F(i,j) = sum(FacetsFij*FacetsAi)/sum(FacetsAi); end end end

## Version History

**Introduced in R2023b**

### R2024a: Compute view factors using Monte Carlo method

In addition to the default double area integral method for computing view factors, the
toolbox now supports the Monte Carlo method. To support different view factor computation
methods, the `surfaceToSurfaceSettings`

object has a new
`ViewFactorMethod`

property.
