findElectromagneticProperties

Find electromagnetic material properties assigned to geometric region

Since R2021a

collapse all in page

    Domain-specific electromagnetic workflow is not recommended. New features might not be compatible with this workflow. For help migrating your existing code to the unified finite element workflow, see Migration from Domain-Specific to Unified Workflow.

    Syntax

    emProperties = findElectromagneticProperties(materialProperties,RegionType,RegionID)

    Description

    emProperties = findElectromagneticProperties(materialProperties,RegionType,RegionID) returns the electromagnetic material properties assigned to the specified region of the specified model.

    example

    Examples

    collapse all

    Open Live Script

    Create an electromagnetic model for an electrostatic analysis.

    emagmodel = createpde("electromagnetic","electrostatic");

    Include the L-shaped membrane geometry in the model and plot it with the face labels.

    geometryFromEdges(emagmodel,@lshapeg);
pdegplot(emagmodel,"FaceLabels","on")
ylim([-1.1 1.1])
axis equal

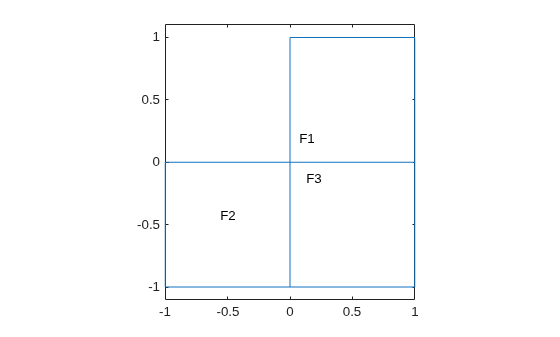

    Figure contains an axes object. The axes object contains 4 objects of type line, text.

    Specify the vacuum permittivity value in the SI system of units.

    emagmodel.VacuumPermittivity = 8.8541878128E-12;

    Specify a different value of relative permittivity for each face.

    electromagneticProperties(emagmodel,"RelativePermittivity",2.5, ...
                                    "Face",1);
electromagneticProperties(emagmodel,"RelativePermittivity",2.25, ...
                                    "Face",2);
electromagneticProperties(emagmodel,"RelativePermittivity",1, ...
                                    "Face",3);

    Check the electromagnetic material properties specification for each face.

    findElectromagneticProperties(emagmodel.MaterialProperties,"Face",1)
    ans =
  ElectromagneticMaterialAssignment with properties:

              RegionType: 'Face'
                RegionID: 1
    RelativePermittivity: 2.5000
    RelativePermeability: []
            Conductivity: []


    findElectromagneticProperties(emagmodel.MaterialProperties,"Face",2)
    ans =
  ElectromagneticMaterialAssignment with properties:

              RegionType: 'Face'
                RegionID: 2
    RelativePermittivity: 2.2500
    RelativePermeability: []
            Conductivity: []


    findElectromagneticProperties(emagmodel.MaterialProperties,"Face",3)
    ans =
  ElectromagneticMaterialAssignment with properties:

              RegionType: 'Face'
                RegionID: 3
    RelativePermittivity: 1
    RelativePermeability: []
            Conductivity: []
    Open Live Script

    Create and plot a geometry consisting of two nested spheres.

    gm = multisphere([5 15]);
pdegplot(gm,"CellLabels","on","FaceAlpha",0.3)

    Figure contains an axes object. The axes object contains 5 objects of type quiver, text, patch.

    Create an electromagnetic model for magnetostatic analysis.

    emagmodel = createpde("electromagnetic","magnetostatic");

    Include the geometry in the model.

    emagmodel.Geometry = gm;

    Specify the vacuum permeability value in the SI system of units.

    emagmodel.VacuumPermeability = 1.2566370614E-6;

    Specify a different value of relative permittivity for each cell.

    electromagneticProperties(emagmodel,"RelativePermittivity",2.5, ...
                                    "Cell",1);
electromagneticProperties(emagmodel,"RelativePermittivity",2.25, ...
                                    "Cell",2);

    Check the electromagnetic material properties specification for each cell.

    findElectromagneticProperties(emagmodel.MaterialProperties,"Cell",1)
    ans =
  ElectromagneticMaterialAssignment with properties:

              RegionType: 'Cell'
                RegionID: 1
    RelativePermittivity: 2.5000
    RelativePermeability: []
            Conductivity: []


    findElectromagneticProperties(emagmodel.MaterialProperties,"Cell",2)
    ans =
  ElectromagneticMaterialAssignment with properties:

              RegionType: 'Cell'
                RegionID: 2
    RelativePermittivity: 2.2500
    RelativePermeability: []
            Conductivity: []

    Input Arguments

    collapse all

    Material properties of an electromagnetic model, specified as the MaterialProperties property of the model.

    Example: emagmodel.MaterialProperties

    Geometric region type, specified as "Face" for a 2-D geometry or "Cell" for a 3-D geometry.

    Data Types: char | string

    Region ID, specified as a vector of positive integers. Find the face or cell IDs by using pdegplot with the "FaceLabels" or "CellLabels" name-value argument set to "on".

    Data Types: double

    Output Arguments

    collapse all

    Material properties assignment, returned as an ElectromagneticMaterialAssignment object. For more information, see ElectromagneticMaterialAssignment Properties.

    Version History

    Introduced in R2021a
