codistributor2dbc

2-D block-cyclic distribution scheme for codistributed array

Description

A codistributor2dbc object defines the two-dimensional block-cyclic distribution scheme for a codistributed array object. The 2-D block-cyclic codistributor can distribute only two-dimensional matrices. It distributes matrices along two subscripts over a rectangular computational grid of workers in a blocked, cyclic manner. For a complete description of 2-D block-cyclic distribution, default parameters, and the relationship between block size and worker grid, see 2-Dimensional Distribution. The parallel matrix computation software library ScaLAPACK uses the 2-D block-cyclic codistributor.

Creation

Syntax

codist = codistributor2dbc

codist = codistributor2dbc(WorkerGrid)

codist = codistributor2dbc(WorkerGrid,BlockSize)

codist = codistributor2dbc(WorkerGrid,BlockSize,Orientation)

codist = codistributor2dbc(WorkerGrid,BlockSize,Orientation,gsize)

Description

codist = codistributor2dbc creates a two-dimensional block-cyclic codistributed2dbc codistributor object using the default worker grid and block size.

codist = codistributor2dbc(WorkerGrid) creates a two-dimensional block-cyclic codistributor object with a specified WorkerGrid value and default block size.

codist = codistributor2dbc(WorkerGrid,BlockSize) creates a two-dimensional block-cyclic codistributor object with the specified WorkerGrid and BlockSize values.

codist = codistributor2dbc(WorkerGrid,BlockSize,Orientation) also specifies the Orientation property.

The resulting codistributor of any of the above syntaxes is incomplete because its global size is not specified. Use a codistributor constructed this way as an argument to other functions as a template codistributor when creating codistributed arrays.

codist = codistributor2dbc(WorkerGrid,BlockSize,Orientation,gsize) creates a codistributor object with the global size gsize.

The resulting codistributor object is complete. Use a codistributor constructed this way to build a codistributed array from its local parts with the codistributed.build function. To use the default values for each argument, specify WorkerGrid as codistributor2dbc.defaultWorkerGrid, BlockSize as codistributor2dbc.defaultBlockSize, and Orientation as codistributor2dbc.defaultOrientation.

Input Arguments

gsize — Global size of codistributed array

integer

Global size of the codistributed array, specified as an integer.

Properties

WorkerGrid — Worker grid of codistributor2dbc object

codistributor2dbc.defaultWorkerGrid (default) | 1-by-2 numeric vector

Worker grid of the codistributor2dbc object, specified as a two-element vector defining the rows and columns of the worker grid. The number of rows multiplied by the number of columns must equal the number of workers for the codistributed array.

BlockSize — Block size of codistributor2dbc object

codistributor2dbc.defaultBlockSize (default) | positive integer

Block size of the codistributor2dbc object, specified as a positive integer. This property is the ScaLAPACK block size associated with the codistributor2dbc object.

Orientation — Orientation of codistributor2dbc object

'row' (default) | 'col'

Orientation of the codistributor2dbc object, specified as one of these values:

• 'row' – Row orientation

• 'col' – Column orientation

Data Types: char

Object Functions

codistributed.cell	Create codistributed cell array
codistributed.colon	Distributed colon operation
codistributed.spalloc	Allocate space for sparse codistributed matrix
codistributed.speye	Create codistributed sparse identity matrix
codistributed.sprand	Create codistributed sparse array of uniformly distributed pseudo-random values
codistributed.sprandn	Create codistributed sparse array of normally distributed pseudo-random values
codistributor2dbc.defaultWorkerGrid	Default computational grid for 2-D block-cyclic distributed arrays
eye	Create codistributed identity matrix
false	Create codistributed array of logical 0 (false)
globalIndices	Global indices for local part of codistributed array
Inf	Create codistributed array of all Inf values
isComplete	True if codistributor object is complete
NaN	Create codistributed array of all NaN values
ones	Create codistributed array of all ones
rand	Create codistributed array of uniformly distributed random numbers
randn	Create codistributed array of normally distributed random numbers
sparse	Create codistributed sparse matrix
true	Create codistributed array of logical 1 (true)
zeros	Create codistributed array of all zeros

Examples

Create Codistributed Array with Distribution Scheme

Use a codistributor2dbc object to create an N-by-N matrix of ones.

N = 1000;
spmd
    codistr = codistributor2dbc;
    D = ones(N,codistr);
end

Fully Specify codistributor2dbc Object and Create Codistributed Array

Use a fully specified codistributor2dbc object to create a N-by-N codistributed matrix from its local parts.

N = 1000;

Use the default values for the worker grid and block size, and specify the orientation and the grid size of the worker grid.

spmd
    codistr = codistributor2dbc(...
                 codistributor2dbc.defaultWorkerGrid, ...
                 codistributor2dbc.defaultBlockSize, ...
                 'row',[N,N]);
end

Use the globalIndices method on the codistributor object to get the global indices for the local part of the codistributed array before creating the array itself. Use length to get the length of the largest global index and set it as the size of the local part of the codistributed array. Create the codistributed array with the codistributed.build function.

spmd
    myLocalSize = [length(globalIndices(codistr,1)), ...
                   length(globalIndices(codistr,2))];
    myLocalPart = spmdIndex*ones(myLocalSize);
    D = codistributed.build(myLocalPart,codistr);
end

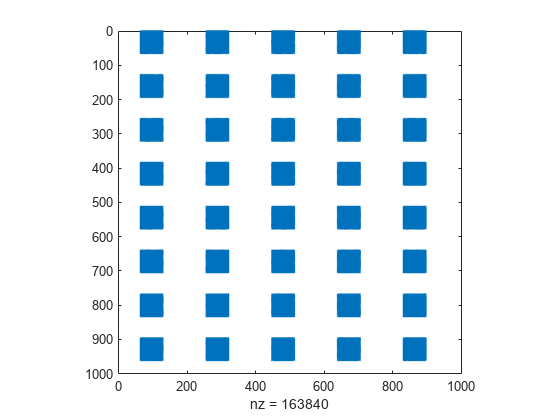

Then use the spy function to visualize which elements are stored on worker 2.

spy(D==2)

The sparsity pattern shows the distribution of the elements of array D stored on worker 2.

Version History

Introduced in R2009b
